Restore Your Vehicle's Electrical Integrity with 13502751 5-Pin Relays

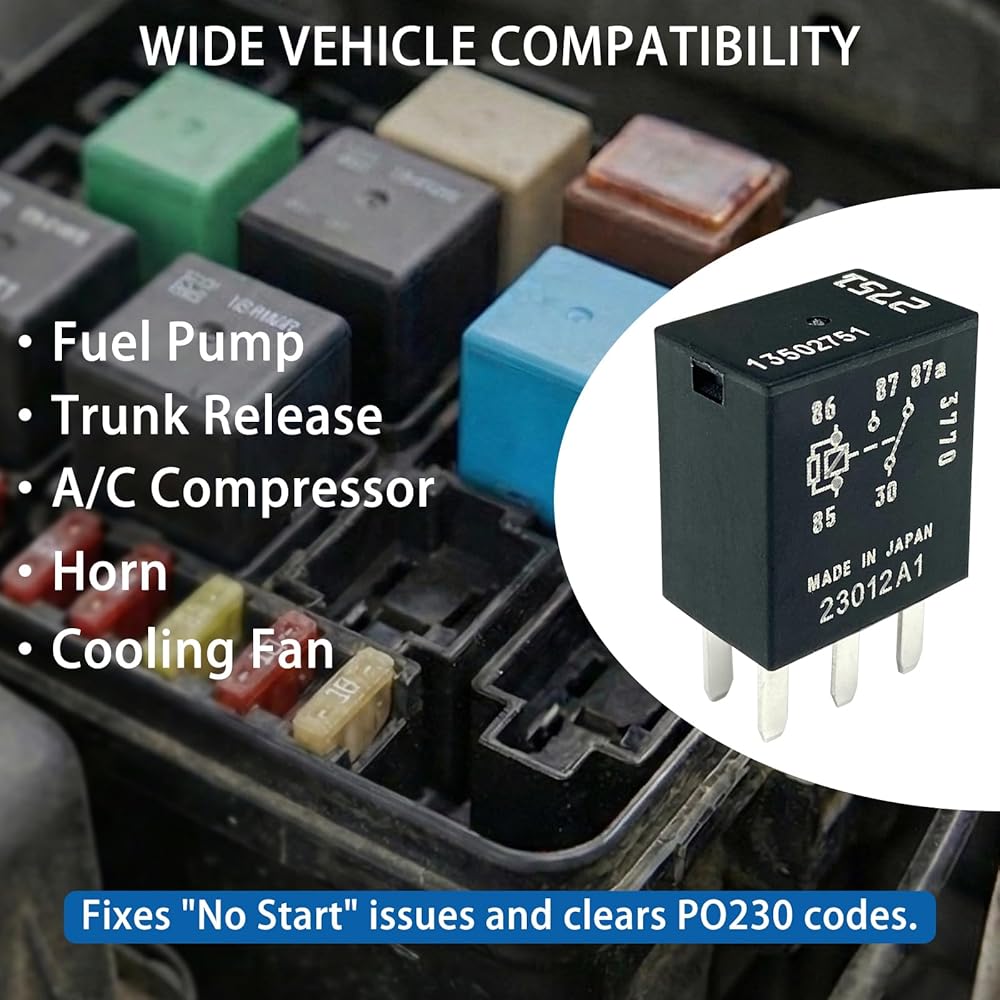

When your vehicle's electrical components—like the trunk release or fuel pump—start acting intermittently, a failing relay is often the culprit. Our 13502751 5-pin micro relays are designed to provide the precise switching needed for modern automotive systems.
Professional Technical Specifications:

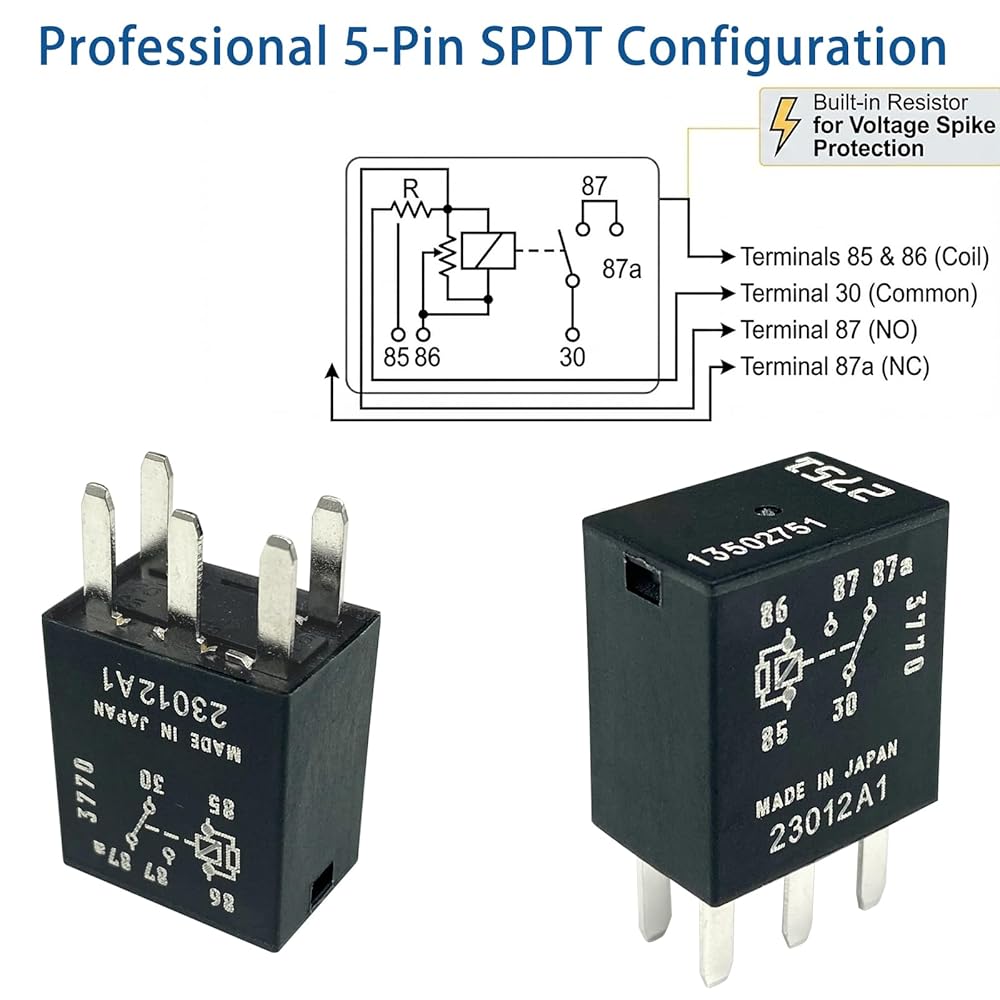

Pin Configuration: 5-Pin (Terminals 30, 85, 86, 87, 87a)
Type: SPDT (Single Pole Double Throw)
Voltage: 12V DC
Feature: Internal Resistor Protection (Voltage Spike Suppression)
Why 5-Pin Matters? The 5-pin SPDT design allows this relay to switch power between two different circuits (normally open and normally closed). This makes it more versatile than 4-pin versions, covering systems like door locks and wipers that require complex switching logic.
FAQ:
Q: Can I use this 5-pin relay to replace a 4-pin relay?
A: Generally, a 5-pin relay can replace a 4-pin relay if the pin layout matches (the 5th pin just won't be used), but a 4-pin relay CANNOT replace a 5-pin one. Always check your fuse box diagram.
Q: How do I read the diagram on the relay?
A: Terminals 85 & 86 power the coil; 30 is the common power source; 87 is the Normally Open (NO) output, and 87a is the Normally Closed (NC) output.
