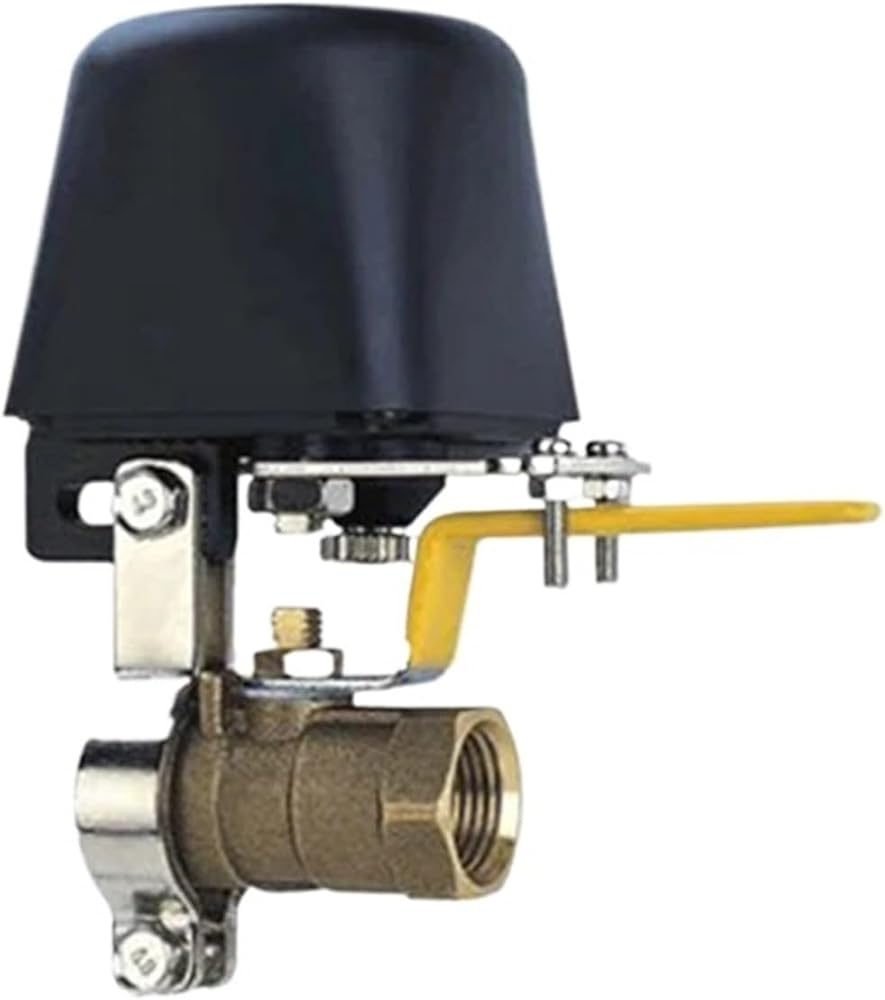

Valves
Working environment:-10-50
Rated voltage:DC12V
Working voltage:DC6V-18V
Rated current:100mA
Working current:20mA-1000mA
Rated power:1.2W
Working power:0.24W-10W
Valve pressure:1.6MPa
Insulation resistance:>20M
Torque:30-60kg.cm
Valve closing time:5-10S
Valve opening time:5-10S
==========
High-concerned chemical : None
Actuator Mode : With Manual And Instruction
Structure : control
Port Size : DN15 DN20
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Power Source : DC
