Check Valves
Specifications:
Material: Brass
Voltage: 12V DC / 24V DC / 220V AC
Nominal diameter: G1/2" / G3/4''
Water pressure: 0.02-0.8Mpa
Ambient temperature: 0 to 40 ° C
2. Type and rated technical parameters
Type: guide (one-way) solenoid valve
Rated voltage: 12V
Working mode: short-time quota system (intermittent duty cycle)
Use of fluid: (0-55 ° C) water
Use water pressure: 0.02-0.8Mpa
3.Water flow characteristics
Water pressure (Mpa): 0.02, 0.1, 0.3, 0.8
Flow (L/min): > 5 >11 >18 >32
Nominal diameter: 4 points double thread, outlet diameter 13 (mm)
Life: > 100,000 times
Package Included:

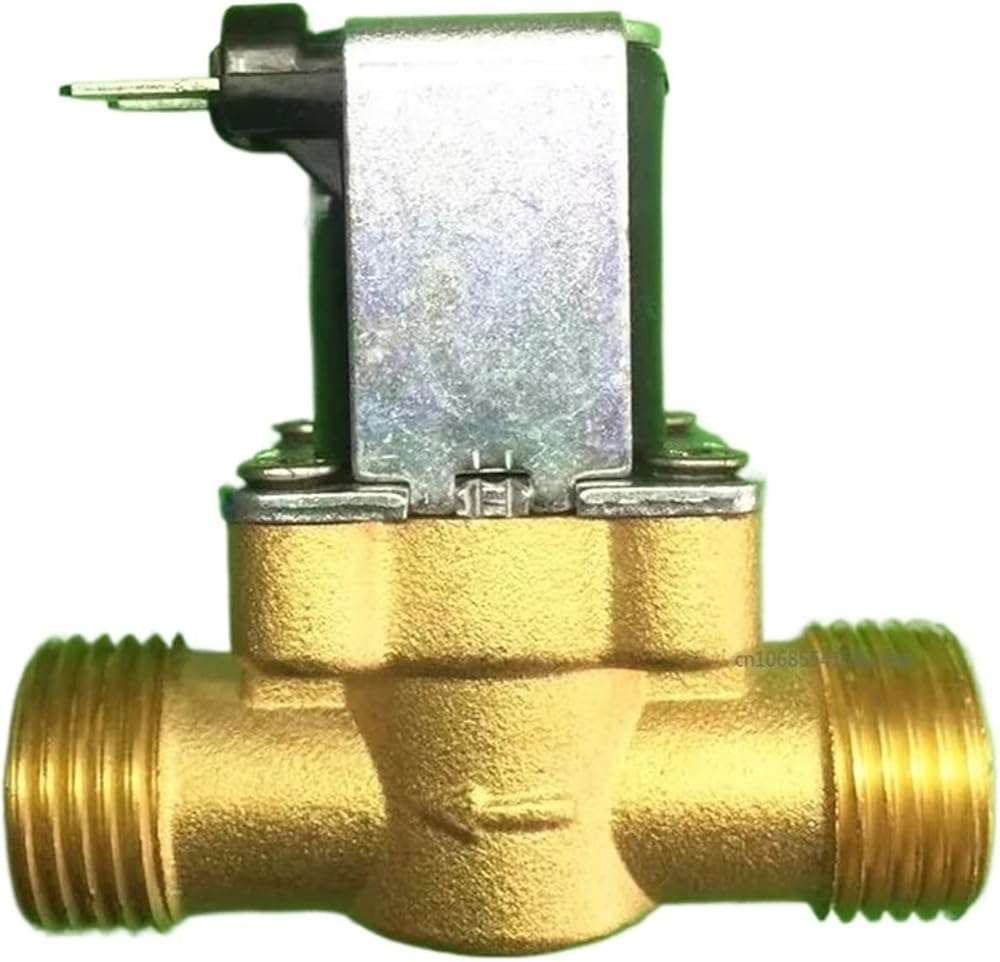

1 x Electric Solenoid Valve
High-concerned chemical : None
NC or NO : Normally Closed
Structure : Shutoff
Port Size : External thread 4 points
Pressure : Low Pressure
Model Number : Normally Closed
Power Source : DC
Is Smart Device : No
