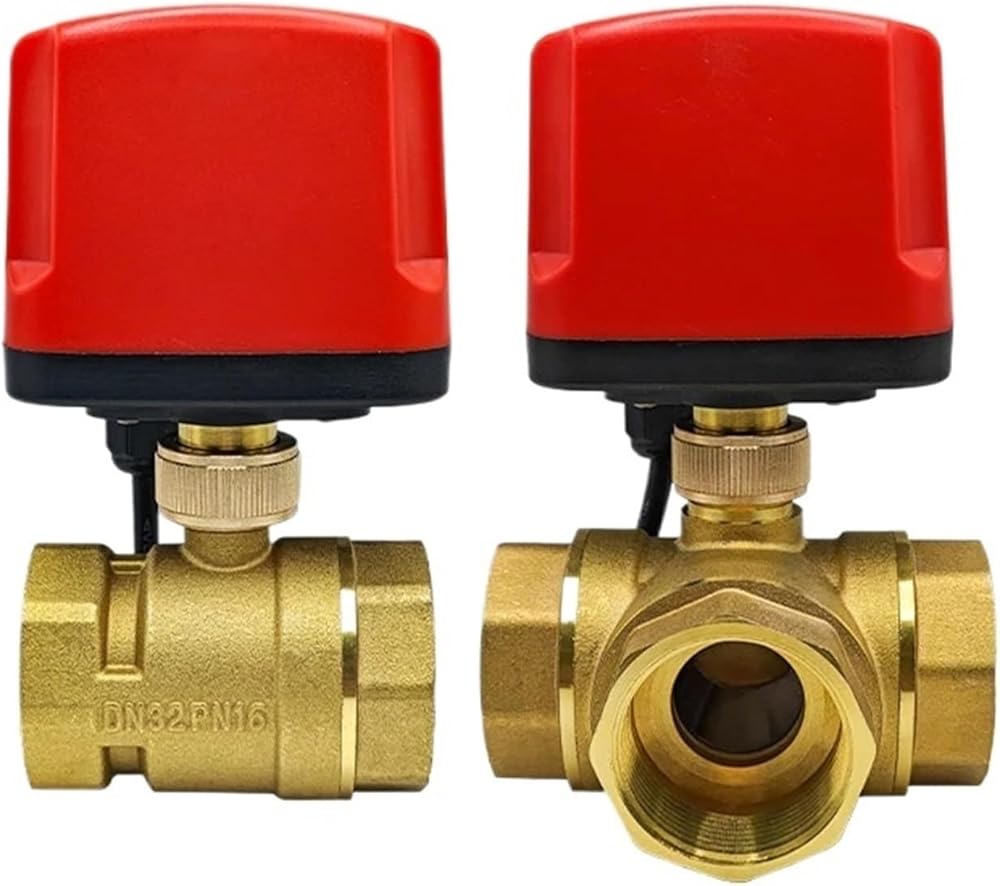

Valves
Way: Two way/Three way (three way is T type)
Driving voltage: AC220V, DC24V, DC12V, 50/60Hz
Power: 6W (only when the valve is opened and closed)
Waterproof level:IP65
Drive torque: AC220V 8 N.M, DC12/24V 6 N.M
Running Time: 5-15s
Nominal pressure: 1.6 MPa
Applicable medium temperature: 0-95
Applicable ambient temperature: 0-65
Lead length: 30 CM
Connection method: G internal thread
Structure : Ball
Port Size : DN15(1/2"),DN20(3/4"),DN25(1"),DN32(1-1/4"),DN40(1-1/2"),DN50(2")
Media : Water
Material : Brass
Standard or Nonstandard : Standard
Power Source : AC
Body material : Brass
Wiring mode : Three-Wire two-control Three-Wire one-control
Structure Forms : Two-Way/Three-Way
Driving voltage : 220VAC, 24VDC, 12VDC
Power consumption : 6 W (only when the valve is opened and closed)
Applicable medium temperature : -10-100
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : G female thread
