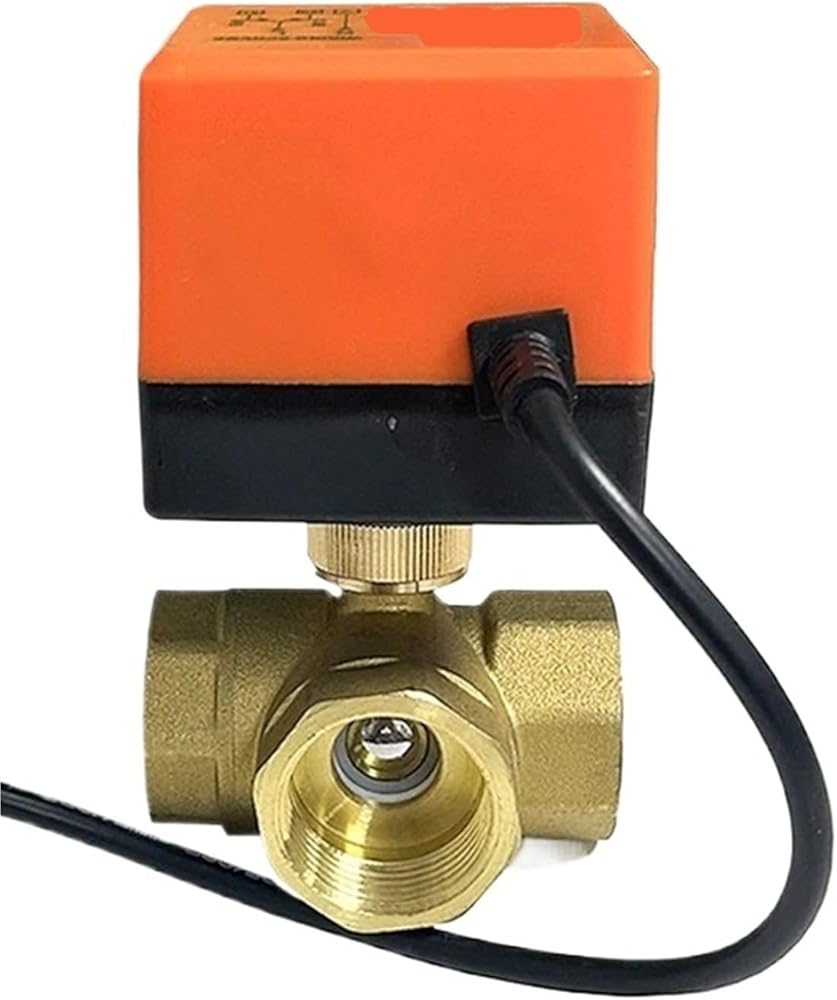

Check Valves
Specification
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Three Ways,
Operation Mode: 3-Wire 2-Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 8-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 8 N.M, DC12/24V 6 N.M
Waterproof level:IP54
T Type:
1.When the L pick the Blue line,A and B connected,C is blocked.
2.When the L pick the Blue line,A and C connected,B is blocked.
L Type:
1.When the L pick the Blue line,B and C connected,A is blocked.
2.When the L pick the Blue line,A and C connected,B is blocked.
High-concerned chemical : None
Structure : Ball
Media : Water
Material : Brass
