Valves
1, RD connect DC9-24V positive
2, BK connect DC9 ~ 24V (4-20mA-/0-5V-/0-10V) negative
3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)
4, YW connect LED light (between 9-24V), when there is error, the light will be ON.
5, WT connect position feedback, OC output PWM signal
PWM frequency:0-100Hz, duty: 5-95%
Specifications:

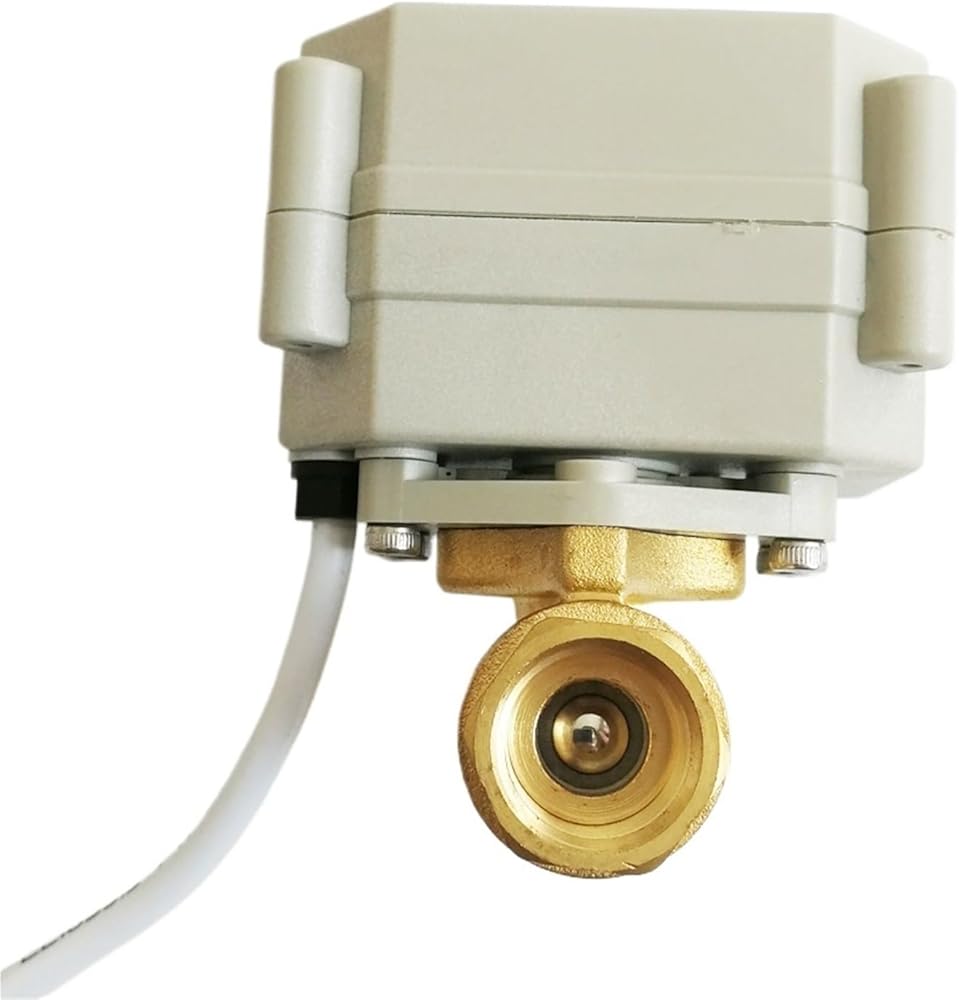

Product Model: TFM8-B2-C / TFM8-S2-C / TFM10-B2-C / TFM10-S2-C
Product size: 1/4" or 3/8'' (DN8 or DN10)
Valve Thread: BSP or NPT (Optional)
Valve Body Material: Brass / Stainless Steel 304 (Option)
Working Voltage: DC9V-24V
Control Signal: 0-5V, 0-10V, 4-20mA (Optional)
Position: Any position
Angel Eurro: +-1.6 Degree
Open/close Time: 7 Sec
Locked-rotor delay time: 2-4 sec
Wiring Control Methods: 5 wires
Maximum Working Pressure: 1.0MPa
Working Current: 500MA
Life time: 100,000 times
Actuator Material: PPO
Sealing Material: FKM & PTFE
Actuator Rotation 90
Max. Torque Force: 2 N.M
Cable Length: 0.5m
Environment Temperature: -15°~60°
Liquid Temperature: 1°~95°
Manual Override: None
Open/Close Indicator: Yes
Protection Class: IP67

High-concerned chemical : None
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : 1/4'' or 3/8'' (DN8, DN10)
Media : Water
Material : Brass
Temperature of Media : 1-95 Degree C
Power : DC Power
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : TFM8-B2-C / TFM10-B2-C
Power Source : DC
Control Singal : 0-5V or 0-10V or 4-20mA
Gear Material : Metal Gear
Maximum Pressure : 1.0Mpa
Protection Class : IP67
