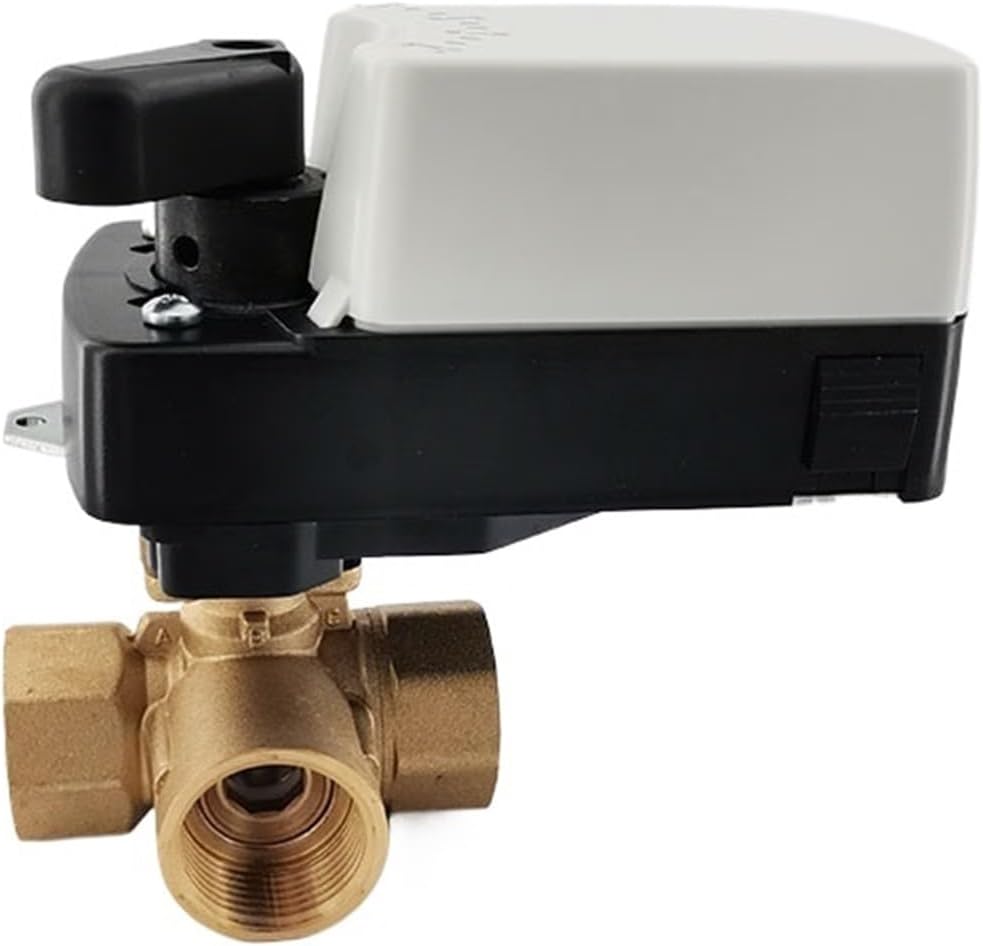

DN25 G1" 6Nm 0-10V 4-20mA Control Motor Electric Ball Valve 3 Way Mixing Flow AC220V ADC24V
Volatage: AC220V /ACDC24V Optional
4-20mA / 0-10Vcontrol optional

Technical data
Temperature of medium: -15°C...95°C
Max. temperature : 150 °C
Rated pressure: PN20
Pipe connector: internal thread
Ambient temp. range: 5+60°C;090%RH Size: 1''
Valve type: 3-way
Flow characteristic: equal percentage
Material
Valve body: forged brass
Seal: PTFE
Ball: SS304
Shaft: brass
Actuator:
Proportional (4-20mA) / (0-10V)
Output torque: 6N.m Angle of rotation: 90°
Manual handle Automatic overload protection system
Protect rank: IP54 Operation time: 35-40S
Dimensions
4-20mA / 0-10V Wiring:

High-concerned chemical : None
Structure : Ball
Port Size : G1"
Media : Water
Material : Brass
Temperature of Media : High Temperature
Power : electric
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Max temperature : 150°C
Volatage : AC220V / ACDC24V
Working pressure : 2.0Mpa
Torque output : 6NM
Open/close time : 35 sec
Control : 4-20mA / 0-10V
