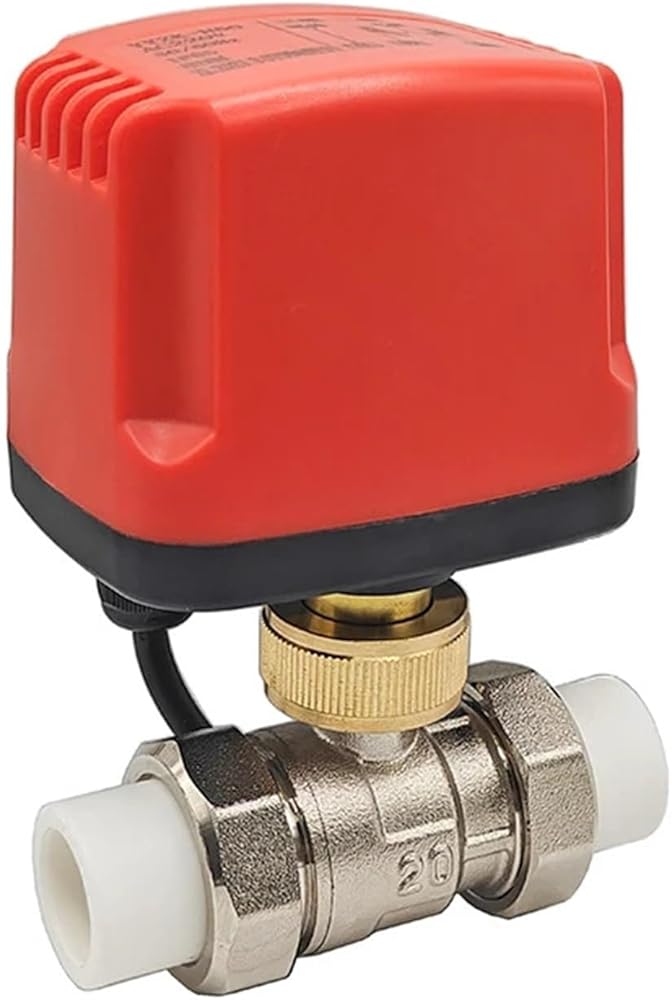

Two-Way Motorized Ball Valve Hot Melt Double Union PPR20/25/32/40/50 2-Wire/3-Wire Electric Water Valve 12V 24V 220V CR02

Specification
material: Brass,flame-retardant PC material
Control method: CR02(Three wire two control),
Driving voltage: AC220V, DC24V, DC12V, 50/60Hz
Power: 6W (only when the valve is opened and closed)
Waterproof level:IP65
Drive torque: AC220V 8 N.M, DC12/24V 6 N.M
Running Time: 5-15s
Nominal pressure: 1.6 MPa
Applicable medium temperature: 0-95
Applicable ambient temperature: 0-65
Lead length: 30 CM
Connection method: Hot melt connection
Hot melt temperature: 260°C

High-concerned chemical : None
Structure : Ball
Port Size : PPR20/25/32/40/50
Media : Water
Material : Brass
Temperature of Media : Normal Temperature
Standard or Nonstandard : Standard
Model Number : PPR Motorized Ball Valve

Body material : Brass
Wiring mode : Three wire two control, Three-wire one-control, Two-wire power-off reset one-control
Structure Forms : Two-Way
Driving voltage : 220VAC, 24VDC, 12VDC
Power consumption : 6 W (only when the valve is opened and closed)
Applicable medium temperature : -10-100
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
Connection method : hot melt connection
Hot melt temperature : 260
