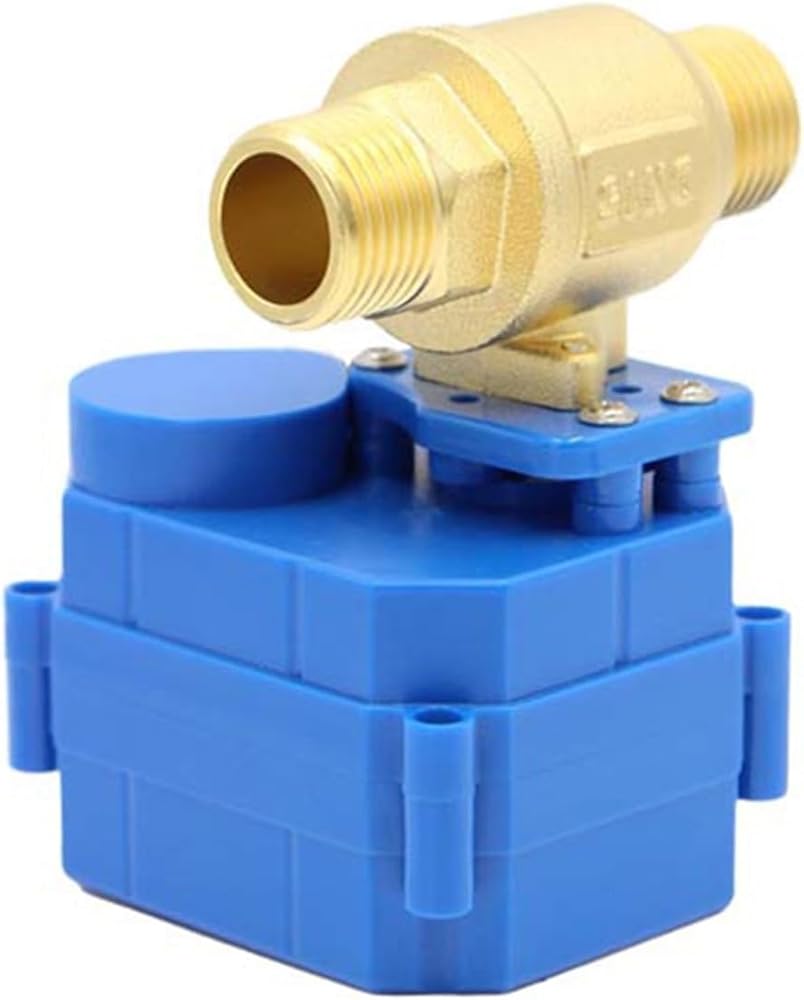

2 way DN15 G1/2 MxM Brass Electric Ball Valve DC9-24V DC5V AC220V

Specification :
Product size :G1/2" DN15
Maximum working pressure : 1.0Mpa
rated voltage :DC9-24V DC5V AC220V optional
Wiring Control Methods :LH-W621 / LH-W622 optional
Max.working current : 100mA
Product life:100,000 times
Valve body material :Brass
Actuator Material : engineering plastics
Seal Material : EPDM y PTFE
Rotation of actuator : 90degree
Max.Torque output:6 n. m
Medium temperature: 0-90°C
Manual override :NO
Protection class : IP65

High-concerned chemical : None
NC or NO : Normally Closed
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : G1/2"
Media : Water
Material : Brass
Temperature of Media : Medium Temperature
Power : Electric
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Power Source : DC
Operating temperature : 0-90°C
Volatage : DC9-24V DC5V AC220V
Working pressure : 1.0mPa
Torque output : 2NM
Open/close time :
