Valves

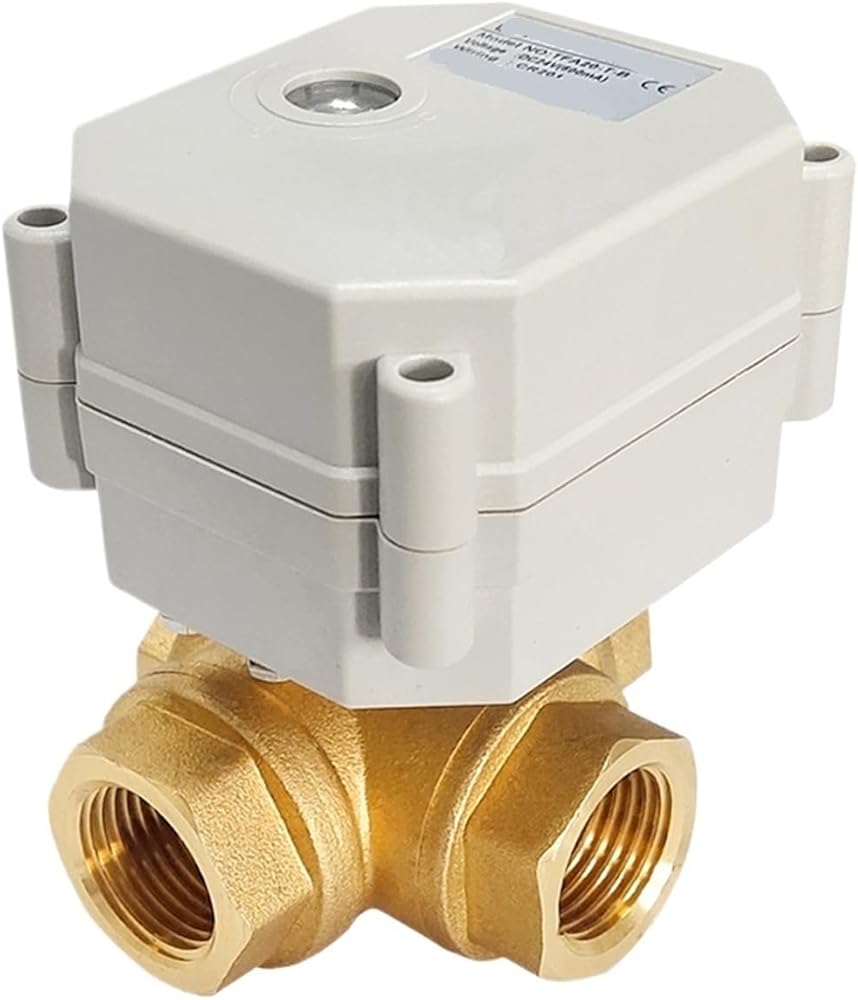

Product Model:TF15-BH3-C
Product size: 1/4", 3/8", 1/2" (DN8, DN10, DN15)
Valve Thread: BSP or NPT
Valve Body Material:Brass
Working Voltage:AC110V to 240V
Open/close Time:5Sec
Maximum Working Pressure:1.0MPa
Working Current:500MA
Actuator Material:Engineering Plastics
Sealing Material:EPDM &PTFE
Actuator Rotation90
Max Torque Force:3N.M
Cable Length:0.5m
Environment Temperature:-15°~50°
Liquid Temperature: 0°~95°
High-concerned chemical : None
Actuator Mode : With Instruction
Structure : Ball
Port Size : DN8/10/15
Media : Water
Material : Brass
Temperature of Media : 1-95 degree C
Standard or Nonstandard : Standard
Pressure : Max 1.0Mpa
Model Number : TF15-BH3-C
Power Source : AC
Is Smart Device : No
voltage : AC110V to 230V
wires : 2 wires or 5 wires
function : Power Off Return
torque : 3 Nm
on/off time : 5sec
valve type : 3 way horizontal L type or T type
valve thread : BSP or NPT
gear material : metal gear
