Application:
For 1969 Dodge D100 Pickup 3.7L
For 1968 Dodge D100 Pickup 3.7L
For 1967 Dodge D100 Series 3.7L
For 1966 Dodge D100 Series 2.8L
For 1966 Dodge D100 Series 3.7L
For 1965 Dodge D100 Series 2.8L
For 1965 Dodge D100 Series 3.7L
For 1964 Dodge D100 Series 2.8L
For 1964 Dodge D100 Series 3.7L
For 1963 Dodge D100 Series 2.8L
For 1963 Dodge D100 Series 3.7L
For 1962 Dodge D100 Series 2.8L
For 1962 Dodge D100 Series 3.7L
For 1961 Dodge D100 Series 2.8L
For 1961 Dodge D100 Series 3.7L

This Radiator Size:
4 Row of tubes Core Racing Design
Tank Material: AA5052 Aluminum
Core Material: AA5052 Aluminum
Overall Height: 25 7/8"
Overall Width: 29 7/8"
Core Height: 20 3/8"
Core Width: 21 1/8"
Inlet Location: Off-Set Passenger
Inlet Diameter: 1 1/2"
Outlet Location: Passenger
Outlet Diameter: 1 1/2"
Transmission Oil Cooler forting Type: 1/8-27NPT

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"

Thermostat Kit:
Work with any 12 volt system.
Universal for for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

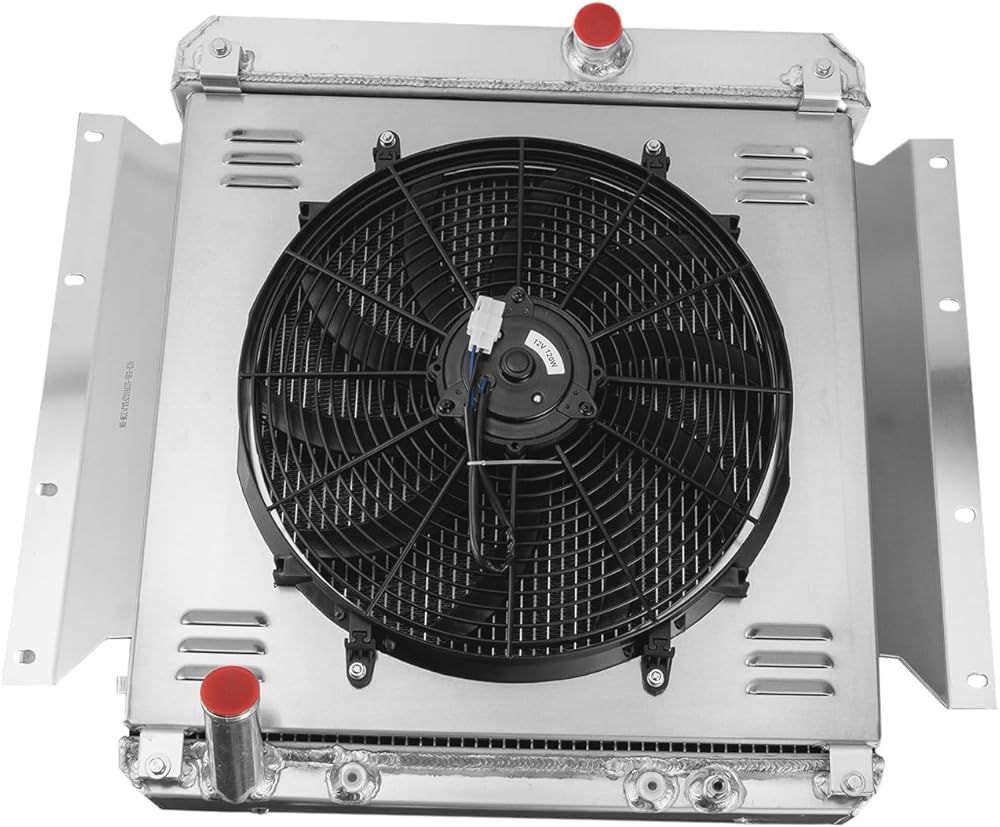

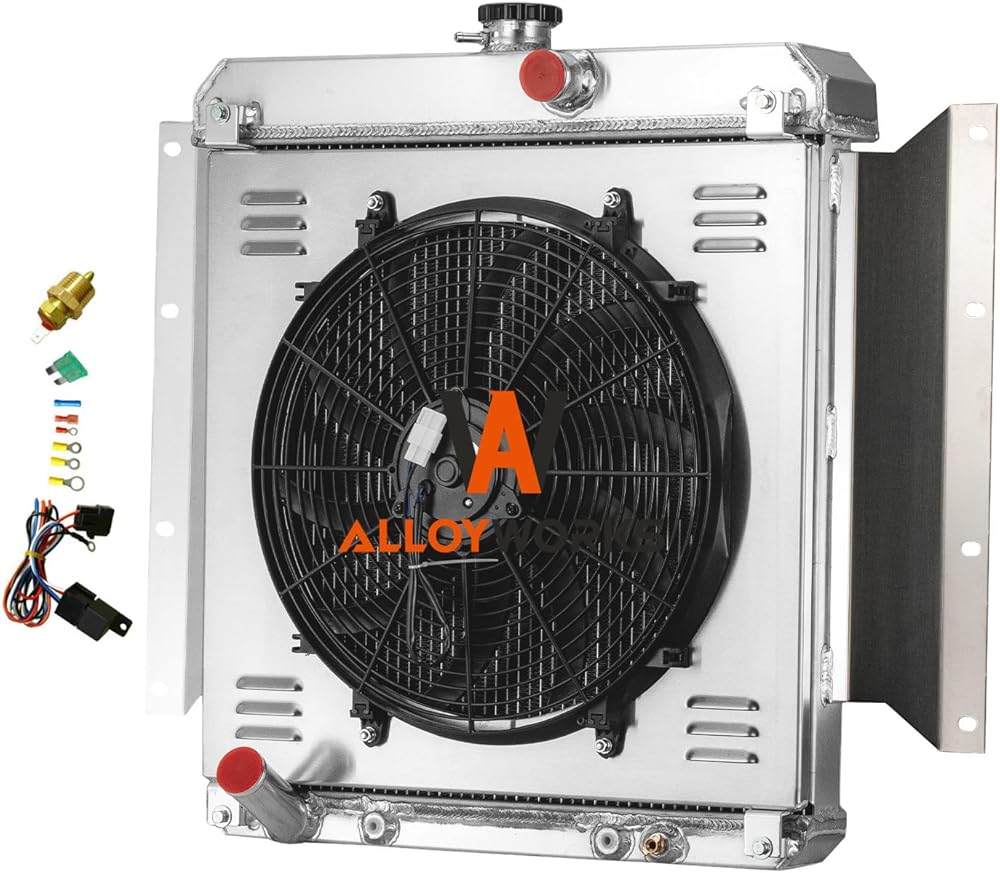

Package Include:

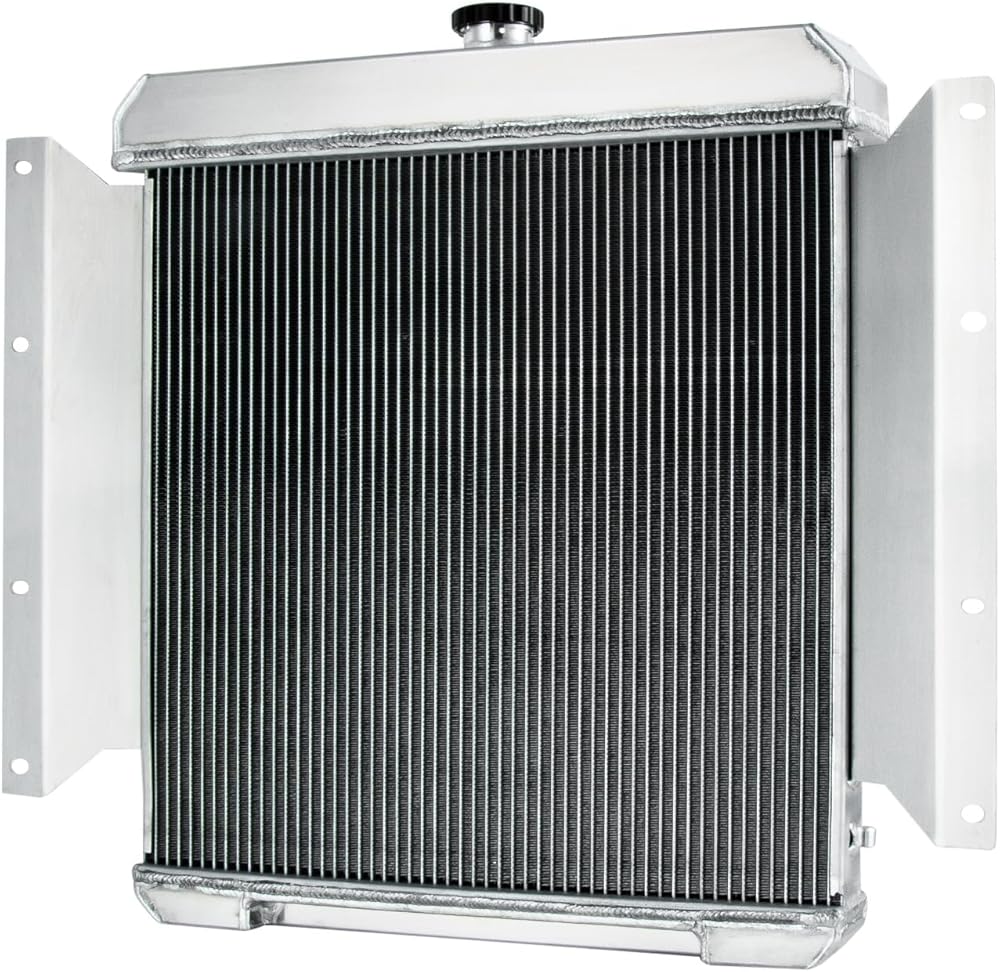

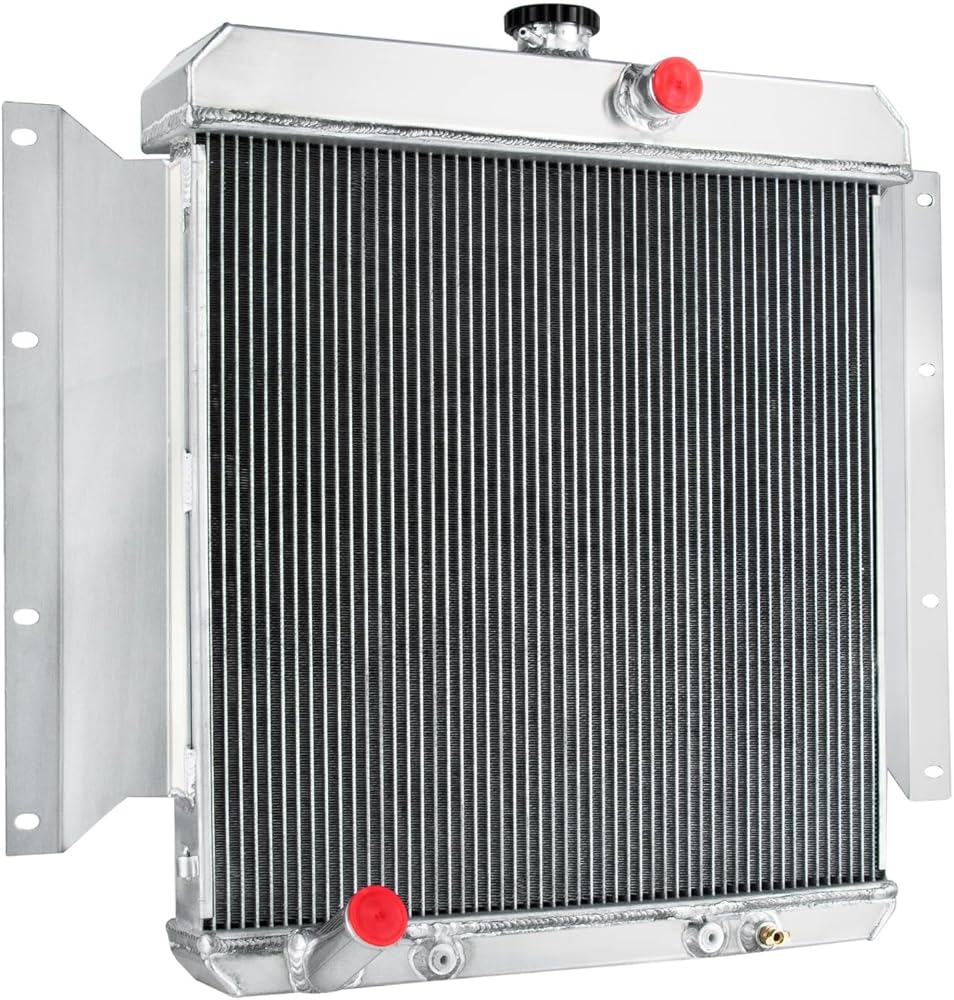

1 X 4 Row AA5052 Aluminum Radiator

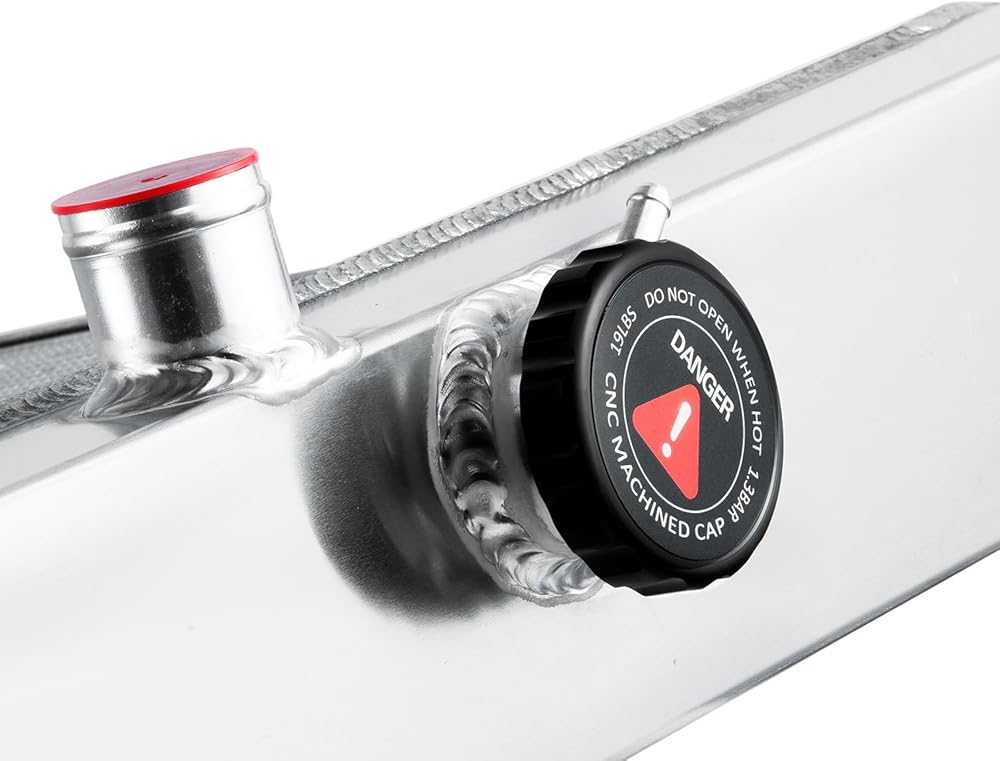

1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
