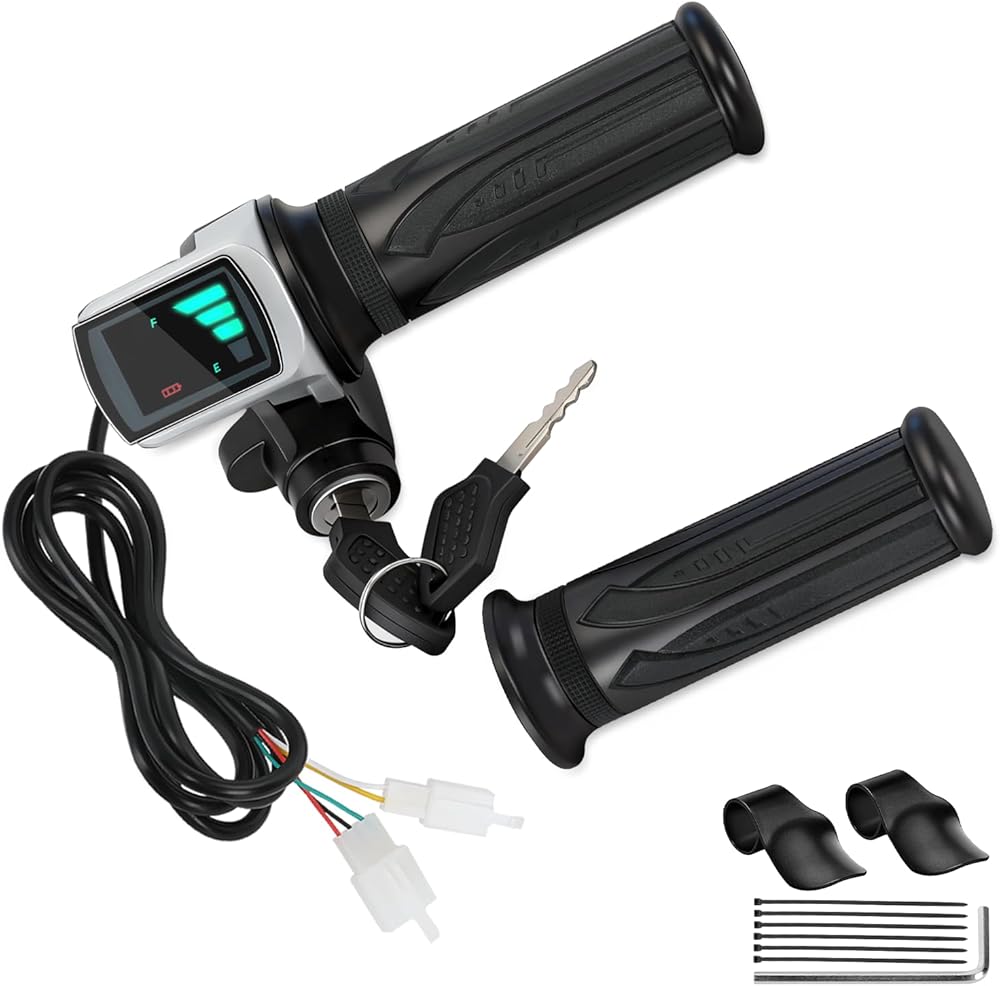

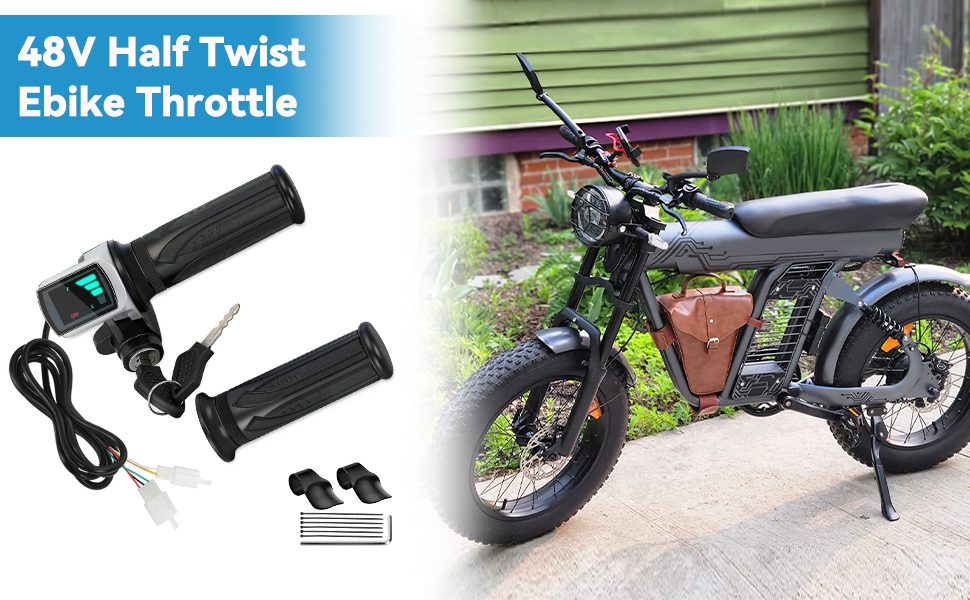

EOPOAYI 48V Half Twist Throttle Ebike with Ignition Key Lock and LED Display Replacement for Electric Bike Motorcycle Electric Scooter, 3 Pin E Bike Throttle Grip for Mountain Bike Bicycle Parts

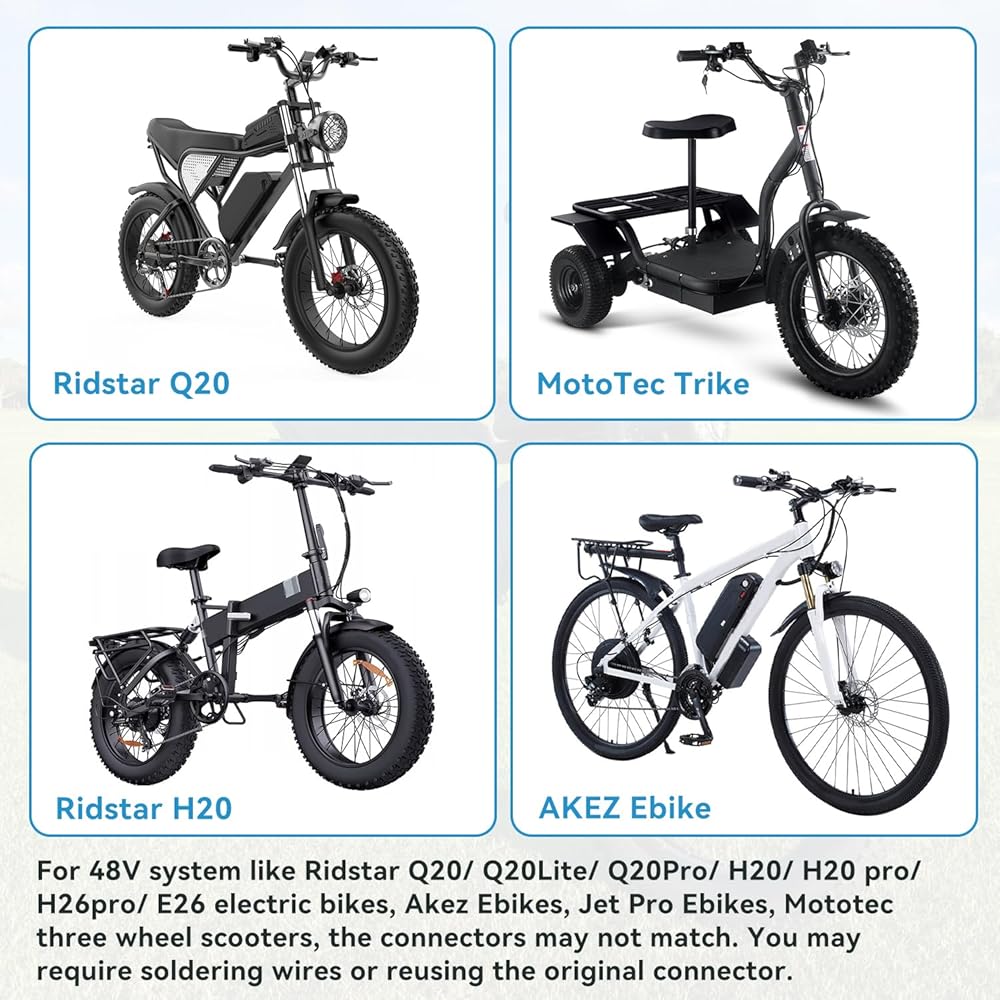

Compatibility: The 48V ebike throttle with key is compatibile with 48V electric bike, electric scooter, motorcycle, mountain bike, bicycle. Although it will provide throttle control on 36V or 24V systems, the power display will not work. (Note: For Ridstar Q20/ Q20Lite/ Q20Pro/ H20/ H20 pro/ H26pro/ E26 electric bikes, A-kez ebikes, Jet Pro Ebikes, Moto-tec three wheel scooters, the connectors may not match. You may require soldering wires or reusing the original connector)

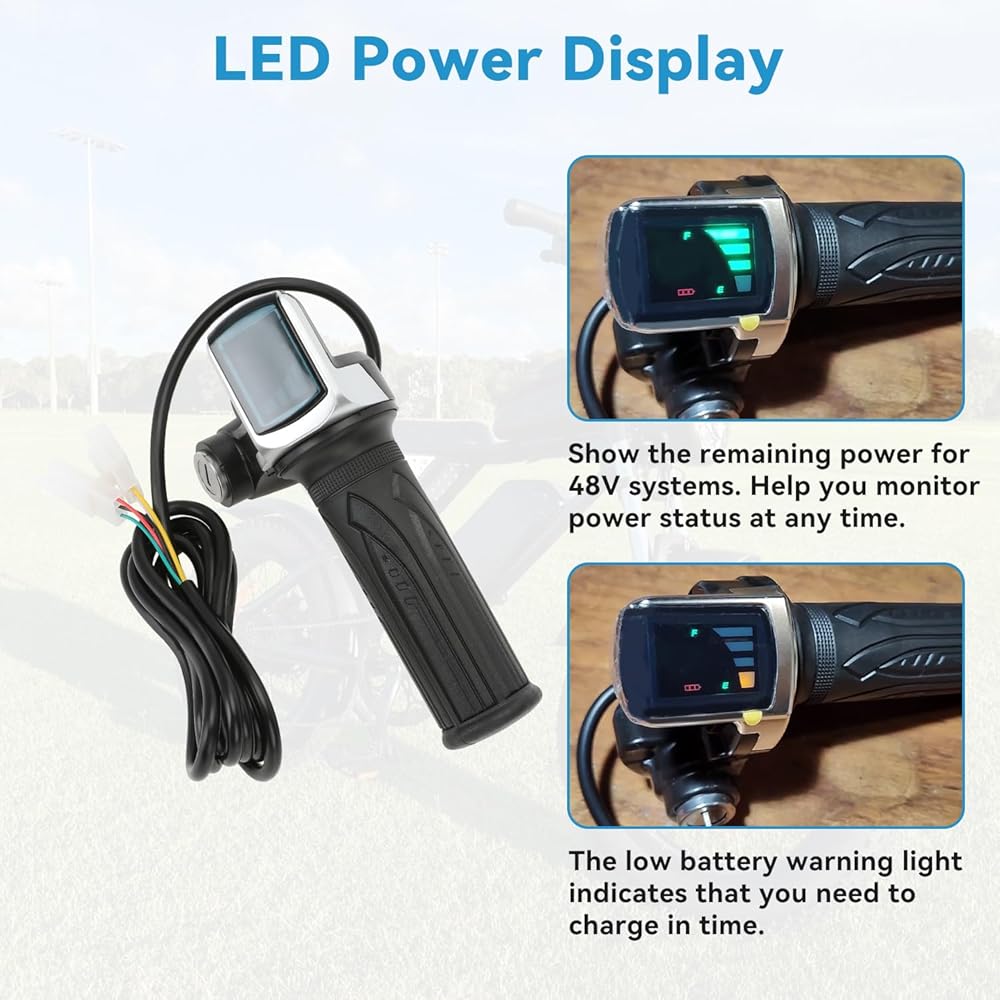

LED Power Indicator: 3 pin ebike throttle is equipped with the LED display screen, which can clearly show the remaining power for 48V systems and help you monitor power status at any time. The low battery warning light also indicates that you need to charge in time

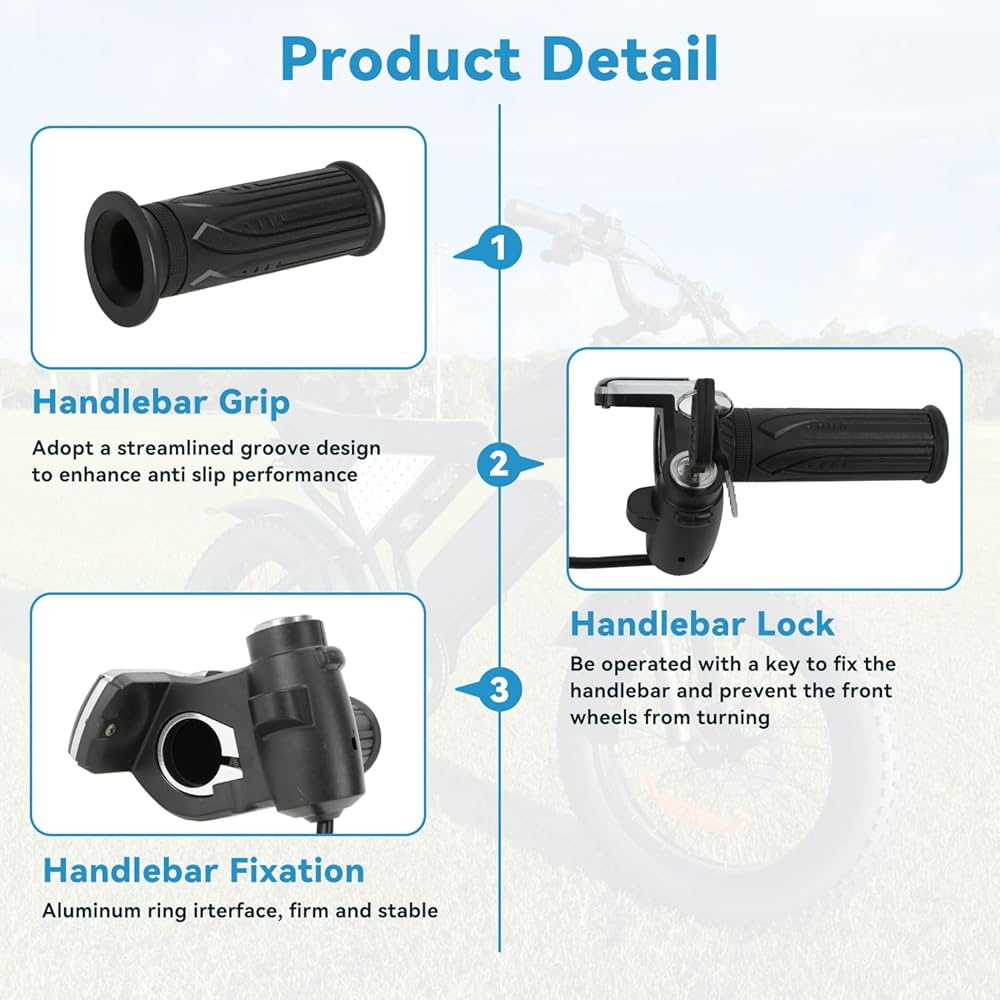

Ignition Key Lock: The e bike throttle is equipped with handlebar lock. When inserting the key, the battery display screen will light up. Then gently twist the handle to start the vehicle. Handlebar locking also can be operated with a key to fix the handlebar and prevent the front wheels from turning, helping you guard against theft. If the display screen continues to light up after removing the key, it indicates a wiring error

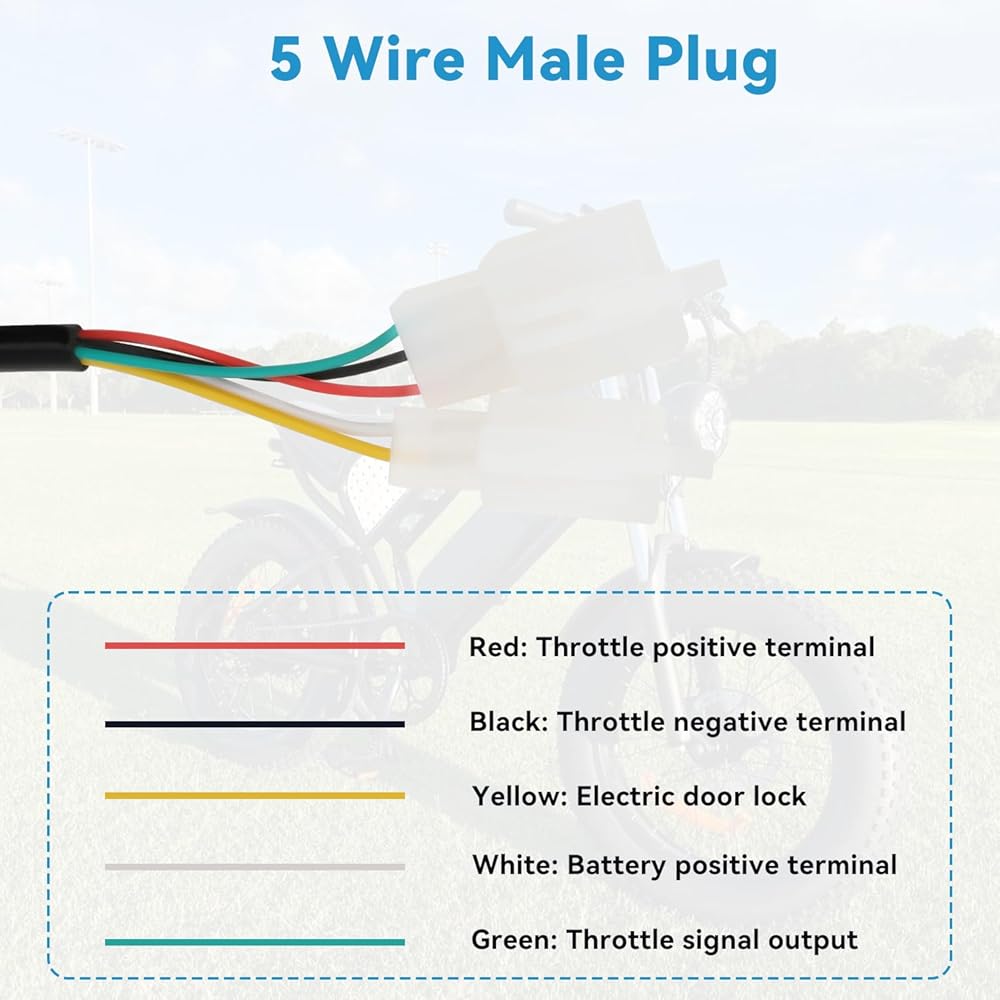

3 Pin E Bike Throttle: Our 48V ebike throttle with display uses standard 3-pin connector. Red line is throttle positive terminal, black line is throttle negative terminal, green line is throttle signal output. Be sure to turn off the power before wiring. All three throttle wires must be connected simultaneously during power on. Separate connection may damage the circuit board. (Note: If your vehicle lacks battery wiring, your controller must be pre installed with a display connector)

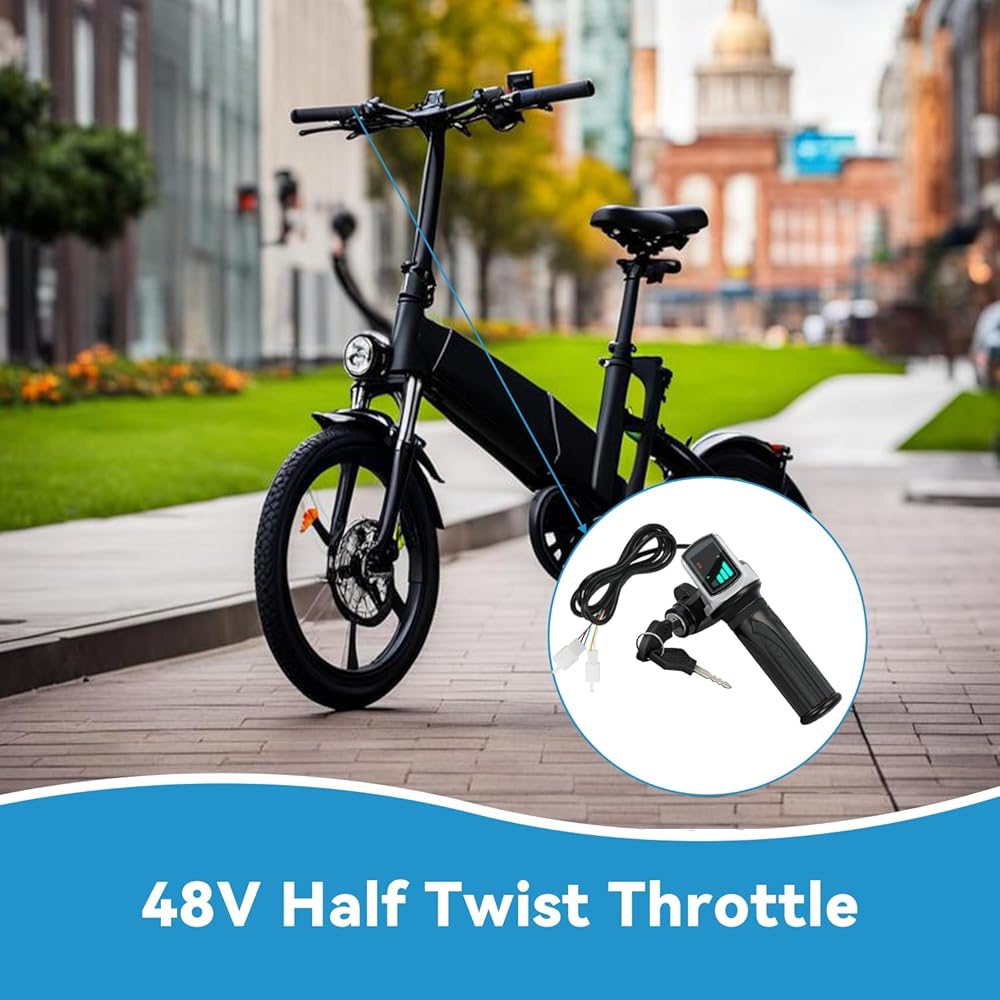

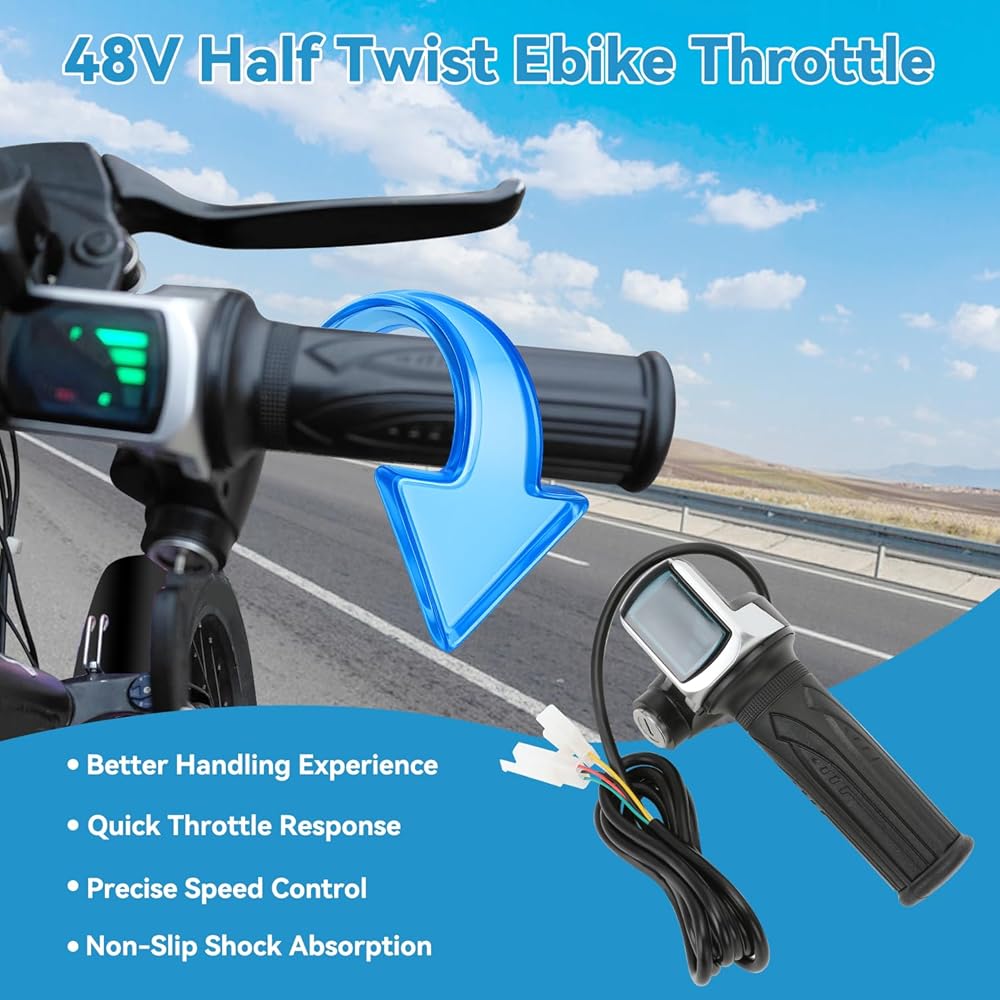

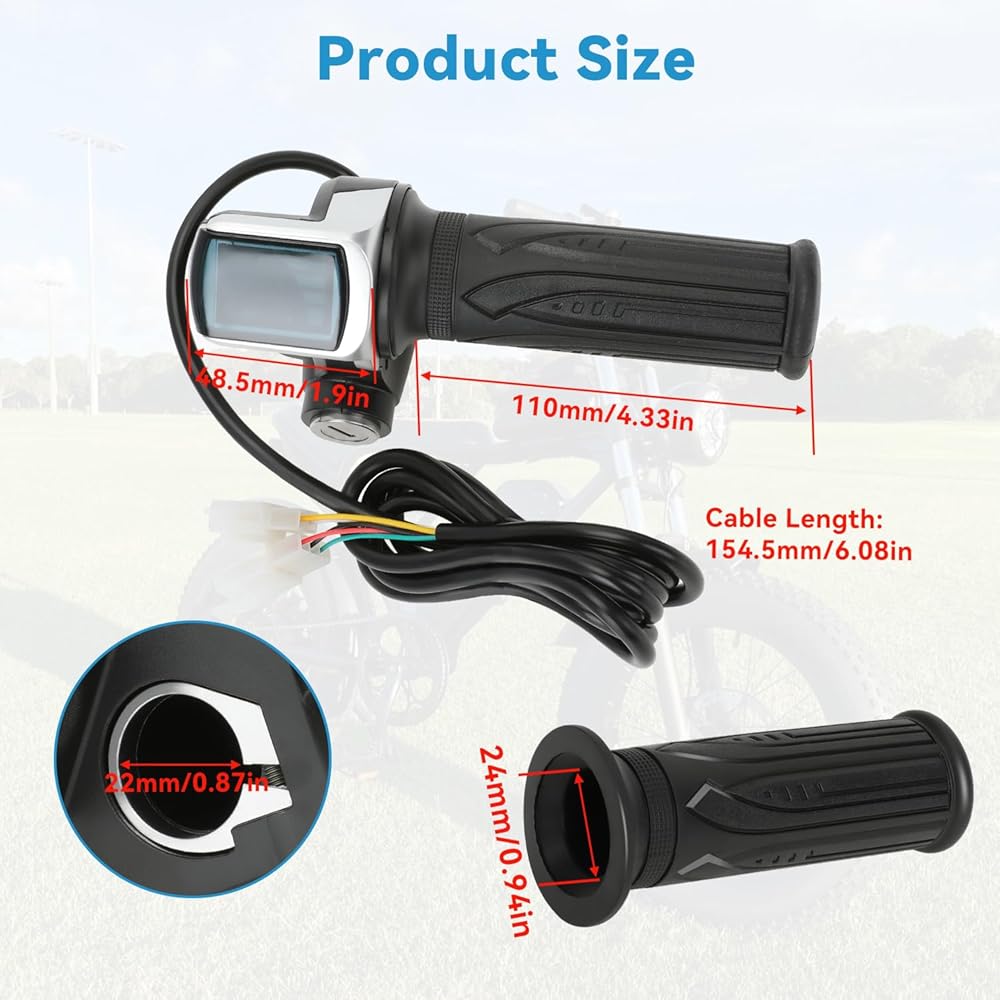

Handlebar Grip: The 48V electric bike throttle is half twist throttle, not full twist throttle or thumb throttle. The inner diameter of handlebar grip is 7/8 inch 22mm. Half twist throttle grips adopt a streamlined groove design, which enhances anti slip performance and can alleviate hand fatigue during long-term riding

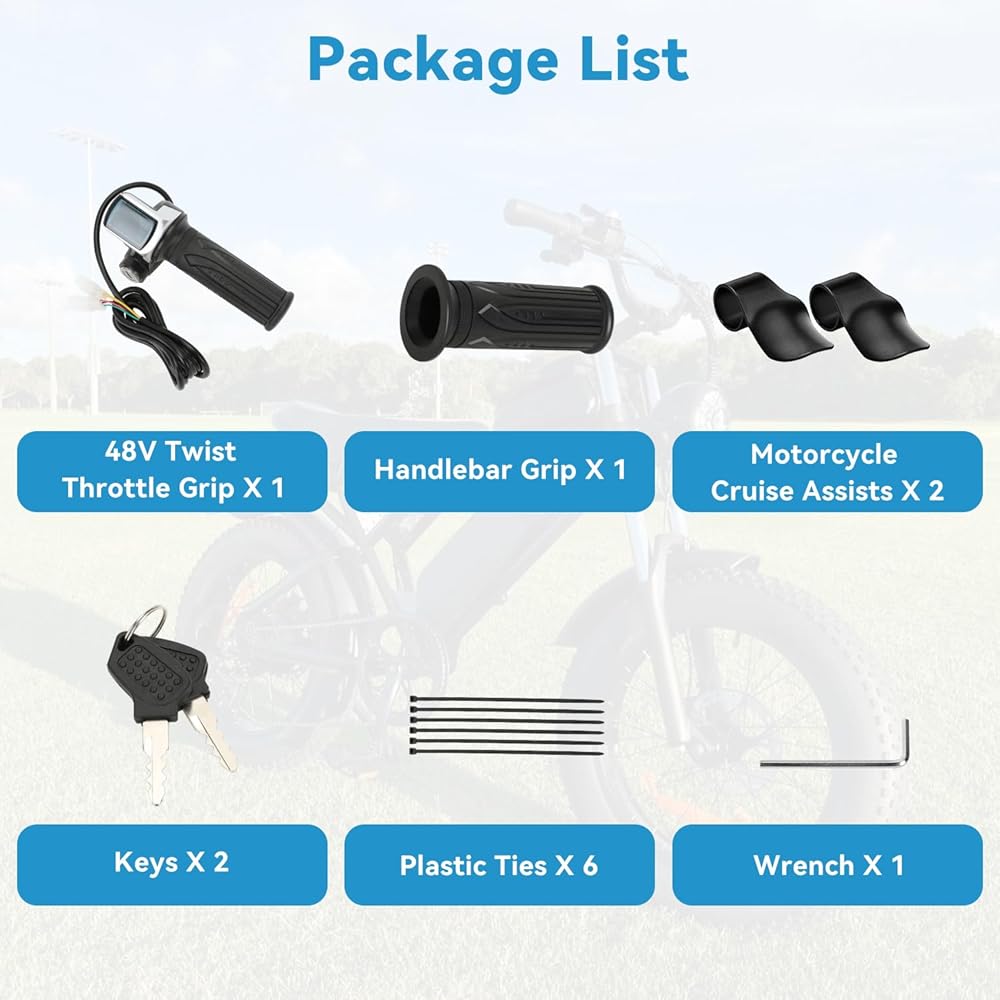

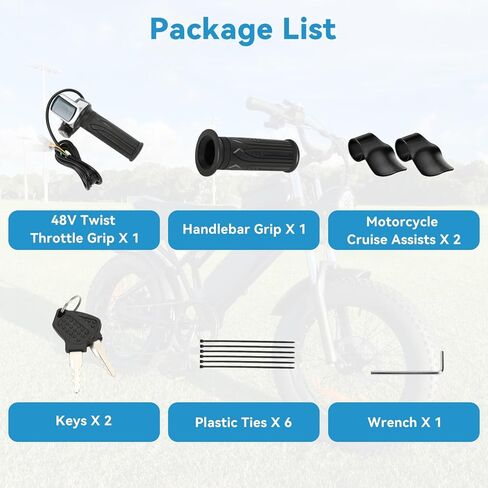

Package List: 1 X Ebike Throttle 3 Pin, 1 X Handlebar Grip, 2 X Motorcycle Cruise Assists, 2 X Keys, 6 X Plastic Ties, 1 X Wrench
