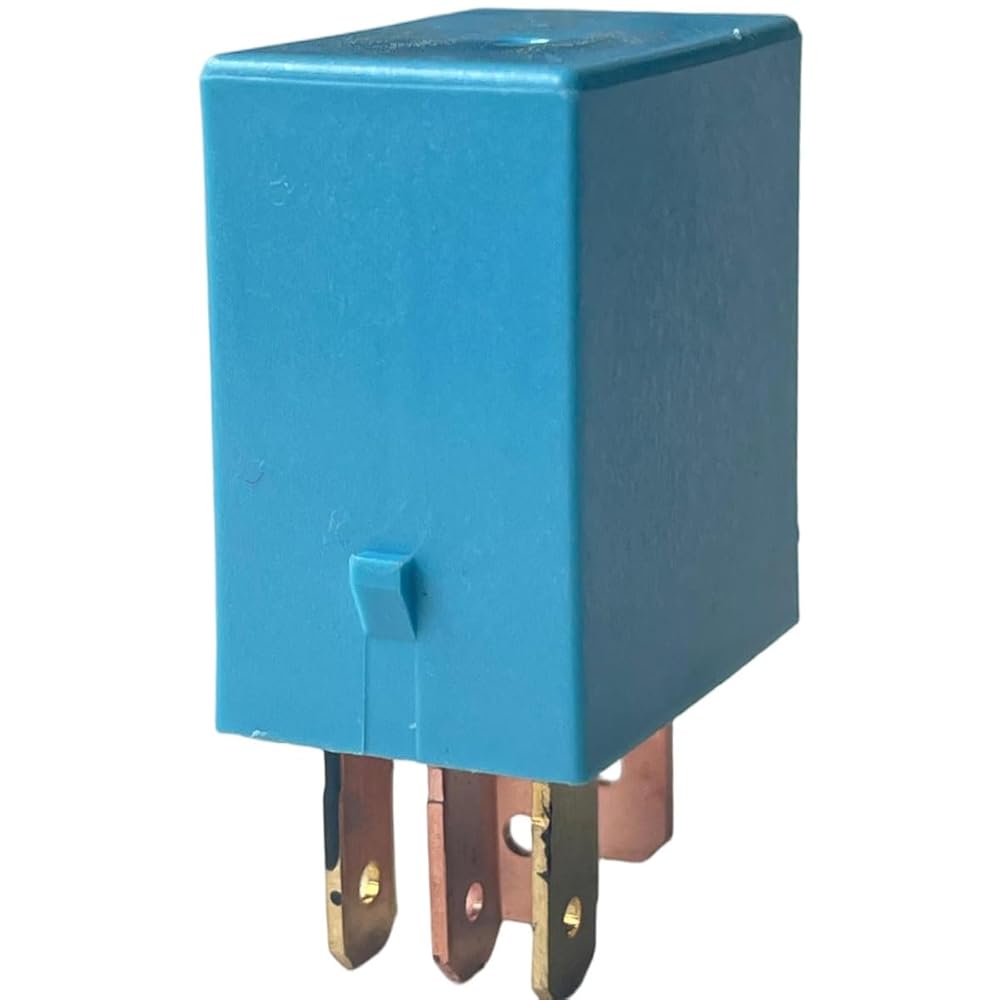

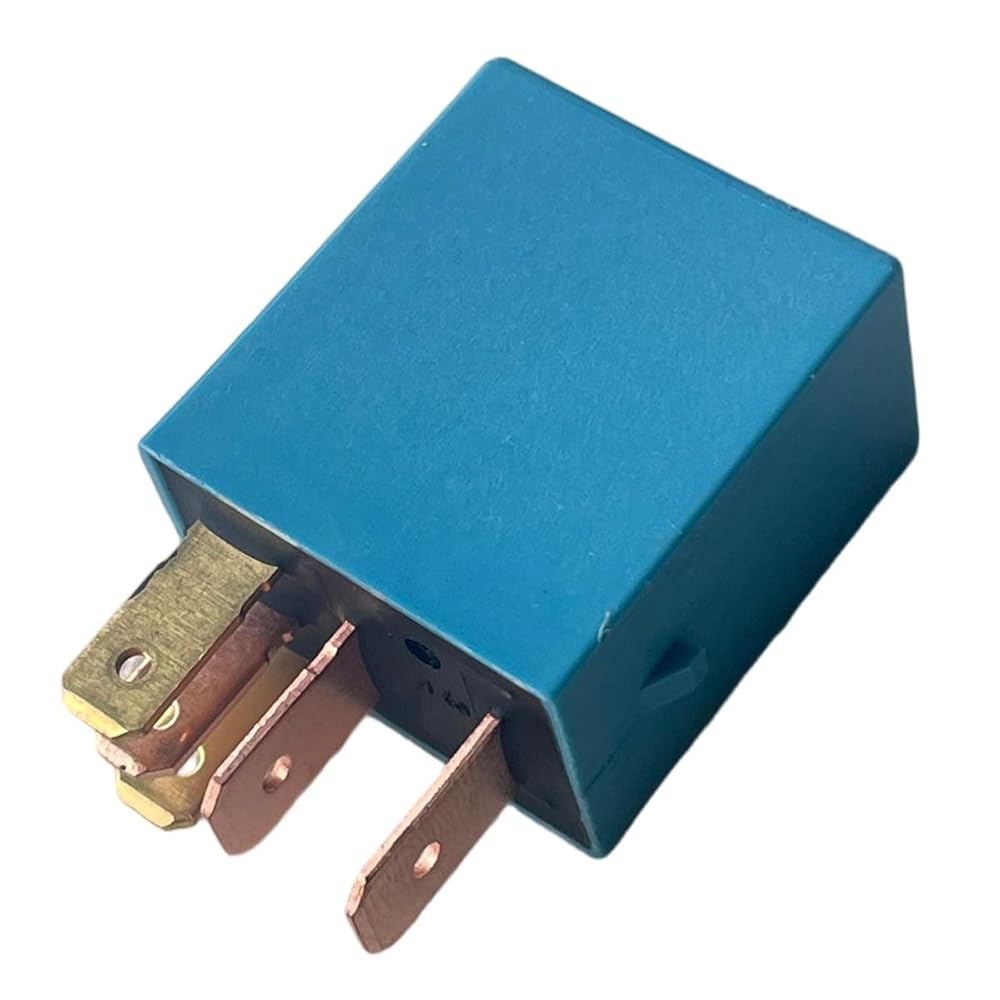

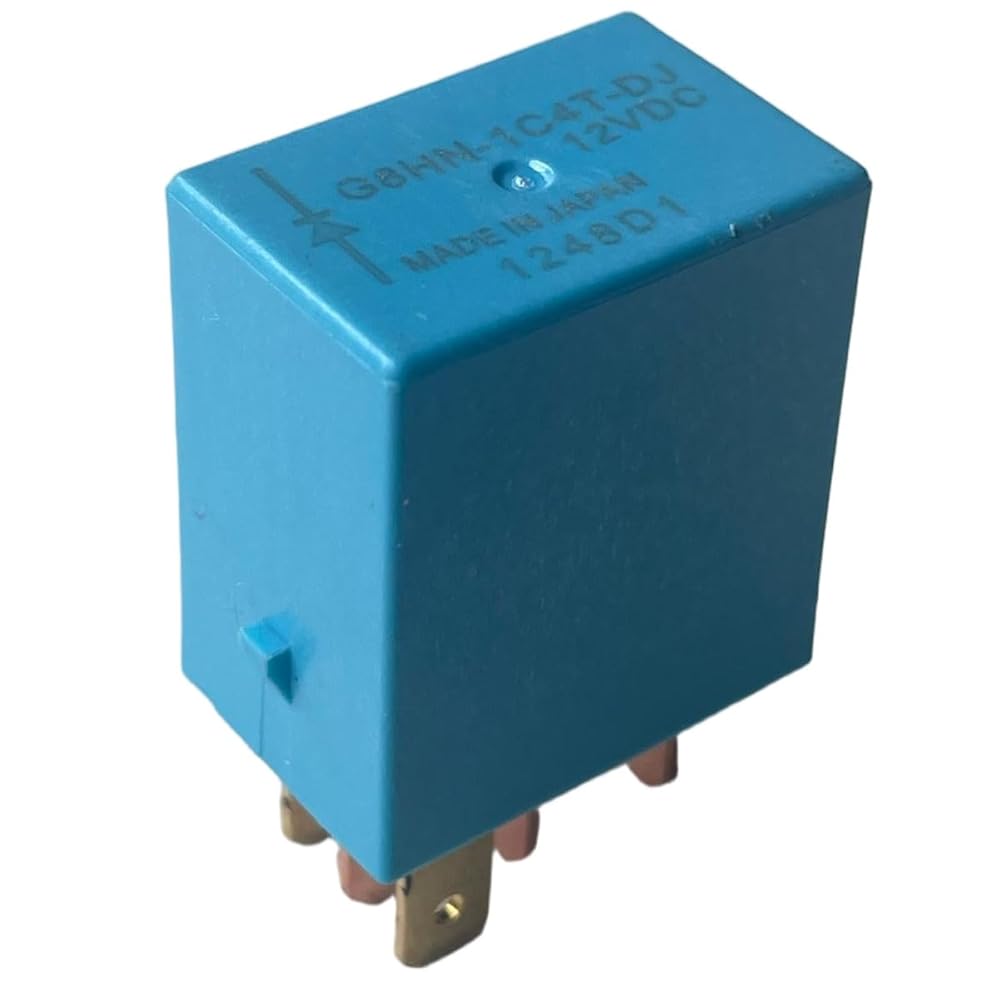

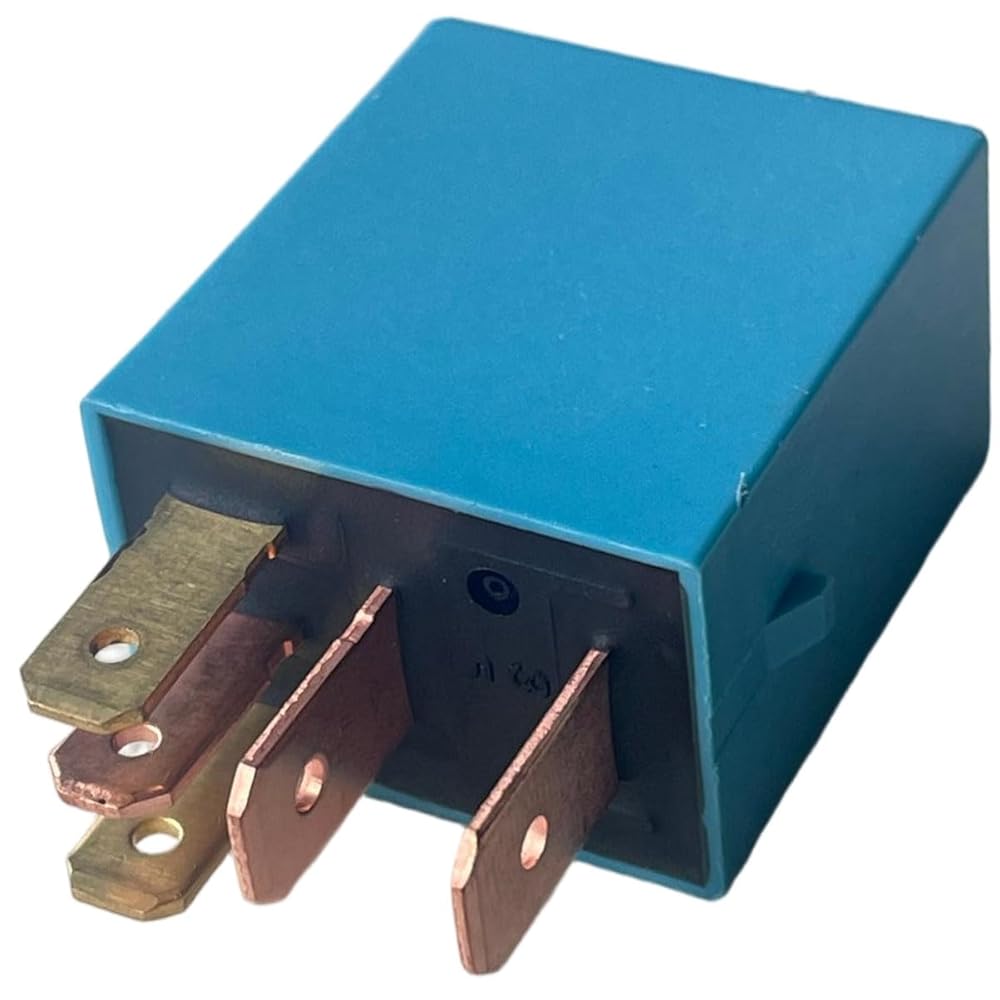

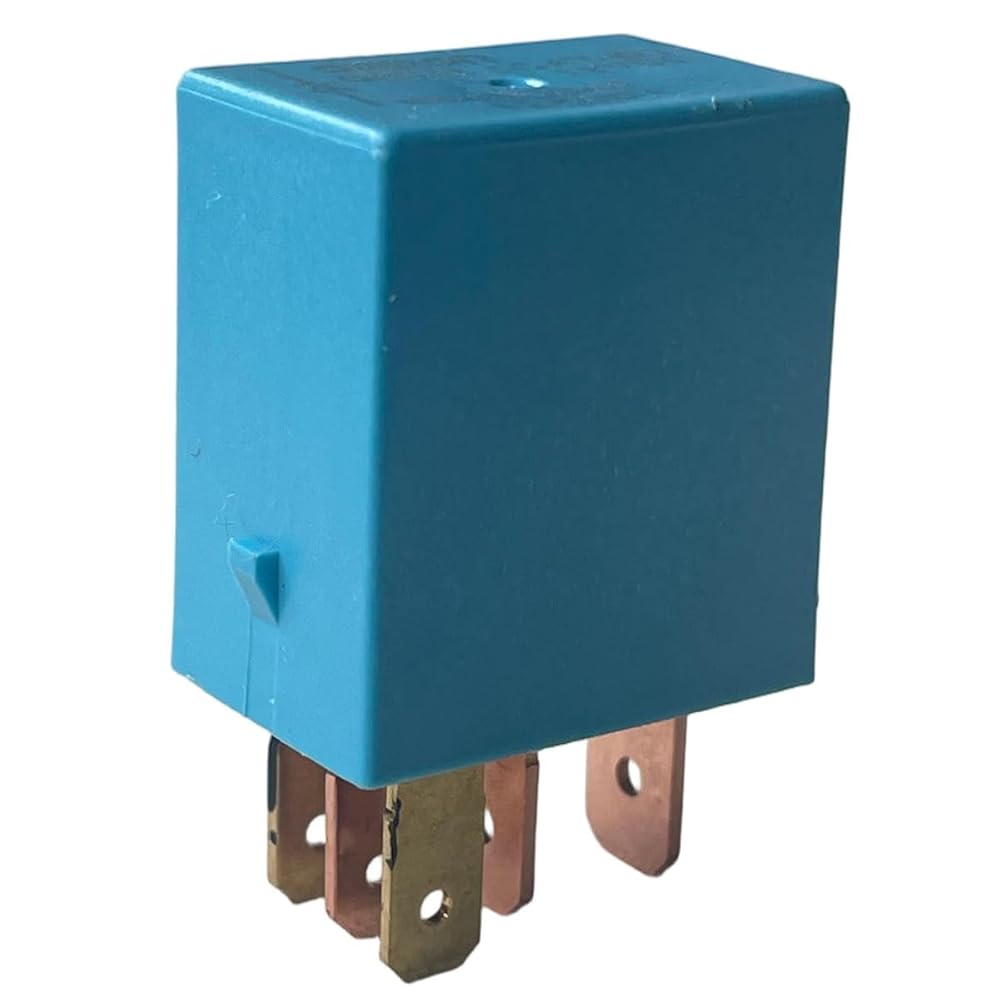

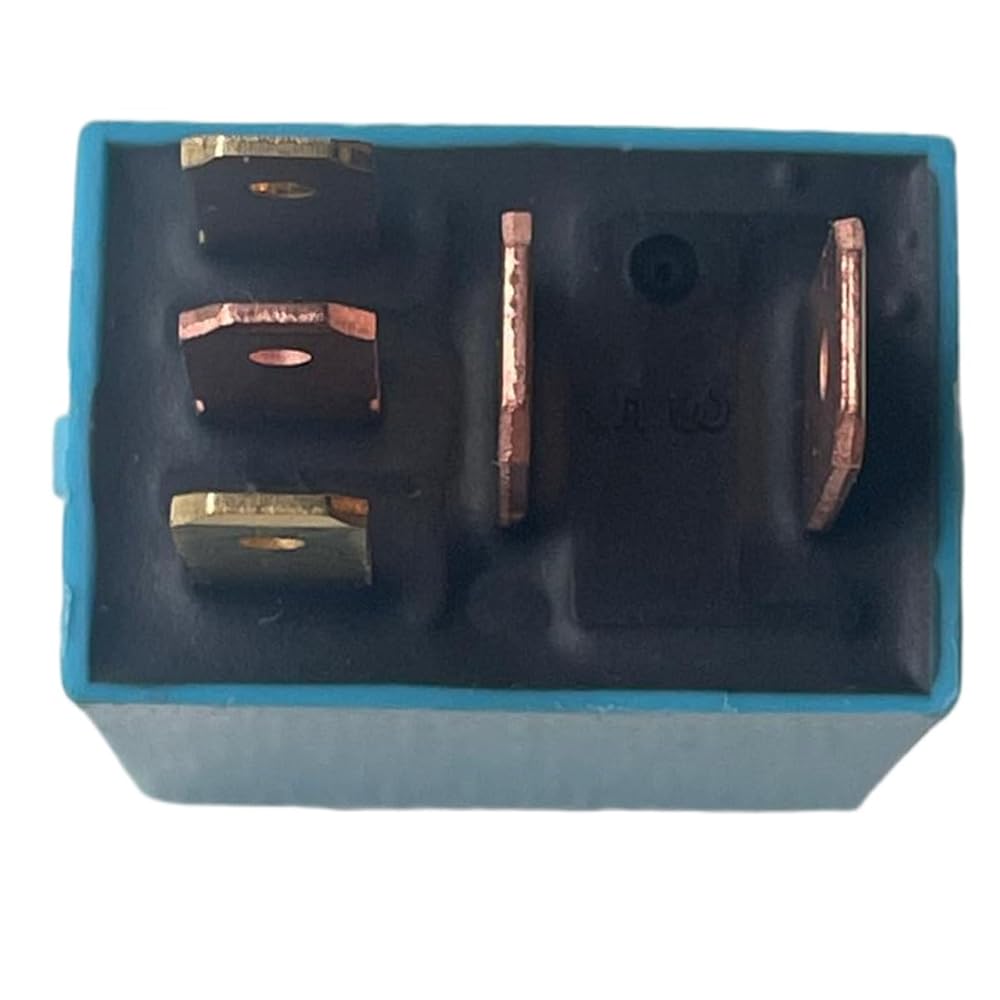

5-pin SPDT (1C) Micro ISO automotive relay with built-in diode (DJ) for reliable switching of lighting, drive and accessory circuits. Plug-in style with simple plastic seal, used across many models compatible with Yamaha ATV/UTV, motorcycle and snowmobile platforms.
Contact FormSPDT (1C), 5-pin Coil VoltageDC 12 V Coil Resistanceapprox. 96–124 Ω (variant dependent) Surge SuppressionBuilt-in diode (observe polarity) Protective StructureSimple plastic-sealed case Rated Load (12 V)NO 20 A, NC 10 A (NO inrush up to 100 A) Operate/Release≤10 ms / ≤15 ms Ambient Range-40°C to +100°C Approx. Size25 × 22.5 × 15 mm (L × W × H) Compatible with Yamaha: 5DM-81950-01-00 (supersedes 5DM-81950-00-00); 5JJ-81950-10-00 / 5JJ-81950-11-00.
Compatible with Omron: G8HN-1C4T-DJ (Y51 / Y52 variants).
Compatible with Yamaha ATV/UTV platforms (Grizzly, Kodiak, Raptor, Rhino, Wolverine, YFZ), motorcycles (YZF-R6, FJR1300, Super Ténéré, Tracer 900, TMAX), and select snowmobiles (Venture, VK series). See bullets for year-by-year coverage.
1 × G8HN-1C4T-DJ style 12 V 5-pin Micro ISO relay.
Direct plug-in to the OEM relay socket; match the OE part number before purchase.
Observe coil polarity due to the built-in diode (the coil + terminal is marked on the relay base).
Restores switching for headlight/lighting, 4x4 actuation and other accessory circuits where this relay is specified by the OEM diagram.
Helps resolve issues such as no-headlight, intermittent 4x4 engagement, or no power to the controlled accessory (model dependent).
All brand names and part numbers are used strictly for compatibility and reference. This is a third-party replacement part.
