Check Valves

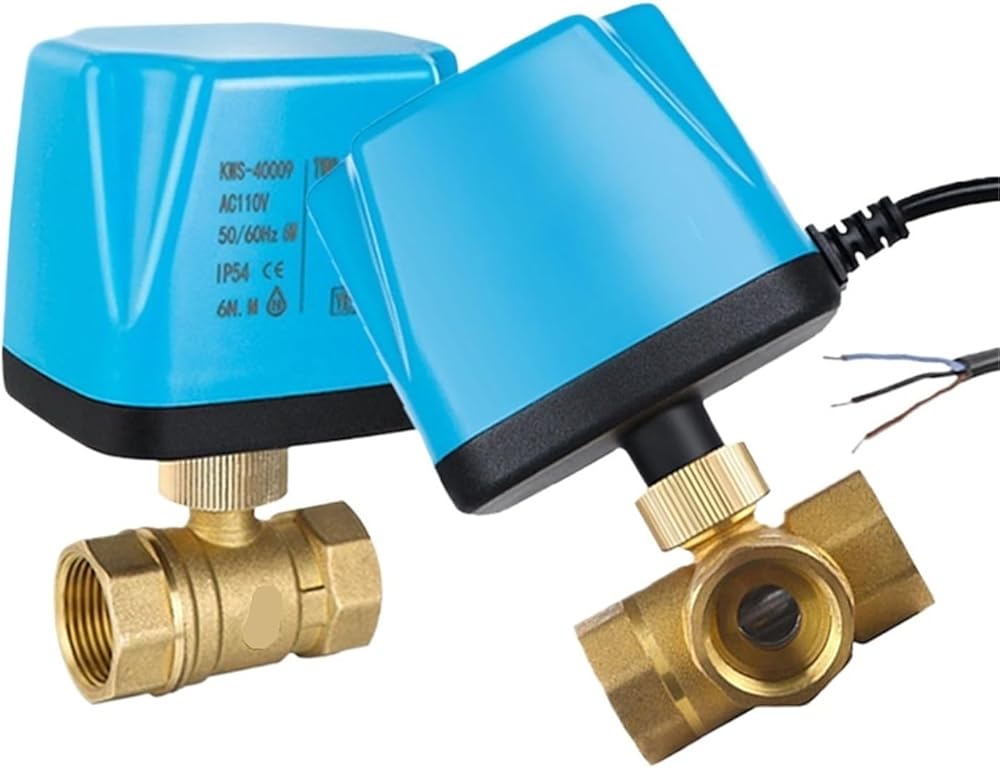

DC12V-24V or AC220V Electric Brass Ball Valve, 3-wire 2-control Electric Ball Valve 2-way, 3-way DN25 DN40 DN50

Feature:
3-Wire Two Control
Way:2Ways /3Ways (3Ways is T type)
Open/Close Time: 10s
Maxmum Working Pressure: 1.6 MPa/232psi;
Medium: Water, oil, non-corrosive non-flammable gas
Voltage:DC12-24V 50/60 Hz AvailableAC220V 50/60 Hz Available
Power: Max is 6W
Torsion: 6N
Operation: Motor and hand(with manual switch function)
Life Time: 100000 times;
Material: Brass,ABS plastic
Seal material: EPDM & PTFE;
Enviroment Temperature: 0°C~65°C in Celsius;
Medium Temperature: -10°C~120°C in Celsiu
Protect Class: IP54
Electric ball valve
Can be multi-angle installation flexibility
Good dust proof sealing
Ball valve structure analysis
The valve body is made of high quality brass for durability
Dimensional specification
Product shooting
2ways,3ways DC12V-24V or AC220V Motorized Brass Ball Valve,3 Wires 2 Control Electric Ball Valve DN25 DN40 DN50

High-concerned chemical : None
Actuator Mode : Without Manual And Instruction
Structure : Ball
Port Size : DN25 DN40 DN50
Media : water
Material : Brass
Temperature of Media : Normal Temperature
Power : Solenoid
Standard or Nonstandard : Standard
Pressure : Low Pressure
Is Smart Device : No
Voltage : AC220V,DC12V-24V
Applicable industry : Environmental protection
Structural form : 2way,3ways
Control mode : Electric control type
Form : Ball valve
Mounting dimension : DN25 DN40 DN50
Applicable temperature : 0-90°C
Driving mode : Electric drive
