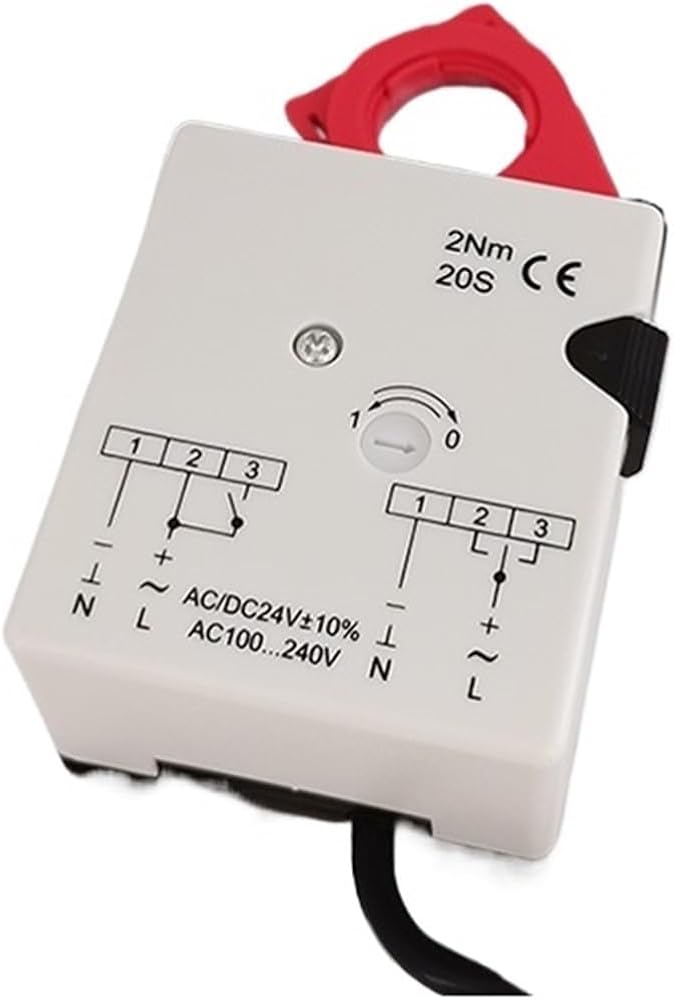

Damper Actuator ACDC24V AC100-240V 2Nm On / Off Type HVAC System Motor Operation Control Dampers
For operation of air control dampers in HVAC system
Toque : 2Nm
Nominal voltage : AC/DC24V AC100240V
Control : on/Off/2-Point/3-Point
KF type include 1 group of auxiliary switch
Technical Specification:
Torque
2 Nm
Service life
80,000 times
Damper size
0.5
Running time
30S(90°)
Supply power
AC/DC24VAC 100..240V Switching power supply
Frequency
50/60HZ
Control signal
2-point or 3- point
Direction of rotation
Manual regulation
Manual override
With
Angle of rotation
0- 90°,Max95°,adjustable by mechanical stops
Position indication
Mechanical
Power
2W @nominal torque 0.5W @holding
Sound power level
45dB
Protection class

Protection degree
IP54
Ambient temperature
-20~+50
ambient humidity
5-95%RH
Shaft length
50mm
Shaft diameter
6-16mm /12×12
Weight
0.5Kg
Standard
CE Requirement.

High-concerned chemical : None
Structure : control
Media : Air
Material : Plastic
Temperature of Media : Medium Temperature
Power : electric
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : SJ02230-K / SJ0224-K
