Generator Stator Regulator Rectifier Gasket Set For Can Am BRP DS 250 2006-2024

Features:
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

other specification:

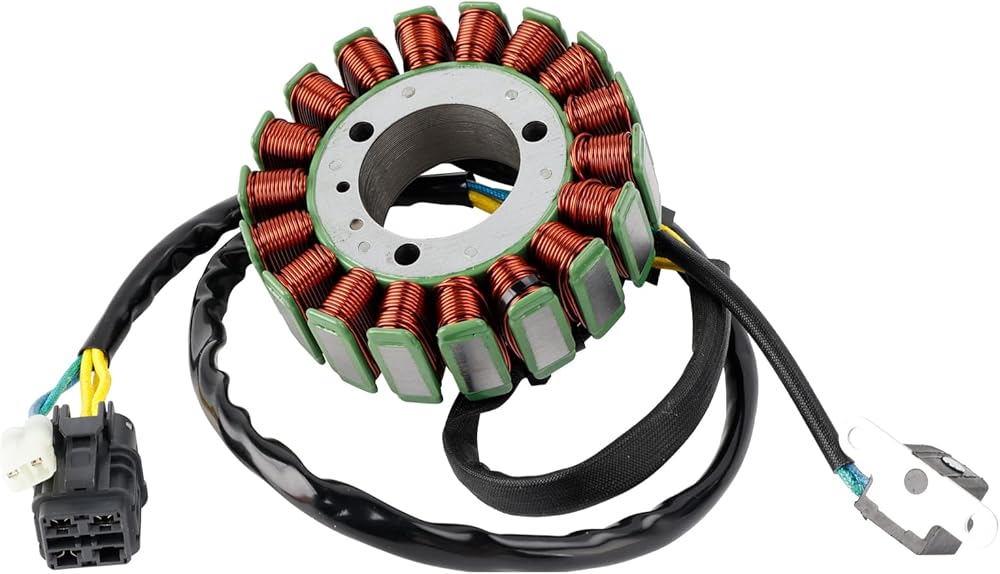

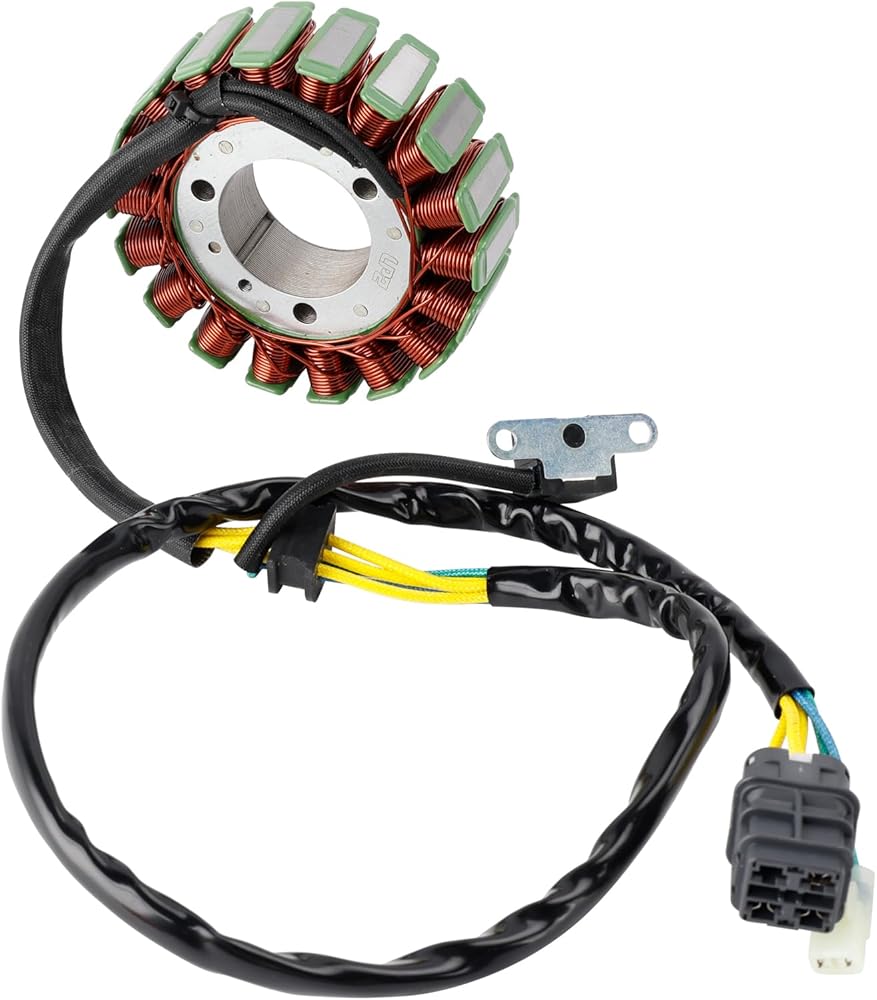

Stator
Number of wires: 5

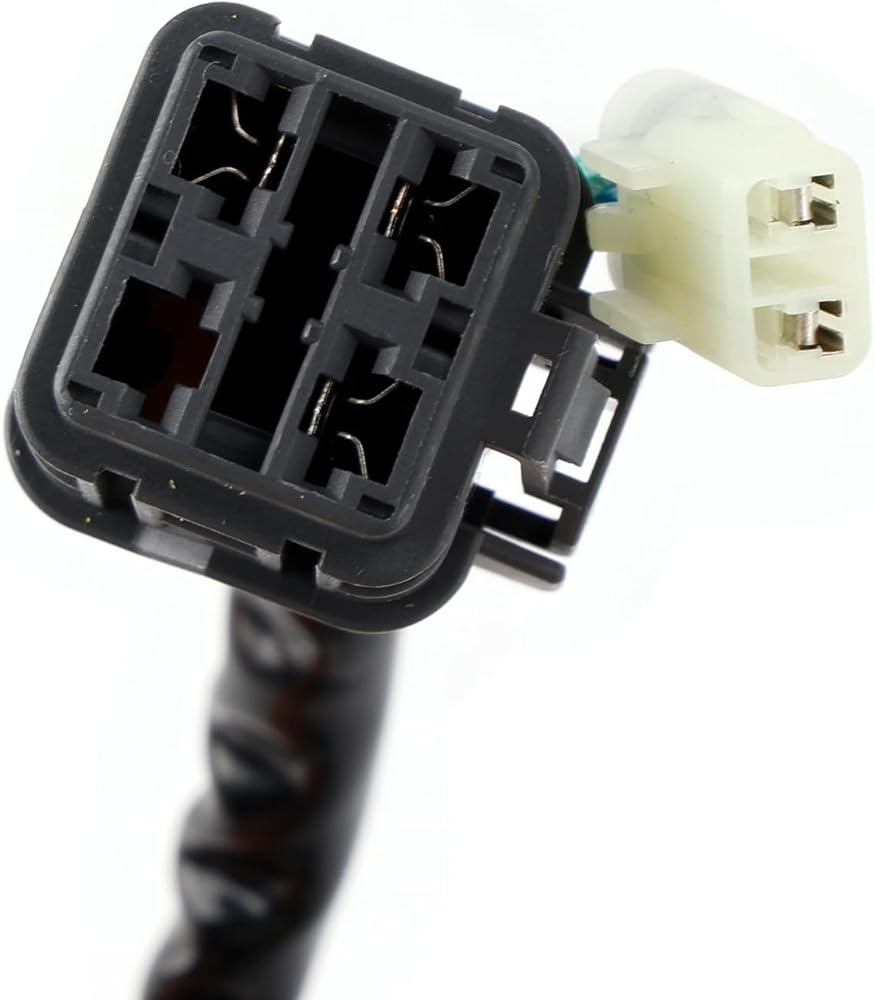

Number of plugs: 2
Number of pins: 3 + 2
Number of fixation holes: 3
Number of poles: 18
Interior diameter: 41 mm
Exterior diameter: 103 mm
Pick up pulsar coil included.

Regulator
Number of wires: 6
Number of plugs: 2
Number of pins: 3 + 3

Replacement Part Number:
Stator Assy: S31120RCA000, S31120RB1000
Rectifier, regulator: S31600RCA000, S31600RCA010
Gasket, generator cover: S11394RB1000, S11394RB1003
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fitment
Fit for Can Am BRP DS 250 2006-2024

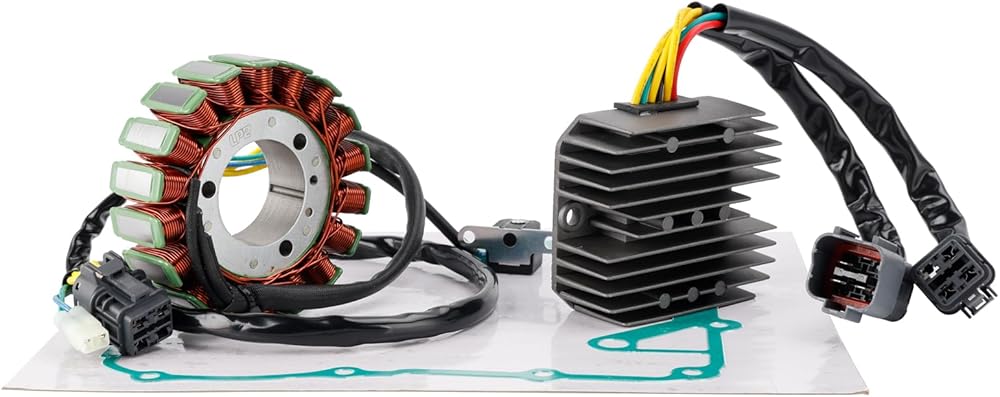

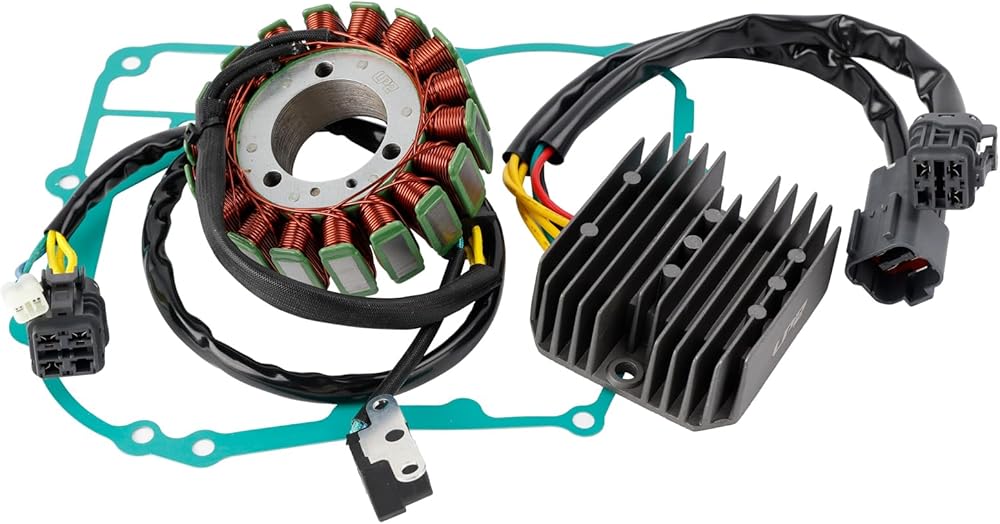

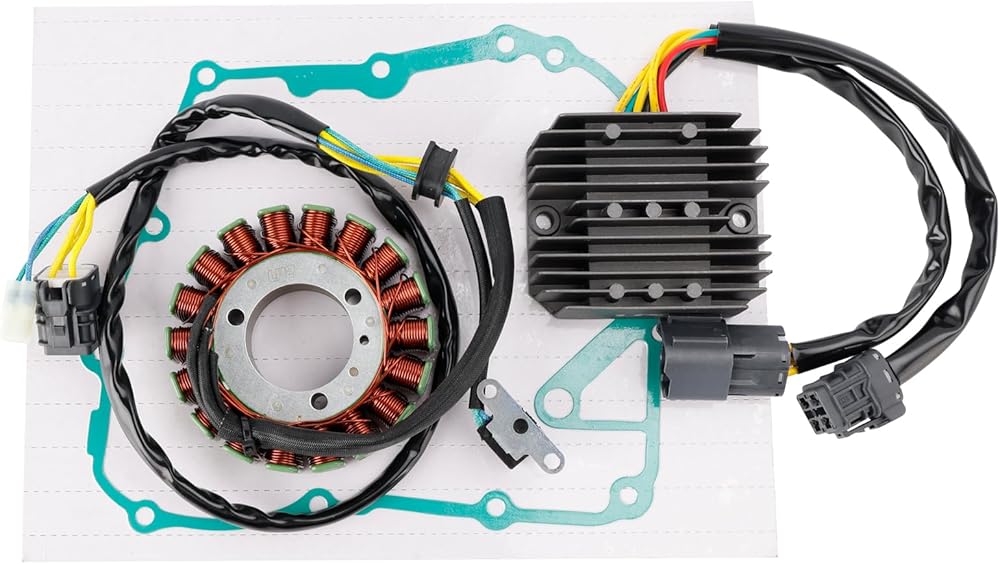

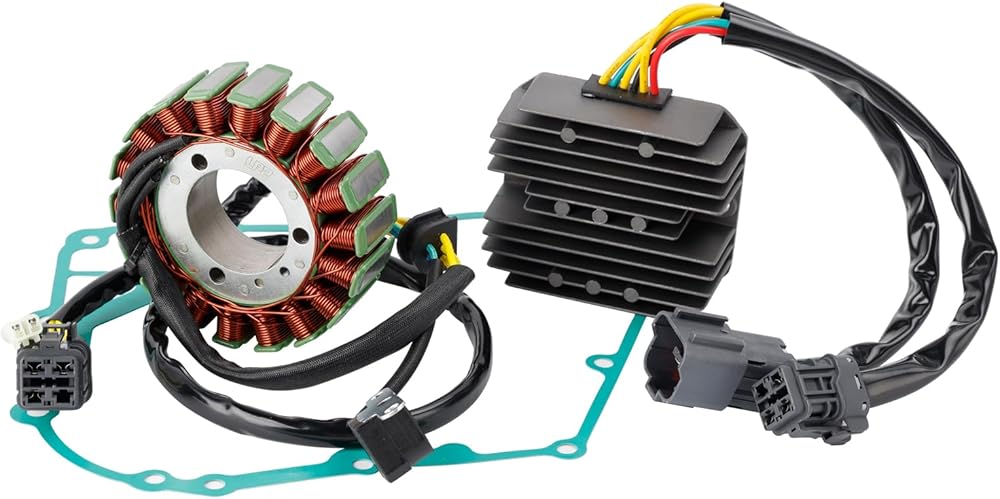

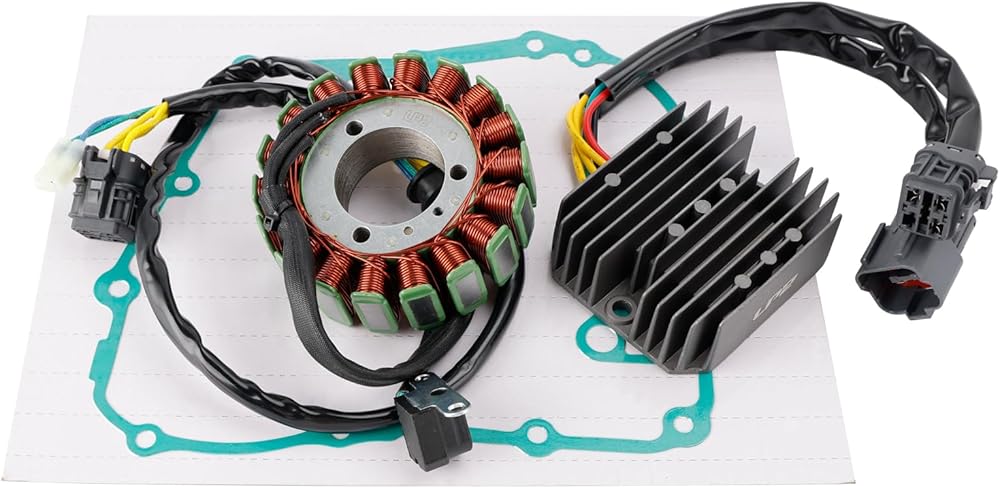

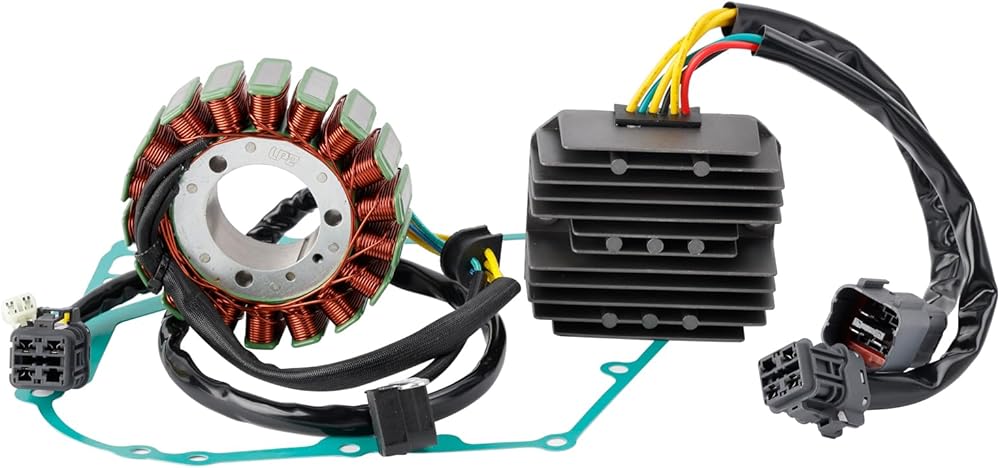

Package Includes:
1 x 18-Pole Generator Stator
1 x 6-Wire Regulator Rectifier
1 x Crankcase Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
