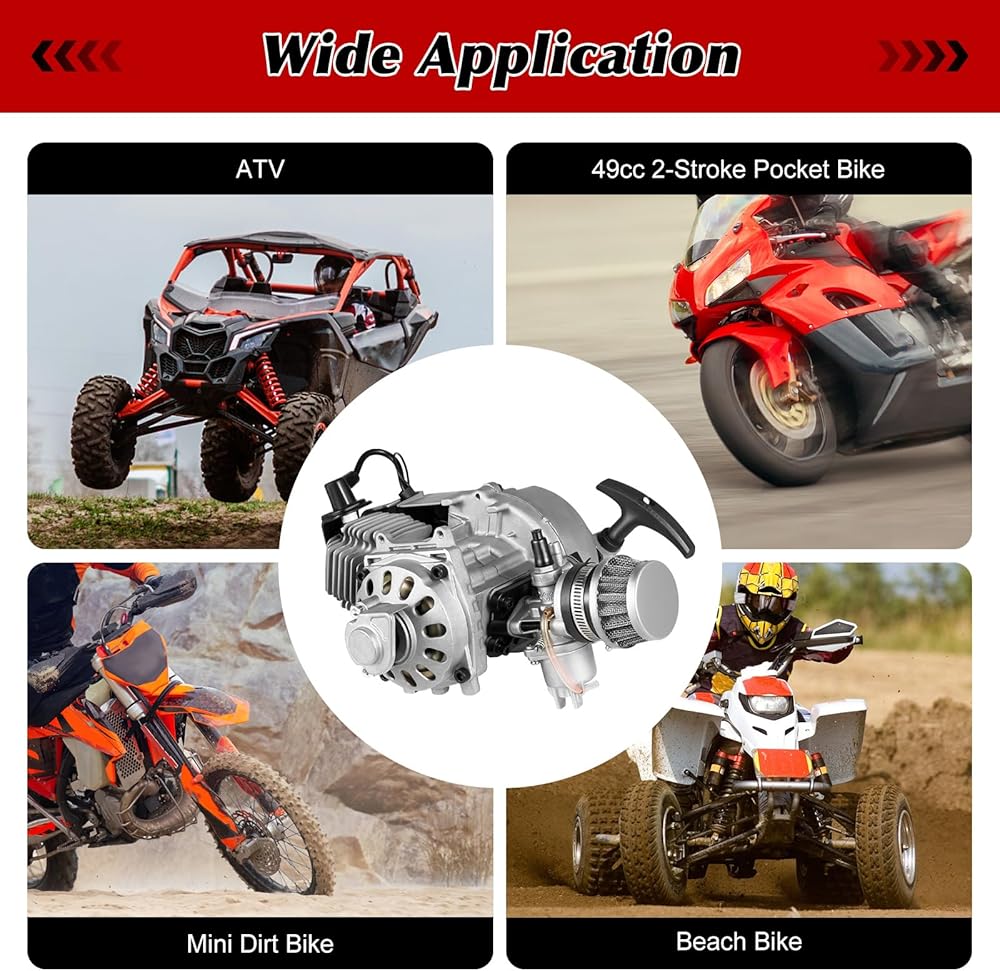

49CC 2-Stroke Engine Motor Kit, Single Cylinder Air-Cooling Pull Rope Start Motor, Small Engine with Electronic Ignition System for Mini Dirt Bike Pocket ATV Scooter

SAR 261
Brand
NAZEAOB
Weight
3.6 kg
– 1 +

Special Features

  • Durable Design: The 49cc engine is constructed from high-quality aluminum alloy, offering high hardness, wear resistance, and corrosion resistance, making it suitable for complex environments and conditions.
  • Efficient Cooling System: The two-stroke engine utilizes an air cooling system to rapidly reduce engine temperature, effectively preventing overheating and ensuring a smooth and durable driving experience.
  • Powerful Performance: The 2-stroke engine offers higher intake and exhaust efficiency, saving energy and fuel (fuel consumption: minimum ≤610g/kW·h). It delivers stronger power during operation (maximum power: 1.9kW/7000rpm), ensuring a smooth and powerful driving experience.
  • Large Capacity: The mini off-road/beach buggy motor kit is equipped with a large-capacity fuel tank (0.32 gallons), enabling prolonged operation to meet long-distance driving needs (can travel 15-20 kilometers on a full tank). It ensures reliable performance without the need for frequent refueling.
  • Exceptional Performance: The engine boasts outstanding performance parameters, with this meticulously designed engine capable of reaching a maximum speed of 48 km/h. Additionally, it features excellent load-bearing capacity (396.8 lbs), accommodating diverse user needs and delivering exceptional power performance under any conditions.

Description

Specification
Engine Type: Single Cylinder, 2 Stroke, Air-cooling
Material: Aluminum
Color: Silver, Black
Ignition System: Electronic Ignition
Start Mode: Pull Rope Start
Shifting Way: Sprocket
Clutch: Dry Swing Block Clutch
Displacement: 49.85CC
Max. Power: 1.9kw/7000rpm
Rated Power: 1.7kw/6000rpm
Continuous Power: 1.6kw/5500rpm
Overload Power: 1.83kw/6500rpm
No-load Speed: 12500rpm
Max. Speed: 48km/h
Max. Torque: 2.7N.M/6500rpm
Max. Horsepower: 3PS
Max. Load Capacity: 180kg/396.8lbs
Min. Fuel Consumption: ≤610g/kW.h
Spark Plug: L6T or MB6A
Spark Plug Gap: 0.5mm/0.02in
Bore * Stroke: Φ44*32.8mm/1.7*1.3in

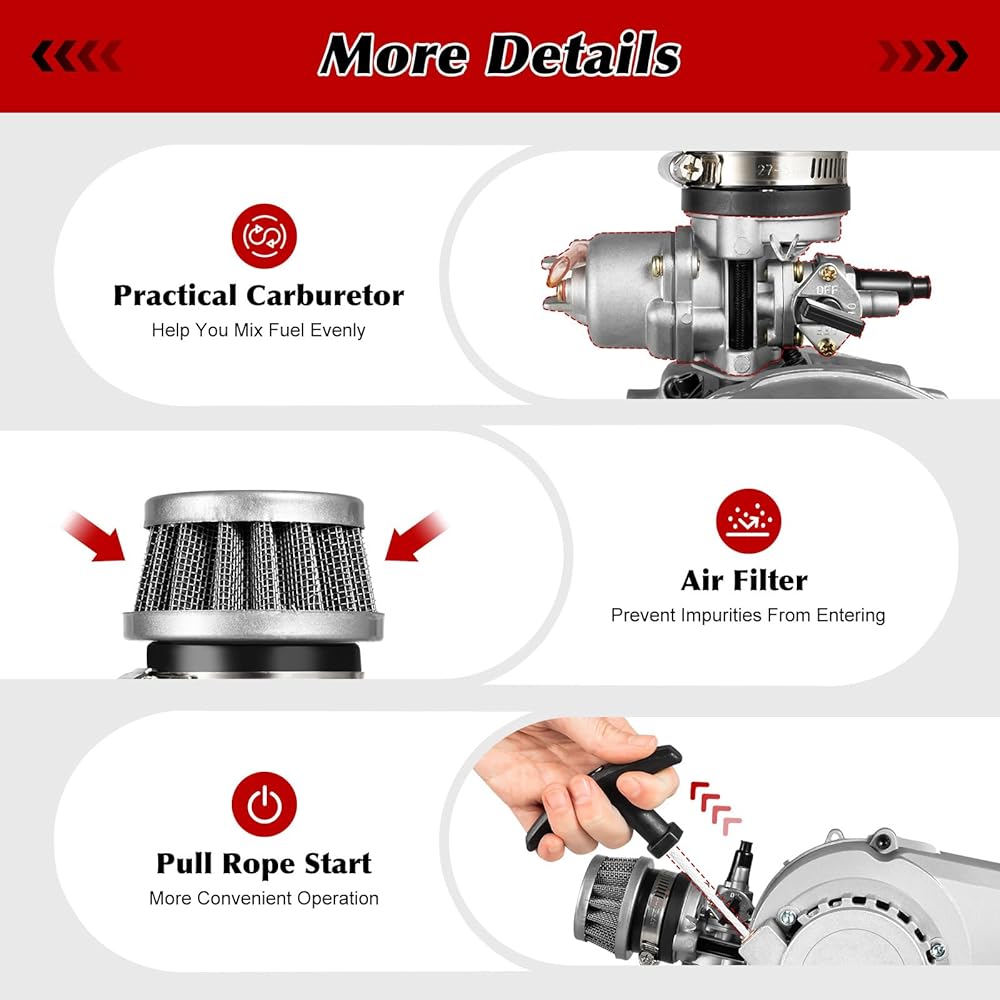

Carburetor Type: H117B
Reduction Ratio: 1:1
Noise Level: 100.7dB (SPL); 116.9dB (SWL)
Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)
Fuel Tank Capacity: 1.2L/0.32gal

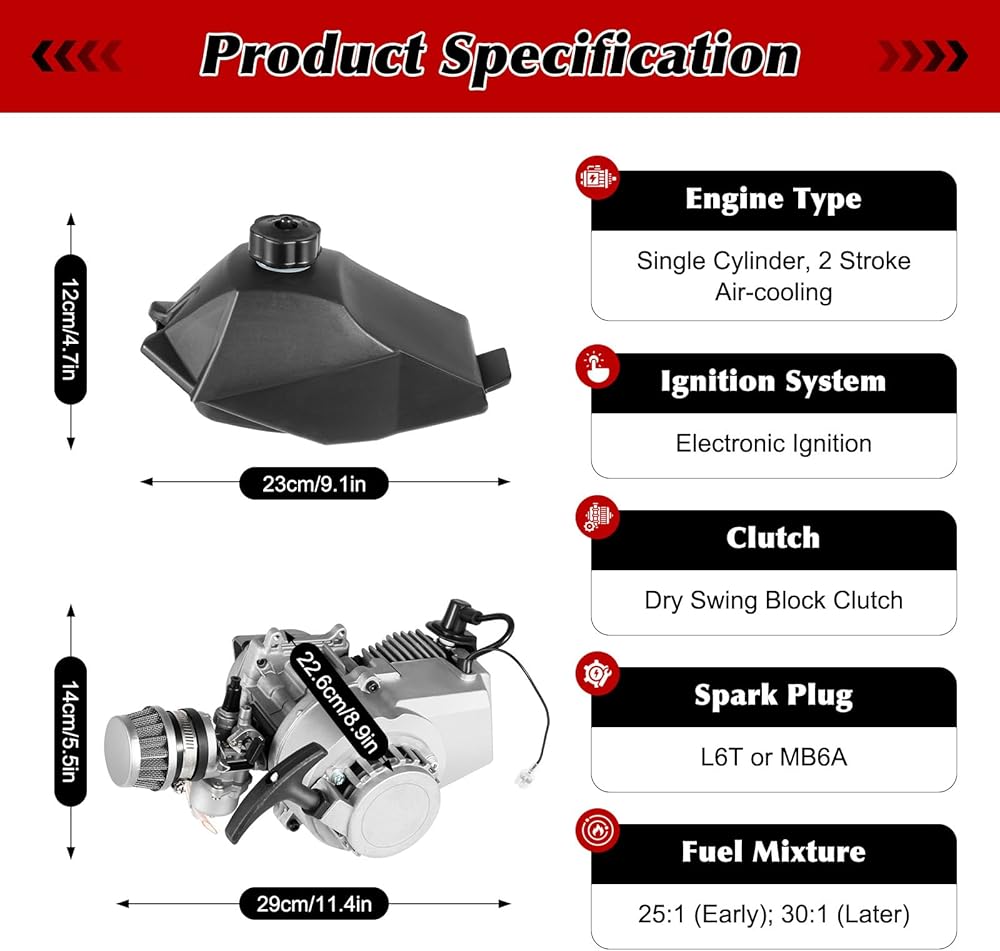

Fuel Tank Size: 23*12*12cm/9.1*4.7*4.7in
Engine Dimensions: 29*14*22.6cm/11.4*5.5*8.9in
Package Size: 34*21*23.5cm/13.4*8.3*9.3in
Net Weight: 3.85kg/7.9lbs
Gross Weight: 4.3kg/9.5lbs

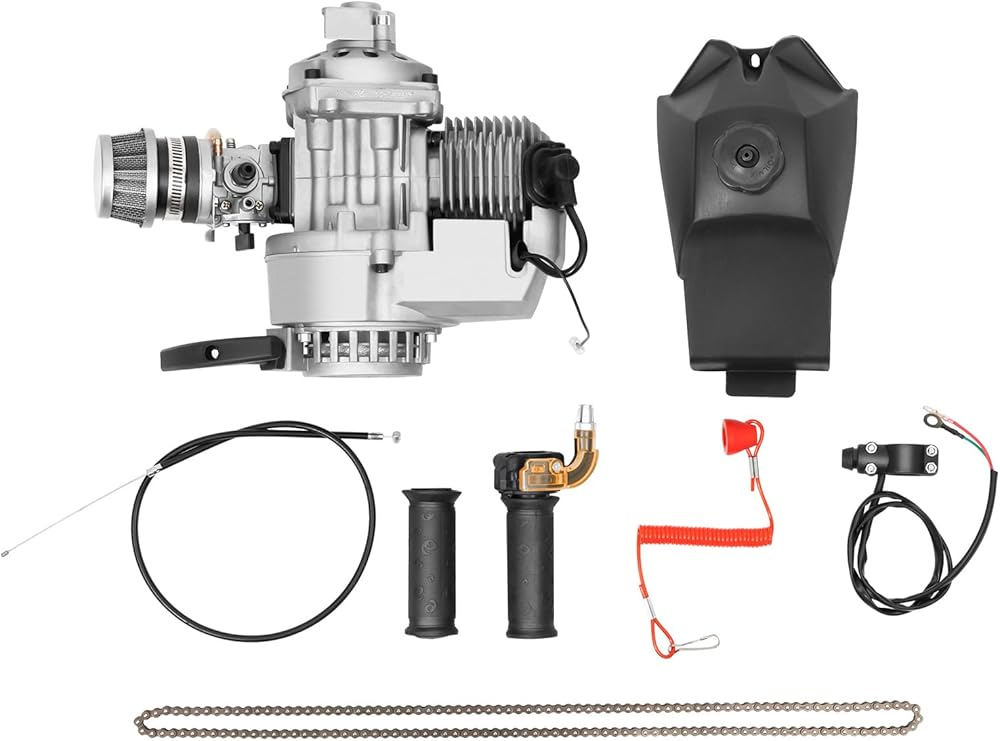

Package Included
1* Engine
1* 25H-136L Chain
1* Kill Switch
1* Throttle Grip
1* Left Grip Cover
1* Fuel Tank
1* Throttle Cable
Other Accessories for Installation

Notes
1.Please check the parameters carefully before making payment.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
