Vehicle Fitment

FOR 1935-1936 CHEVY PICKUP TRUCKS V8 Conversion Automatic and Manual
For 1935 Chevy Master Deluxe Truck Base 3.4L L6 GAS
For 1935 Chevy Standard Truck Base 3.4L L6 GAS
For 1935 Chevy Truck Base 3.4L L6 GAS
For 1936 Chevy Master Deluxe Truck Base 3.4L L6 GAS
For 1936 Chevy Pickup Base 3.4L L6 GAS
For 1936 Chevy Standard Truck Base 3.4L L6 GAS

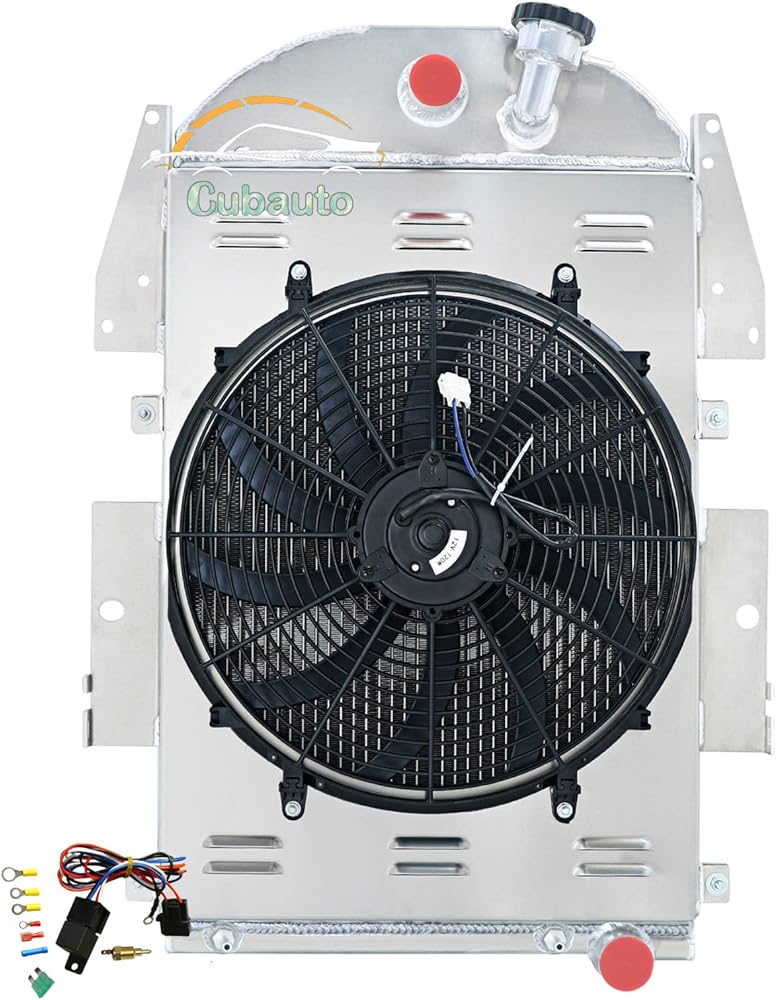

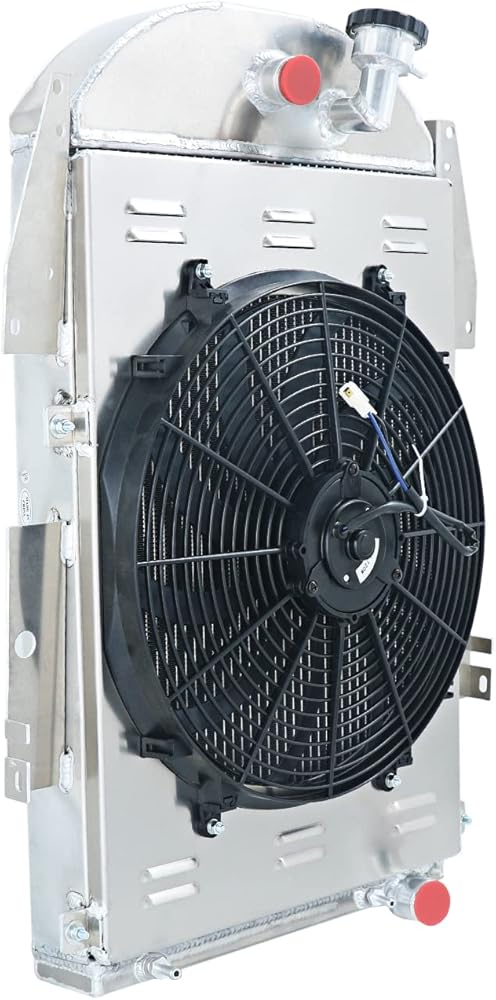

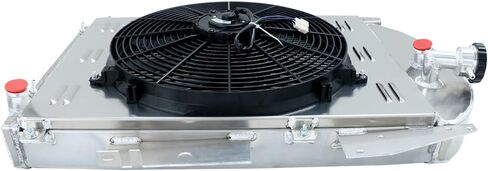

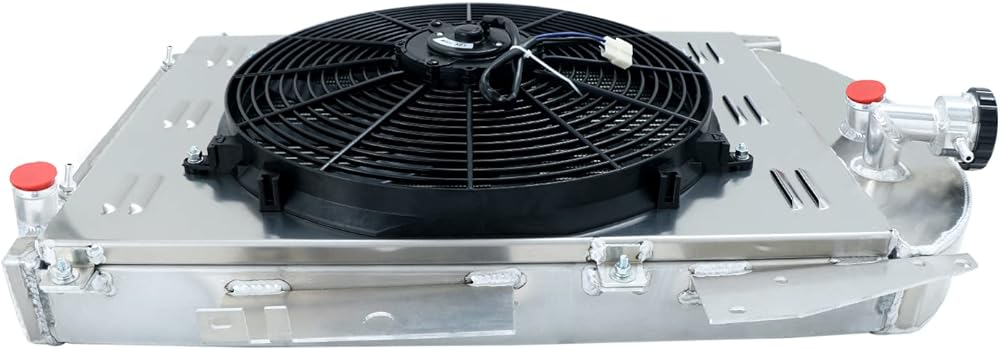

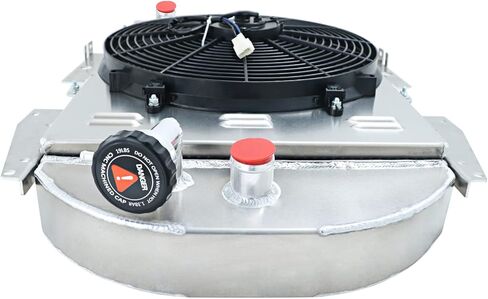

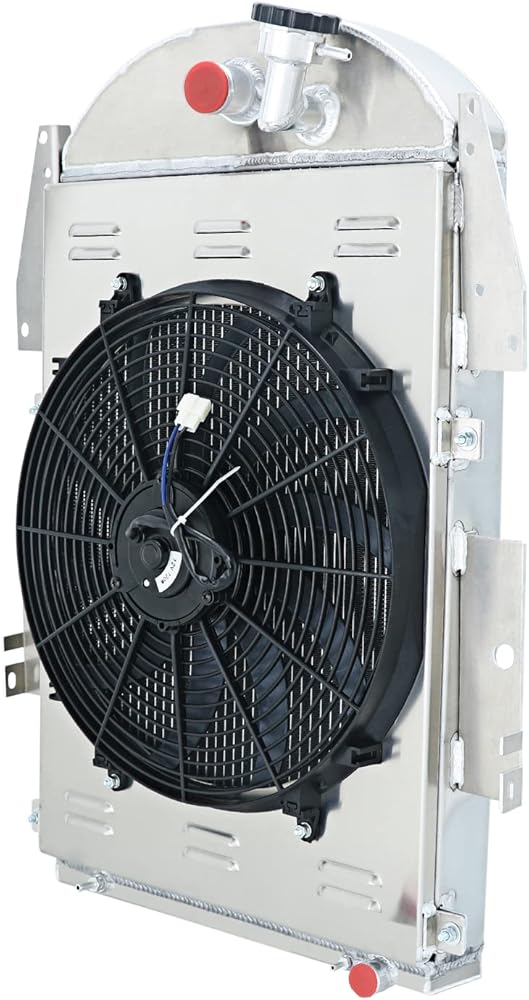

Package Include:

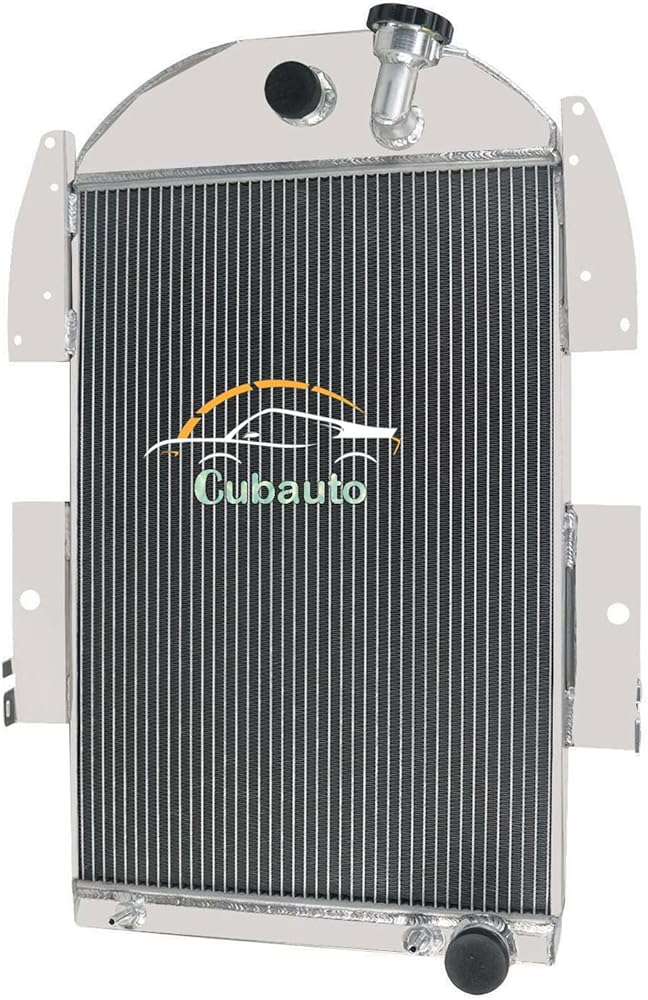

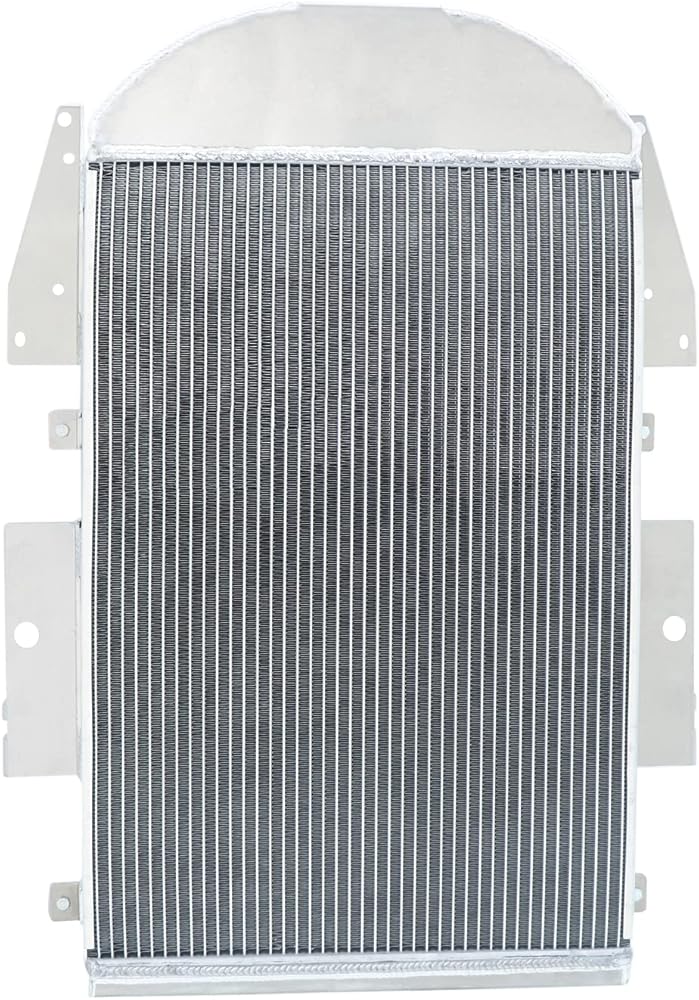

1 X 4-Row AA5052 Aluminum Radiator

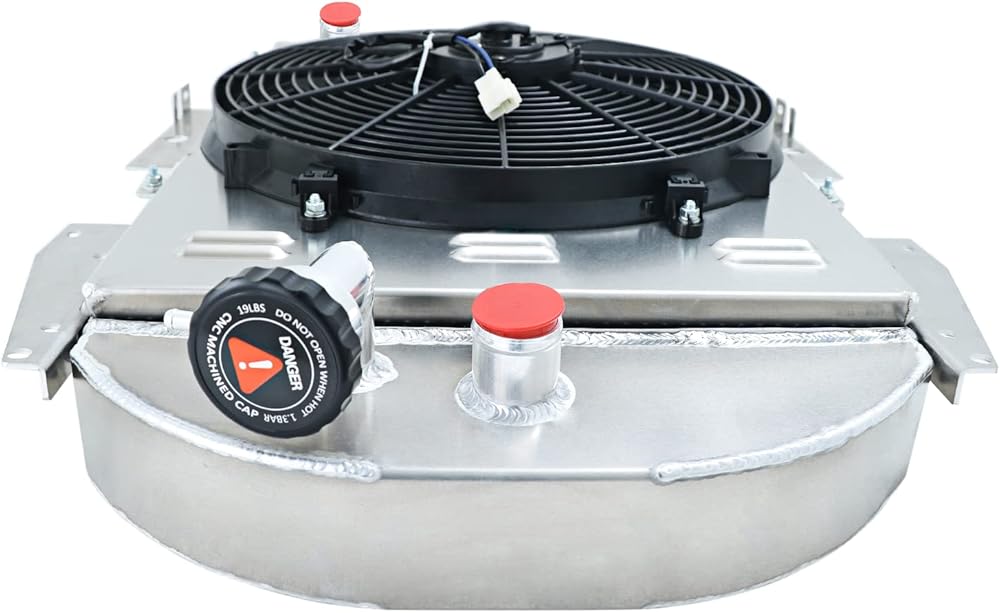

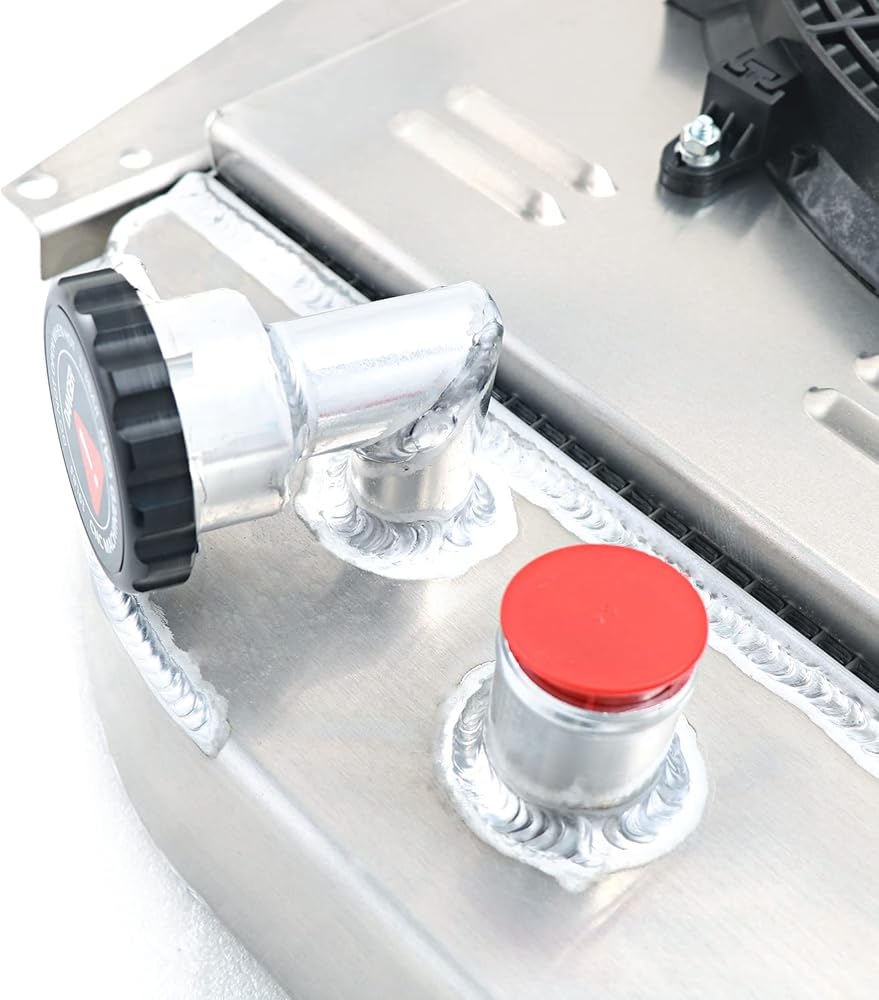

1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16"120W Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:

Brand: Cubauto
Condition:New
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Radiator Flow: DOWN FLOW
Core Size: 16 1/2" x 23.00" x 2.5"
Overall Size : 29 5/8" X 21 1/8"
Inlet/Outlet: 1 1/2" / 1 3/4"
Upper Hose Fitting: PASS
Lower Hose Fitting: PASS
Trans Cooler Details: 1/8-27NPT
Mounting Type: BRACKET
Mounting Specs: N/A
Trans Cooler Details: φ26*255*1/4NPT(T)

16" Fan

Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

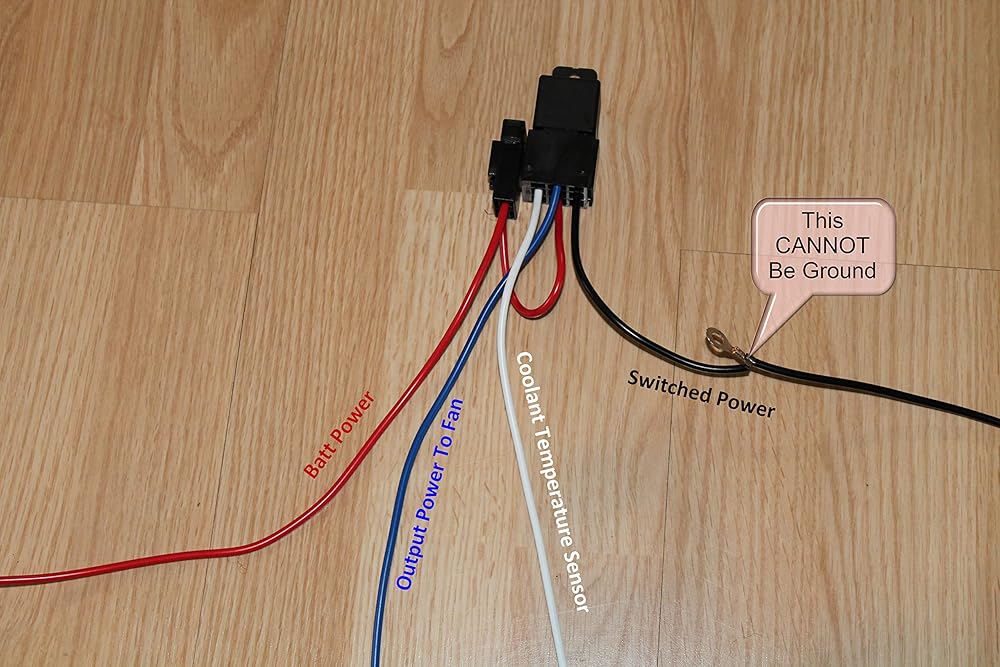

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
