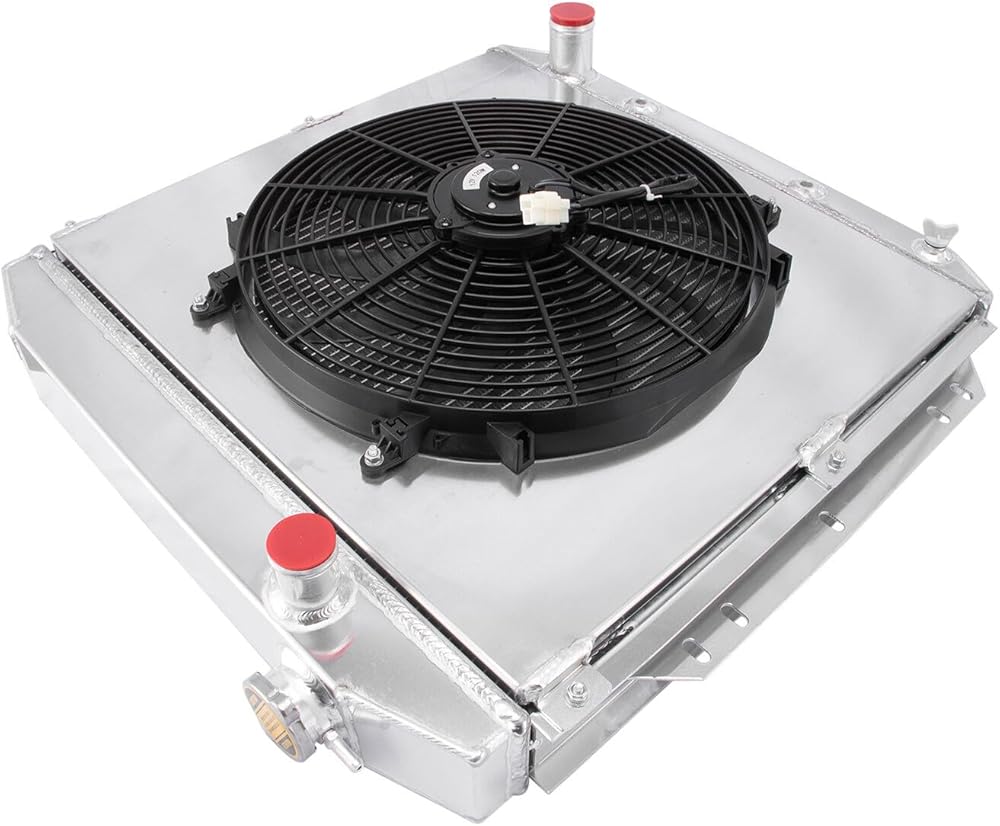

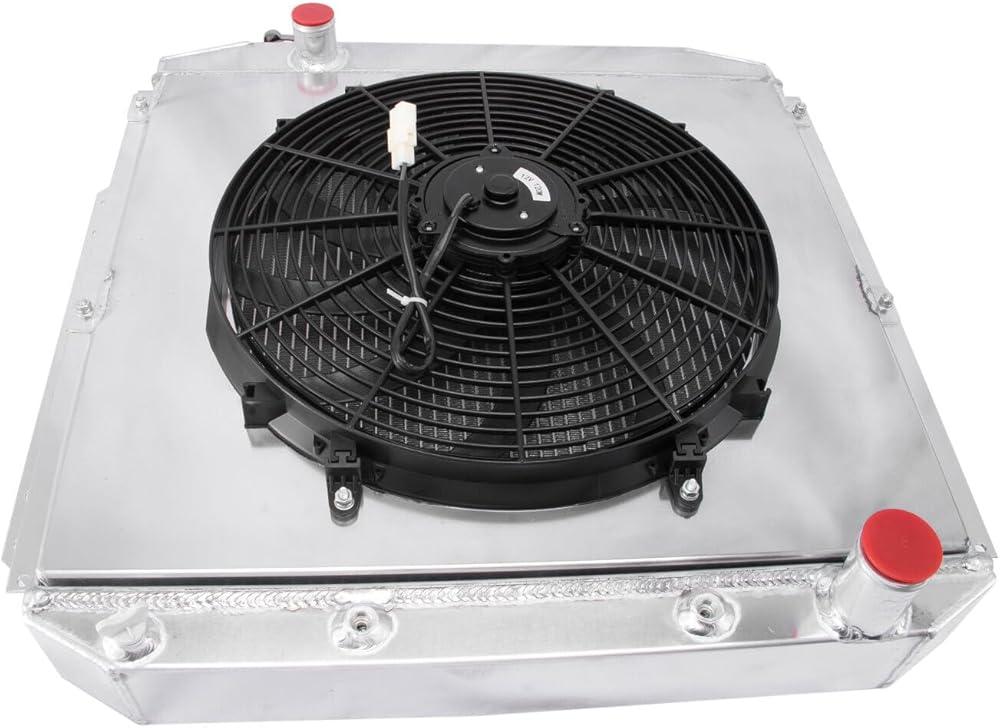

Package Include:

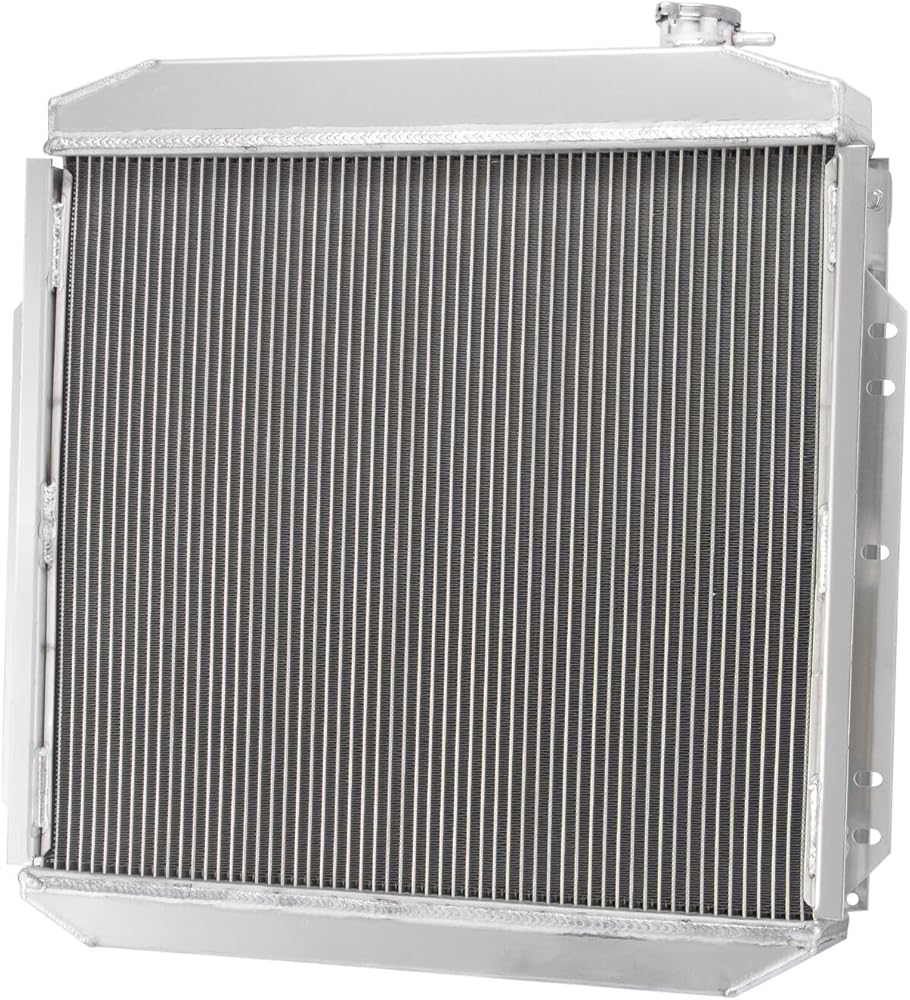

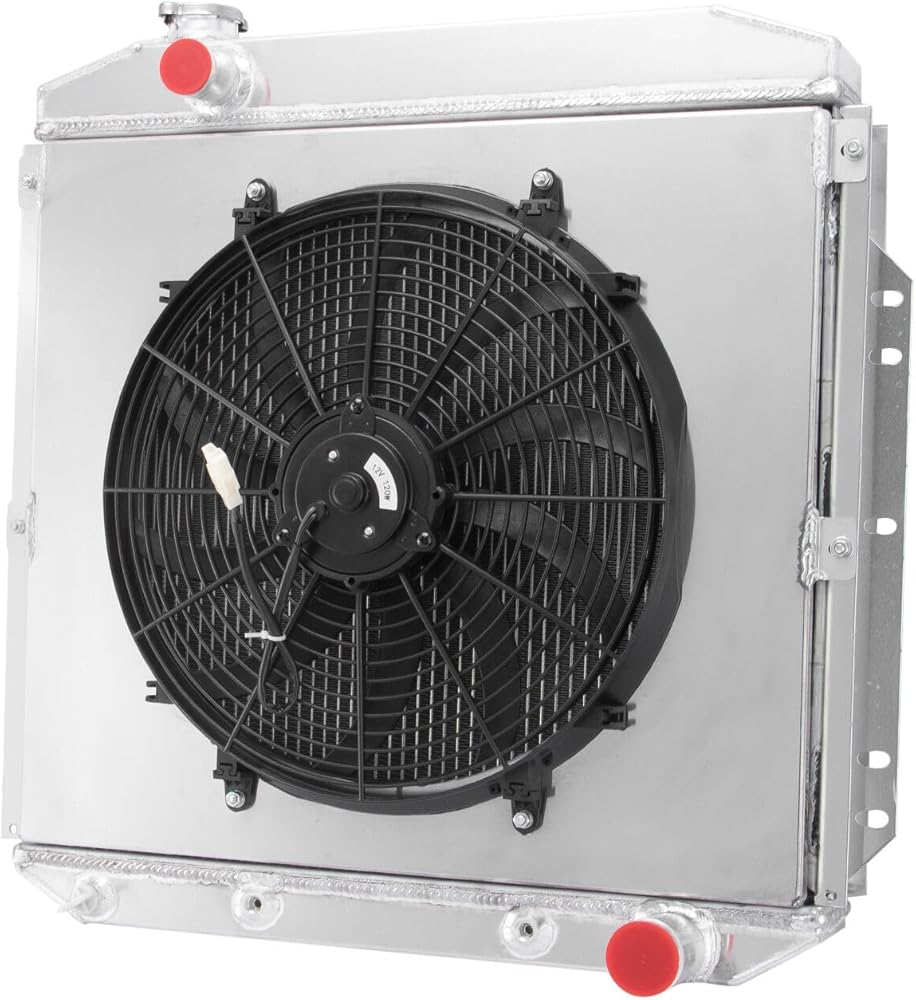

1 X 4-RowAluminum Radiator

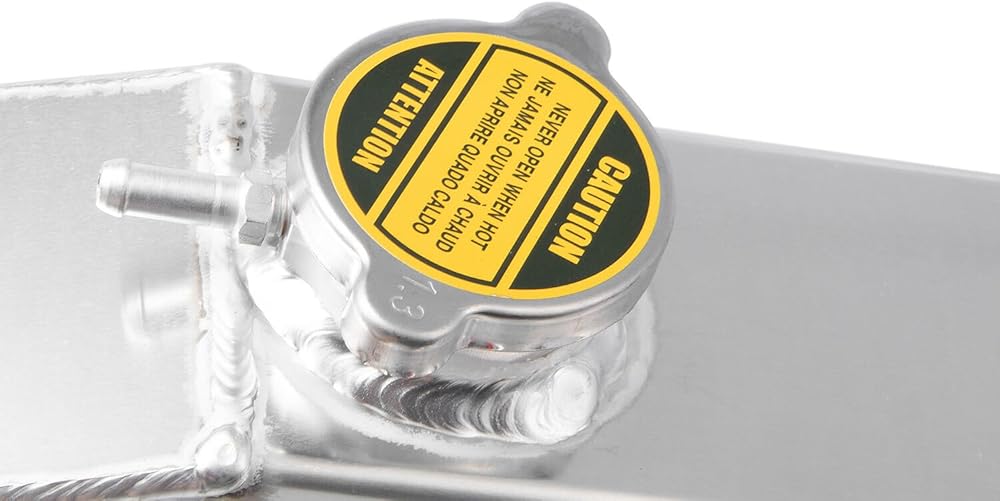

1 X Radiator Cap
1 X Aluminum Shroud

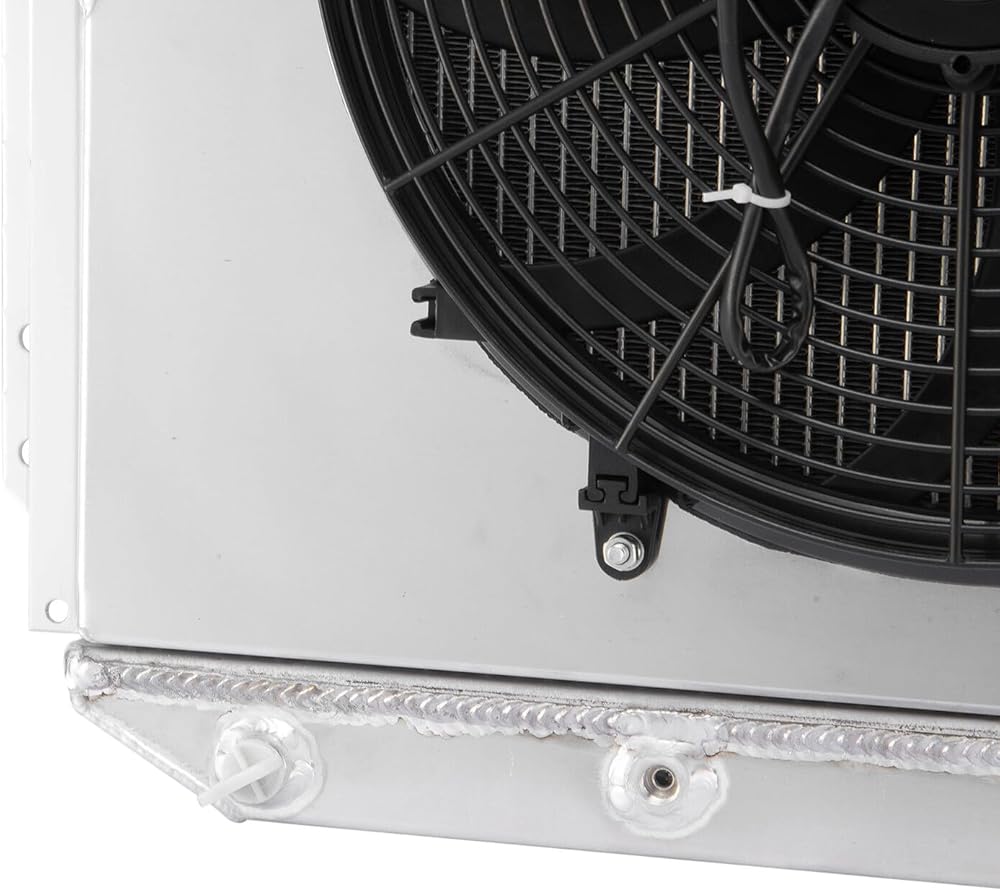

1 X 16" Fan (Includes mounting kits)

Application:
For Ford F100 F150 F250 F350 Pickup Truck L6 V8 1953-1956
Please Note
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!
Inlet Location:On Driver Side
Outlet Location:On Passenger Side

Configuration
Brand: Cubauto
radiador de aluminio
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Material: Aluminum
Core Dimensions: 20" (Height) X 23" (Width)
Overall Dimensions: 26-1/6 (Height) X 25-7/9 (Width)
Upper Inlet Diameter : 1-1/2" Driver Side
Lower Outlet Diameter : 1-3/4" Passenger Side
Transmission Cooler: φ26*200*G1/4(Z)
Please Check the Size Before You Buy!

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type bladesv Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Description：

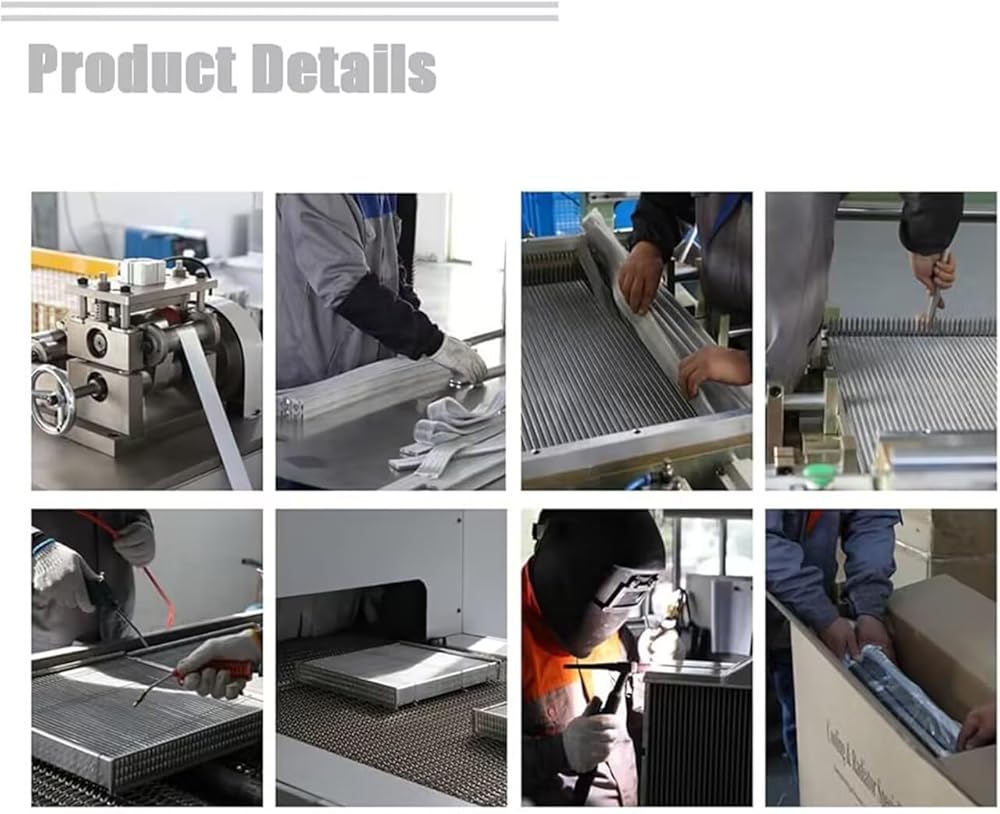

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones.
Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.
