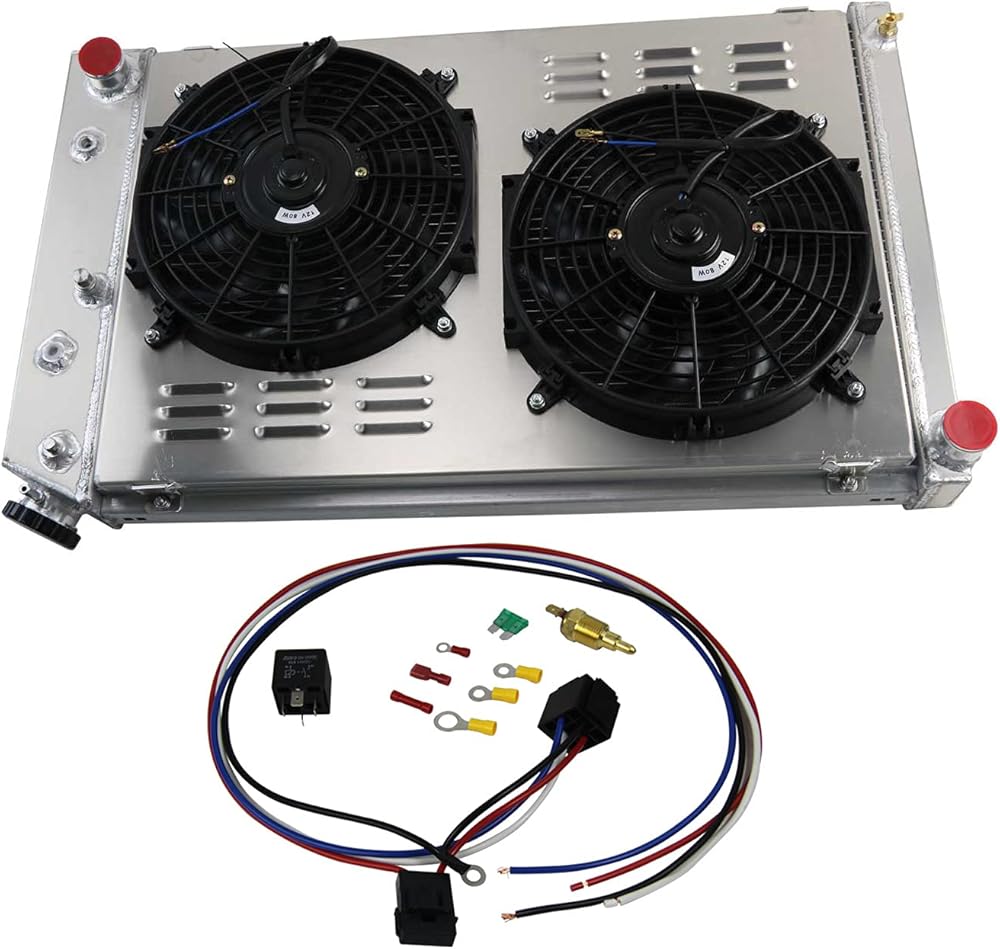

Radiator Size:
Material：full aluminum
Row/Core： 4 Row/Core
Core size: 26.22"H x 16.85"W x 2.44"T;
Overall size: 31.69"L x 18.5"W x 6.1"T;
Inlet/ outlet: 1.5"/ 1.57"（Measurement standard: the direction of the core strip is high）
Trans Cooler Included -1/2" 20 STRAIGHT THREAD G1/4-
Mount Type: Saddle
OEM Style Brass Petcoke
Aircraft Grade Aluminum 2mm Thick Tanks and Fittings
Billet Fill Neck With Cap

Shroud and Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working

FAN:
Maximum Fan CFM: 2300±200 cfm
Fan Diameter (in): 12.050"
Thickness (in): 2.500"
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps

Vehicle Fitment:
Compatible For Chevy/GMC C/K/G-Series C10-C20 C25-C3500 1970-1985
Compatible For Chevy El Camino 78-1987/ Impala 1980-1985
Compatible For Chevy Blazer 1973-1985/Suburban 1976-1980
Compatible For Chevy Monte Carlo 83-87/Oldsmobile Cutlass 78-88
Compatible For Chevy Nova 75-79 / Chevy El Camino 70-87

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
