مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY in Saudi Arabia

مرحل توصيل ملف RY4S-ULDC24V 24VDC، مرحل مصغر 14 سنًا 4PDT مع مؤشر LED، جهات اتصال 3A، استبدال OE # RY4S-UL DC24V لدائرة التحكم في مقبس مرحل سلسلة RY

SAR 105
ماركة
Kwaich
وزن
31 g
– 1 +

مميزات خاصة

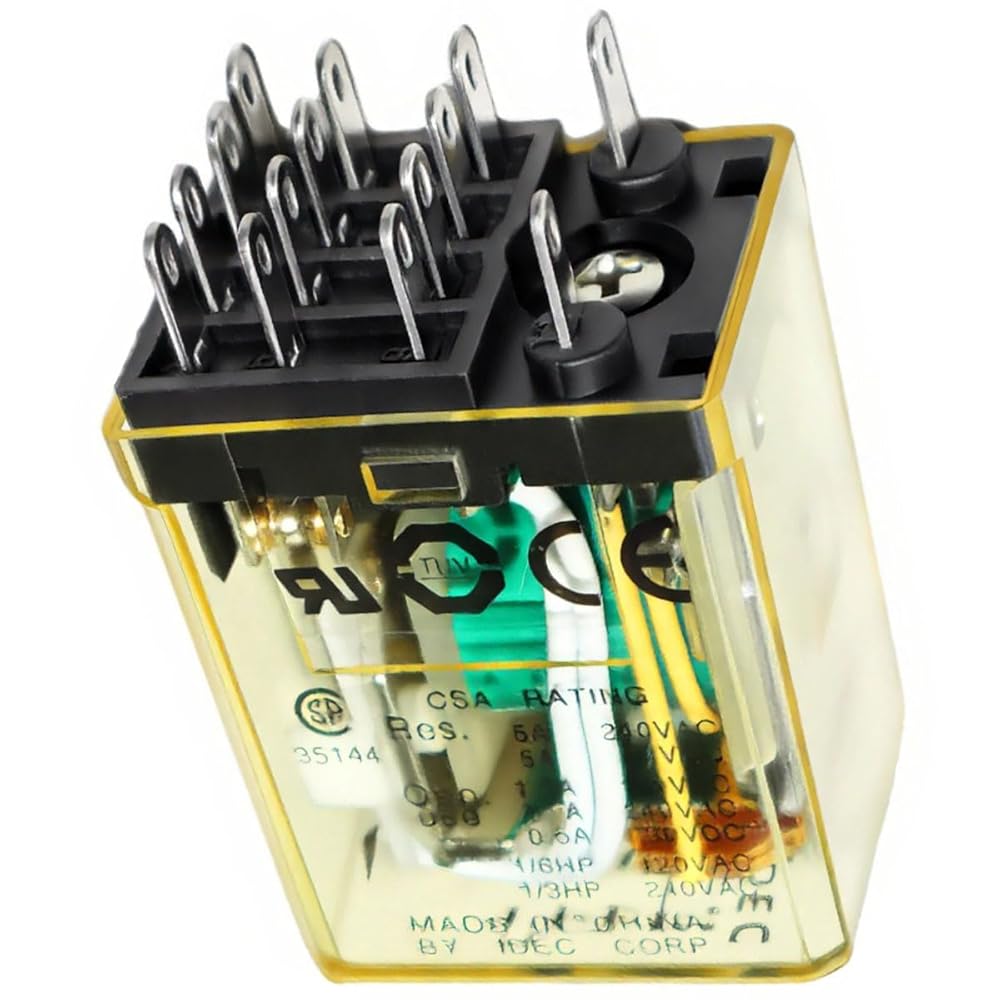

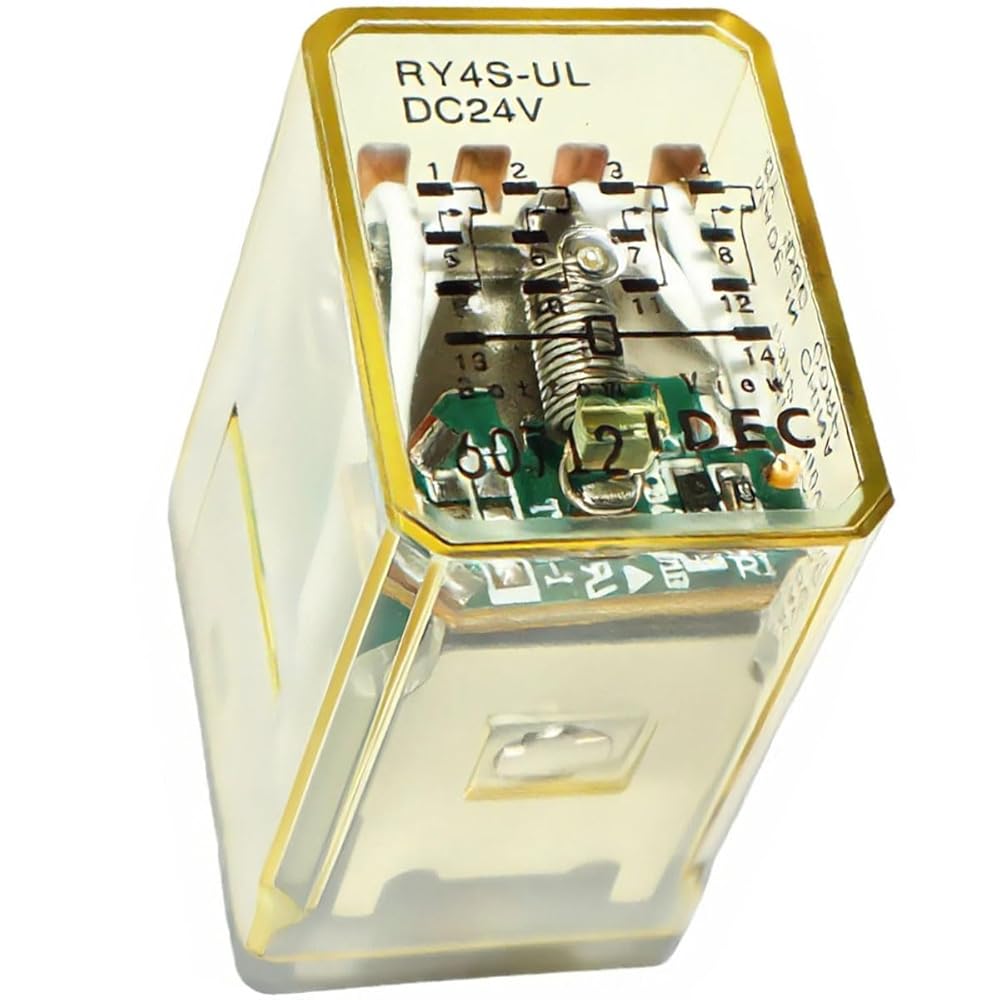

  • Specs & features: Plug-in miniature relay, 24VDC coil (DC24V), 4PDT / 4 Form C contact arrangement, 14-pin blade terminals; built-in LED indicator for quick status check in the relay panel. Designed for lower-level switching needs such as pilot lights, logic/PLC interfaces, and signal/control circuits in 24V electrical systems (including many commercial/industrial control boxes and 24V vehicle/equipment auxiliary controls). Contact capacity: 3A (per RY4S-ULDC24V product spec). Part/OE#: RY4S-UL DC24V / RY4S-ULDC24V. If you are cross-shopping, manufacturer lists RU4S-C-D24 as the replacement series—verify socket/pinout before substituting.
  • Install/replace: Turn off ignition and disconnect battery or isolate power at the 24V supply. Match the OE number and confirm coil voltage (24VDC) before ordering. This is a plug-in 14-pin relay—requires a compatible RY-series 14-pin socket/base in your relay panel. Check terminal numbering, keying, and the 4PDT contact layout against your wiring diagram. Insert straight into the socket until fully seated; do not force if pins are misaligned. After install, confirm LED indication and click, then function-test the circuit. Common locations: relay panel/control box, electrical cabinet, or fuse/relay compartment that uses a 14-pin relay socket. Confirm fitment by OE number/vehicle manual.
  • Compatible with Confirm-Year Confirm-Make Confirm-Model Relay Panel / Control Box Relay — use when your wiring diagram calls for OE# RY4S-ULDC24V (aka RY4S-UL DC24V), a 24VDC coil plug-in 14-pin 4PDT relay with LED indicator. Keyword coverage: DC24V relay, 24 volt plug-in relay, 14 pin relay, 4 pole double throw (4PDT) relay, miniature relay. Confirm fitment by OE number and socket/pin layout.
  • Compatible with Confirm-Year Confirm-Make Confirm-Model Fuse & Relay Box / Junction Box Relay — for 24V systems that use a plug-in 14-pin RY-style relay socket/base (panel mount, DIN-rail, or PCB mount). Verify terminal layout, coil voltage (24VDC), and contact form (4PDT/4 Form C) before replacing; do not assume it matches 5-pin/4-pin automotive cube relays.
  • Compatible with Confirm-Year Confirm-Make Confirm-Model Electrical Cabinet / Control Module Relay Socket Relay — recommended for lower-level switching (pilot lights, logic level devices, interface relay duties) in 24V vehicle/equipment auxiliary controls and industrial panels. Not intended as a 30/40A power relay for motors/fans unless your circuit specification and load current are within the relay's rated contact capacity.
  • Related parts (for install/spares): matching 14-pin relay sockets/bases often paired with RY4 plug-in relays include SY4S-05 / SY4S-05C (DIN rail), SY4S-51 (through-panel), and SY4S-61/SY4S-62 (PCB mount variants). Optional hold-down springs/clips may be used for vibration resistance. Choose the socket/accessories that match your mounting style and wire terminations; verify compatibility in your manual or socket datasheet.

وصف

This listing is for a 24VDC coil, 14-pin plug-in miniature relay with a 4PDT (4 Form C) contact layout and an LED operation indicator. It is commonly used as an interface/control relay in 24V electrical systems where the wiring diagram specifies the RY4S-ULDC24V part number.
Coil voltage: 24VDC (DC24V)
Contact configuration: 4PDT / 4 Form C
Terminal style: 14-pin blade, plug-in type (requires matching relay socket/base)
Indicator: built-in LED for on/off status check
Intermittent operation of the controlled circuit (works sometimes, then stops)
No relay click / no output switching when the control signal is present
Heat discoloration or loose/burnt pins at the socket
Confirm fitment by OE number and your wiring diagram/vehicle or equipment manual. This is a 14-pin 4PDT relay—do not substitute with common 4-pin/5-pin cube relays. Before installation, disconnect power and verify coil voltage, terminal numbering, and socket keying. If you are cross-shopping replacements, the manufacturer lists RU4S-C-D24 as the successor series; confirm pinout and socket compatibility before using alternatives.
