*Please check the year, make, model and engine size. Thank you.
Specifications and Features:

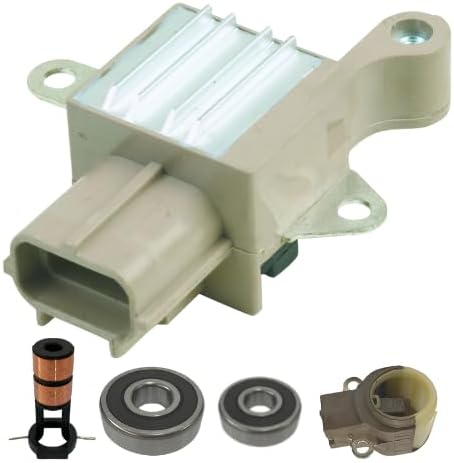

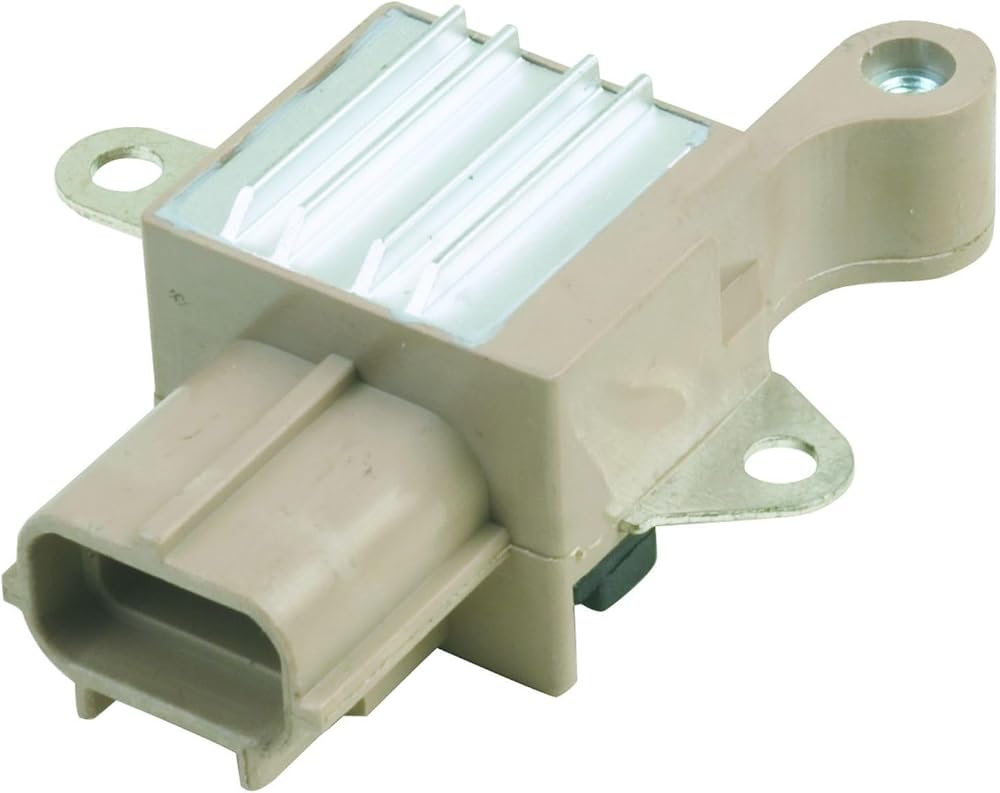

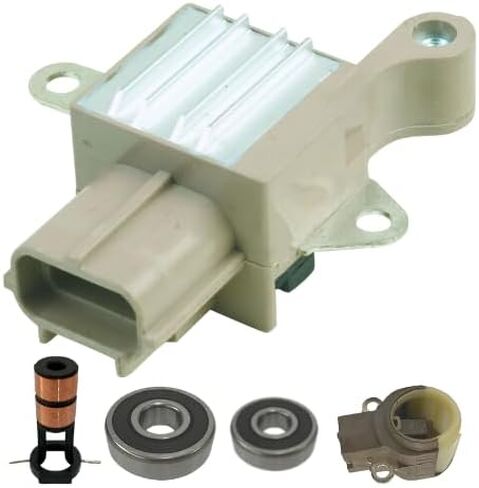

TYPE Regulator
CIRCUIT B-CIRCUIT
SYSTEM VOLTAGE 12
TERMINALS BVS, RC, LI
VOLT SET 13.5
FEATURE 1: 100% New Transpo
NOTE 1: PCM controlled regulation voltage
SPECS FOR: Den-so IR/IF Alternators
SPECS: 12 Volt, B-Circuit, AS-RC-LI Terminals, 13.5 Vset (default)

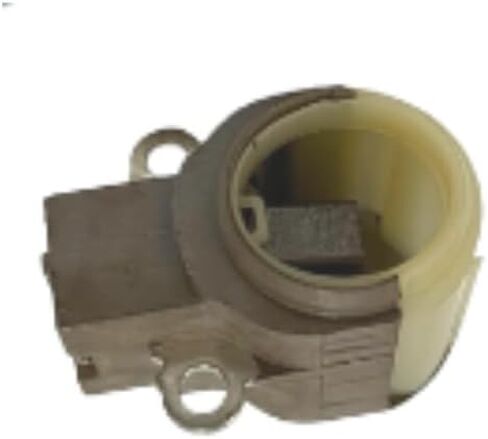

TYPE Brush Holder
DIST MTG HOLES 25.5
HEIGHT 29.5
VOLT 12
TYPE Brushes
CONTACT SURFACE CONCAVE
INSULATED LEAD NO
LEAD ATTACH LOCATION SIDE
LENGTH 15
LENGTH LEAD 48
TERMINATION TYPE NONE
THICK 4.8
VOLT 12
WIDTH 7

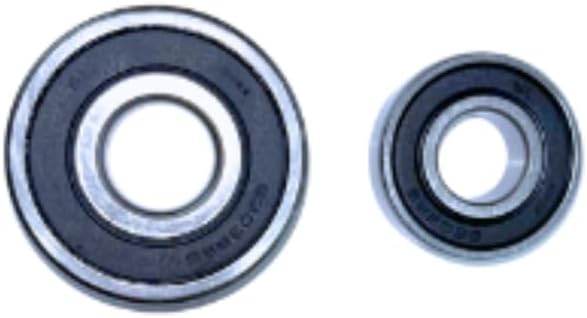

TYPE Bearing
ID 12
IND REF NUM 6001
OD 28
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 8
TYPE Slip Ring
ID 5.8
LENGTH LEADS 11
LENGTH OA 46.5
LENGTH RING 1 8.2
LENGTH RING 2 8.2
OD SLIP RING 14.3

Compatible Vehicles:
Fit many makes and models of Linc Merc and more.
Crown Victoria V8 4.6L 2009
E.450 Super Duty V10 6.8L 2009-2017
E.450 Super Duty V8 5.4L 2009-2016
F.450 Super Duty V8 6.4L 2008-2010
F.550 Super Duty V8 6.4L 2008-2010
F.450 Super Duty V10 6.8L 2009-2012
F.550 Super Duty V10 6.8L 2010-2012
Expedition V8 5.4L 2007-2010
F.150 V6 3.5L 2011
F.150 V6 3.7L 2011
F.150 V8 4.6L 2009-2010
F.150 V8 5.4L 2009-2010
F.250 V8 4.6L 2009
F.250 Super Duty V10 6.8L 2009-2010
F.250 Super Duty V8 6.4L 2008-2010
F.250 Super Duty V8 5.4L 2009-2010
F.350 Super Duty V10 6.8L 2009-2010
F.350 Super Duty V8 6.4L 2008-2010
F.350 Super Duty V8 5.4L 2009-2010
Lobo V8 5.4L 2009-2010
E.150 V8 4.6L 2009
E.150 V8 4.6L 2013-2014
E.150 V8 5.4L 2009-2014
E.250 V8 4.6L 2009
E.250 V8 4.6L 2013-2014
E.250 V8 5.4L 2009-2014
E.350 Super Duty V10 6.8L 2009-2017
E.350 Super Duty V8 5.4L 2009-2016
Linc
Town Car V8 4.6L 2009
Navigator V8 5.4L 2007-2010
Mercu
Grand Marquis V8 4.6L 2008-2009
Interchange #
IN6343
107343
Brush Holder Assy
39-8206
Brushes
38-8201
Bearing, Ball
10-2021-4, 10-2021-4E, 10-2021-4W
Slip Ring, Rotor
28-82854
Lester
11204, 11290, 11291, 11292, 11292, 11293, 11431, 11432, 11534, 11630, 11993, 20215, 20215, 23820, 23820, 23820, 23821, 23839, 23839, 23839, 23913, 24046, 24070
USED ON
(2008-2017) ** Linc (2009-2011) ** Mercu (2008-2011)
Replaces
Den 126600-3430, 126600-3640, 126600-4200, GC5 3430, GC5B 4200, GC5B 5110, GC5B 5130
UNIT NUMBERS
Den-so 021080-0240, 104210-1110, 104210-1270, 104210-2710, 104210-2740, 104210-2910, 104210-2930, 104210-2960, 104210-2970, 104210-3513, 104210-3520, 104210-3521, 104210-3522, 104210-3523, 104210-3524, 104210-3640, 104210-3641, 104210-3760, 104210-3761, 104210-3850, 104210-3851, 104210-3852, 104210-3950, 104210-3951, 104210-4650, 104210-4651, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 104210-5630, 104210-5700, 104210-5770, 104210-5780, 104210-5790, 104210-5800, 104210-5820, 104210-5821, 104210-5830, 104210-5860, 104210-5960, 104210-5970, 104210-6100, 104210-6103, 104210-6180, 104210-6340, 104210-6670, 104211-0070, 104211-0190, 104211-0480, 104211-0800, 104211-9890, MX104211-0800, TE104211-0800, TN104210-1110, TN104210-2930, TN104210-2960, TN104210-5960, TN104210-6670, TN104211-9890; For.d 10346B, 1229259, 1255711, 1256552, 1256552, 1352431, 1406100, 1406100, 1464563, 1464563, 1477738, 1477740, 1496230, 1496230, 1530299, 1530299, 1535294, 1633079, 1708322, 1748625, 1748625, 1748630, 2007587, 30667070, 30795494, 3M5T-10300-LD, 3M5T-10300-NC, 3M5T-10300-PD, 3M5T-10300-VB, 3M5T-10300-VB, 3M5T-10300-VC, 3M5T-10300-VC, 3M5T-10300-VD, 3M5T-10300-XD, 3M5T-10300-YB, 3M5T-10300-YC, 3M5T-10300-YD, 3M5T10300YE, 4M5T-10300-BA, 4M5T-10300-BA, 4M5T-10300-BB, 4M5T-10300-BB, 4M5T-10300-BC, 4M5T-10300-BC, 4M5T-10300-CB, 4M5T-10300-CB, 4M5T-10300-CC, 4M5T-10300-CC, 4M5T-10300-UB, 4M5T-10300-UC, 5178833, 7C3T-10300-EE, 7C3T-10300-FB, 7C3Z-10346-A, 7C3Z-10346-B, 7C3Z-10346-EA, 7L7T-10300-AC, 7L7Z-10346-B, 8M5T-10300-PA, 98AB-10300-GG, 98AB-10300-GG, 9C2Z-10346-A, 9C3T-10300-AB, 9C3T-10300-AC, 9C3Z-10346-A, 9L3T-10300-BB, 9L3T-10300-CB, 9L3Z-10346-B, 9L3Z-10346-C, 9R3T-10300-AA, 9R3Z-10346-A, 9R3Z-10346-E, 9W7Z-10346-A, AL1T-10300-AA, AL1Z-10346-A, AL1Z-10346-A, AW7T-10300-AA, AW7Z-10346-A, BC3T-10300-EC, BL3T-10300-EA, BL3Z-10346-A, BL3Z-10346-C, BR3T-10300-EC, BR3T-10300-JC, BR3Z-10346-A, BR3Z-10346-C, CL3T-10300-BA, CL3Z-10346-B, DC2Z-10346-A, DS7Z-10346-D, FL3T-10300-DA, FL3Z-10346-D, G2GZ-10346-A, HC3Z-10346-B, HC3Z-10346-F, LC3T-10300-DA, LC3Z-10346-C, R6ZCC, RE3M5T-10300-VD, RE3M5T-10300-VD; For.d Engineering 3M5T-VC, 3M5T-VC, 3M5T-YB, 3M5T-YC, 7C3T-EE, 7C3T-FB, 7L7T-AC, 9L3T-CB, 9W7T-10300-AA, BL3T-10300-BC, DS7T-10300-DB, G2GT-10300-DA, HC3T-10300-BB; Land Rov LR010514, YLE500250, YLE500290, YLE500420, YLE500430; Marell 063377416010, 063377420010, 63377416, 63377417, 63377418, 63377419, 63377419, 63377526, MAN7417; Original Reference Number 89212316, 9212316, N6G8J; Vale.o 440411; Visteon NB; Volv 30667068, 30795423, 30795495, 31288154, 36000599, 36002574, 36002574, 36002577, 36050997, 8603183, 8603271, 8603271
