Package included：
1 X 3-ROW Aluminum Radiator+CAP
1 X Aluminum Shroud
1 X 16"Fan

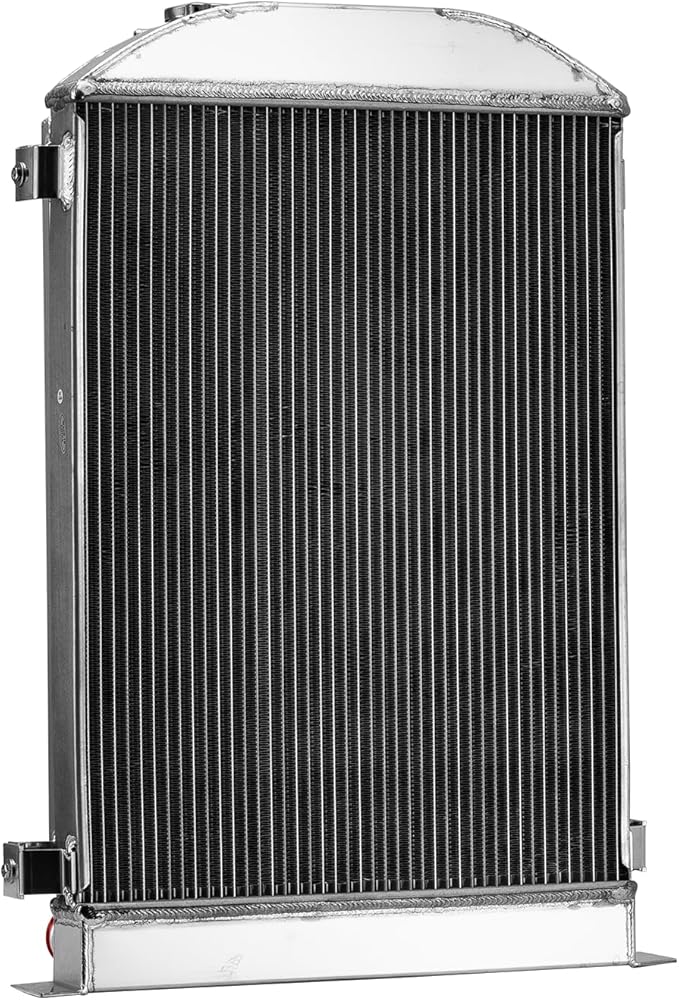

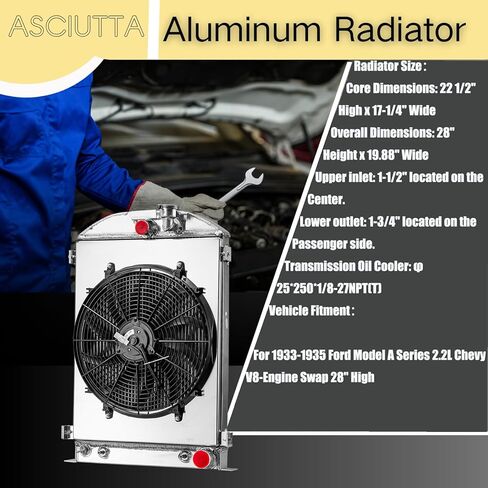

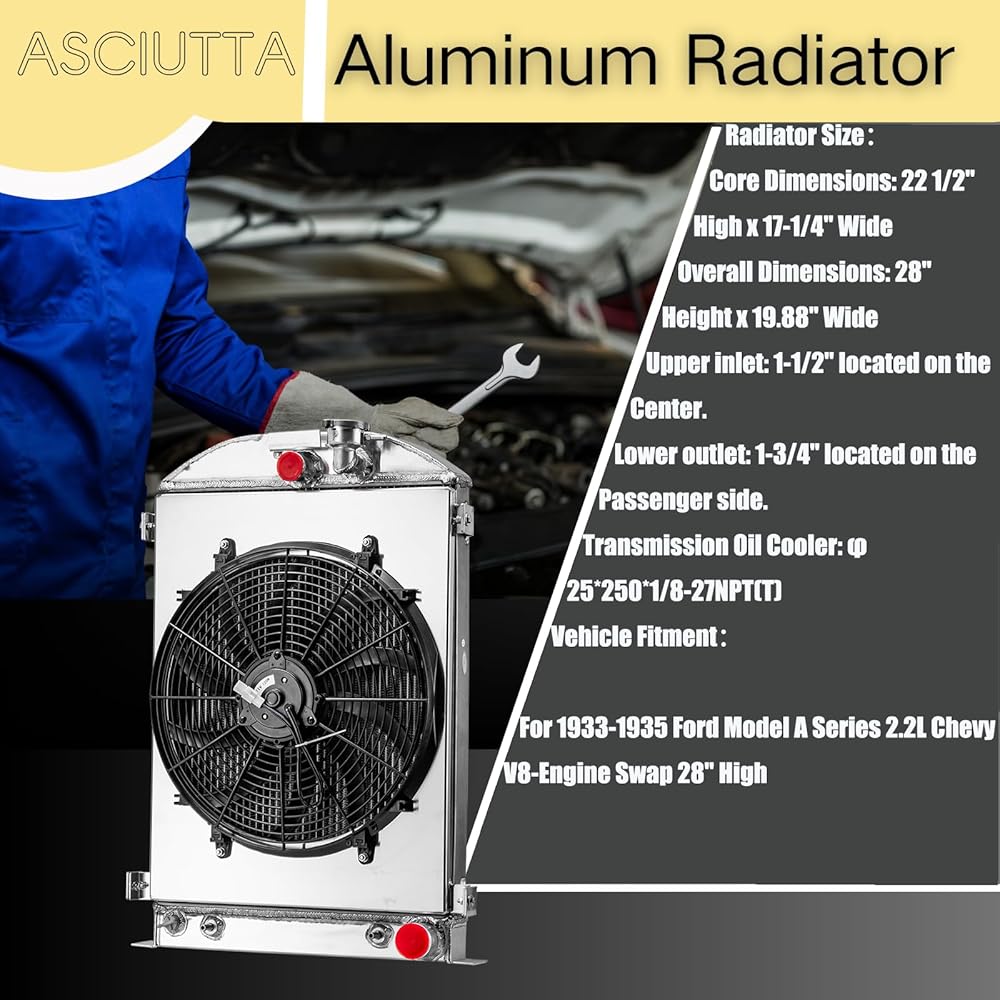

Radiator Size：
Material: Aluminum

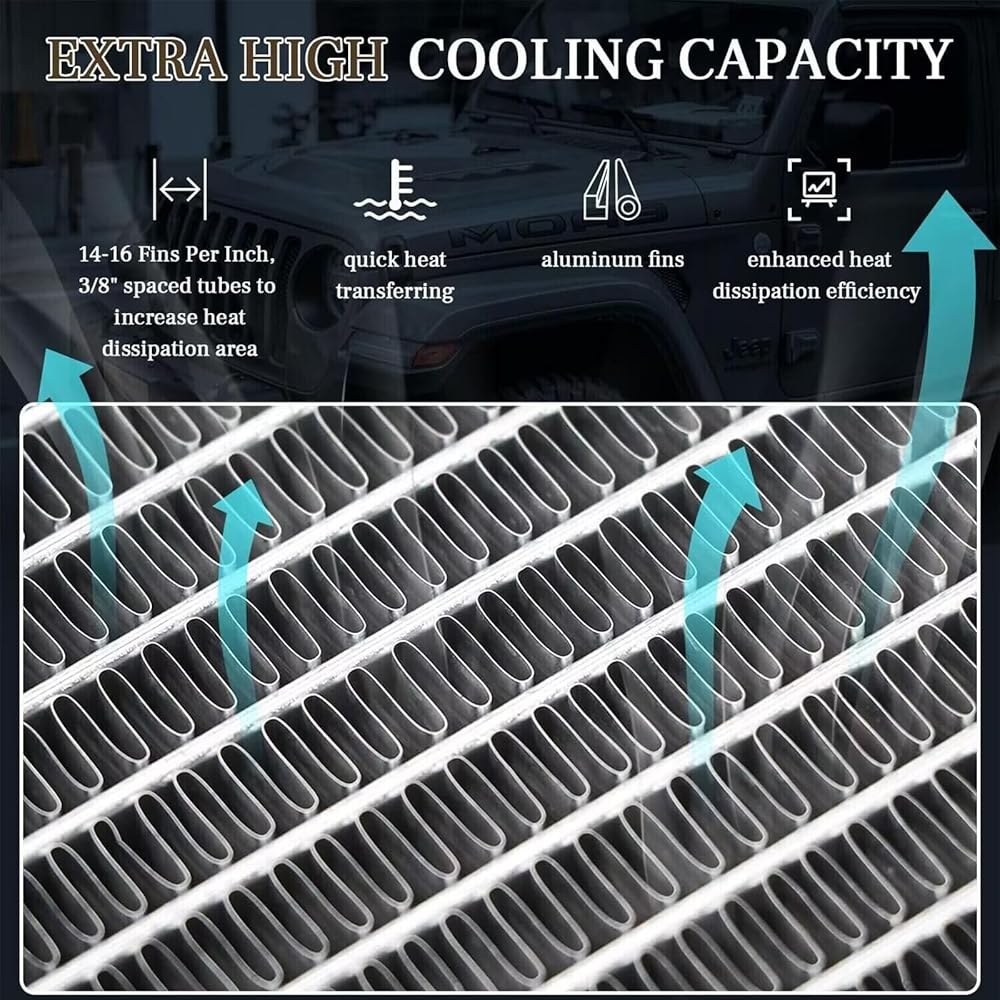

3-Row of tubes Core Racing Design
Core Dimensions: 22 1/2" High x 17-1/4" Wide
Overall Dimensions: 28" Height x 19.88" Wide
Upper inlet: 1-1/2" located on the Center.
Lower outlet: 1-3/4" located on the Passenger side.
Transmission Oil Cooler: φ25*250*1/8-27NPT(T)

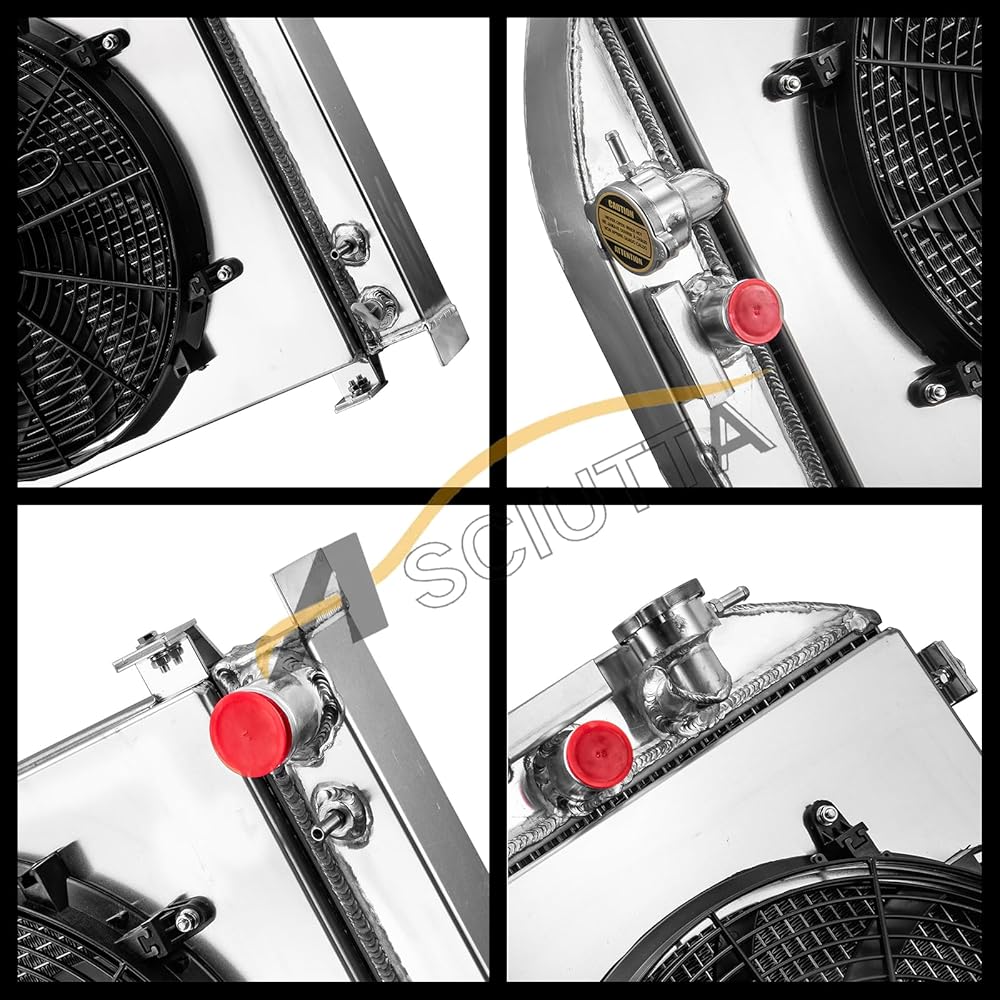

Crafts:100% Tig Welded,No Epoxy
This radiator is easy to buy wrong, please check the size before purchase!
Vehicle Fitment：
For 1933-1935 Ford Model A Series 2.2L Chevy V8-Engine Swap 28'' High
Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

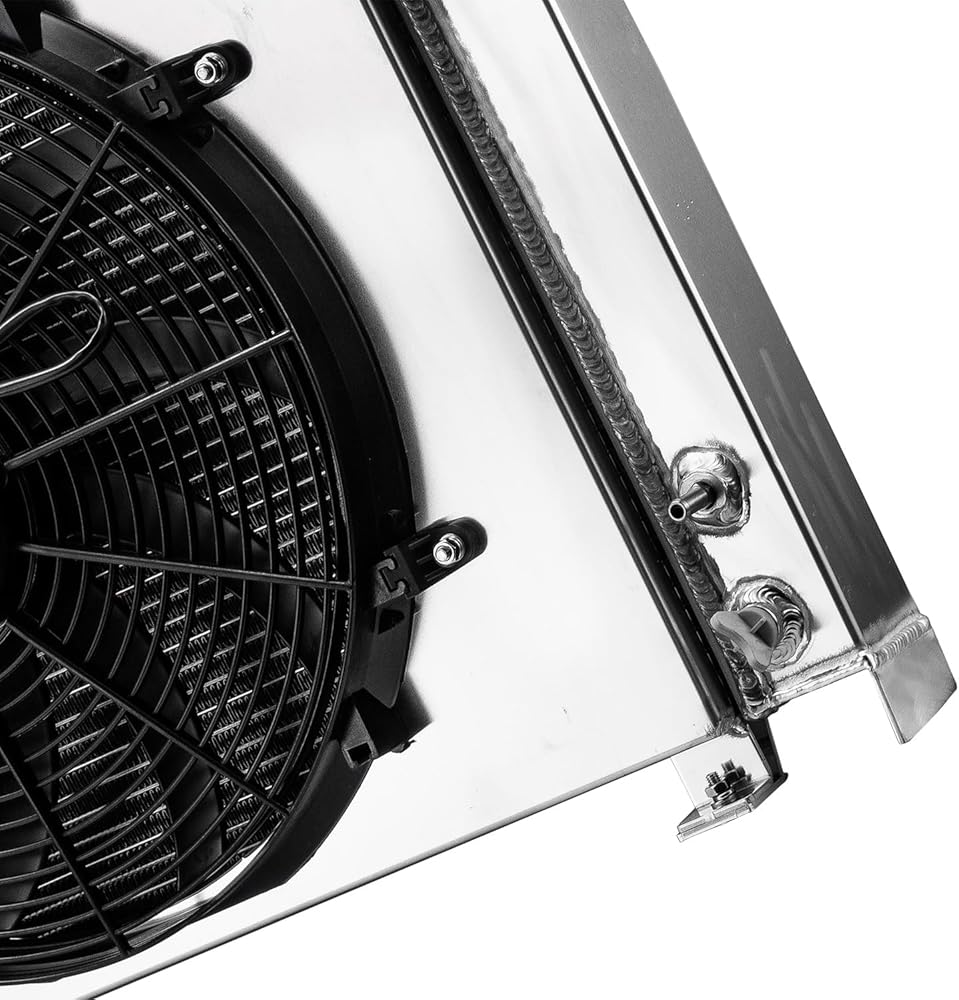

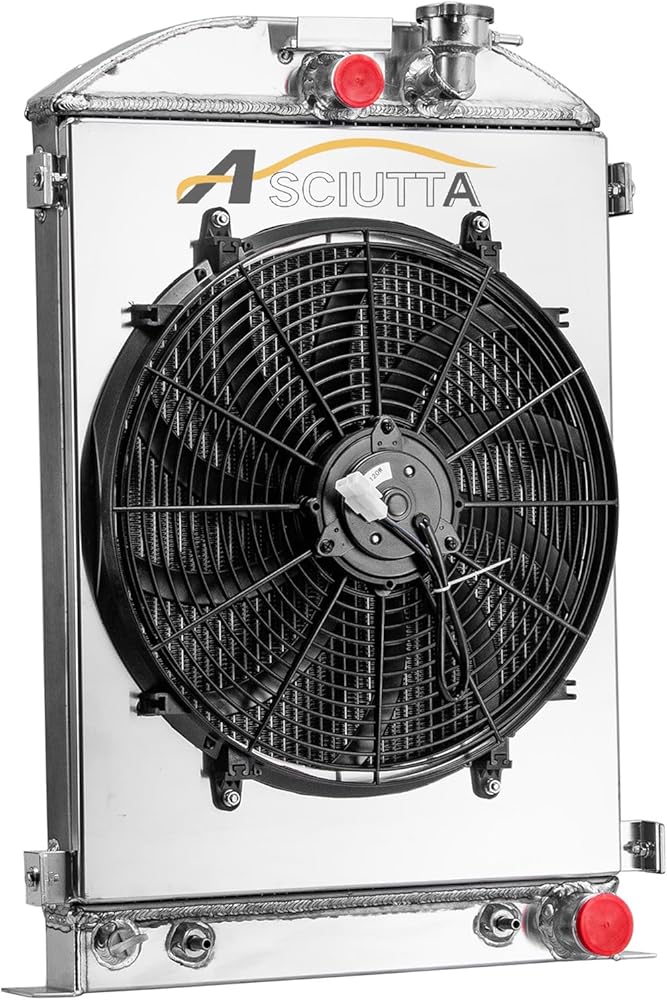

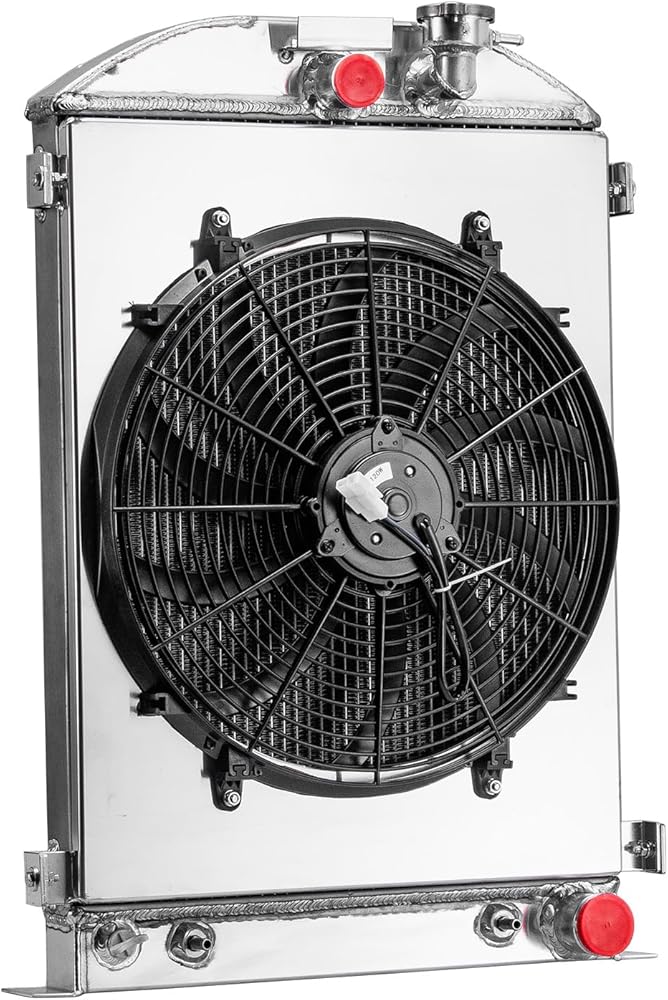

Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
