Material: the battery quick connector plug is made of sturdy PC fire-retardant material with fitted rubber boot covers to protect against dust, moisture, have long service time
The 175 amp anderson connector can carry high current up to 175A, 600V. Suitable for 1/0AWG gauge wire

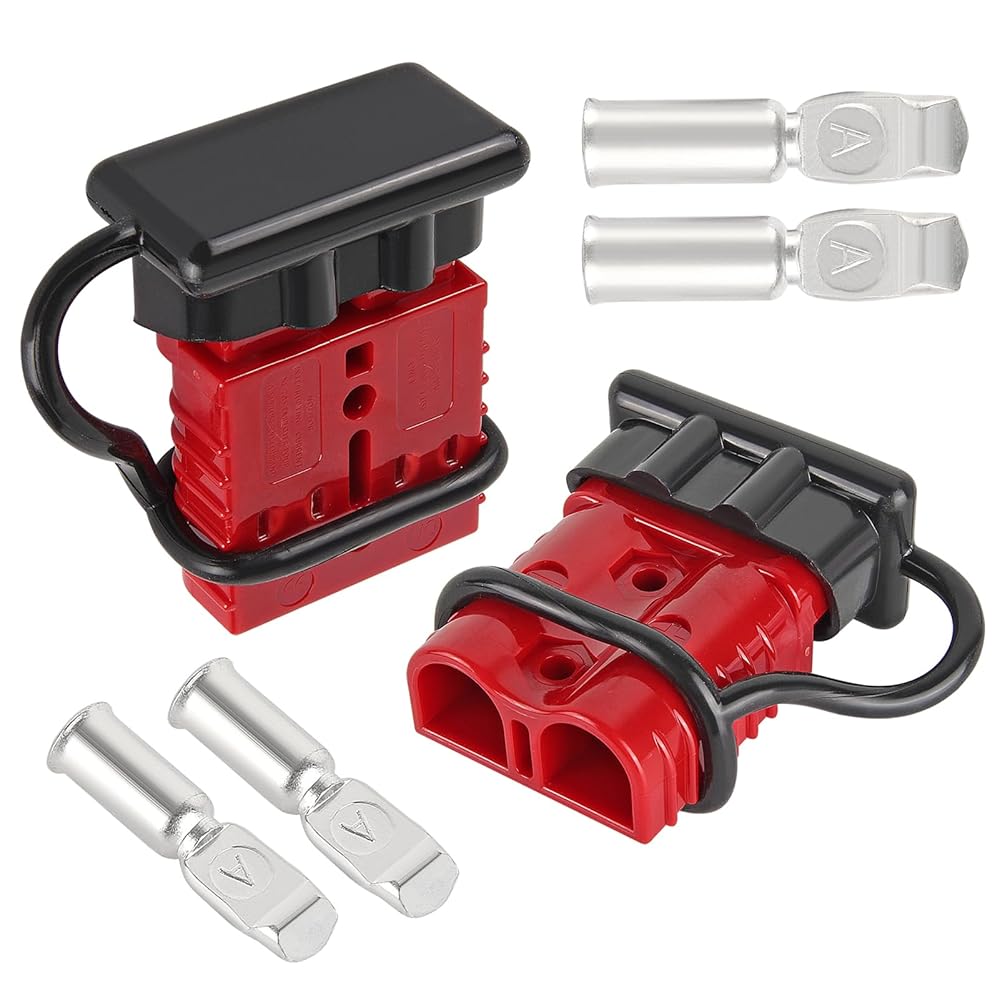

The 175A Wire Harness Plug Kit for 2 Gauge Cables, 12V to 36V Battery Quick Connect Disconnect Set
Easy Installation:The cable is simply inserted into the terminals and pressed firmly for successful wiring,the terminals are then inserted into the connector housing.Easy to complete assembly.
Applications: the battery quick connector provides simple and convenient method for connect disconnect power to a winch or other electrical device such as remote battery connectors, power inverters, solar setups, trailers
وصف
Specifications:
Material: copper alloy (silver-plated )
Voltage Ratings (Volts):600V
Gauge (AWG): 4AWG - 1/0AWG
Rated current(Ampers): 175A
Operating Temperature Range:-4°F-221°F / -20°C-105°C
How to Use:
step1: Strip wire insulation to fit snugly inside the barrel
step2: Crimp the terminals with a crimping tool
step3:3 Double-check polarities(black for -ve, red for +ve)
step4: Make sure it's two plugs of the same color and type butted together
Package Includes:
2 x Connector
6x 6-12AWG Terminals
2 x Waterproof Cap
