[Enhanced Nighttime Visibility] Vibrant red backlight ensures excellent readability in low light with customizable color options for personalized dashboard aesthetics.
[Multifunctional Display] Monitor voltage oil pressure and water temperature simultaneously on a clear digital screen for quick informed decisions.
[Secure Vibration Design] Sturdy 316L stainless steel bezel and anti-fog curved glass withstand harsh marine and automotive environments.
[Wide Voltage Range] Operates flawlessly from 9-32VDC with low power consumption for consistent accurate readings on long trips.
[Easy Installation] Includes wiring mounting base screws and manual for straightforward setup in boats yachts RVs trucks or motorcycles.

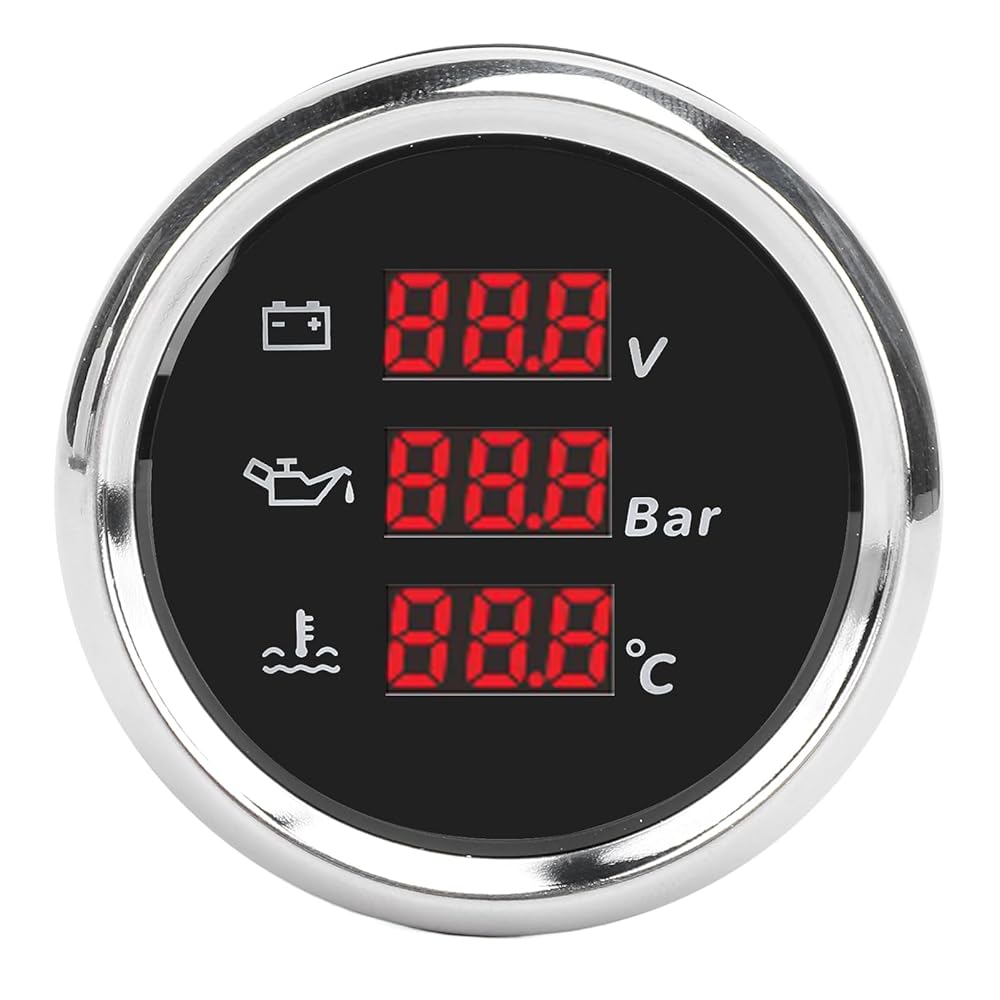

Item Type: Digital Voltage Oil Pressure Water Temp Gauge
Material: Stainless Steel 316L Bezel, Anti Fog Glass
Protection Rating: IP67, Fully ; Excellent Anti Fog Function
Display: Voltage, Oil Pressure, Water Temperature
Backlight Color: Red (default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple (color can be switched)
Operating Voltage: 9-32VDC
Operating Current: ≤60mA
Operating Temperature: -30℃ to +70℃
Storage Temperature: -40℃ to +85℃
Protection Rating: IP67, can work underwater at 1m / 3.3ft depth
Fitment: Suitable for Boats, Yachts, RVs, Trucks, Motorcycles
Wiring:
1. Red Wire: +9-32VDC
2. Orange Wire: Backlight (+)
3. Blue Wire: Power Negative (-)
4. White Wire: Oil Pressure Signal Input
5. Purple Wire: Water Temperature Signal Input
1 x Gauge
1 x Wiring
1 x Mounting Base
2 x Screws
1 x Manual1. The product comes with instructions, please carefully read before installation.
2. Ensure there is 70mm space behind the hole after drilling.
