CF Moto listed parts number is 5BWV-150900-5000
31.5cm

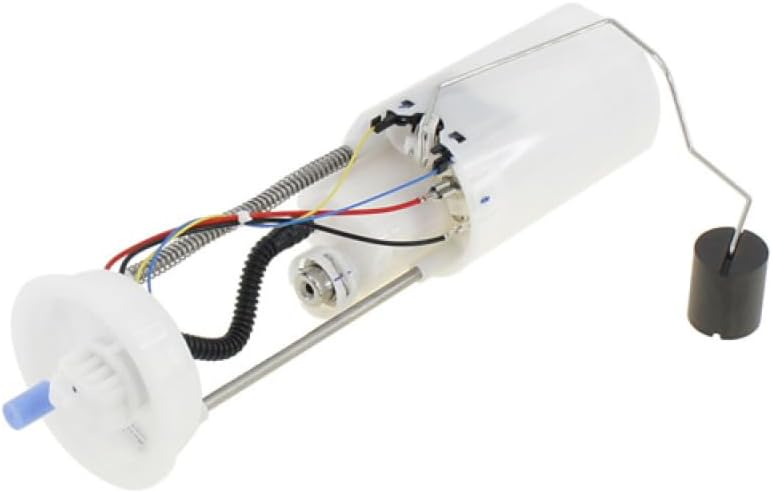

This fuel pump assembly includes fuel pump, plastic support, preliminary filter, fine filter and pressure regulator. It supplies fuel for engine under a certain pressure and flow.
This fuel pump is located in fuel tank.
Don't operate the fuel pump in dry condition in order to prevent damage.
Always handle the fuel pump gently.
Never drop the fuel pump, especially on a hard surface.
Battery supplies power for fuel pump assembly via fuel pump relay, which connects the fuel pump circuit only with the engine started.
Fuel pressure test:
Connect the fuel pressure gauge with fuel outlet and tighten the joint with a clamp to prevent fuel leaks.
Route according to the right circuit.
Turn both ignition switch engine stop switch on.
At this moment, fuel pump will operate for 5 seconds. After the fuel pump stops running, fuel pressure should be in specification. Otherwise, replace it.
After the engine stops running,0.25MPa fuel pressure should be kept for more than 5 minutes. Otherwise, replace the fuel pump.
This may fits
ATV 2024 CF1000ATR-2 CForce 1000 TOURING
ATV 2025 CF1000ATR-2 CForce 1000 TOURING
ATV 2025 CF1000ATR-2A CForce 1000 OVERLAND
ATV 2025 CF1000ATR-3 CForce 1000 MV
ATV 2025 CF1000AU-2 CForce 1000 TOURING
ATV 2024 CF1000AZ CForce 1000 Overland
ATV 2024 CF1000AZ-2 CForce 1000 TOURING
ATV 2025 CF1000AZ-2 CForce 1000 TOURING
ATV 2025 CF1000AZ-2A CForce 1000 OVERLAND
ATV 2024 CF800ATR-5 CForce 850 TOURING
ATV 2025 CF800ATR-5 CForce 850 TOURING
ATV 2025 CF800AU-3 CForce 850 TOURING
ATV 2024 CF800AZ-2A CForce 800XC
ATV 2024 CF800AZ-3 CForce 800 TOURING/CForce 850 TOURING
ATV 2025 CF800AZ-3 CForce 800 TOURING/CForce 850 TOURING
SSV 2024 CF1000STR-3L ZForce 950 SPORT-4
SSV 2025 CF1000STR-3L ZForce 950 SPORT-4
SSV 2023 CF1000SZ-3 ZForce 950 TRAIL
SSV 2024 CF1000SZ-3 ZForce 950 TRAIL
SSV 2025 CF1000SZ-3 ZForce 950 TRAIL
SSV 2023 CF1000SZ-3A ZForce 950 SPORT
SSV 2024 CF1000SZ-3A ZForce 950 SPORT
SSV 2025 CF1000SZ-3A ZForce 950 SPORT
SSV 2024 CF1000SZ-3L ZForce 950 Sport 4
SSV 2025 CF1000SZ-3L ZForce 950 Sport 4
SSV 2023 CF1000UTR-6(T1b) ZForce 1000
SSV 2024 CF1000UTR-6(T1b) ZForce 1000
SSV 2025 CF1000UTR-6(T1b) ZForce 1000
SSV 2025 CF800SU-3 ZForce 800 SPROT
SSV 2023 CF800SZ-2 ZForce 800 Trail
SSV 2024 CF800SZ-2 ZForce 800 Trail
SSV 2025 CF800SZ-2 ZForce 800 Trail
UTV 2024 CF1000UTR-3 UForce 1000
UTV 2025 CF1000UTR-3 UForce 1000
UTV 2024 CF1000UTR-5 UForce 1000 XL
UTV 2025 CF1000UTR-5 UForce 1000 XL
UTV 2025 CF1000UTR-8 UForce 1000 PRO(T1b)
UTV 2024 CF1000UU UForce 1000
UTV 2025 CF1000UZ UForce 1000
UTV 2024 CF1000UZ-2 UForce 1000 XL
UTV 2025 CF1000UZ-2 UForce 1000 XL
UTV 2025 CF1000UZ-8 UForce U10 PRO
UTV 2025 CF1000UZ-8L UForce U10 PRO XL
UTV 2025 CF800UTR-4 UForce 800 XL
UTV 2025 CF800UZ-4 UForce 800
