DC-DC Boost is coming with the 3rd generation high-frequency switch technology as the core chip, The performance is much higher than LM2577
Parameters Wide input voltage: 3V~32V;Optimum operating voltage range: 5~32V;Wide output voltage: 5V~35V
Excellent QualityThe inner blue 4A high-efficiency MOSFET switch enables an efficiency of up to 94%
Easy to InstallHigh switching frequency of 400KHZ, can achieve very good results with small capacity filtering capacitors, smaller ripple, and smaller size
Package10Pcs XL6009 DC-DC Boost Voltage Power Module 4A 400KHz Adjustable Switch Module 3.8-30V to 1.25-35V Power Supply Module
Wide input voltage of 3V~32V, optimal operating voltage range is 5~32V
Wide output voltage range 5V~35V
The inner blue 4A high-efficiency MOSFET switch enables an efficiency of up to 94% (LM2577 current is only 3A)
High switching frequency of 400KHZ, can achieve very good results with small capacity filtering capacitors, smaller ripple, and smaller size (LM2577 frequency is only 50KHZ)
Product parameters:

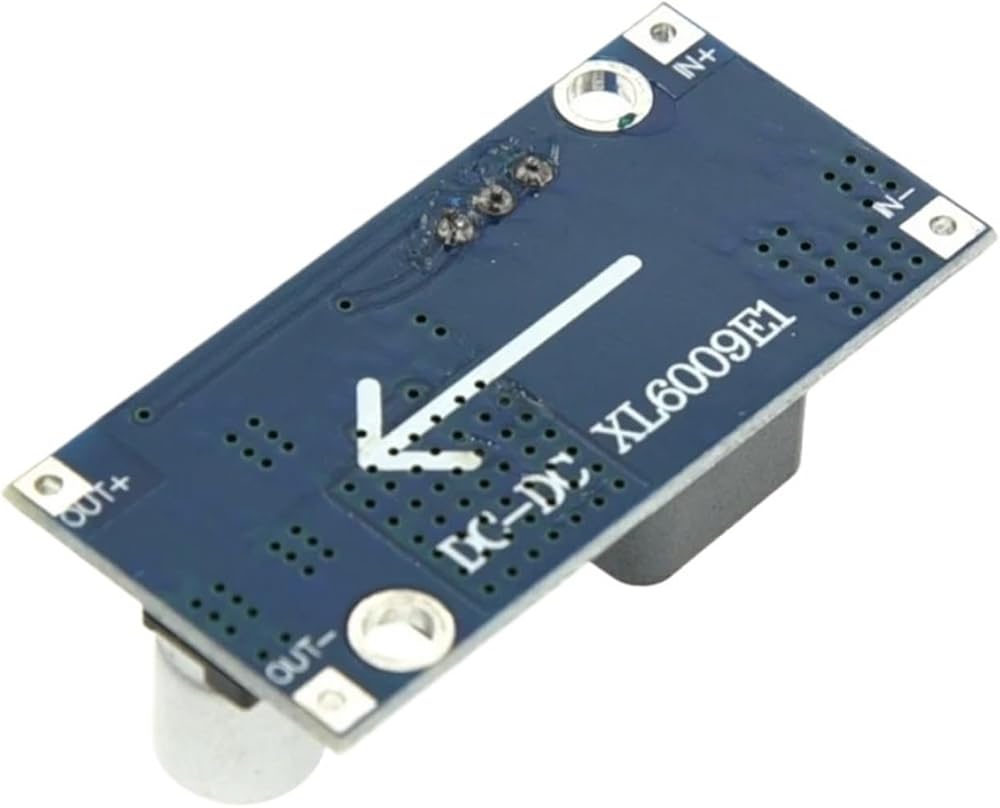

Model and specification: XL6009 DC-DC boost adjustable voltage regulator power module
Module nature: Non isolated upgrade (BOOST)
Rectification method: asynchronous rectification
Input range: 5V-32V (input cannot be lower than 5V)
Output range: 5V-35V (set output voltage to be higher than input voltage)
Input current: load 4A (maximum), no-load 18MA (5V input, 8V output, no-load less than 18MA. The higher the voltage, the greater the no-load current)
Switching frequency: 400KHZ
Output ripple: 50MV (the higher the voltage, the greater the current, and the larger the ripple)
Load adjustment rate: ± 0.5%
Voltage regulation rate: 0.5%
Working temperature: 40 ~85
Dimensions: 43MM * 21MM * 14MM (length * width * height)
==========
High-concerned chemical : None
is_customized : Yes
Dissipation Power : n/a
Supply Voltage : n/a
Application : Computer
Type : Module

Condition :
Operating Temperature : n/a
