1. [FLEXIBLE ADAPTABILITY] Choose between °C or °F for daily convenience.
2. [TEMPERATURE WARNING] Flash reminder when temperature exceeds 120°C.
3. [EXCELLENT FEATURES] Bright blue backlight, , precise measurement.
4. [4-IN-1 DESIGN] Test voltage, time, temperatures water and oil.
5. [EASY INSTALLATION] Troubleshoot abnormal display with .

Specifications:

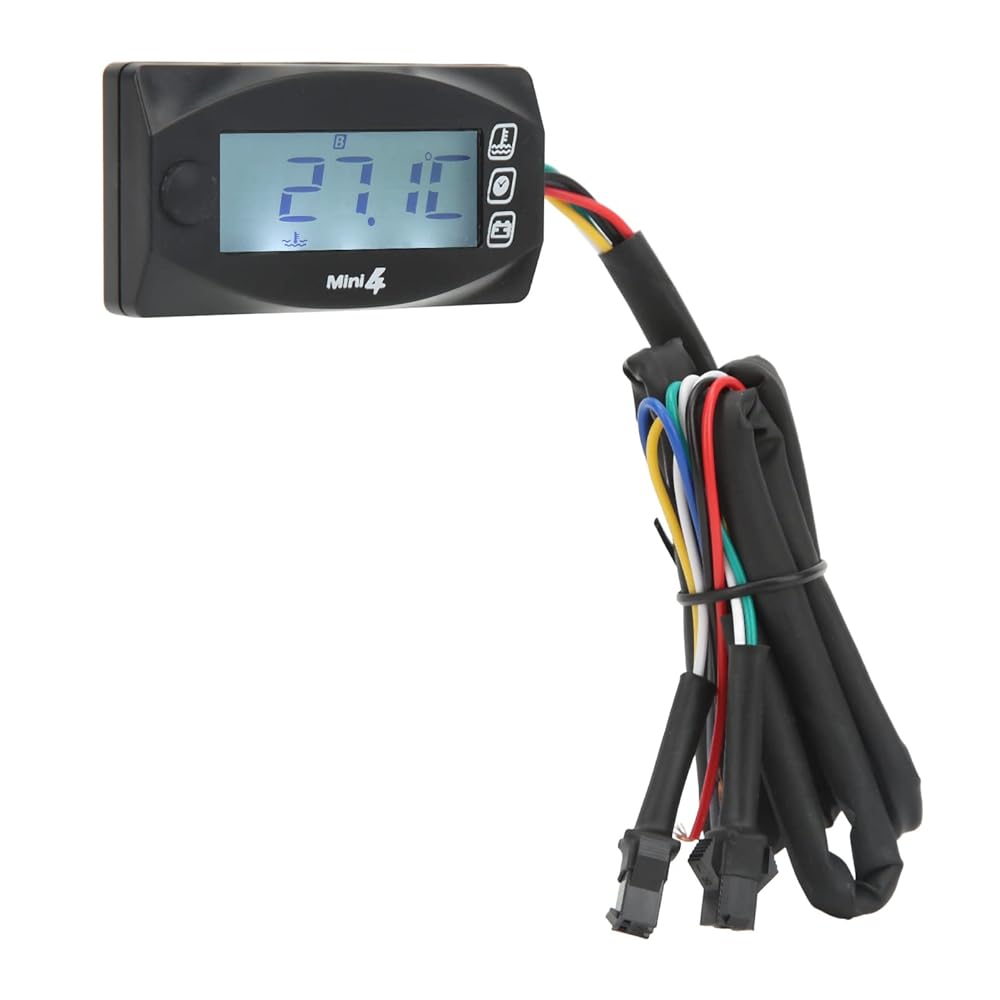

Item Type: Motorcycle Voltage Temperature
Material: Plastic and LCD
Temperature Unit Display: ℃/℉
Temperature Display Range: 0-120 ℃ (32-248°F)
Product function: Voltage/time/water temperature/oil temperature
Meter size: approx.: 60x30x13 mm/2.36x1.18x0.51 inch (need to mark the size)
Tee size: approx.: 16 mm/0.62 inch
Temperature warning: Flash Warning when the temperature is above 120℃/248℉
Effective working voltage: DC12V
Backlight: blue
Applicable model: universal motorcycle

Comment to use:
Connection method:1. Temperature A – yellow and white wires. 2. Temperature B – green and white wires. 3. Key connect blue wire to main power switch DC 12V. (+)4. The black wire connects to the car body. (‑)5. Red wire to DC 12V battery. (+)6. Water temperature: The tee should be connected to the cooling water pipe, then the sensor is connected to the tee.7. Oil Temperature: Need to install the oil temperature screw into the oil outlet, then connect the sensor to the screw.

Package List:
1 x Temperature
2 x Sensor Harness
2 x Adapter Extension Cables
1 x User Manual
1 x Tee
1 x Oil Outlet Screw
2 x connection terminals
1 x adhesive strip
2 x clamps
1 x gasket
