Oil Pressure Gauges

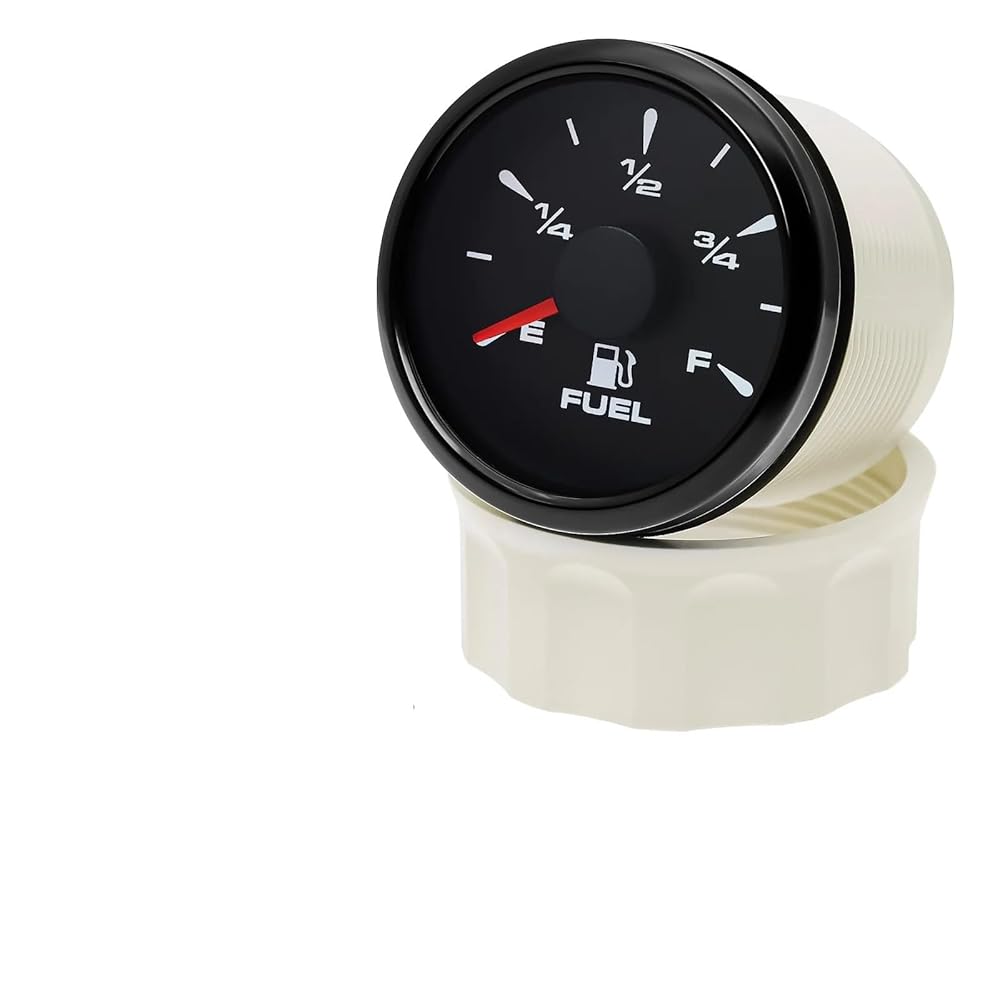

Custom Signal 0-90 ohm 52mm Fuel Level Gauge With Fuel Float Sensor Waterproof Oil Tank Meter Indicator 7 Colors Backlight For Car Yacht

Option A
1X Fuel Level Gauge 0-90ohm
Option B
1X Fuel Level Gauge
1X Fuel Level Sensor
:
- Material:stainless steel 316L+anti-fog glass
- Install diameter:52mm or 2-1/16"
- Indication range:E~F
- Connection method:row insert
- Backlight color:red,green,blue,white,yellow,olivine,orange,purple,totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button
- Working voltage:9~32vdc
- Input signal:0~90ohm
- Users can select the input resistance by themselves as below:press the back "Mode"button for 3 seconds to enter the setting mode,back light flickering for a while.the needle point at the "E"position,and you could select the corresponding parameter via press the button
Specification:
* Working current::60mA
* Operating temperature:-30~+75
* Storage temperature:-40~+85
* Grade of protection:IP67
* Item color:Black
* Item condition:
* Package method:neutral box
Package Includes:
1x Fuel Level Gauge
1x Wiring harness
1x Installation Instruction
Feature:
[1] Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment
[2] IP67 waterproof and dustproof grade
[3] Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.
[4] With curved glass (with anti-fog function)
[5] With ultra-wide working voltage design (long-term operating voltage:9-32v,maximum up to:36v)
[6] Gauges have many kinds backlight color (red,yellow,orange,green,blue,purple,white),customers can adjust any color that you like
[7] There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.

Sensor parameter:
* Resolution range: 21 mm
* Assembly: SAE standard 5 holes
* Operating temperatures: - 40 to 85
* Rated current for alarm switch: 500mA
* Operating temperatures: - 40 to 85 Celsius
* Level Sensor fit for Diesel & Gasoline Engine
Fit for Fuel Level Gauge and Water Level Gauge
Liquid level sensor length:150mm,200mm,250mm
300 mm ,350 mm ,400mm, 450 mm
* Mounting: 5 pieces of M5 screws and 2 mm thick gasket
* Output signal: 0~90 ohm
Snesor Package Includes:
1 x Sensor
1 x Gasket
5 x Screws
==========
High-concerned chemical : None
Other Part Number : fuel level gauge
Placement on Vehicle : Front

Interchange Part Number : Mini Digital Fuel Meter Motorcycle Gauge
Special Features : 0-90ohm Fuel Level Meter
Item Weight : 0.4kg
Item Height : 0
Item Width : 52mm
Item Length : 52mm Boat Water Tank Level Gauge
Part Number : Auto Digital Fuel Level Gauge

NO. : Fuel Level Gauge Meter
Material : stainless steel 316L bezel+anti-fog glass
Item name : 52mm Boat Car Fuel Level Gauge Meter
Backlight color : 7 colors backlight
Input signal : 0-90ohm
Type : Fuel Gauges for Auto Boat
feture : Auto Digital Fuel Level Gauge
boat car fuel gauge : fuel level sensor
Application : Car Fuel Gauge for car truck yacht
fuel gauge sending sensor : fit Fuel Level Meter
fuel gauge sending sensor support : Water Liquid Level Gauge Meter
Water Liquid Meter : Car Boat Water Tank Level Gauge
Fuel Sending Unit : fit for Water Level Gauge Fuel level gauge
fuel level : car meter
boat fuel gauge : LEVEL SENSOR
Fuel Gauge : CAR GAUG
Option 1 : 1pc fuel gauge
Option 2 : fuel gauge with sensor
