مميزات خاصة

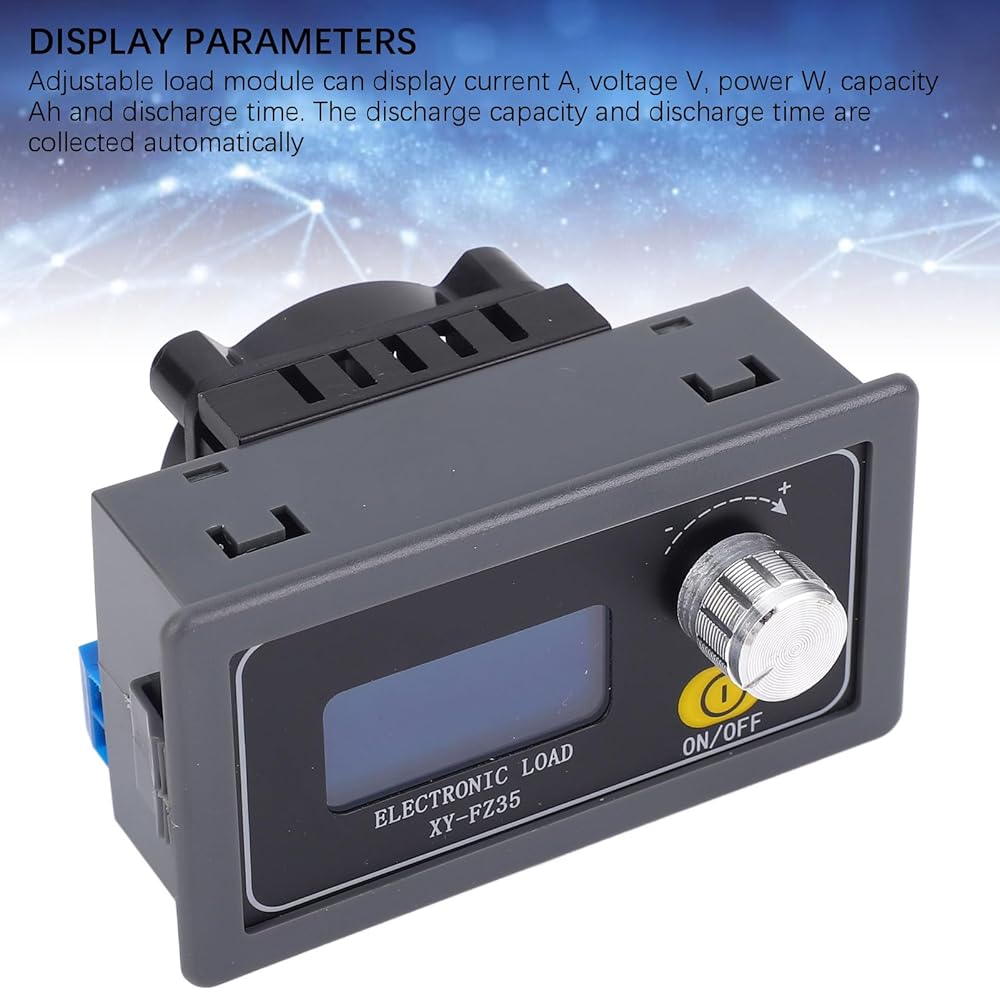

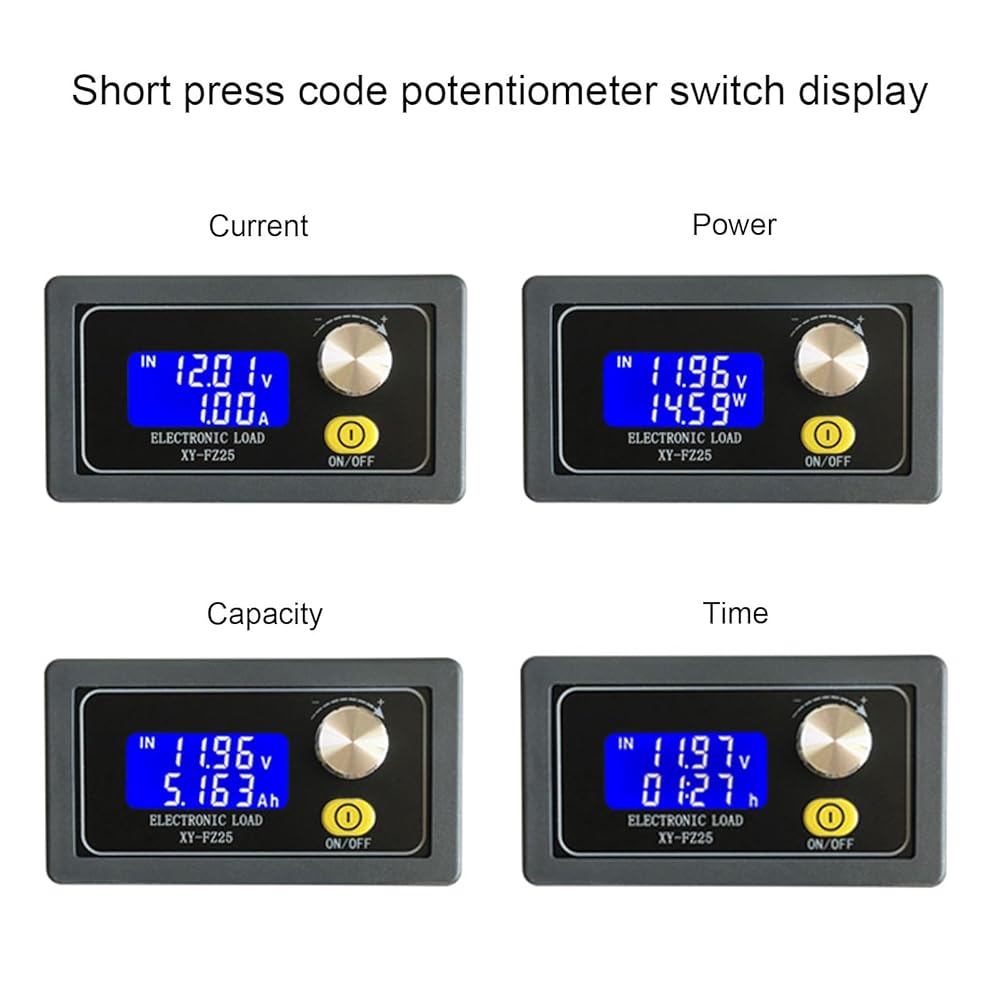

DISPLAY PARAMETERS: Adjustable load module can display current A, voltage V, power W, capacity Ah and discharge time. The discharge capacity and discharge time are collected automatically

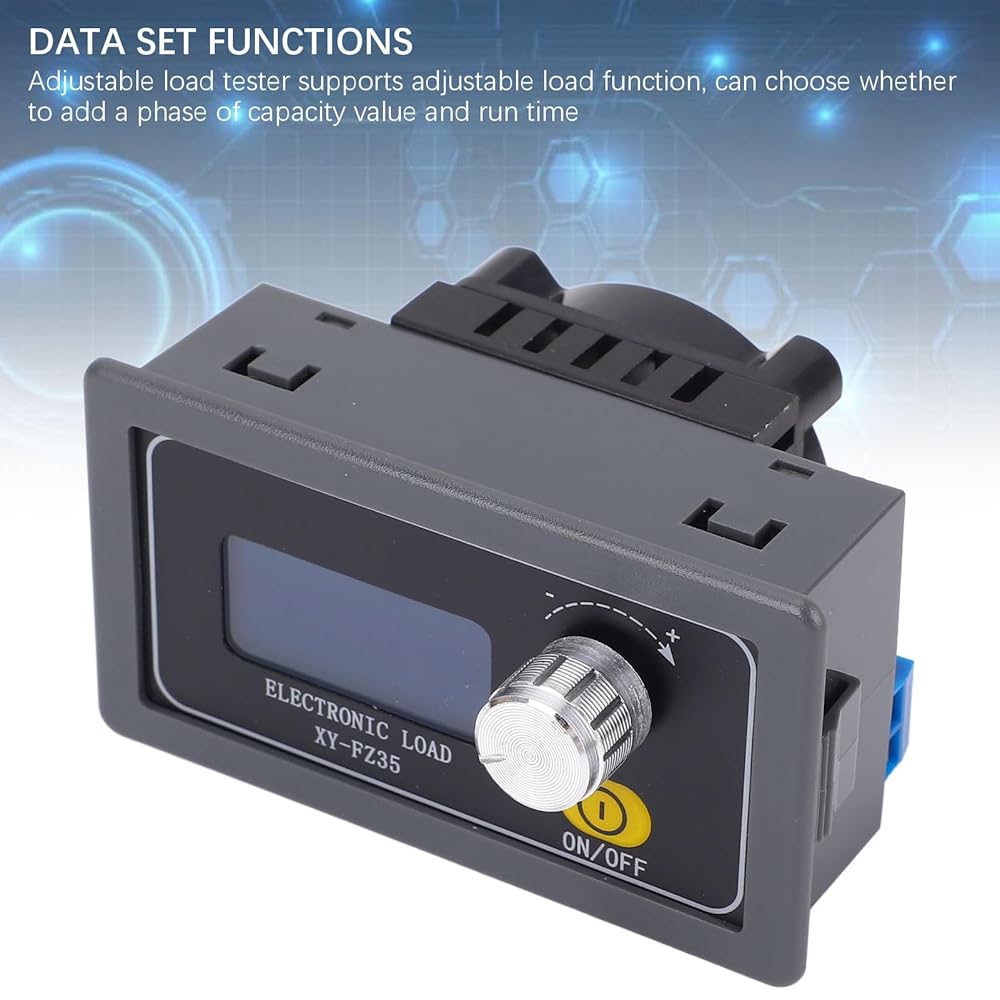

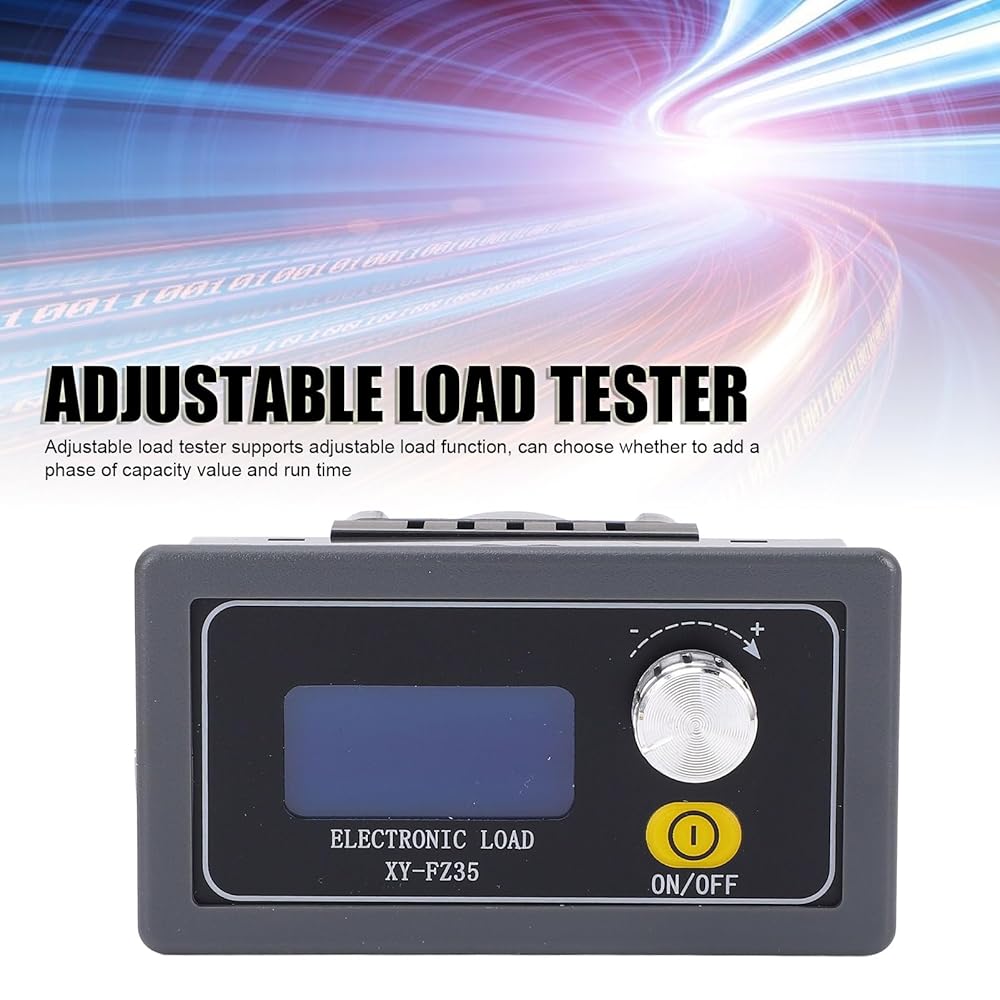

DATA SET FUNCTIONS: Adjustable load tester supports adjustable load function, can choose whether to add a phase of capacity value and run time

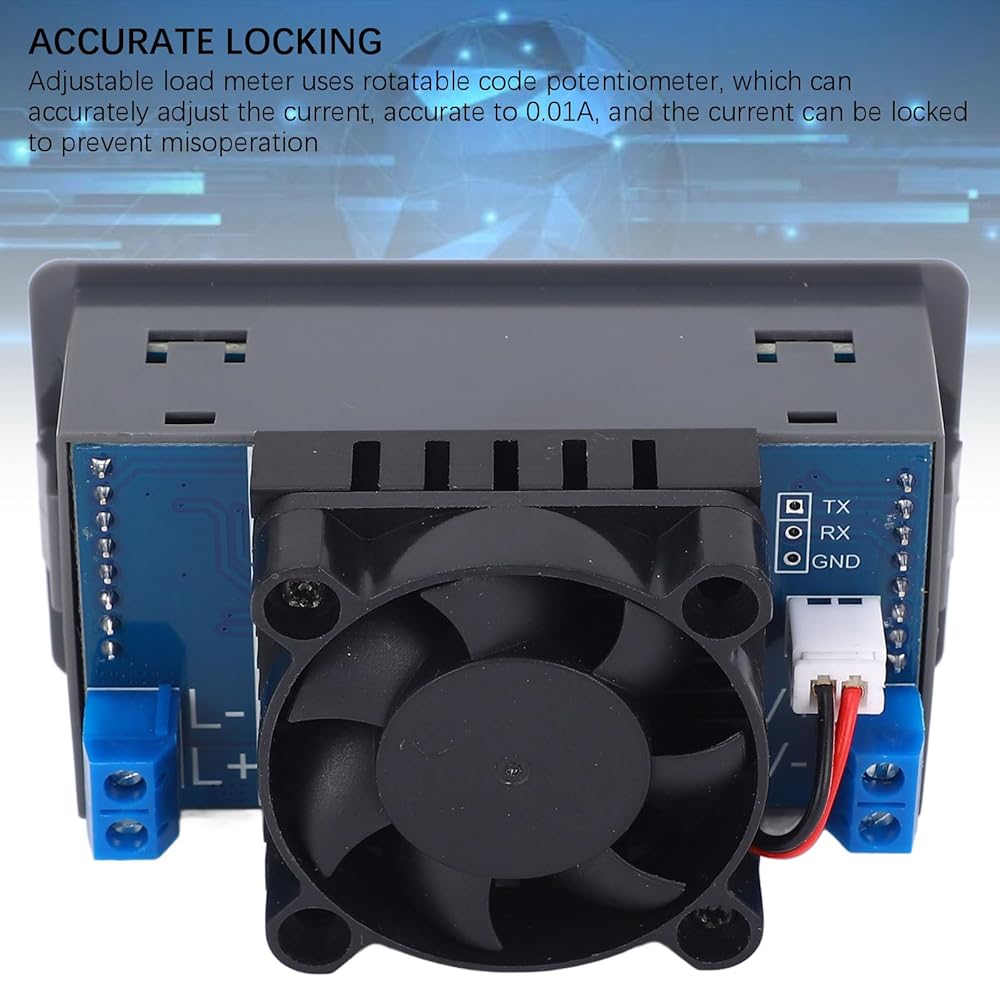

ACCURATE LOCKING: Adjustable load meter uses rotatable code potentiometer, which can accurately adjust the current, accurate to 0.01A, and the current can be locked to prevent misoperation

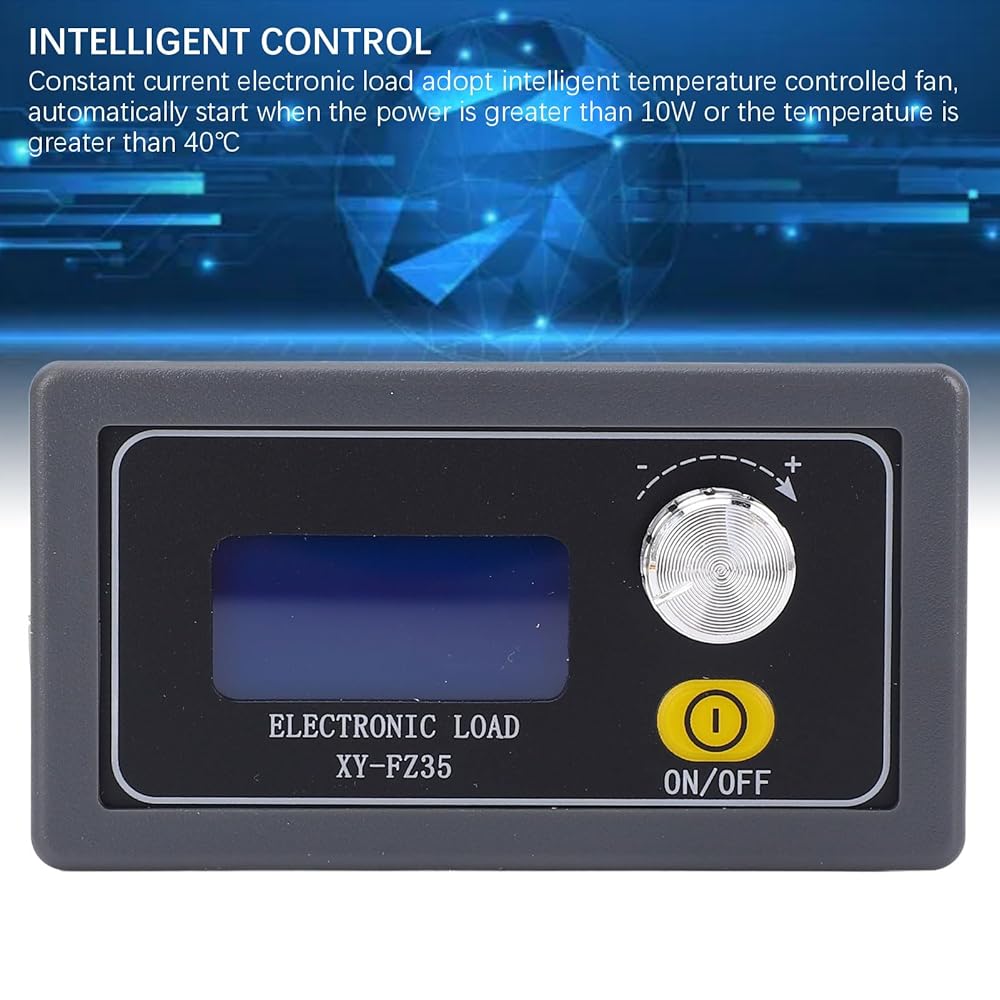

INTELLIGENT CONTROL: Constant current electronic load adopt intelligent temperature controlled fan, automatically start when the power is greater than 10W or the temperature is greater than 40℃

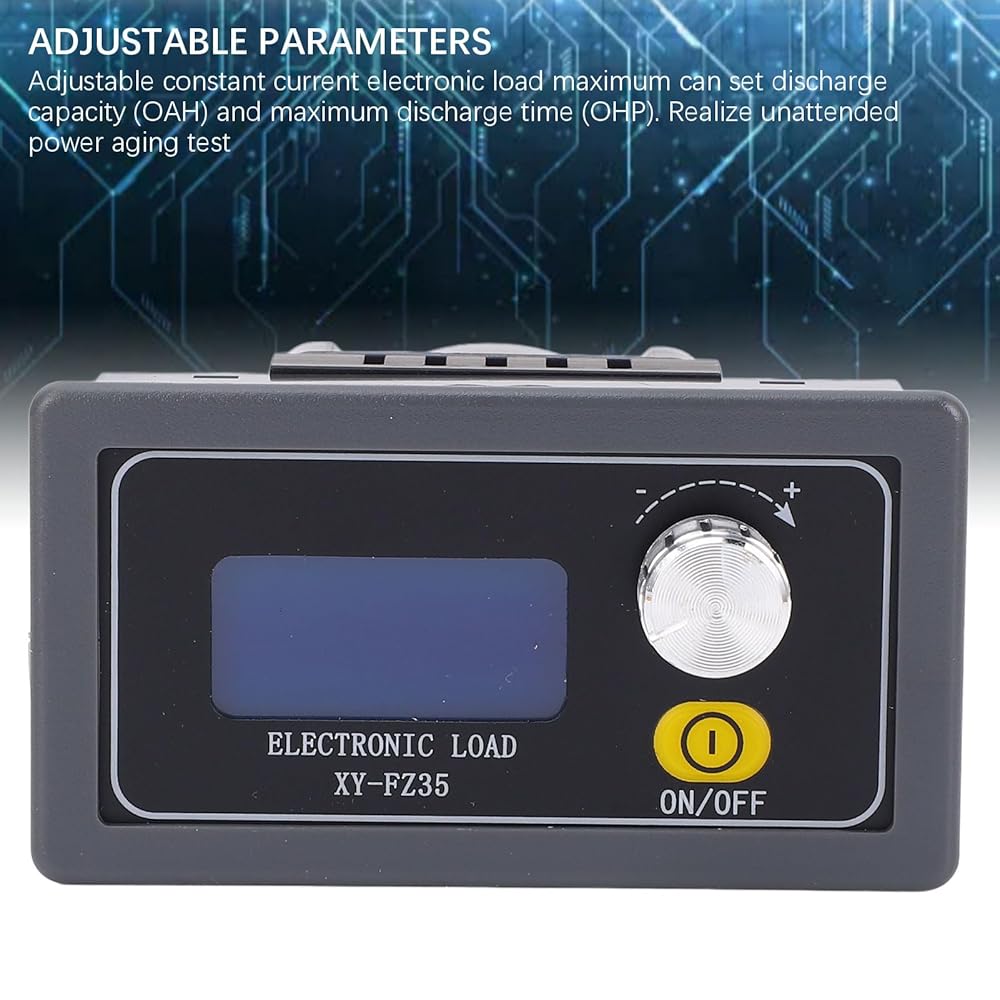

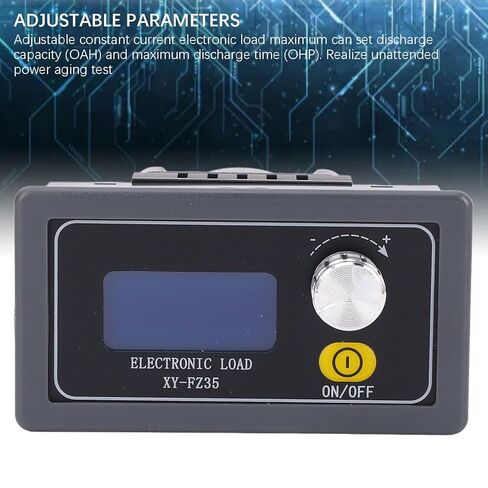

ADJUSTABLE PARAMETERS: Adjustable constant current electronic load maximum can set discharge capacity (OAH) and maximum discharge time (OHP). Realize unattended power aging test

وصف

Specification:
Item Type: Adjustable Load Module
Model: XY-FZ35

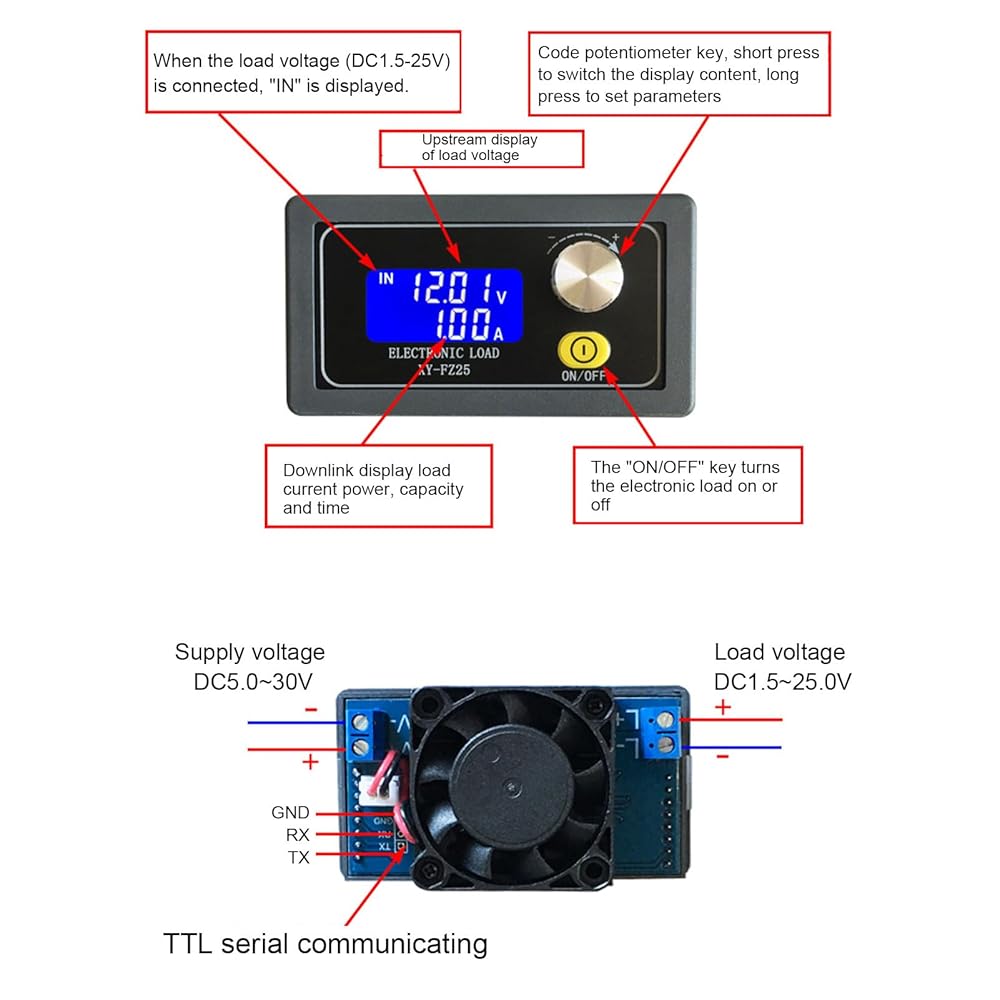

Input Voltage: DC5.0-30.0V (protect against reverse connecting, no burning)
Output Voltage: DC1.5-25.0V (protect against reverse connecting, no burning)
Load Current: 0.00-5.00A
Discharge Power: 35W
Constant Current Accuracy: ±(1%+3 digits)
Voltage Accuracy: ±(0.5%+1 digit)
Over Voltage Protecting (OVP): Default 25.2V (adjustable)
Over Current Protecting (OCP): Default 5.10A (adjustable)
Over Power Protecting (OPP): Default 35.5W (adjustable)
Under Voltage Protecting (): Default 1.5V (adjustable)
Over Temperature Protecting (OTP): Default around 80℃ (not adjustable)
Fan Speed: Hydraulic bearing intelligent temperature controlled fan, speed 8000±10%RPM

How to Use:
Take out the product for direct use

Package List:
1 x Adjustable Load Module
