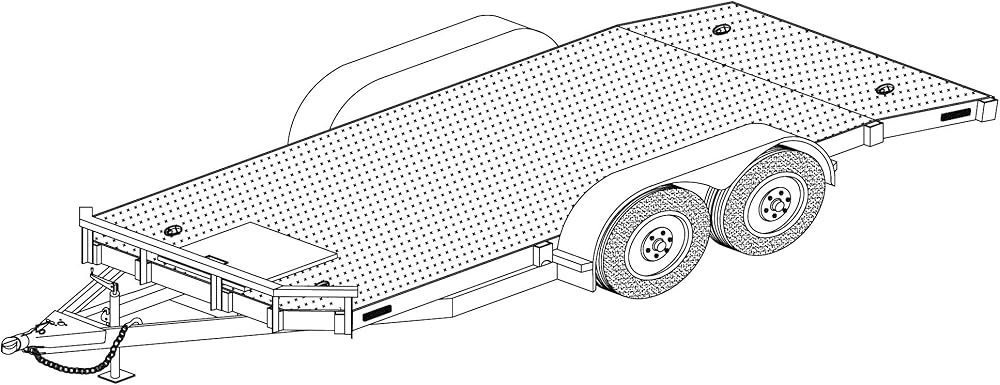

1218-8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/Blueprint Paper - Engineer Approved in Saudi Arabia 1218-8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/Blueprint Paper - Engineer Approved in Saudi Arabia

1218-8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/Blueprint Paper - Engineer Approved

SAR 627
Weight
205 g
– 1 +

Special Features

  • Bed Size: 8'x18', Gross Capacity: 7000 lbs or 10,400 lbs, Empty Weight: 2400 lbs, Empty Tongue Weight: 328 lbs, Frame: 5" Channel Steel, Deck: Diamond Plate
  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Note: This is only a blueprint on how to build a trailer and does not include any trailer parts or materials.

Description

Difficulty Level: Beginner
Specs:
Bed Size: 8'x18'
Gross Capacity: 7000 lbs or 10,400 lbs
Empty Weight: 2400 lbs
Empty Tongue Weight: 328 lbs
Frame: 5" Channel Steel
Deck: Diamond Plate
Blueprint specs modified and updated August 2024
**DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

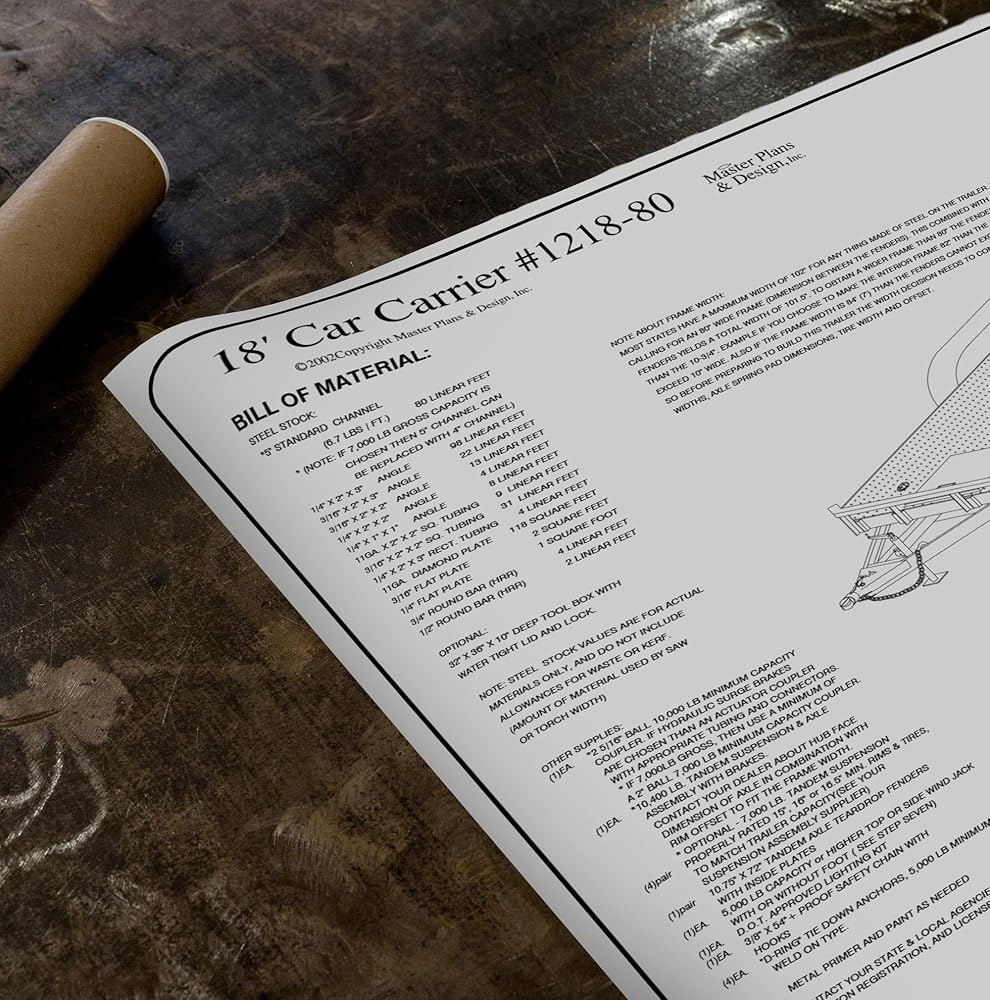

Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
Detailed Cut List w/ Full Bill of Materials & Welding Tips
Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
