1. The repair nut is an industrial fastening part, which is mostly used with screws or polts.

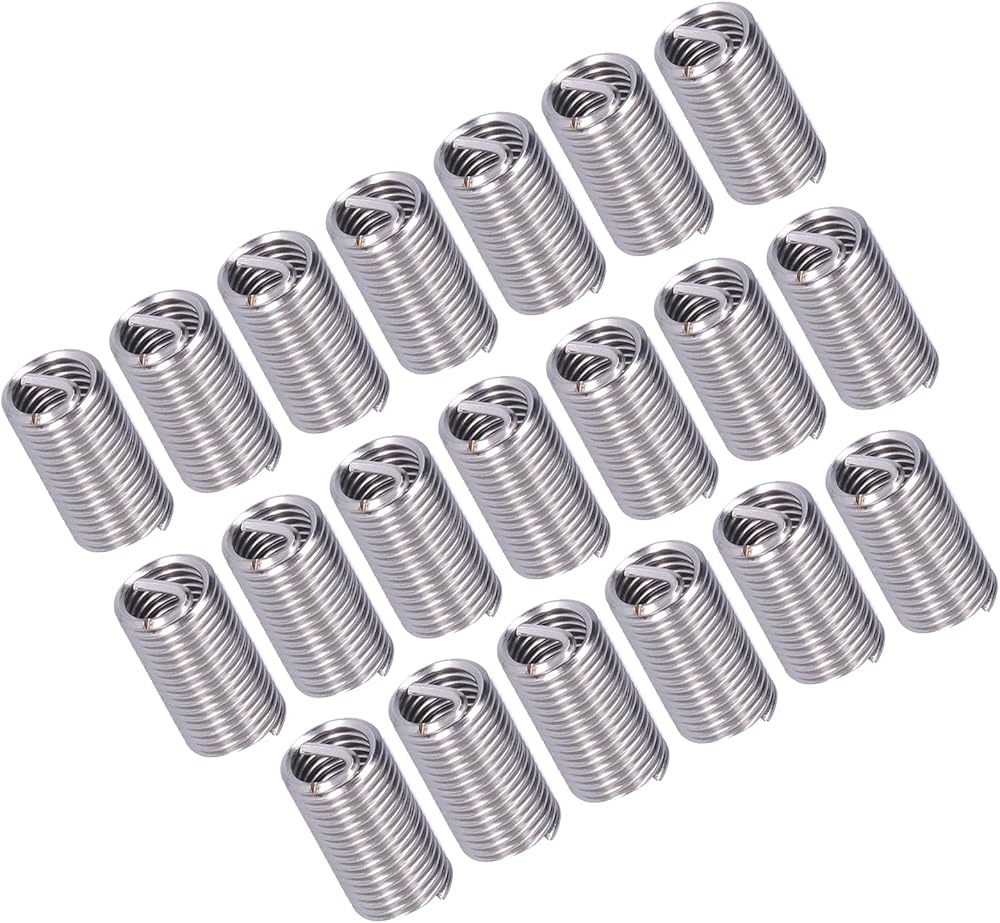

2. When thread processing error occurs or female threaded hole is damaged, the wire thread insert is a good maintenance tool.
3. The thread size is standard, the thread is clear, and it will be more accurate for thread sliding tooth restoration.
4. 304 stainless steel has good resistance and is not easy to break when repairing threaded holes.
5. The wire thread insert can be used to convert between metric and inch threaded holes, which is convenient and quick.

Specification:
Item Type: Thread Repair
Material: SUS304
Model: x 1.75
Thread Specification: x 1.75
Outside Diameter Before Installation: Approx. 14.3-14.8mm / 0.56-0.58in
Drill Bit Diameter: Approx. 12.4mm / 0.5in
1D Length After Installation: Approx. 12mm / 0.5in
Number of Turns Before Installation: 5.3
1.5D Length After Installation: Approx. 18mm / 0.7in
Number of Turns Before Installation: 8.4
2D Length After Installation: Approx. 24mm / 0.9in
Number of Turns Before Installation: 11.6
2.5D Length After Installation: Approx. 30mm / 1.2in
Number of Turns Before Installation: 14.8
3D Length After Installation: Approx. 36mm / 1.4in
Number of Turns Before Installation: 18
Wire Thread Insert Model Description: For Example: M3 x 0.5 x 1.5D, which means that after the screw set is completed, the female thread is M3, the pitch is 0.5, and the length is 1.5D (length is 1.5 times the diameter, that is, 1.5 x 3=4.5mm ), the length here refers to the length after installation.
Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. They are a new type of internal threaded fasteners made of high-strength, high-accuracy -shaped cross-section steel wires; Application to low-strength engineering materials such as aluminum alloy, zinc alloy, copper,
