A True Off Delay time delay relay is designed to replace the functionality of pneumatic time delay relays which are very large, expensive and not very accurate. Unlike standard electronic Off Delay time delay relays, a True Off Delay does not require a trigger switch or the continuous application of input voltage. Instead, these products keep the logic circuit and relay energized during the Off Delay (Delay on De-energization) period with an onboard power source.

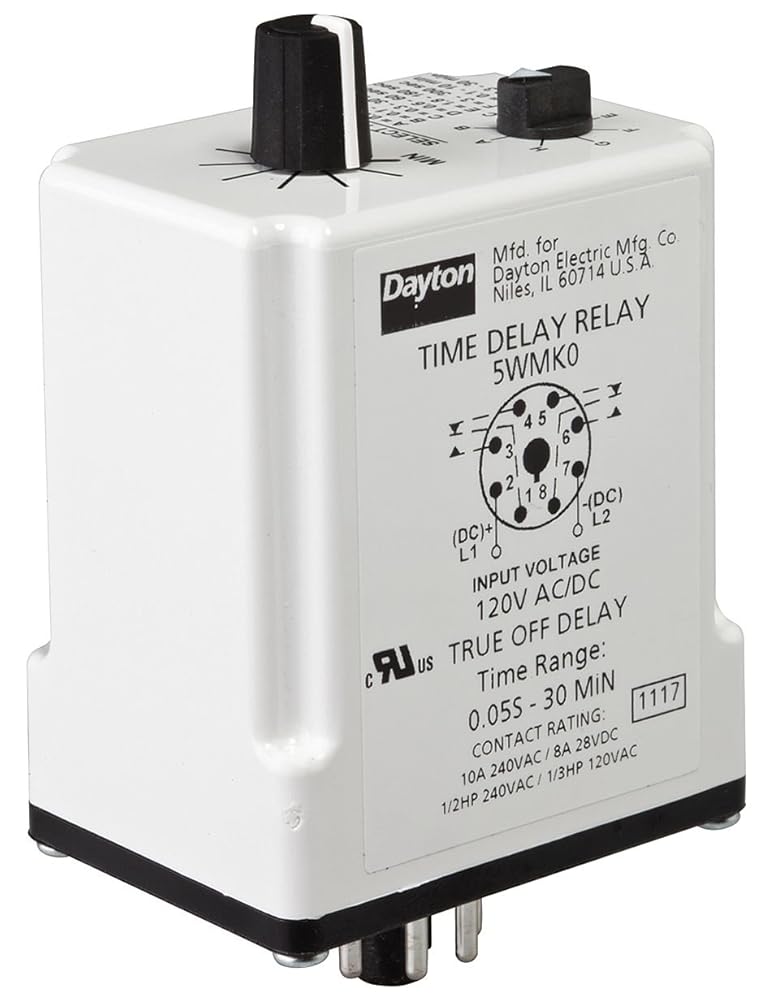

Item - Relay: Single Function Timing Relay
Function - Timing Relay: Power Off Delay (True Off Delay)
Coil Volts: 120VAC/DC
AC Contact Rating - Relay: 10A @ 240V
DC Contact Rating - Relay: 8A @ 28V
Base Type - Plug In Relay: Octal
Number of Pins - Relay: 8
Mounting - Relay: Plug In
Contact Form - Relay: DPDT
Power Consumption - Relay: 2.5VA, 2.0W
Adjustment Method - Timer: Potentiometer
Min. Time Setting - Timer: 0.05 sec.
Max. Time Setting - Timer: 30 min.
Status Indicator: None
Contact Material: Silver Nickel
Body Height - Relay: 2.90"
Body Width - Relay: 2.40"
Body Depth - Relay: 1.70"
Overall Height - Relay: 3.10"
Electrical Connection: Socket
Socket: 5X852, 1EGP3, 1EGP5
Hz - Electrical: 50 Hz, 60 Hz
Standards: UR, CSA, CE
