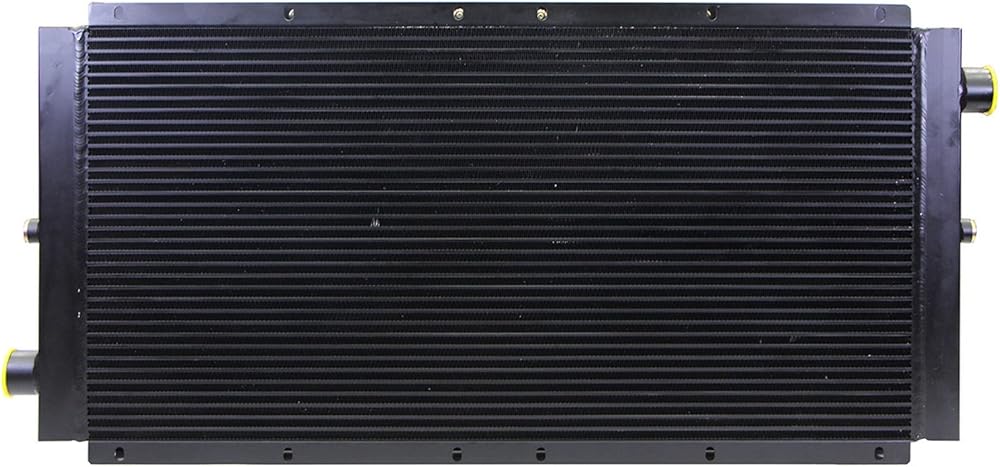

Heavy Duty Aluminum Bar and Plate Hydraulic Oil Cooler With or Without Bypass Valve. Installation should be completed by a trained professional. Assembly needs to be installed on the Low Pressure side of hydraulic circuit Applications: Fits Mobile and Industrial Hydraulics Our Part Number: 24567 – No Bypass 26325 – 2 Bar (29 psi) Bypass 26326 – 5 Bar (73 psi) Bypass 26327 – 8 Bar (116 psi) Bypass Core (Finned area) Dimensions: 39.6” x 19.7” x 2.6” Inlet: -20 SAE O-Ring Seal (1-5/8-12 UN-2B) Outlet: -20 SAE O-Ring Seal (1-5/8-12 UN-2B) Diagnostic Port: -8 sae O-Ring Seal (3/4-16 UN-2B) Overall dimensions: 43.6” x 22” x 2.6” Max Working Temp: 250°F Max Working Pressure: 360 psi Oil Flow (GPM): 0-120 Heat Removed (HP): 95 Notes: Reference performance graphs for proper sizing and mounting configuration. 100% leak tested from the factory. Guaranteed fit and function.
