Product Name: High Precision Carb Main Nozzle Pilot Jet
Category: Main Jet + Slow Jet
Jet Size: # 80 - 118
Material: Brass, Stainless Steel, Nylon
Thread Size: M6 X 0.75 mm; 4.5 X 0.75 mm

Place of Application:
- Replacement fit for Sportster 1998-Up CV40 Carburetor.
- Replacement fit for Softail 1988-2017 CV40 Carburetor.
- Replacement fit for Dyna 1988-2016 CV40 Carburetor.
- Replacement fit for FXR 1988-2016 CV40 Carburetor.
- Replacement fit for Touring 1988-2016 CV40 Carburetor.
- Replacement fit for Sportster XL883 XL1200 CV40 Carburetor.

Features:

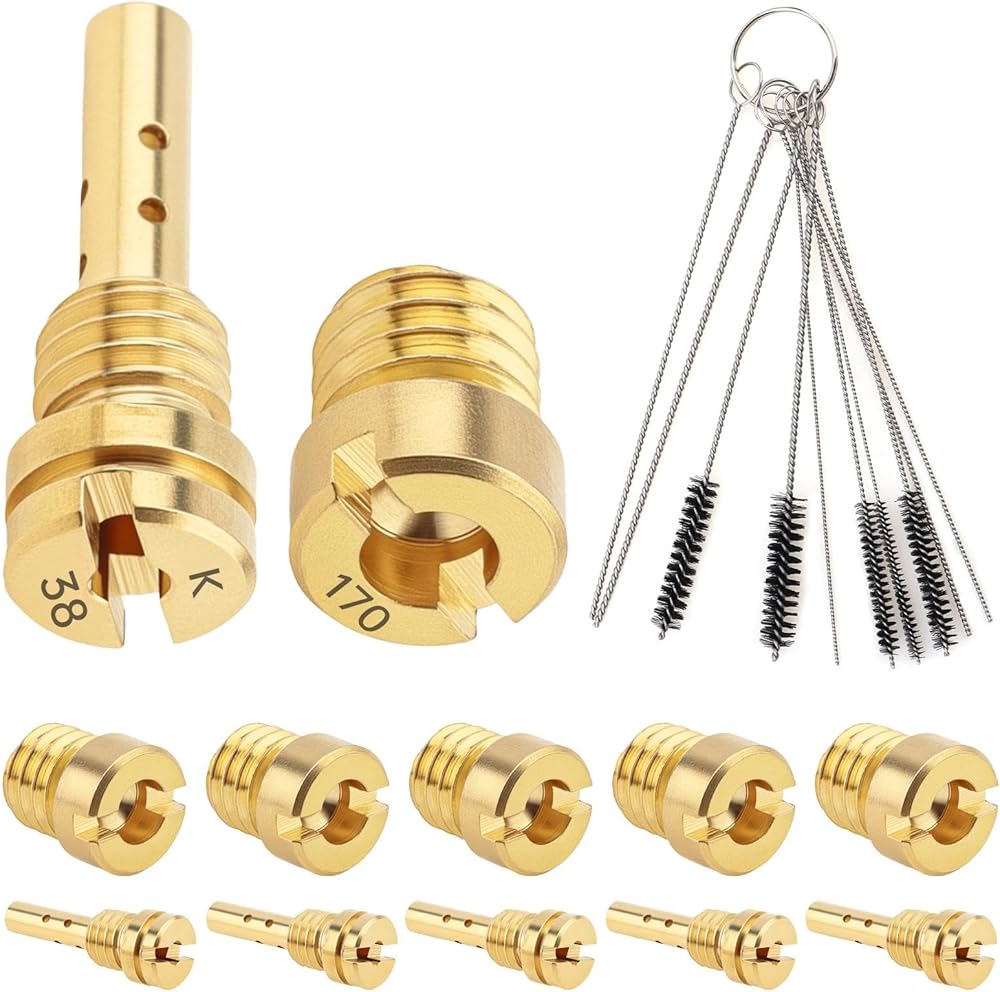

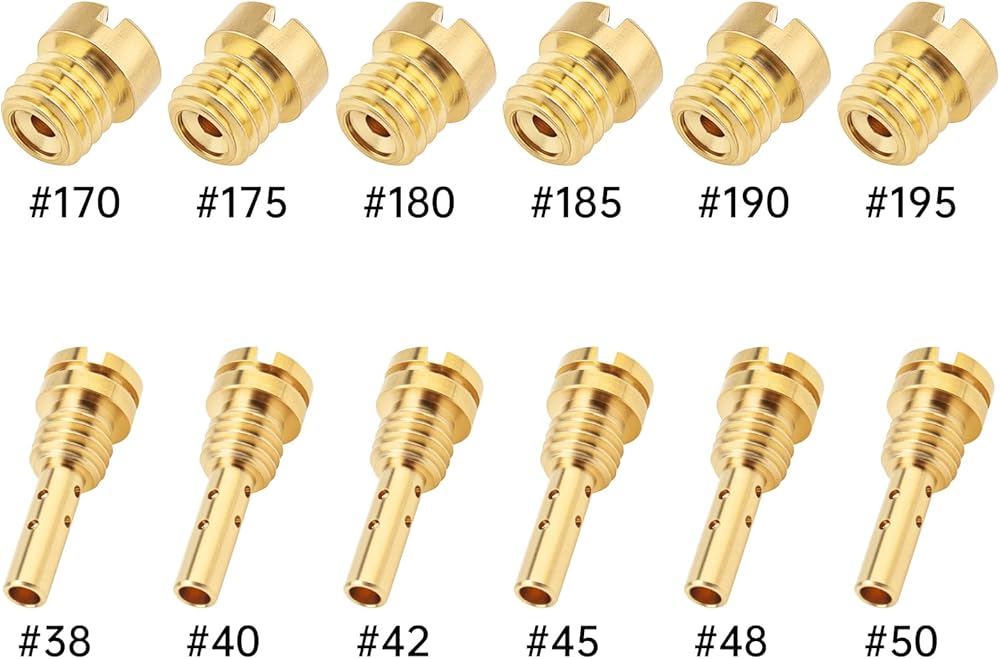

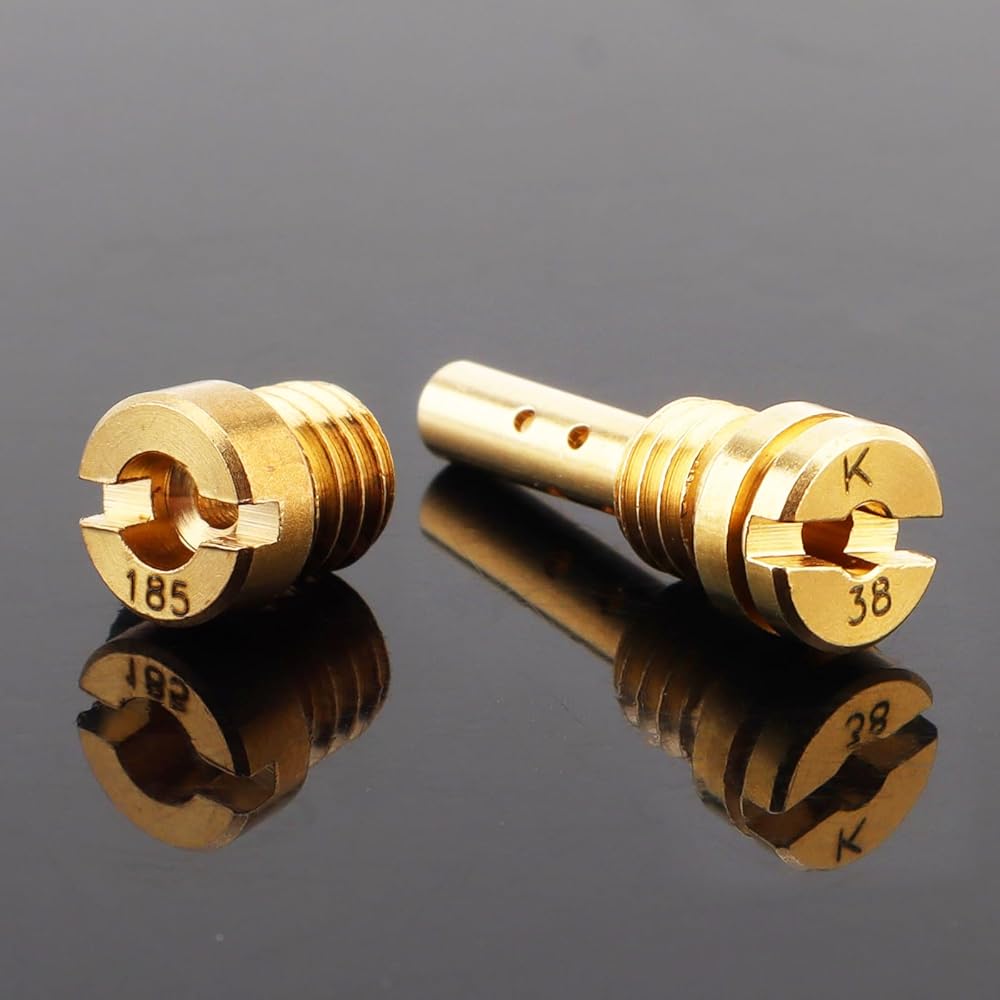

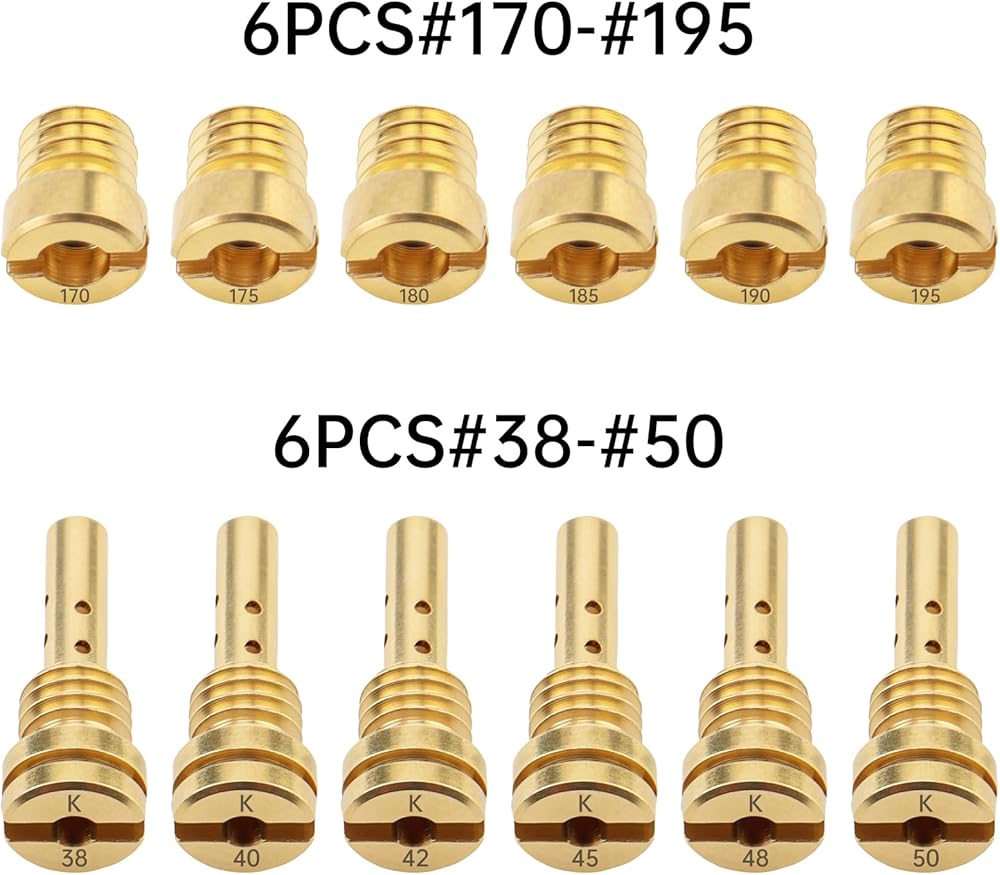

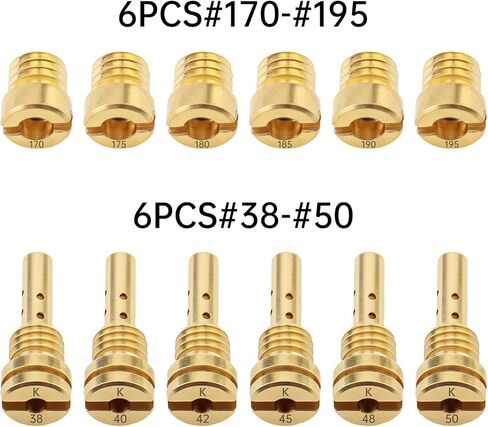

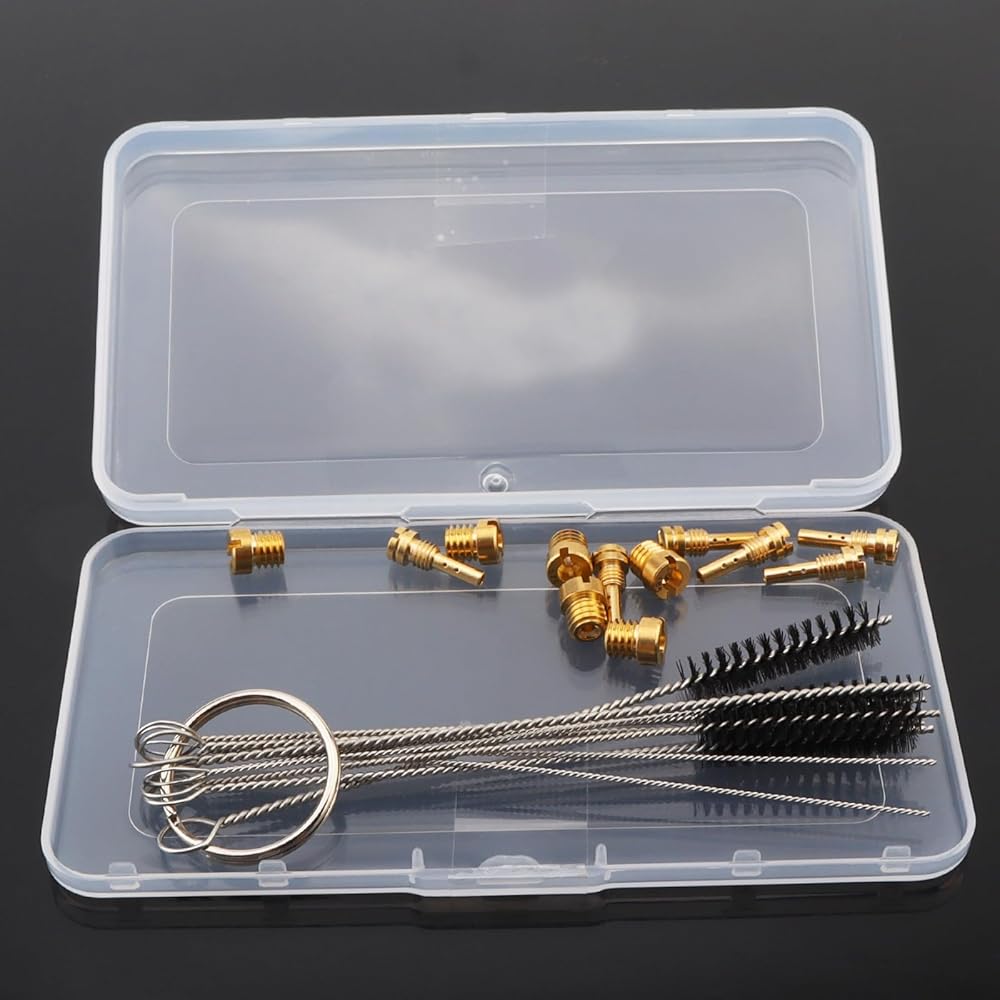

- Complete carburetor Jet Kit: The package includes 6 main jet, 6 idle jet, 5 cleaning needles, and 5 cleaning brushes, all packaged in a small plastic box. Each jet is engraved with a number. The round main jet: #170, #175, #180, #185, #190, #195. The slow pilot jet: #38, #40, #42, #45, #48, #50.
- Function: The primary jet mainly controls the fuel flow in the main oil circuit and regulates the concentration of the mixture. The slow jet is mainly used to control the idle fuel supply and maintain stable combustion. When your motorcycle emits black smoke from the exhaust pipe, has high fuel consumption, carbon deposits on the spark plug, lacks power, overheats the engine, or backfires, it is possible that the high speed jet is blocked or damaged. When your motorcycle experiences unstable idle, easy stalling, difficult cold start, excessive mixture (emitting black smoke), and increased fuel consumption, it is possible that the low speed jet is blocked or damaged and needs to be replaced in a timely manner.
- Fitment: Aftermarket jets kit replace part #: 27421-99C, 27421-99A, 27421-99, 27490-04, 27465-04, 27501-88, 27004-89, 27415-99C. Fit for Sportster Softail Touring CV40 carburetor.
- Superior Premium Material: The carburetor high precision nozzle kit is made of copper, tough and long-lasting, corrosion resistant. CNC lathe processing, smooth surface, accurate size. 5 stainless steel bristles and cleaning needles are made of 304 stainless steel, wire winding, rust, flexible handle, no deformation. High density nylon, good elasticity, no shedding.
- Easy Installation: Simply turn off the fuel switch, unplug the fuel pipe, remove the carburetor, and remove the float component. Then find the idle jet, carefully unscrew the damaged low speed nozzle with a precision screwdriver, and replace it.

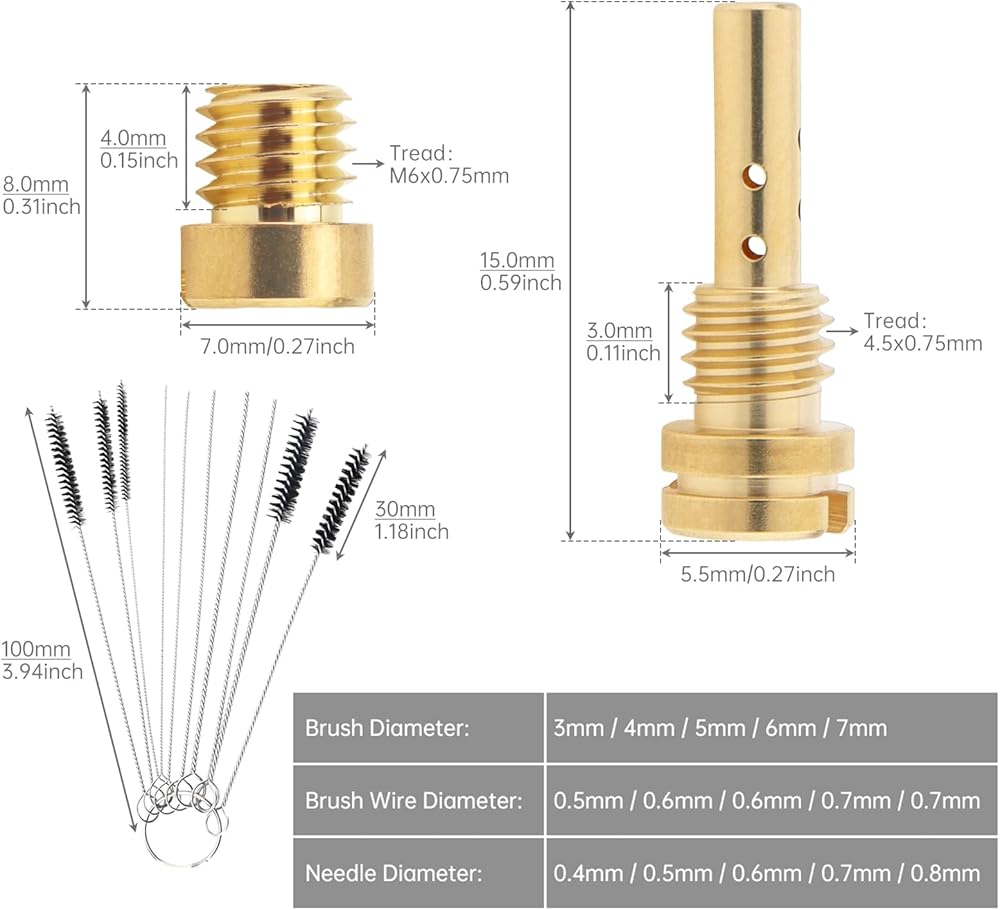

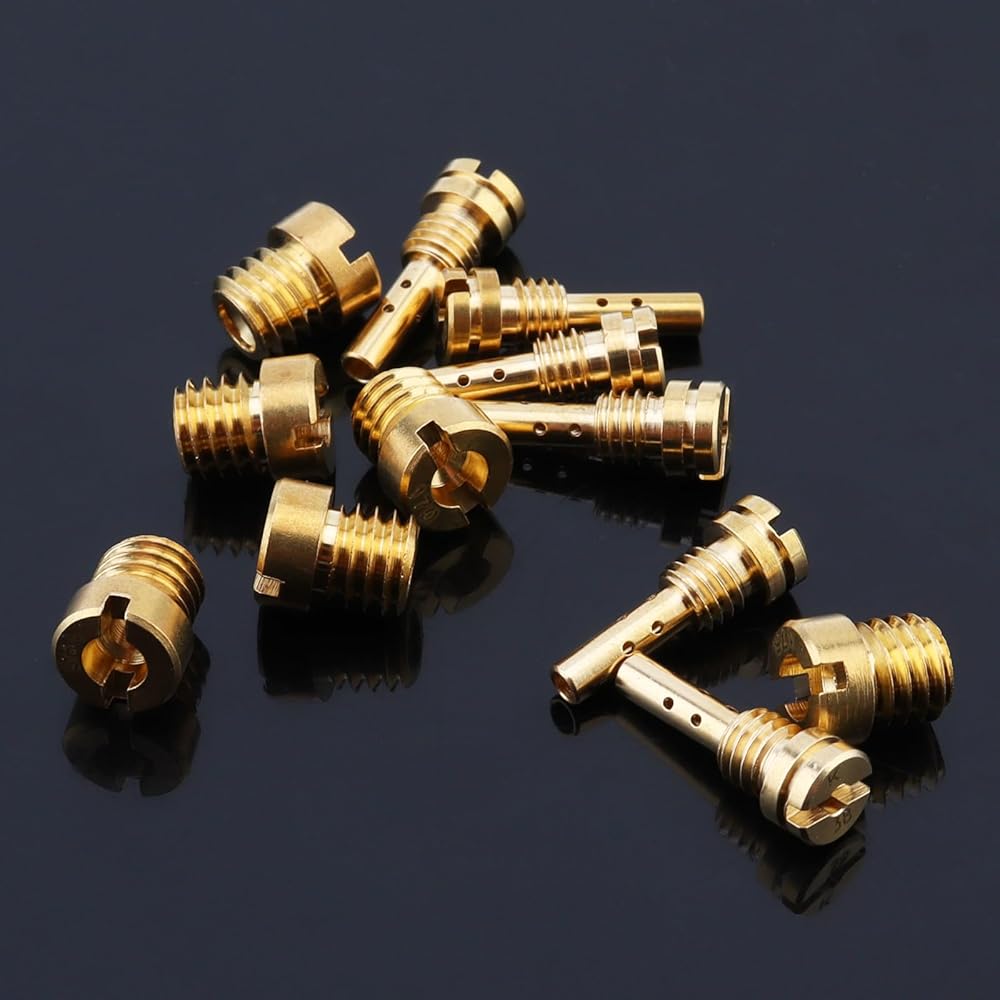

Main Jet:
- Length: 8 mm
- Thread: M6 X 0.75 mm
- Size: # 170 / 175 / 180 / 185 / 190 / 195

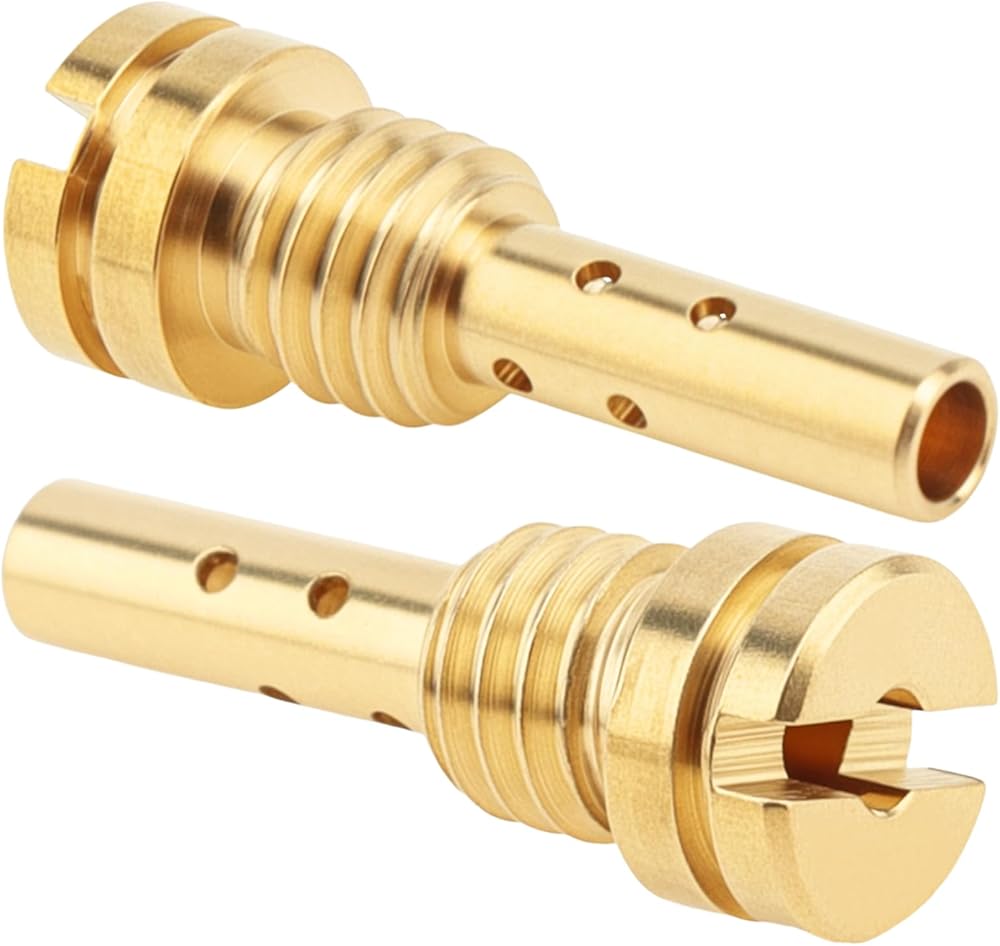

Pilot Jet:
- Length: 15 mm
- Thread: 4.5 X 0.75 mm
- Size: # 38 / 40 / 42 / 45 / 48 / 50.

Cleaning Brush
- Overall Length: 110mm
- Brush Length: 30mm
- Brush Diameter: 3mm / 4mm / 5mm / 6mm / 7mm
- Wire Diameter: 0.5mm / 0.6mm / 0.6mm / 0.7mm / 0.7mm
Cleaning Wire Torch Tip
- Overall Length: 110mm
- Wire Diameter: 0.4mm / 0.5mm / 0.6mm / 0.7mm / 0.8mm

Package Include:
6 x Main Jet
6 x Slow Jet
5 x Cleaning Needles
5 x Brush
