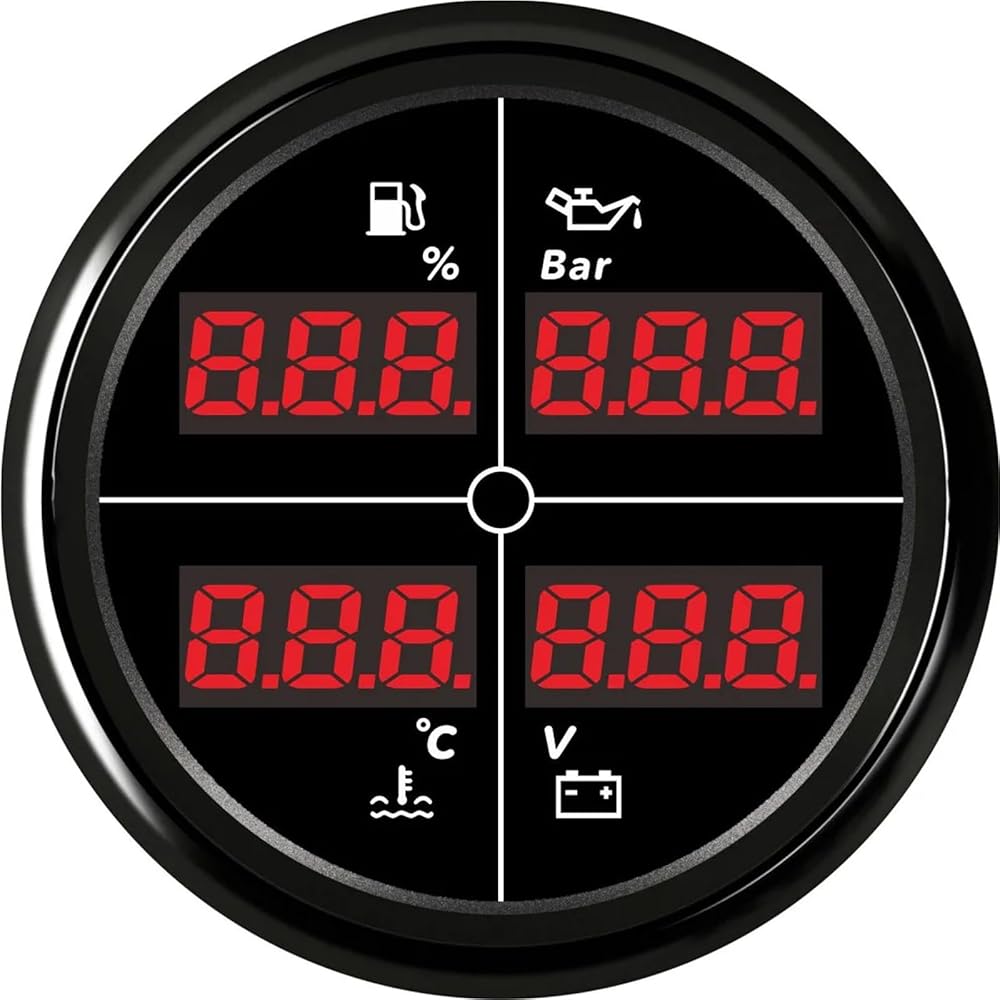

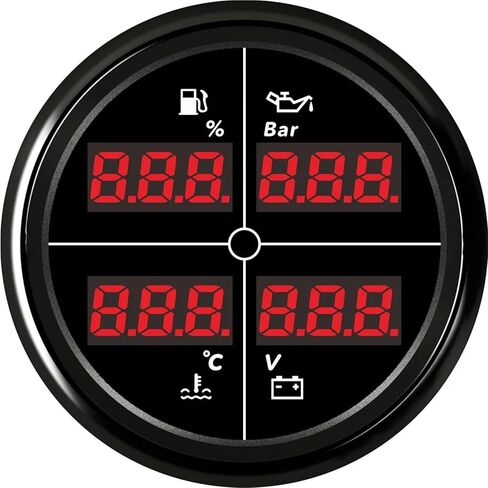

8 Color Backlight 52mm 4 in 1 Multifunction Gauge Digital Gauge 0-190ohm Fuel Level Gauge+Water Temp+Oil Pressure+Voltmeter Car
Operation:
2. Long press the MODE button( >4 seconds) to enter the setting mode:
a) Short press the button(2 seconds ) to scroll through the parameter group. Like F01 to F05 for fuel level gauge, P01 to P03 for pressure gauge.
b) After scrolling to the parameter required, release the button(>4seconds) , the setting was successful and data will be saved.
Feature:
- Fuel Level Gauge: 0-190ohm,0-180ohm,240-33ohm,10-180ohm,240-30ohm
- Oil Pressure Gauge: 0-10bar,0-5bar,0-25bar
- Water Temp Gauge: 40~120
- Voltmeter: 9-32V
Specification:
Operating Voltage:9~32VDC,
Operating current:60mA;
Operating temperature:-30~+75
Storage temperature:-40~+85.
Connection:
1,Red --+9-32VDC
2,Black --Fuel Signal Input
3,Orange--Backlight(+)
4,Blue--Ground(-)
5,Purple-- Water Temp Signal Input
6,White-- Oil Press Signal Input
Package Included(as picture):
1 x 52mm 4 in 1 Multifunctional Gauge
1 x Installation Instruction
1 x Cable
4 in 1 Gauge
==========
High-concerned chemical : None
Other Part Number : Oil Pressure gauge
Placement on Vehicle : Front

Part Number : Water Temperature Gauge
Interchange Part Number : fuel level gauge
Special Features : 4 In1 Multifunctional Gauge
Item Weight : 0.14kg
Item Height : 52mm
Item Width : 52mm
Item Length : 52mm

Material : stainless steel and plastic
NO. : water temperature gauge meter
Name : 52mm 4 In 1 Multifunctional Gauge
Color : white silver/white/white gold/black gold/black silver/black
Working Voltage : 12-24V
Oil Pressure Meter : fuel level meter
Voltage gauge : volt meter
Oil Pressure range : 0-10bar,0-5bar,0-25bar
Water temp range : 40-120
Working temp : -30~+70
Volt singal : 9-32V
fuel level signal : 0-190ohm,0-180ohm,240-33ohm,10-180ohm,240-30ohm
fuel level gauge range : E-1/2-F
fuel level sensor : Water Temperature Meter
Car Boat Gauges : 52mm Boat fuel gauge
4 in 1 Multifunction Gauge : Water Temperature gauge
