12V 24V 36V Motor Drive Board 360W Motor Speed Controller Forward Reverse Rotation Motor Controller for Smart Car

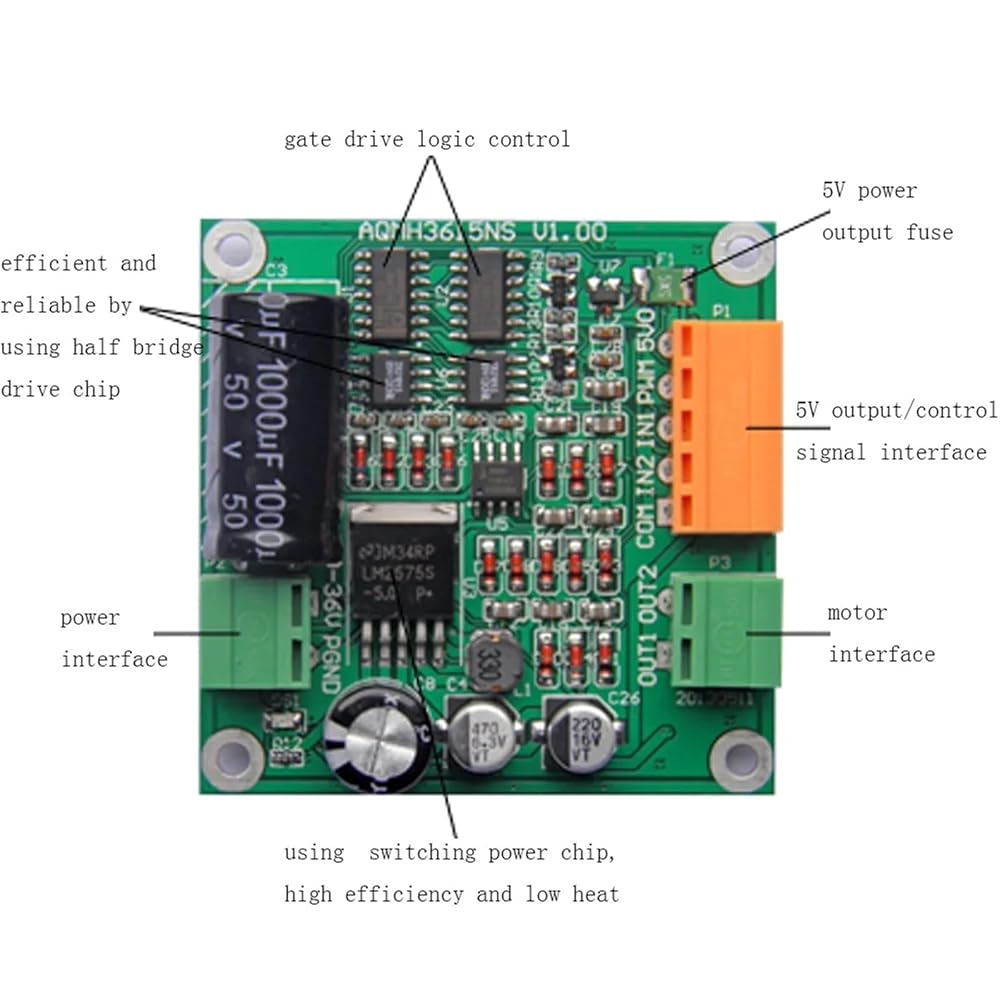

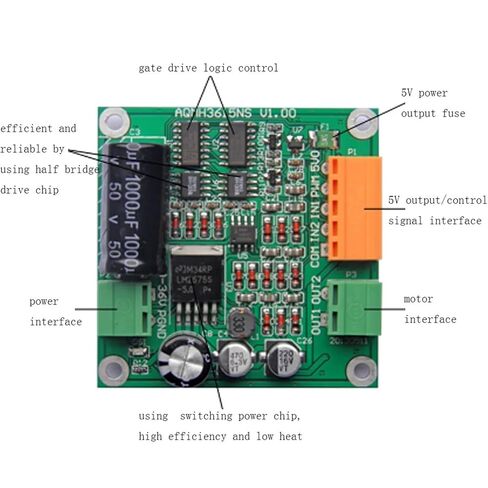

Features:

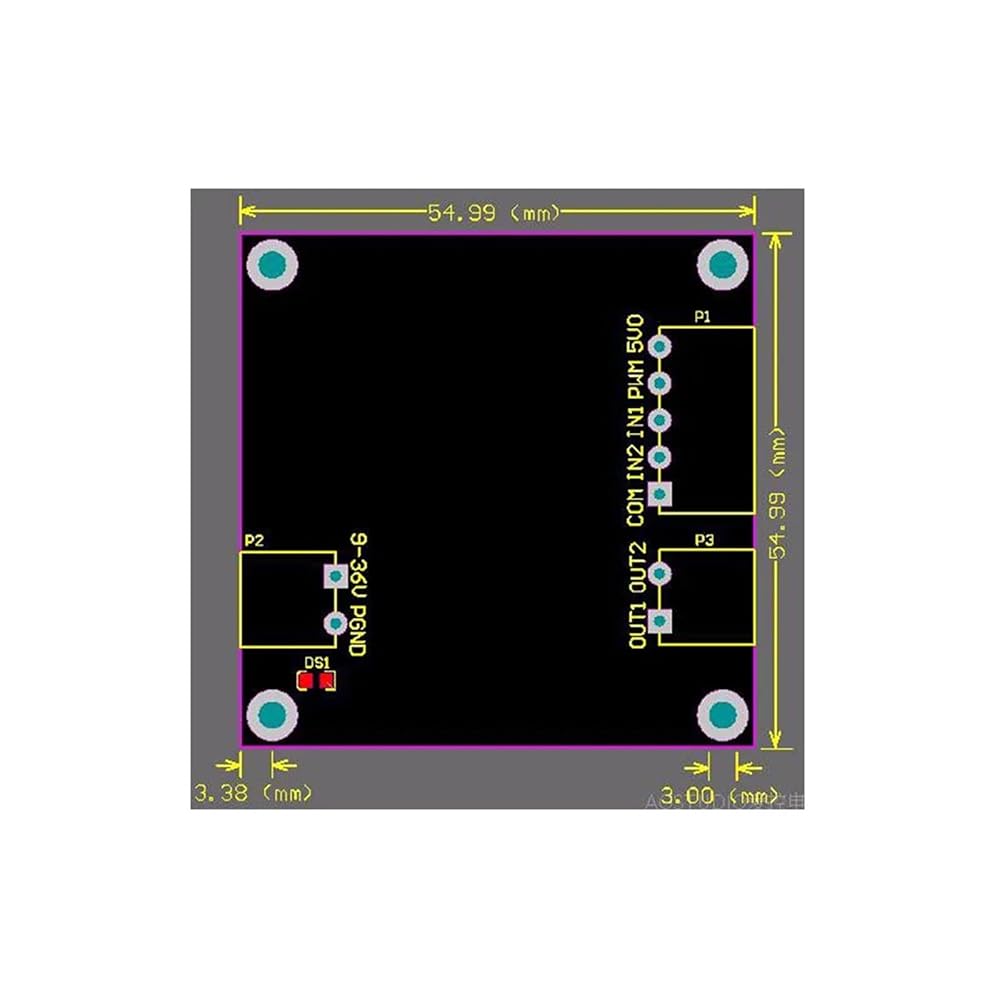

Extremely small size, only 5.5cm×5.5cm.
Support voltage range 6.5-40V, undervoltage protection.
Maximum load current 12A(without heat dissipation), 15A(with heat dissipation), Instantaneous peak current 110A.

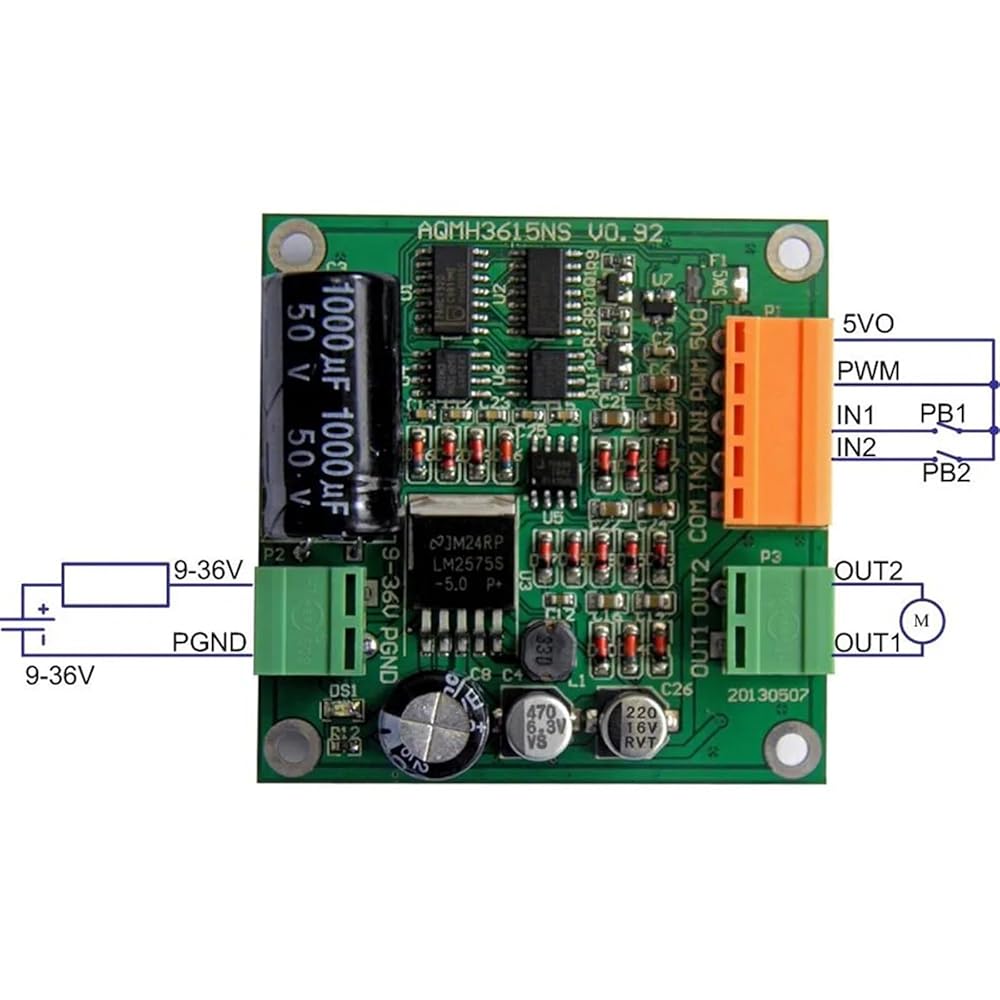

Three-wire control speed regulation, positive and negative rotation and braking.
Support full PWM, can directly use the key to control positive and negative rotation, PWM effective range of 0.1%~100.0%.
It can provide 5V power supply for single chip computer.
Interface ESD protection.
Specifications:
Motor power input voltage: DC6.5V~40V
Maximum load current:
12A(no heat dissipation)
15A(with heat dissipation)
Output power:
12V 180W
24V 360W
36V 540W
Peak current: 110A
Maximum output current of 5V power supply: 500mA
Control signal high level voltage (VHI) : 2.0V~5.5V
Control signal low-level voltage (VLI) : 0V~0.8V
Control signal current: 50uA
PWM effective range: 0.1 %~100.0%
PWM minimum effective pulse width: 200ns
Notice: The board has no current detection. If the motor is overloaded or the lock current is too large, it will burn
When using 15A current, a heat dissipation must be added, when the board is overheated, must reduce the operating current
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1-3cm differences due to manual measurement.
Package Included:
1x Motor Drive Board
