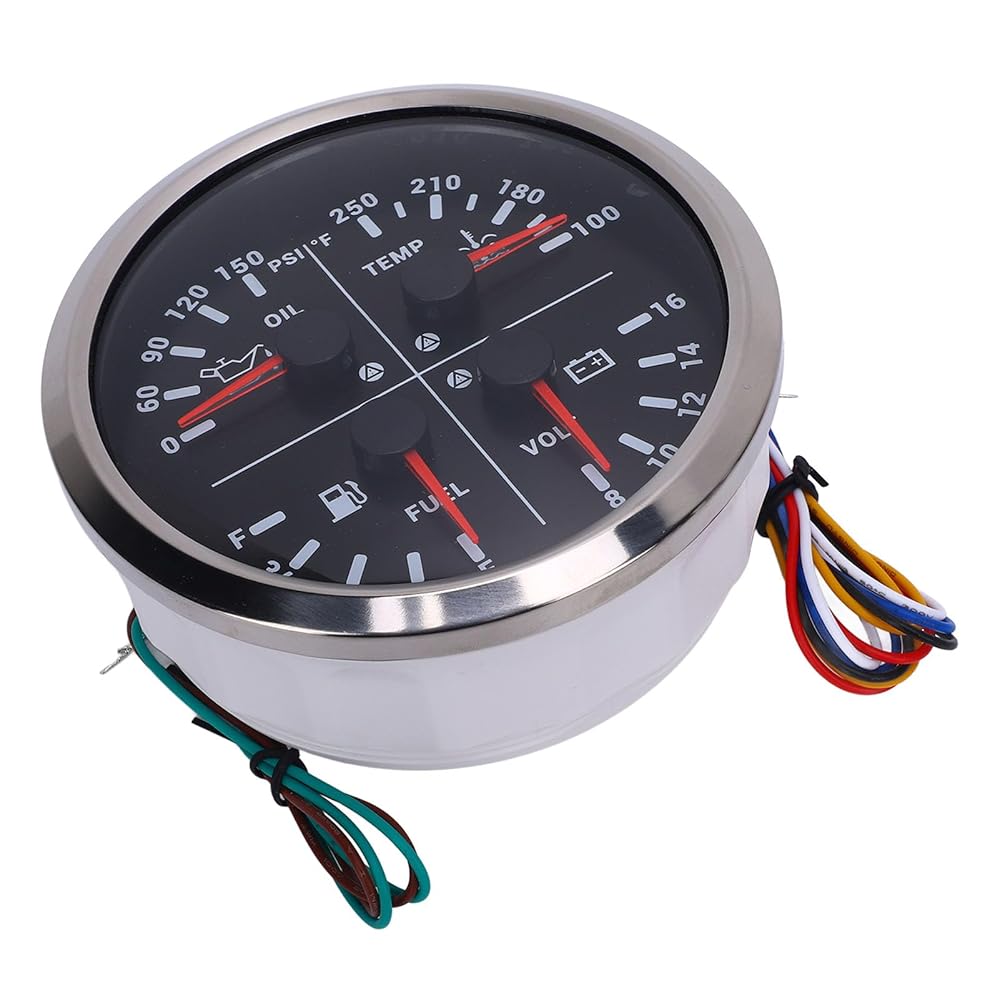

1. Multi Function Design: This 4 in 1 multifunction gauge combines oil pressure, oil level, water temperature, and voltage monitoring into one compact meter, saving valuable dashboard space while providing comprehensive data.
2. Wide Indicating Range: The gauge features a broad indicating range, oil pressure 0-150PSI, water temperature 100-250℉, fuel level E 1/4 1/2 3/4 F, and voltage 8-16V, ensuring accurate readings for various conditions.
3. Input Signal: This multifunction gauge supports 10-184ohm for oil pressure, 301-22ohm for water temperature, and 0-190ohm/240-33ohm for fuel level, making it adaptable to different systems.
4. Simple Installation: Cut a 110mm diameter hole in the dashboard mounting panel, and make sure there is at least 55mm of space behind the dashboard panel.
5. Universal Application: Ideal for motorhomes, yachts, and trucks, this 4 in 1 multifunction gauge is built to withstand diverse environments, providing long lasting performance for a wide range of vehicles.

Specification:
Item Type: 4 in 1 Multifunction Gauge
Oil Level Gauge: E 1/4 1/2 3/4 F
Oil Pressure Gauge: 0-150 PSI
Water Temperature Gauge: 100-250℉
Voltmeter: 8-16V
Oil Pressure Sensor: 10-184ohm
Temperature Sensor: 301-22ohm
Oil Level Sensor: 0-190ohm, 240-30ohm

How to Use:
Black=Negative
Red=Positive
Blue=Oil level signal
Yellow=Backlight
White=Water temperature signal
Brown=Oil pressure signal
Green=Signal output

PackageList:
1 x Multifunction Gauge
1 x User Manual
