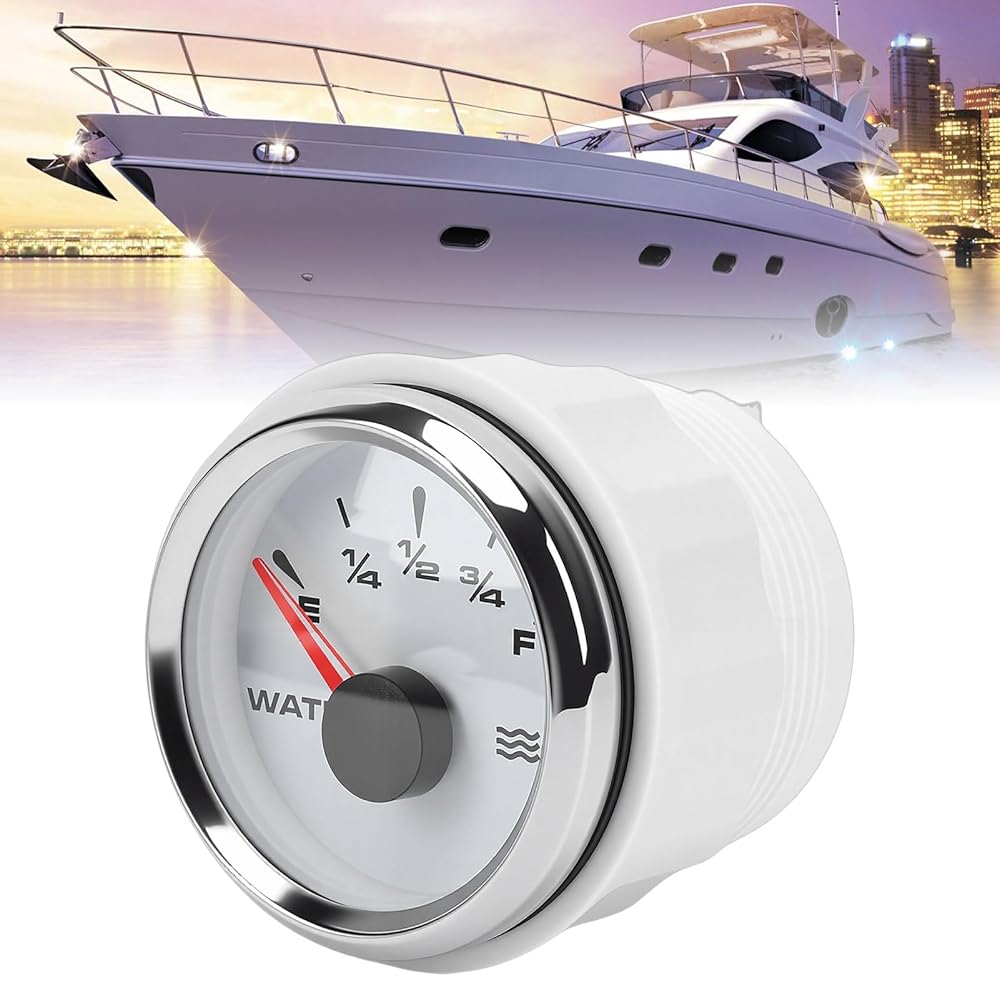

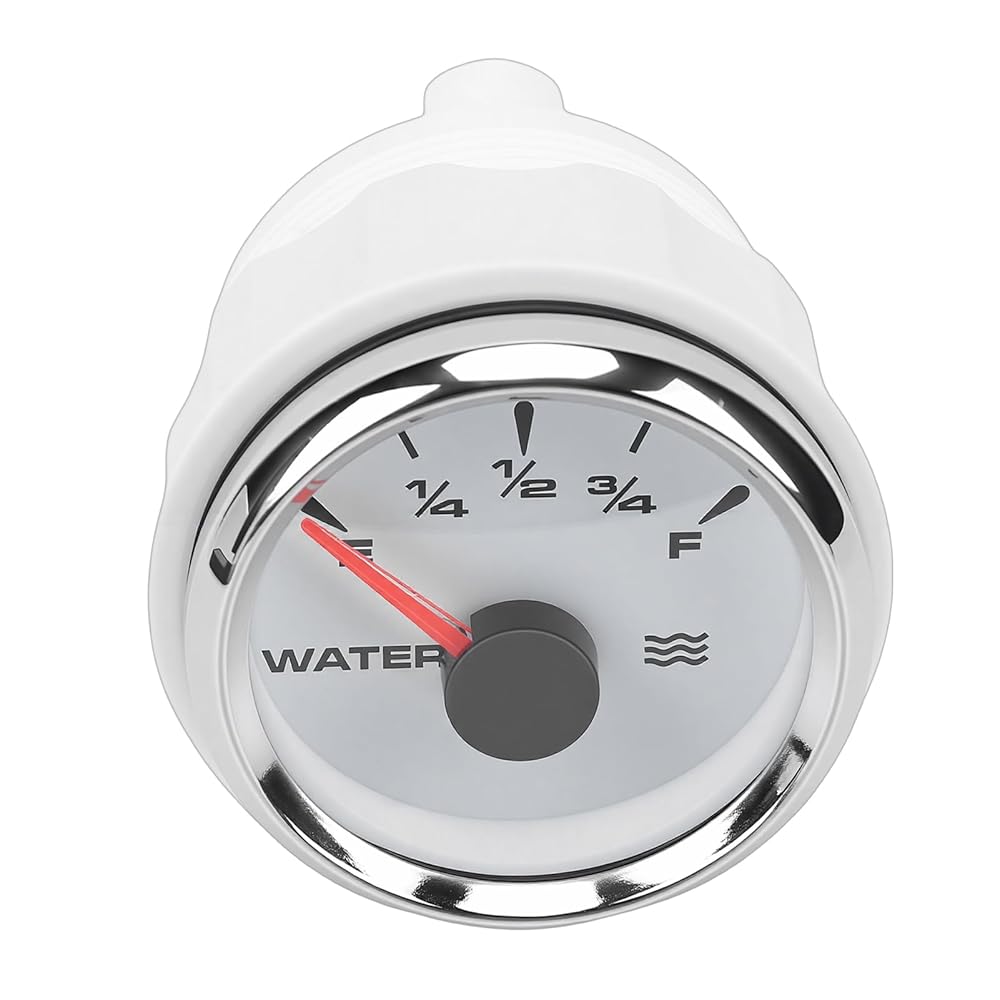

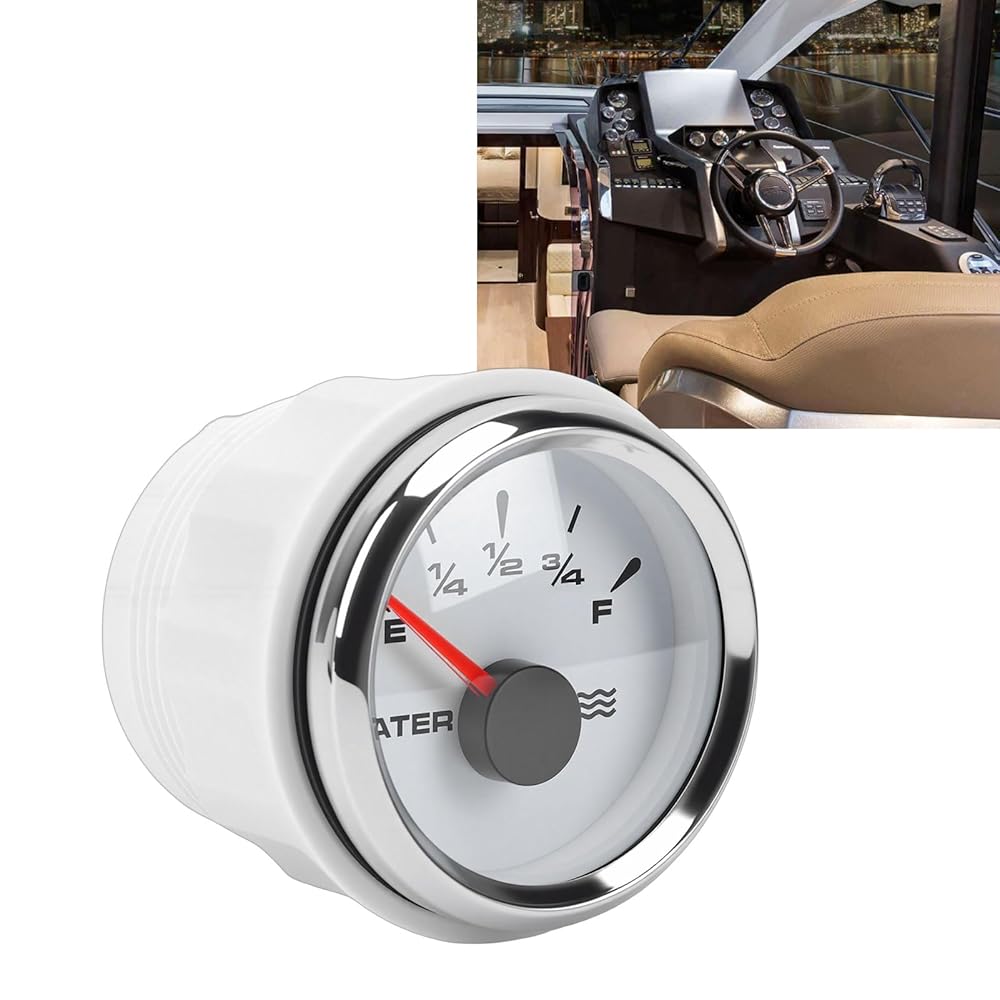

1. PRECISE POINTER DISPLAY: This gauge features a classic pointer display, providing an intuitive representation of actual liquid or water levels. Whether monitoring fuel tanks, cooling water, or other liquid containers, users can easily read real time data at a , ensuring accurate monitoring.

Item Type: Marine Water Level Gauge
Color: White dial with original color bezel
Mounting Hole: 52mm
Features: 1. Rear programmable technology allows driver modification to match various analog input signals

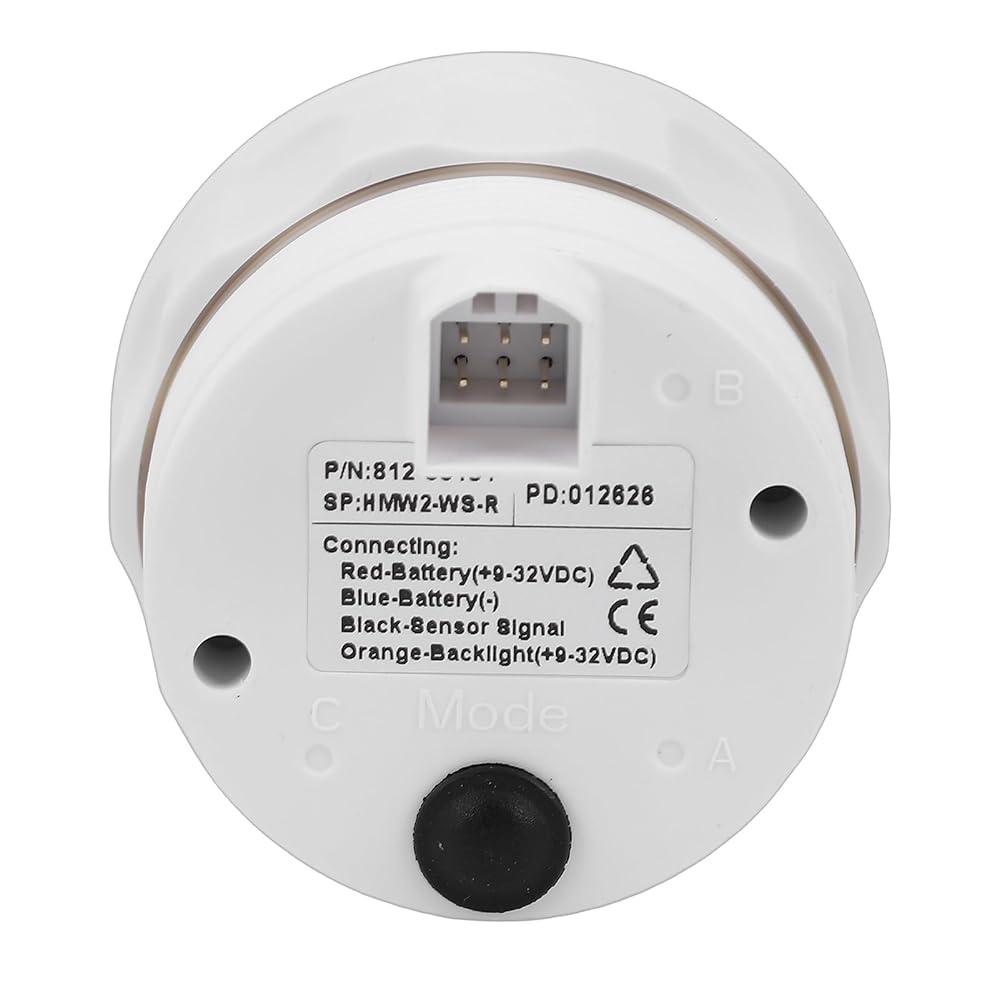

2. The wiring harness connector is equipped with a buckle, which ensures a secure connection between the instrument and the wiring harness, and can still work reliably even in situations with strong vibration.
3. Industrial grade electronic components and structural parts enable operation at -30 to +75°C
4. IP67 waterproofing rating

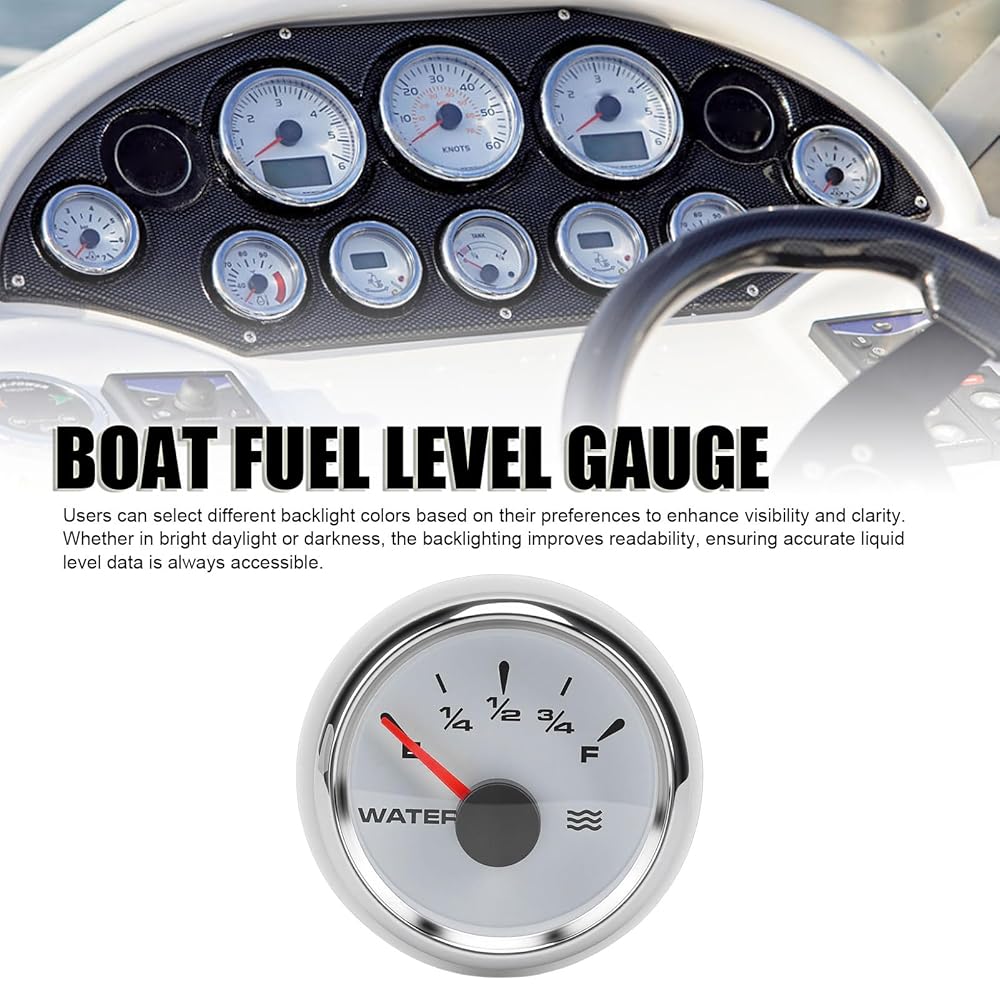

5. Multiple backlight colors: Press and lightly press the Mode key (less than 1 second) once to change the backlight color: backlight sequence: red (default) → green → blue → white → yellow → yellow green → orange → purple → (automatic) There are multiple signal options: 0-190 Ω, 0-180 Ω, 10-180 Ω, 240-33 Ω, 240-30 Ω
6. Stainless steel front cover made of 316L material for durability in harsh environments
7. Wide operating voltage range: 9-32V (long term), up to 36V (≤1 minute)
8. Low power consumption: ≤60mA for 52mm series gauge

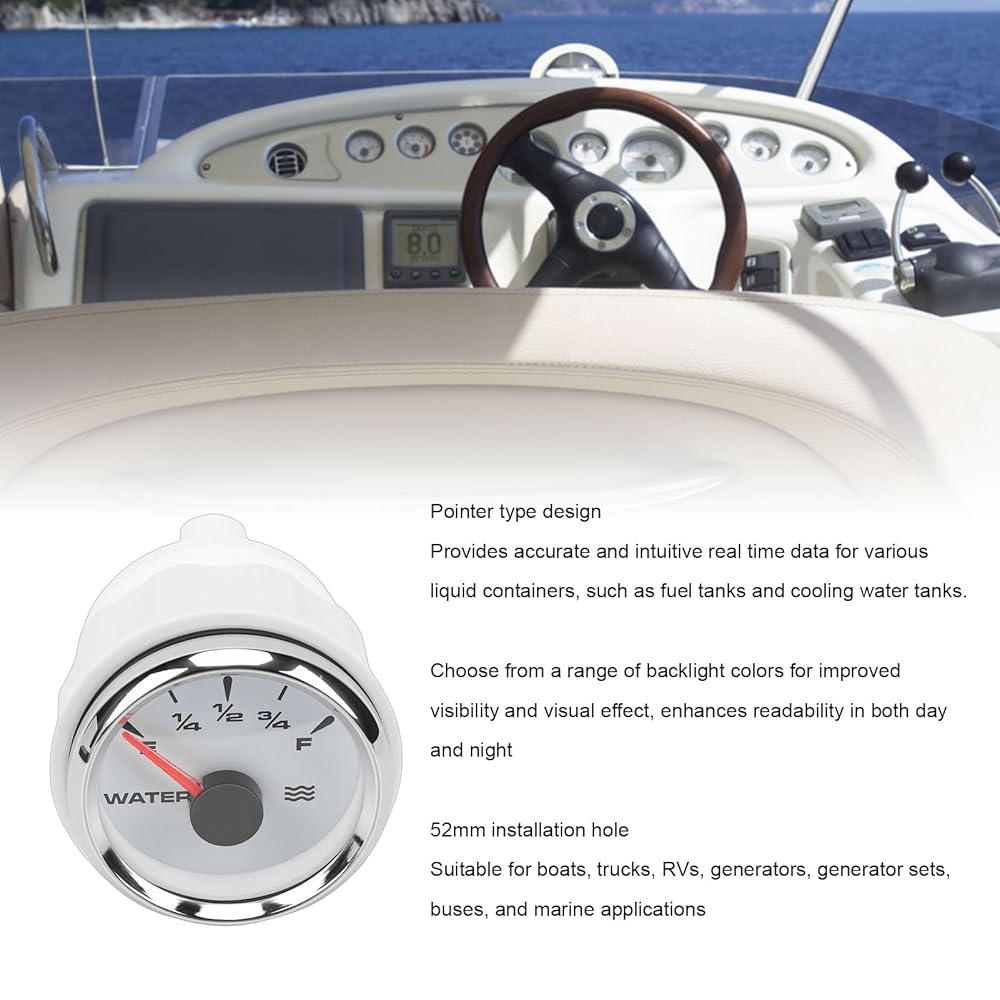

Application: Suitable for engines, generator sets, ships, engineering machinery, agricultural machinery, modified vehicles, etc.

How to Use:

PackageList:
1 x Gauge
1 x Instruction Manual

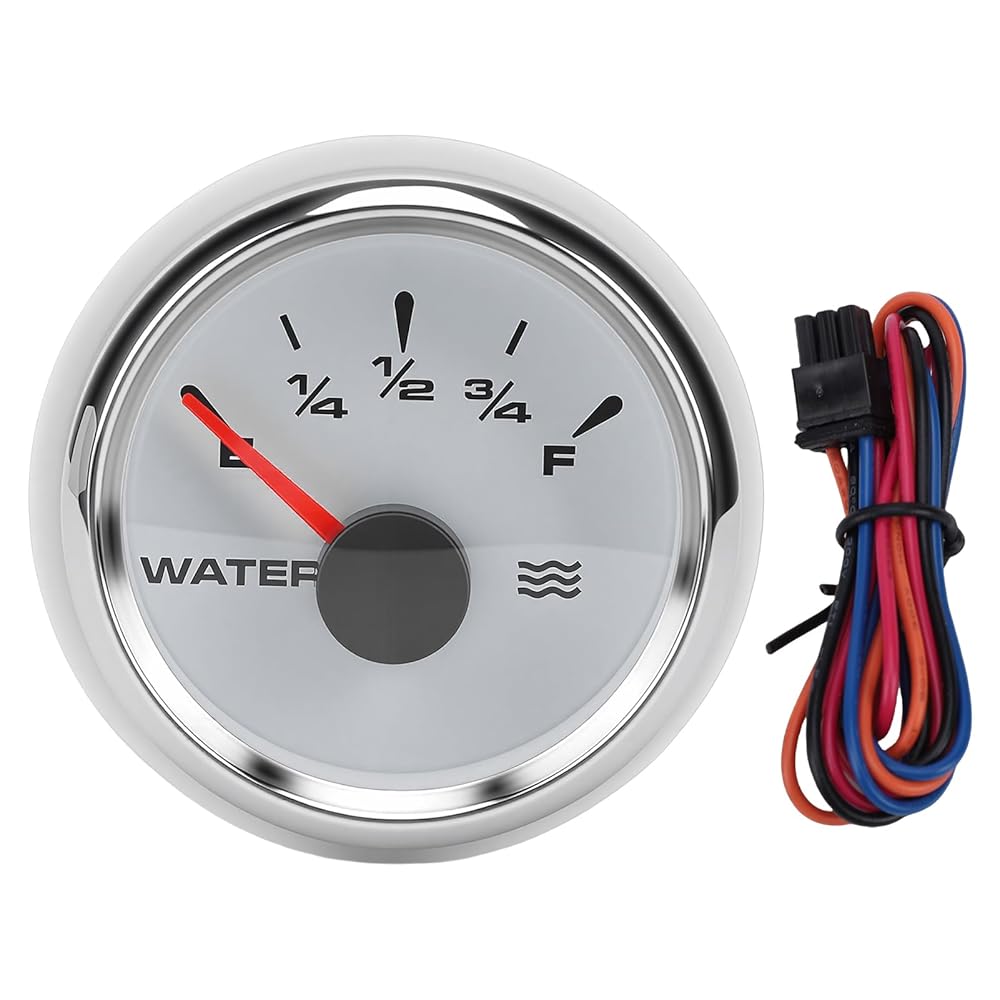

1 x Connection Wire

Note:
