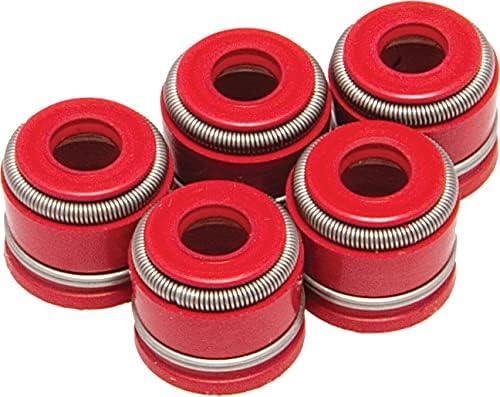

Type: Intake / Exhaust.
Material: Red made with Viton.
Reference: See Figure 1.
Stem Diameter: 5.0mm.
Overall Length: 0.350in.
Seal O.D.: 0.405in.
A: 0.340in. +/-0.005in.
B: 0.303in.
C: 0.125in.
D: 0.230in.
Factory REF. P/N: 09289-05011.
Note: Use the diagram and specifications to ensure your replacement valve guide shares the same dimensions for a proper fit.

All replacement valve seals are made of 100% solid made with Viton for long life. Meet or exceed Factory specifications. When using Kibblewhite spring kits, Kibblewhite replacement valve seals must be used because of spring clearances.

1973 fits HON CB350G Super Sport
1968-1973 fits HON CB350K Super Sport
1968-1974 fits HON CB450K
1975-1976 fits HON CB500T Twin DOHC
1968-1973 fits HON CL350 Scrambler
2018-2021 fits HON CRF250R
2019-2021 fits HON CRF250RX
2009-2022 fits HON CRF450R
2019-2022 fits HON CRF450RWE
2017-2022 fits HON CRF450RX
2017-2019 fits KAW JS1500 SX-R
2009-2010 fits KAW JT1500 STX
2006-2019 fits KAW JT1500 STX-15F
2007-2008 fits KAW JT1500 Ultra 250X
2009-2010 fits KAW JT1500 Ultra 260LX
2009-2010 fits KAW JT1500 Ultra 260X
2008-2019 fits KAW JT1500 Ultra LX
2003-2006 fits KAW KFX400
2005-2009 fits KAW KFX700
2003 fits KAW KLX400R
2003 fits KAW KLX400SR
2008-2009 fits KAW KRF750 Teryx 4x4
2009-2012 fits KAW KRF750 Teryx FI 4x4
2008-2012 fits KAW KRF750 Teryx FI 4x4 LE
2011-2012 fits KAW KRF750 Teryx FI 4x4 LE SGE
2009 fits KAW KRF750 Teryx FI 4x4 LE Sport
2009-2012 fits KAW KRF750 Teryx FI 4x4 Sport
2008-2009 fits KAW KRF750 Teryx NRA Outdoors
2005-2013 fits KAW KVF650 Brute Force 4x4
2006-2009 fits KAW KVF650 Brute Force 4x4i
2011-2013 fits KAW KVF650 Brute Force 4x4i
2005-2006 fits KAW KVF700 Prairie 4x4
2005-2012 fits KAW KVF750 Brute Force 4x4i
2012 fits KAW KVF750 Brute Force 4x4i EPS
1999-200
