مميزات خاصة

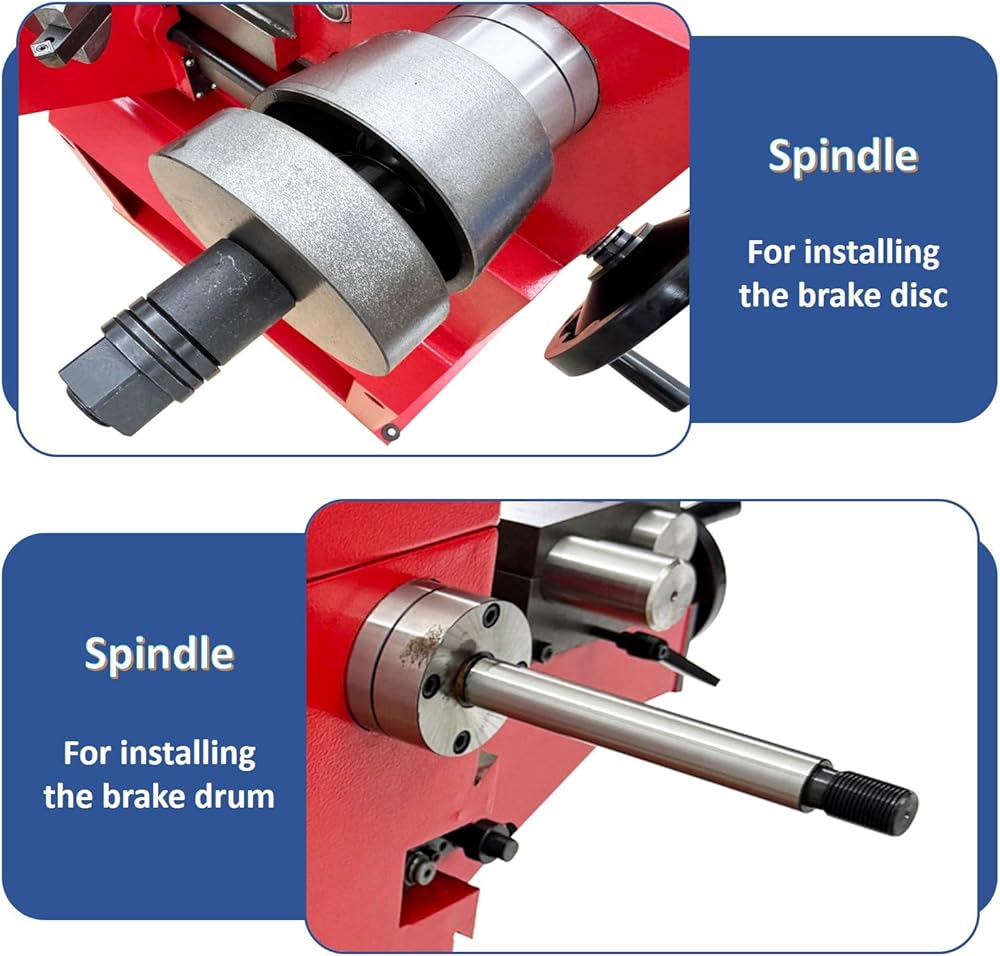

【Dual Spindle Design】: The dual main shafts are independently driven to process the brake drums and brake discs independently. They feature bidirectional automatic cutting and support for mechanical limits, meeting the maintenance requirements of small and medium-sized vehicles and medium-sized trucks (with custom large core shafts). The processing efficiency and accuracy have been significantly improved

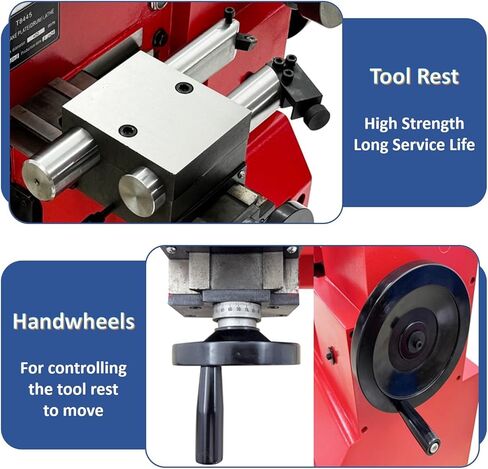

【High-Precision Processing】: Equipped with a high-rigidity tool rest to achieve automatic feeding. The workpiece has three rotational speeds (30/52/85r/min), combined with a stable feed rate of 0.16mm/r, effectively ensuring high efficiency and high precision in processing

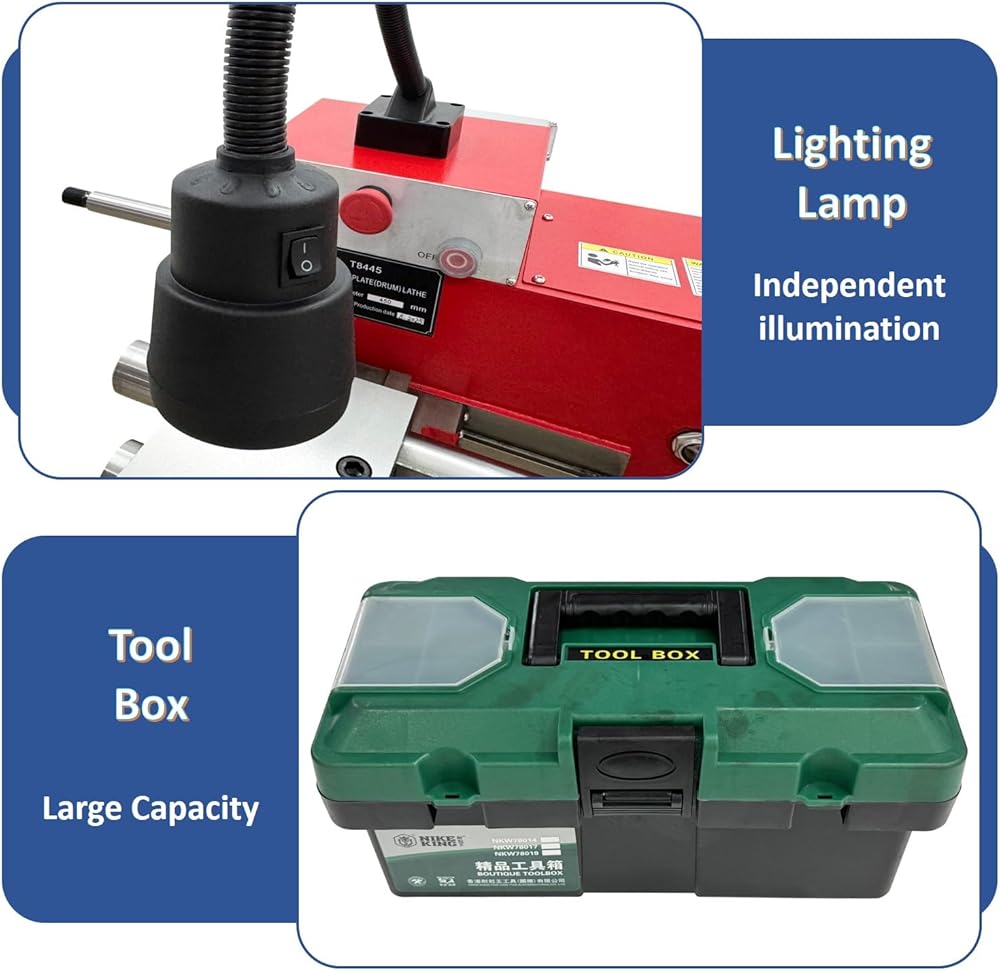

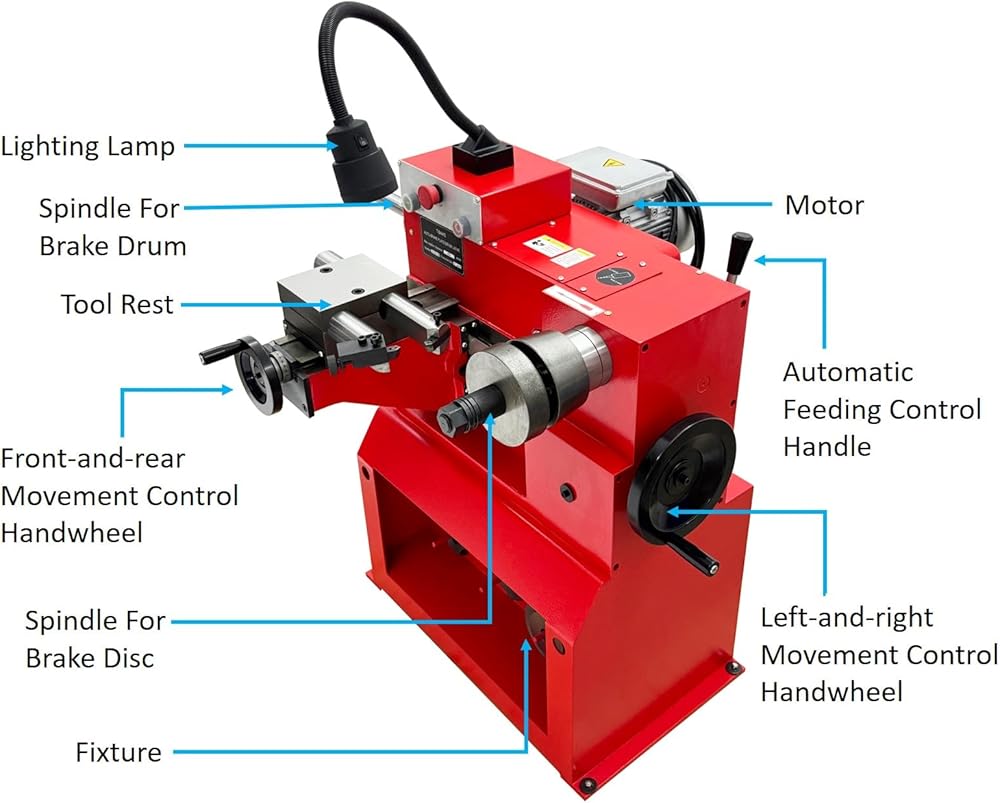

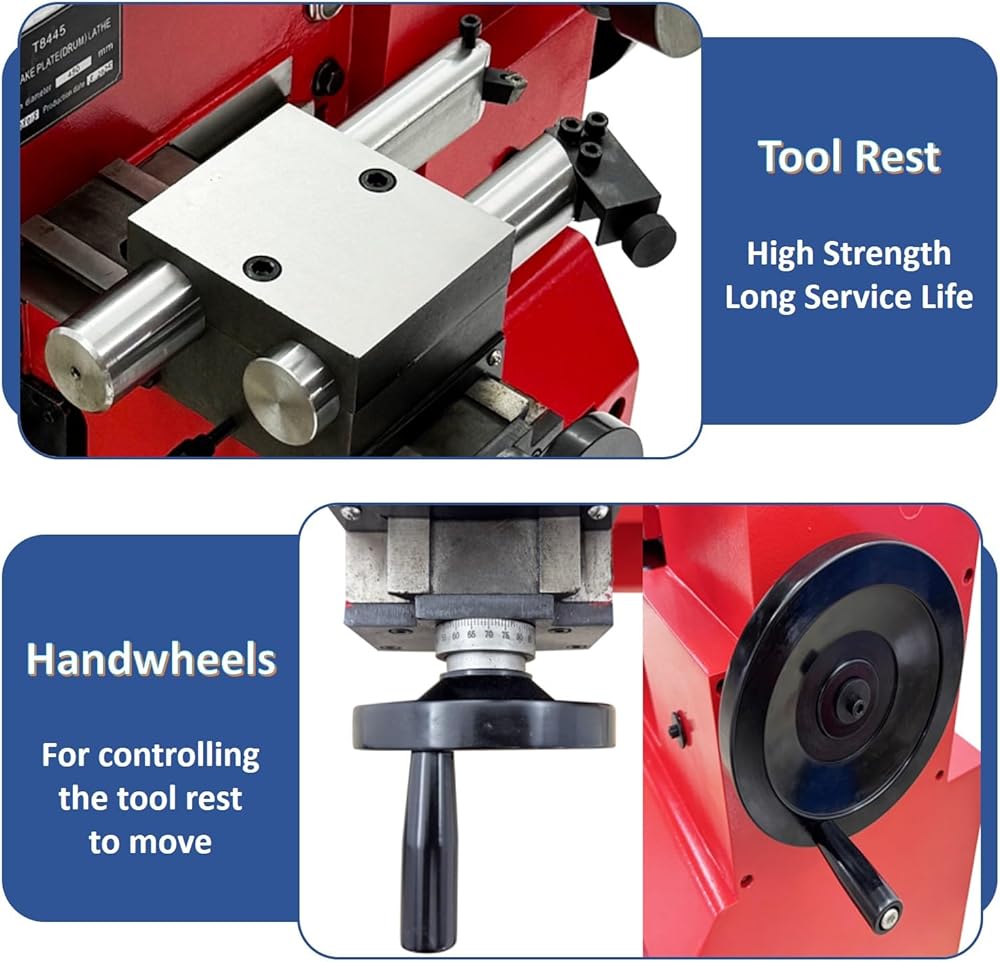

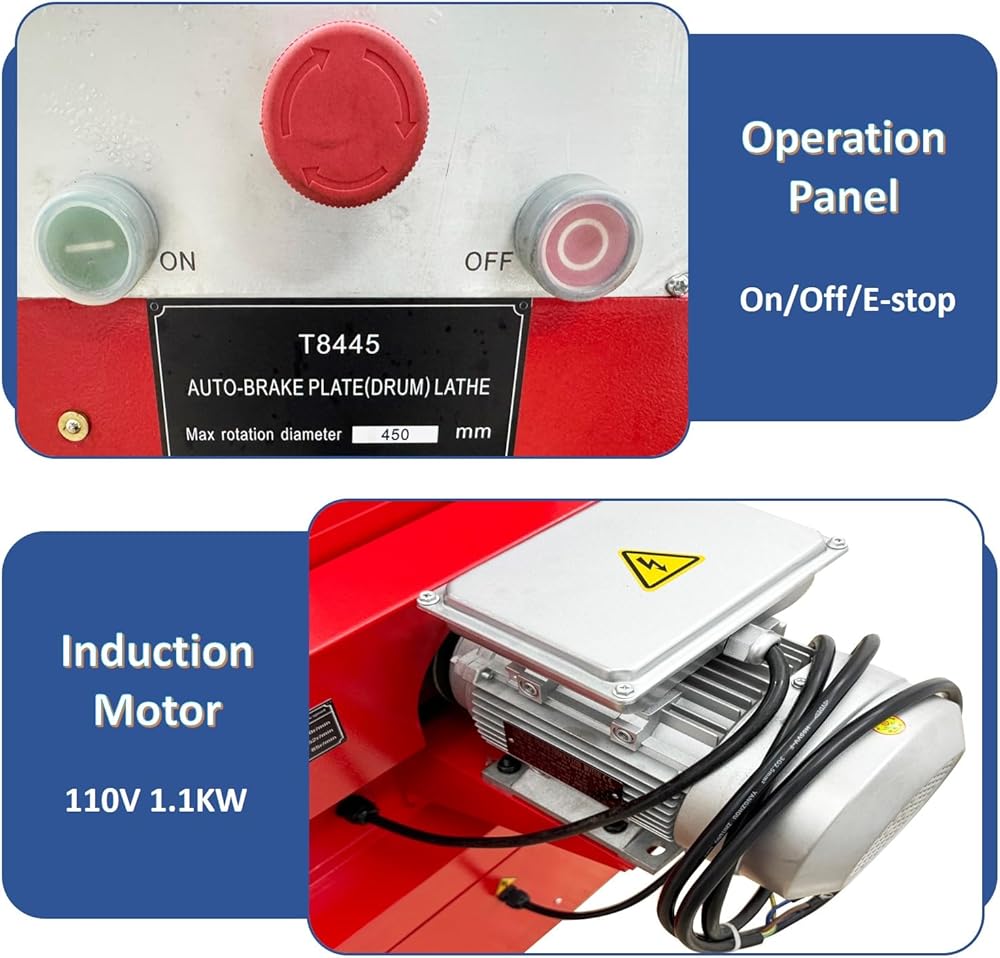

【Safety Protection Design】: The switch is independently controlled, and the advance and retreat of the tool rest are precisely controlled through different handwheels, making the operation intuitive and simple. The emergency stop switch, the switchable LED work light and the large-capacity toolbox jointly ensure operational safety and a clean working environment
【Stable Power Output】: The 1.1KW high-quality motor provides a powerful and stable driving force for the lathe operation, ensuring efficient feed
【Wide Processing Range】: This machine is specially designed for small and medium-sized vehicles. The processing range for brake drums is 7.1-17.7", and the processing capacity for brake discs reaches 15.7". The standard configuration meets the regular requirements, and large core shaft can be customized to adapt to the processing needs of brake drums for medium-sized trucks

وصف

Overview:

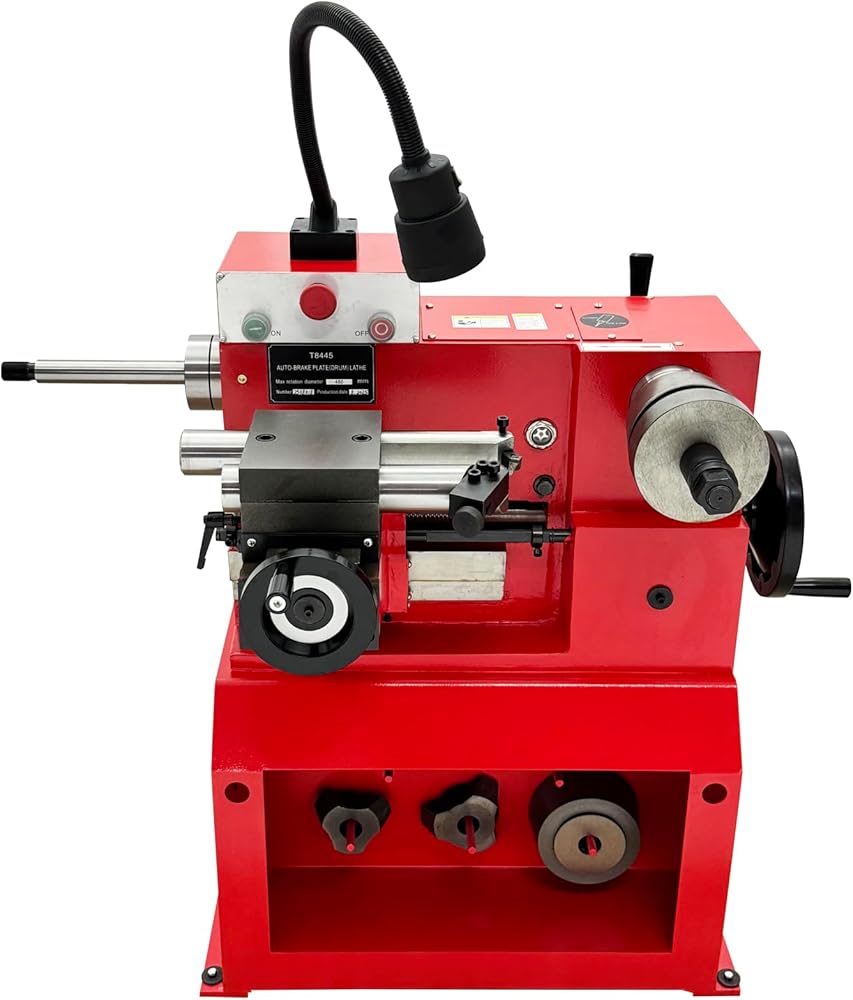

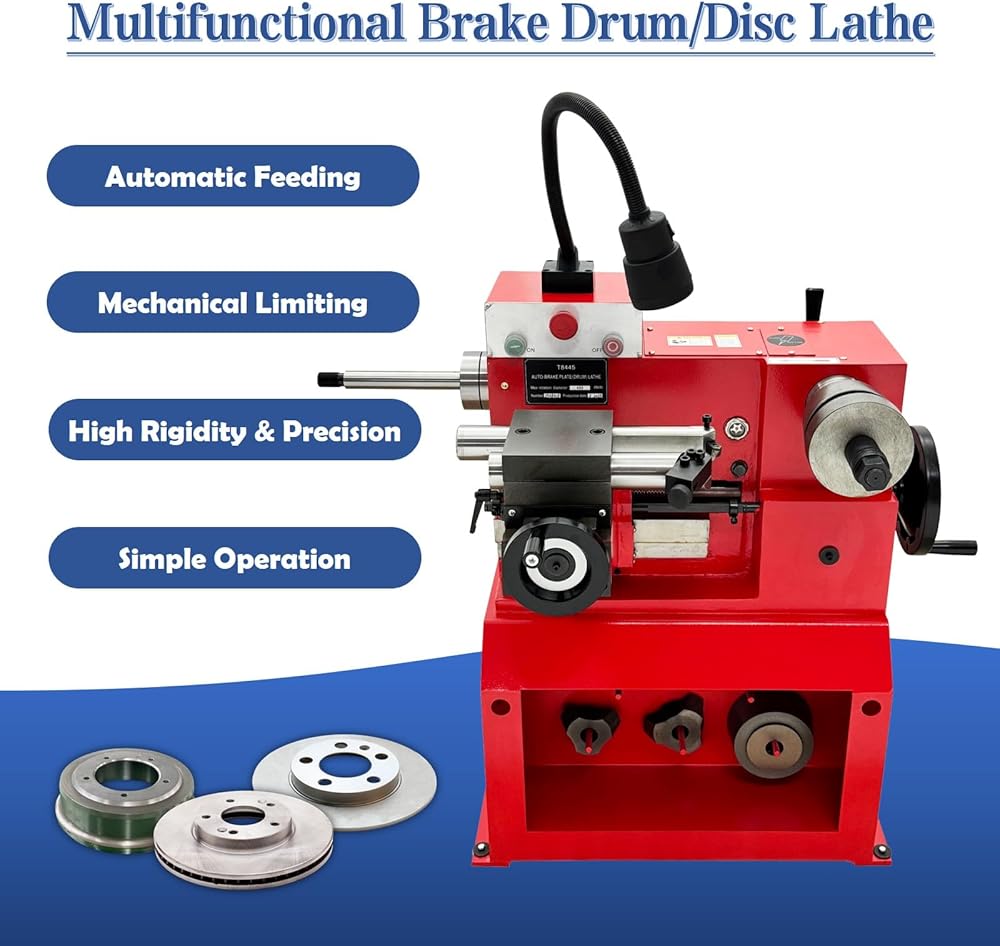

The T8445 brake drum/disc lathe is suitable for repairing brake discs and brake drums of small and medium vehicles. Automatic cutting in both directions can be achieved, and the mechanical limit is provided. The large core shaft can be customized to repair the brake drums of medium trucks. The brake drum/disc lathe has the advantages of high precision, high efficiency, high automation and high strength.

Product Parameters
Model:T8445
Processing diameter range:
Brake drum:180-450mm (7.1-17.7 inches)
Brake disc:≤400mm (15.7in)
Rotating speed of workpiece:30/52/85r/min
Maximum travel of tool:170mm (6.7in)
Feeding capacity:0.16mm/r

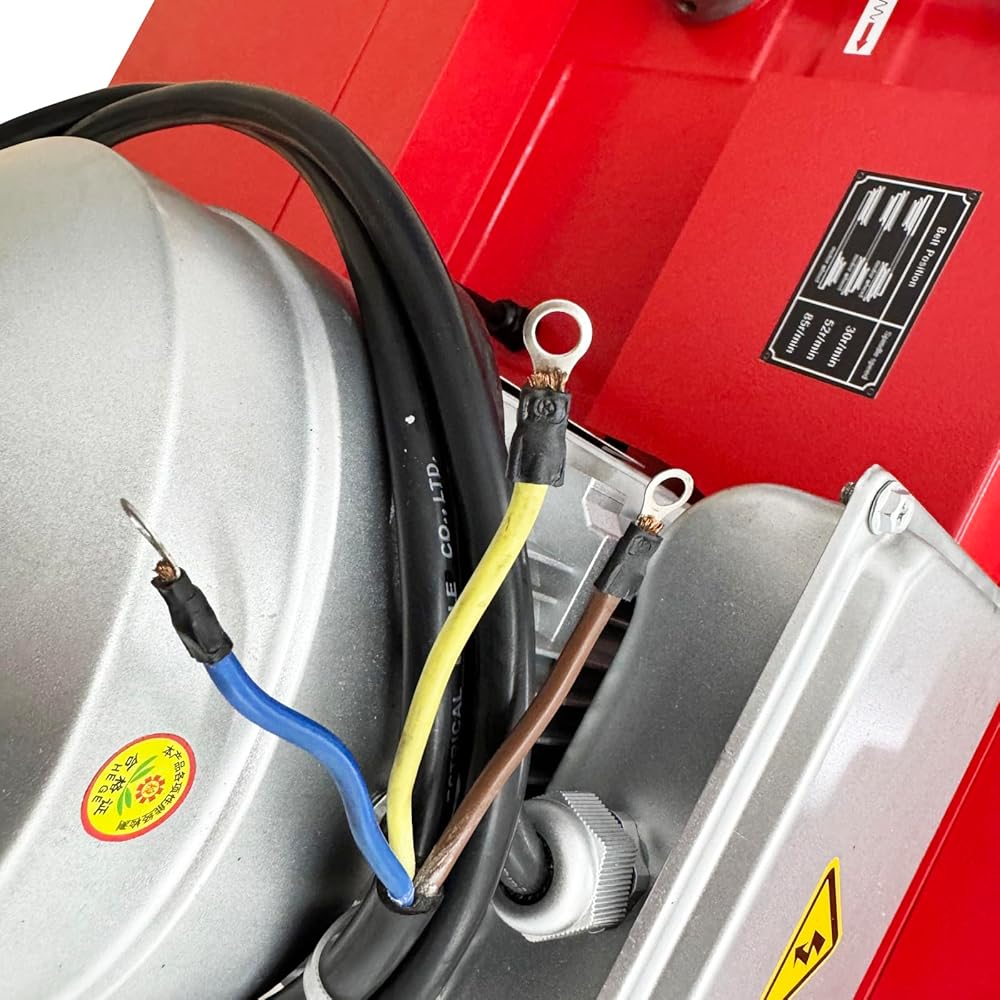

Motor power:1.1KW
Machine voltage:110V 60Hz

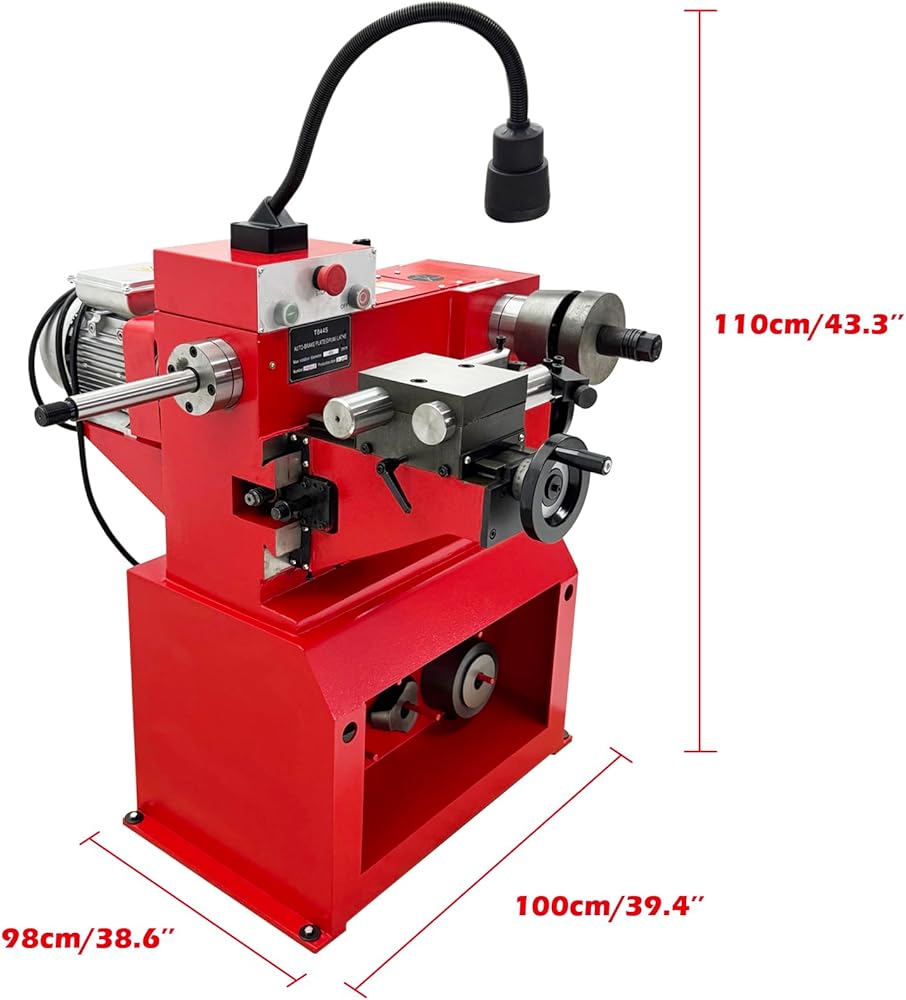

Machine size:100x98x110cm (39.4x38.6x43.3 inches)
Net weight:264kg (582LBS)
Note: This machine with the standard configuration can process the brake discs and drums of small and medium vehicles. If you need to process the brake drums of medium trucks, please contact us to order the relevant accessories.

Item Included:
1 x Brake Drum/Disc Lathe 110V 1100W T8445

مرحبًا،

بحث

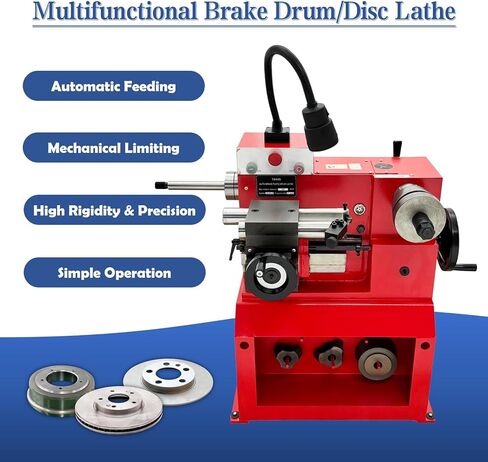

TECHTONGDA طبلة الفرامل ومخرطة القرص 1.1KW قرص فرامل المركبات الصغيرة والمتوسطة وآلة إصلاح الطبل آلة إصلاح لوحة محور الفرامل 30/52/85r/دقيقة سرعة الدوران 110 فولت
