مميزات خاصة

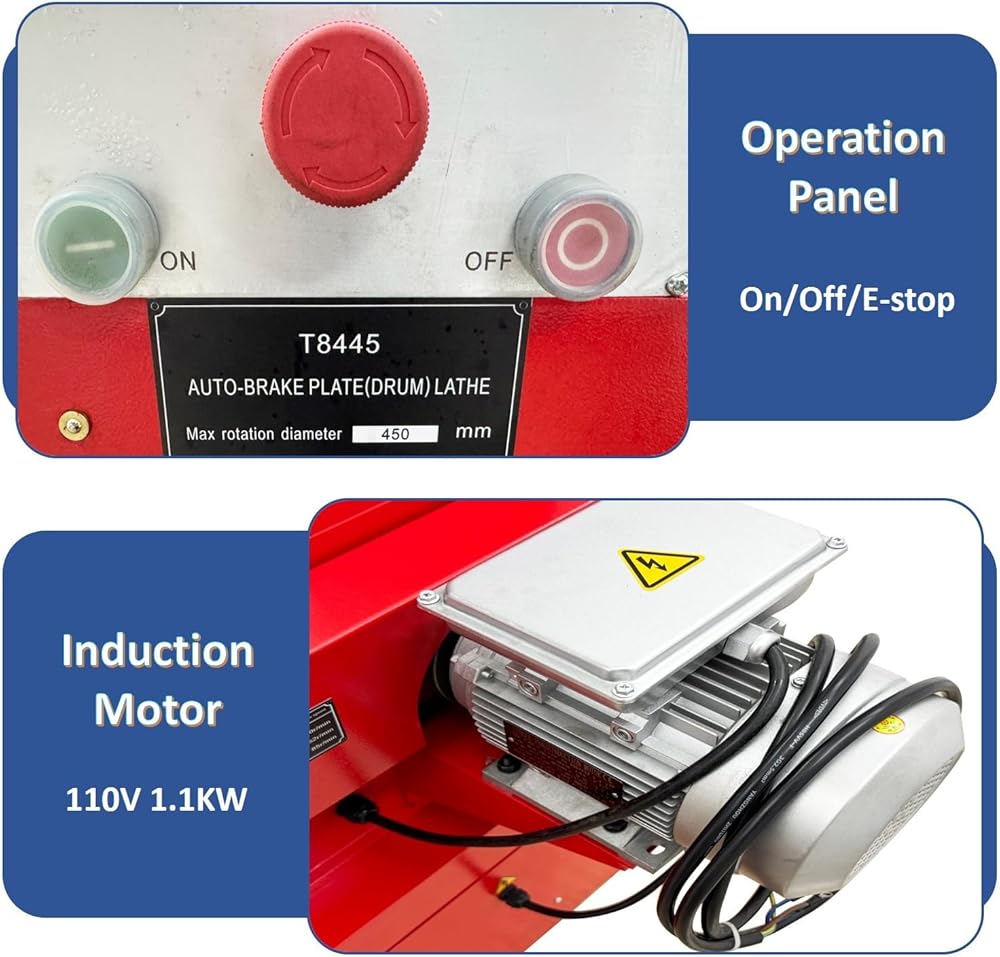

Concise switch design: The ON switch and OFF switch are arranged separately, independently controlled, and easy to operate. The emergency stop switch is designed to stop the lathe in emergency situations, ensuring the safety of the machine and operators
1100W motor: The equipment is equipped with a high-quality 1100W motor, which can provide stable and powerful driving force for the operation of the brake drum lathe, ensuring that the feeding process can be carried out normally, efficiently, and accurately

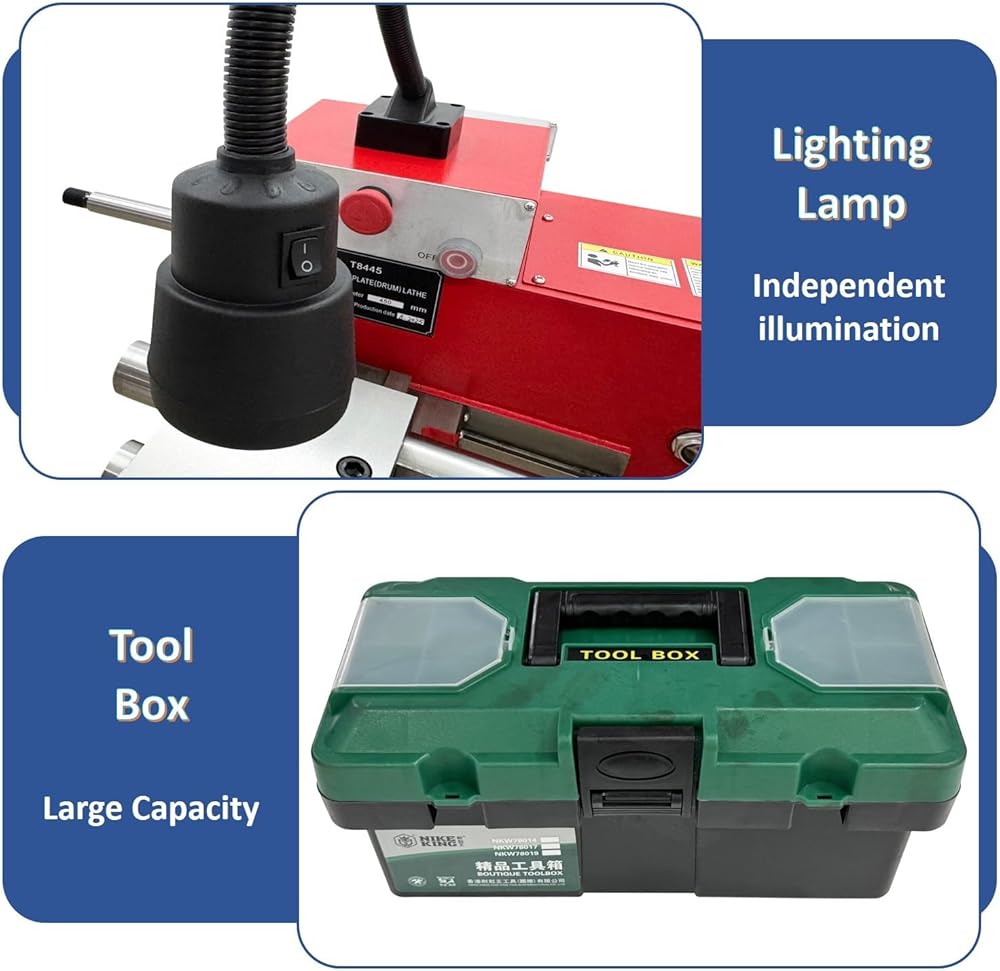

LED lighting design: Used to flexibly illuminate the working environment and facilitate real-time observation of the processing status. The lighting can be turned on and off as needed, greatly enhancing the user experience

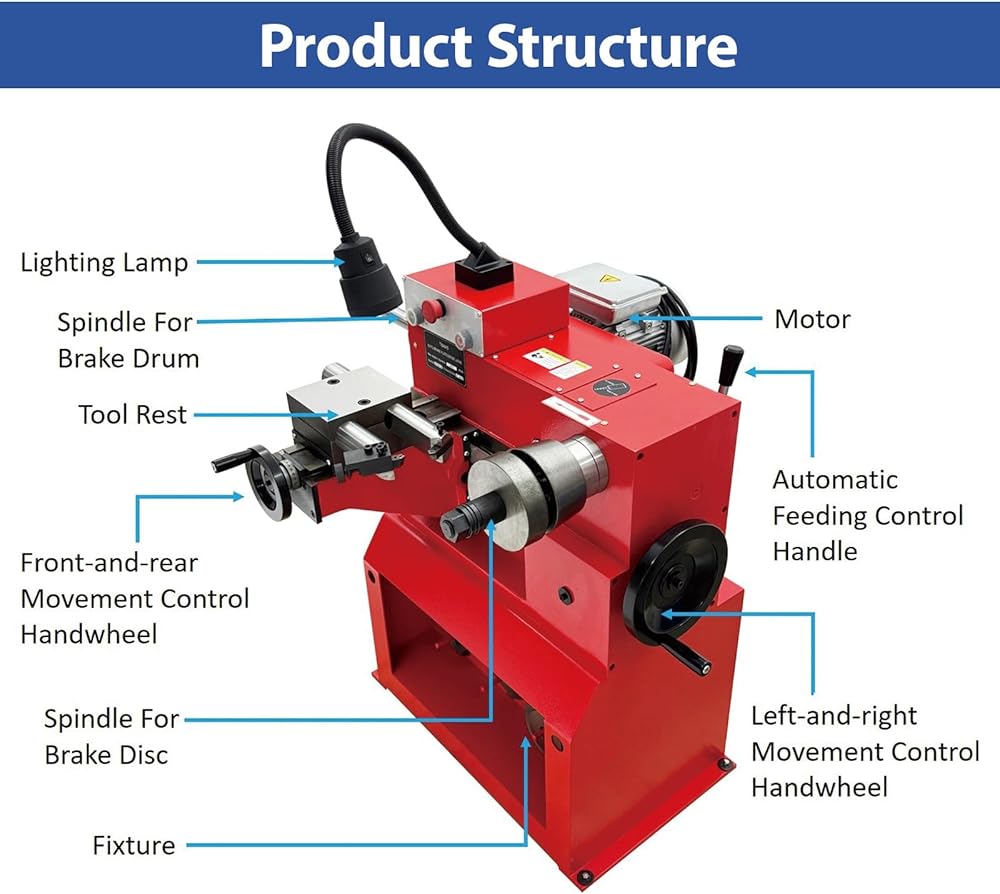

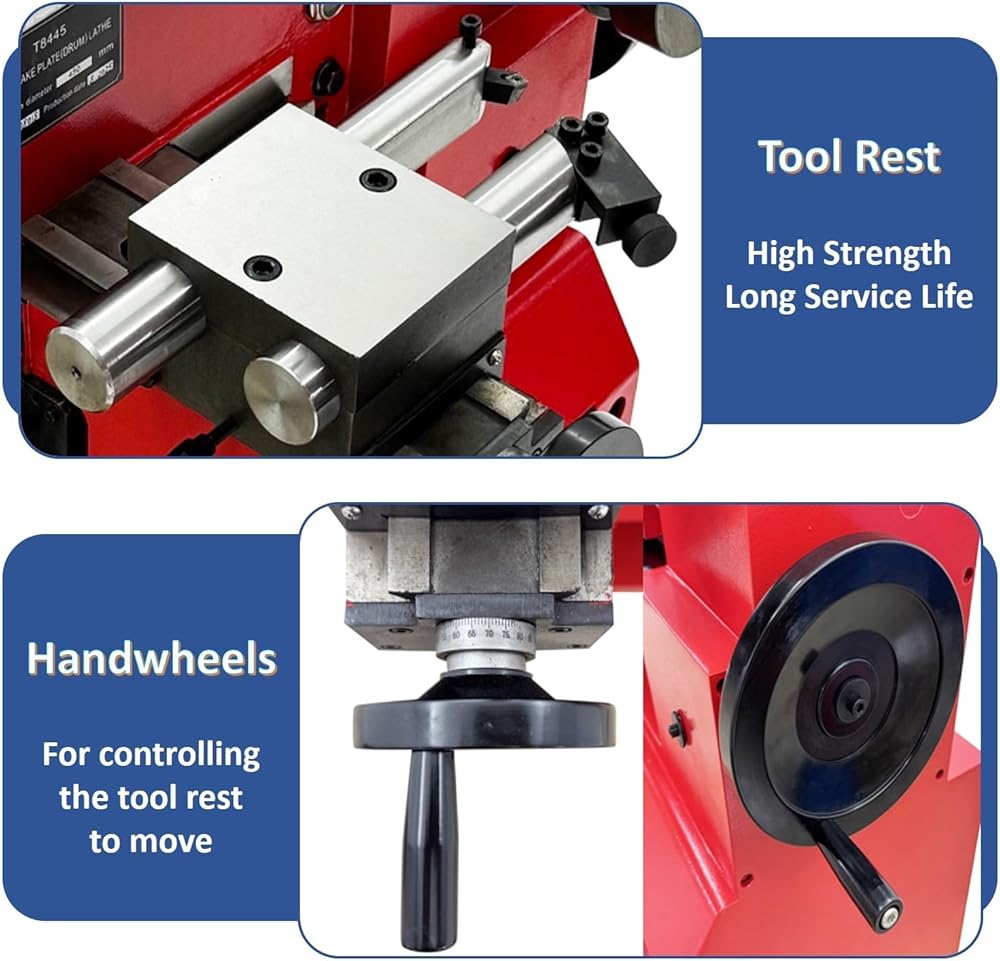

High precision machining tool holder: Efficiently machining brake discs and brake drums, with automatic feed control. At the same time, the tool holder is controlled by different handwheels to move forward, backward, left, and right, improving control accuracy and achieving better machining results

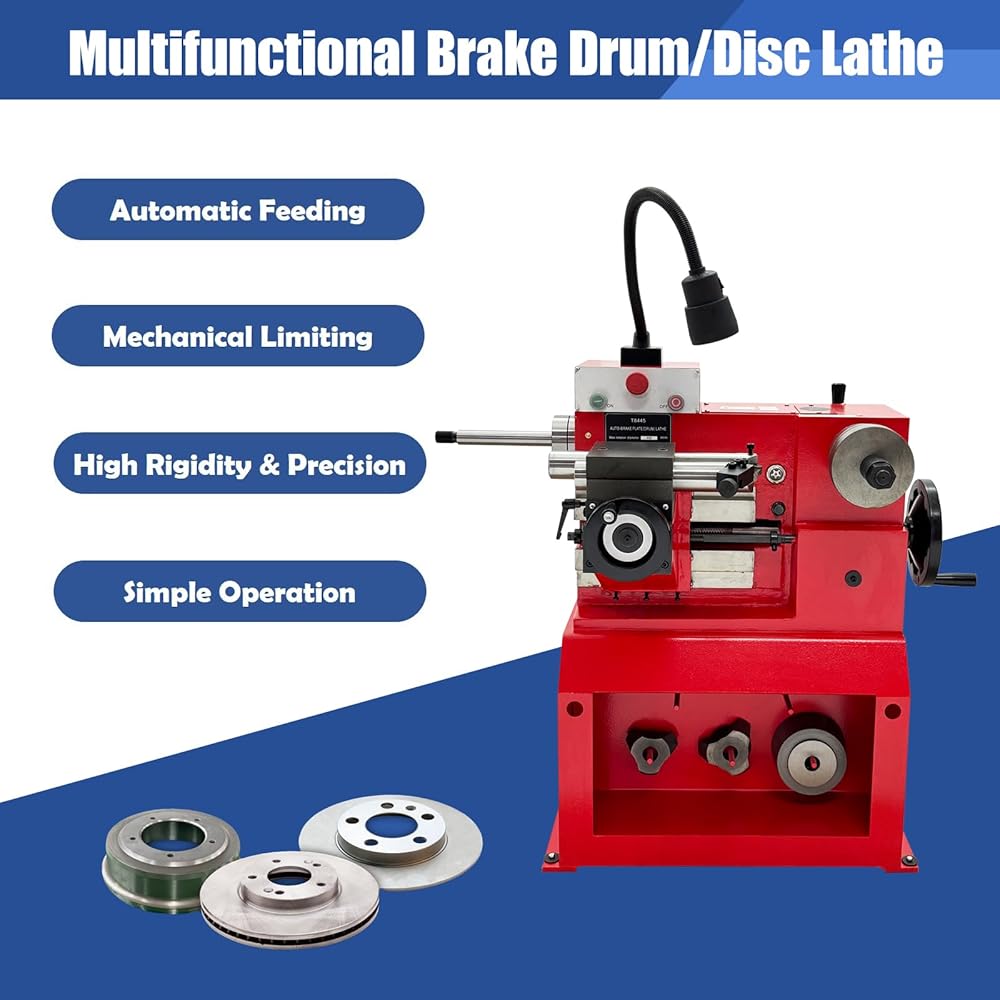

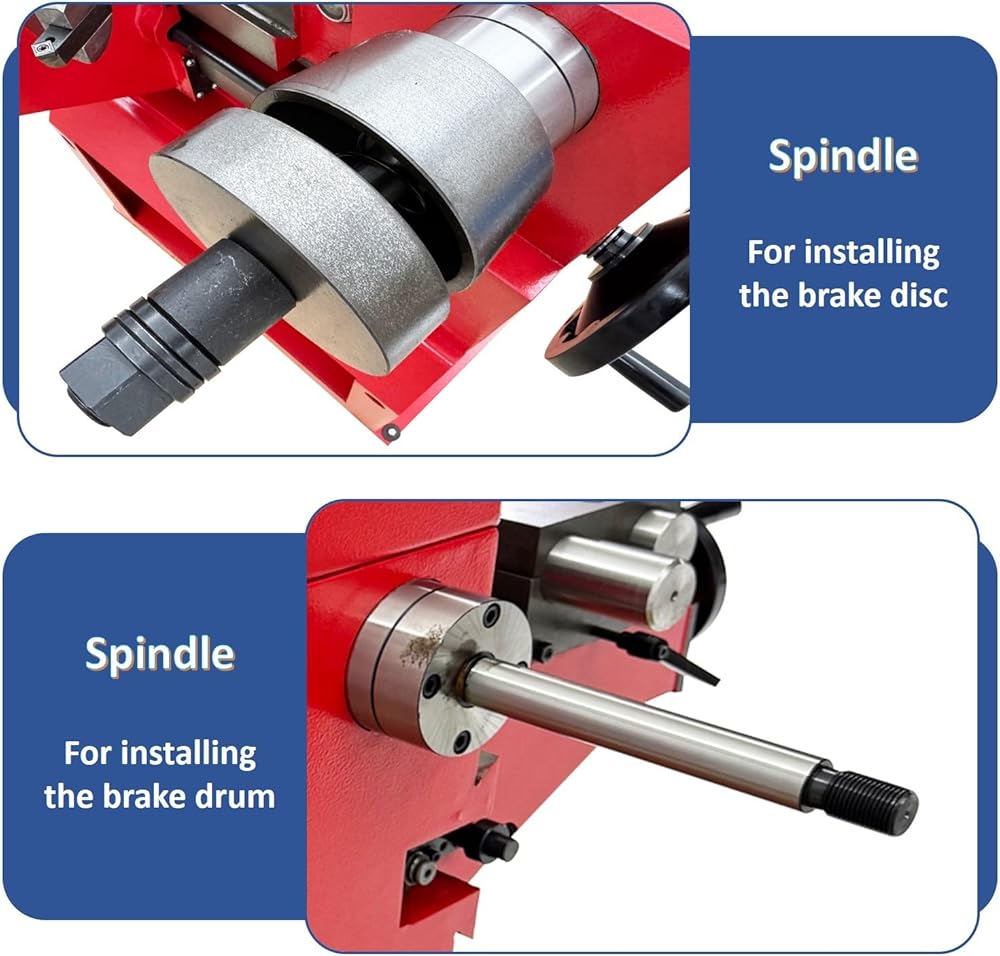

Versatile application scope: Professional adaptation for repairing brake discs and drums of small and medium-sized vehicles, meeting the processing needs of conventional vehicle models; By customizing large core shaft accessories, it can be extended to repair brake drums on medium-sized trucks, achieving multi-purpose use of one machine

وصف

Product Parameters:

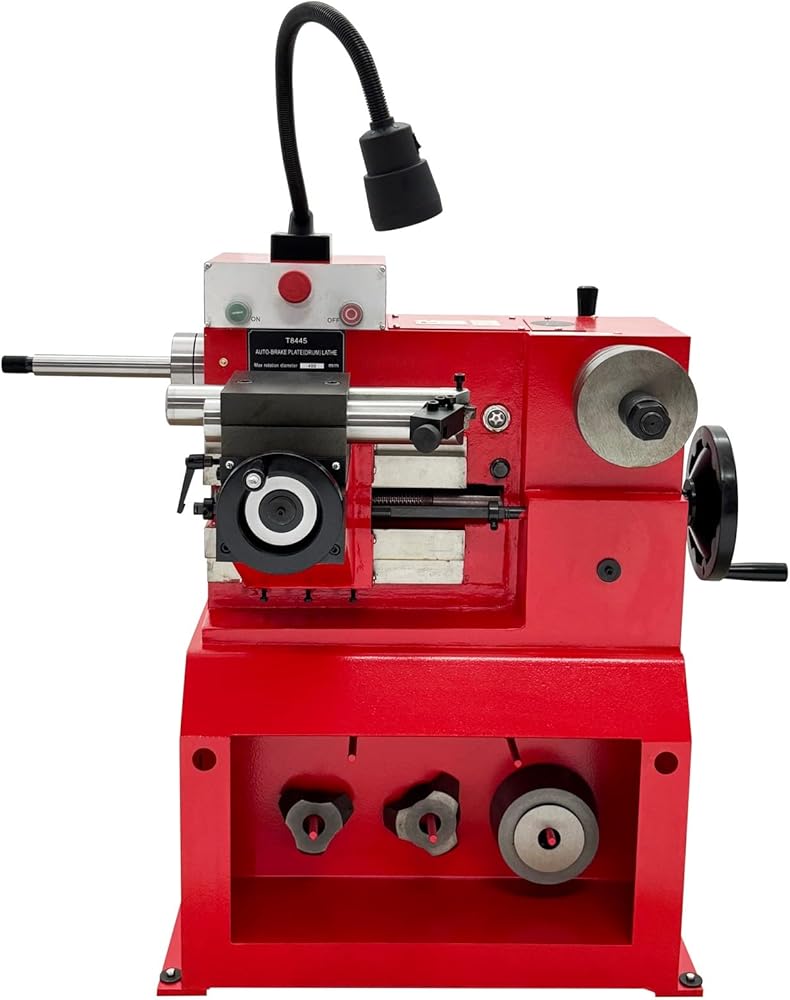

Model: T8445
Processing diameter range :
Brake drum: 180-450mm (7.1-17.7 inches)
Brake disc: ≤400mm (15.7in)
Rotating speed of workpiece: 30/52/85r/min
Maximum travel of tool: 170mm (6.7in)
Feeding capacity: 0.16mm/r
Motor power: 1.1KW
Machine voltage: 110V 60Hz

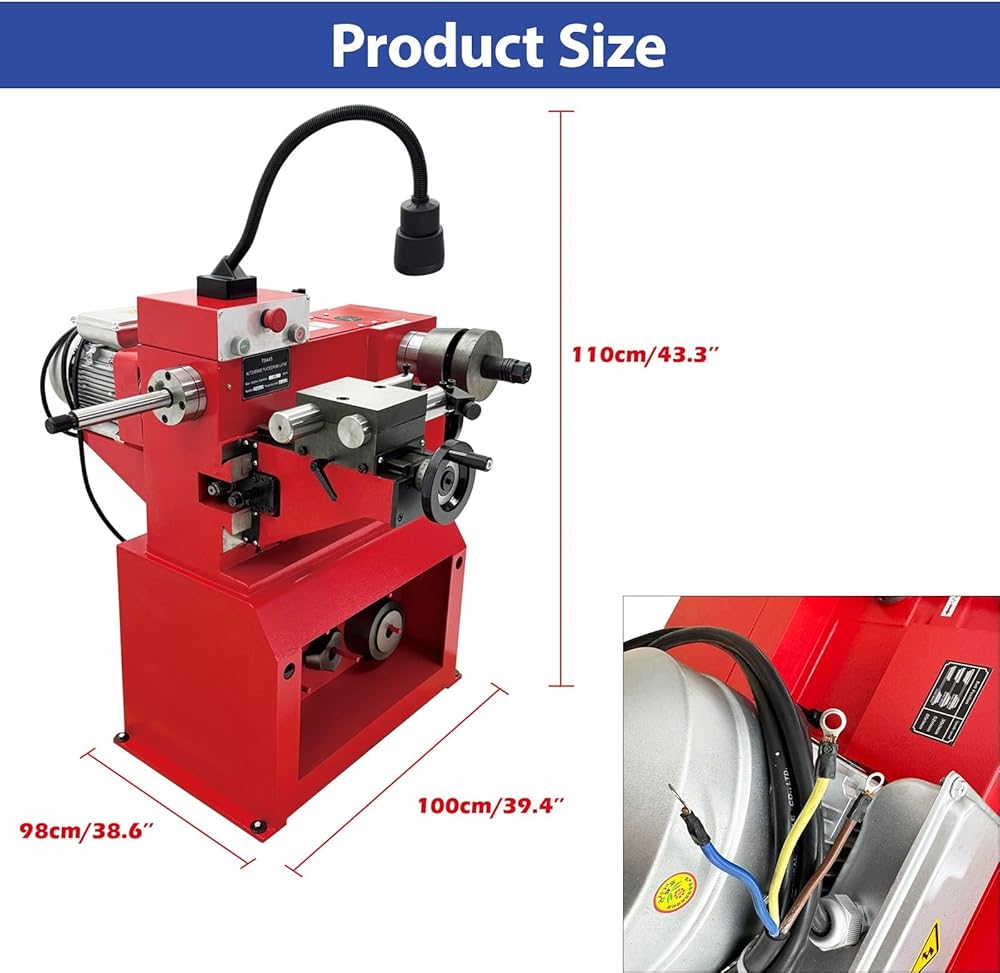

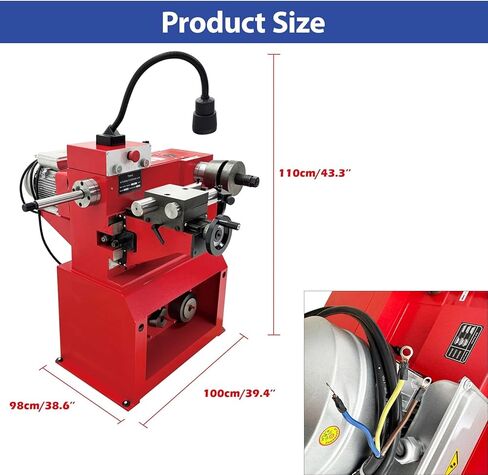

Machine size: 100x98x110cm (39.4x38.6x43.3 inches)
Net weight: 264kg (582LBS)
Note: This machine with the standard configuration can process the brake discs and drums of small and medium vehicles.

Item Number (057234)
1 x Brake Drum/Disc Lathe 110V 1100W T8445
