【Flight Controller Stack】Fixed-wing confiiguration has never been so easy. Supports wireless configuration via QGroundcontroi apps, no more tedious drivers or data cables, allowing you to focus on the joy of flying.
【Power Supply】 F405 drone flight controller has up to 3 high-power BECS with larger heat dissipation areas, ensuring cool and reliable operation,enabling longer and more stable flights for a better flying experience.
【Reduce RC Airplane Sensor Interference】Multi-layer PCB design for cool and stable operation without interference. Designed with separate layers for power supply,FC,and function modules,effectively resolving sensor interference caused by power circuits.
【4 LED Iight】There are 4x LED strip in the our fpv controller, help to make your plane shine. With-connectors, no need to solder. Short press the BOO button to switch different effects and make your plane Tifore visible in the sky.

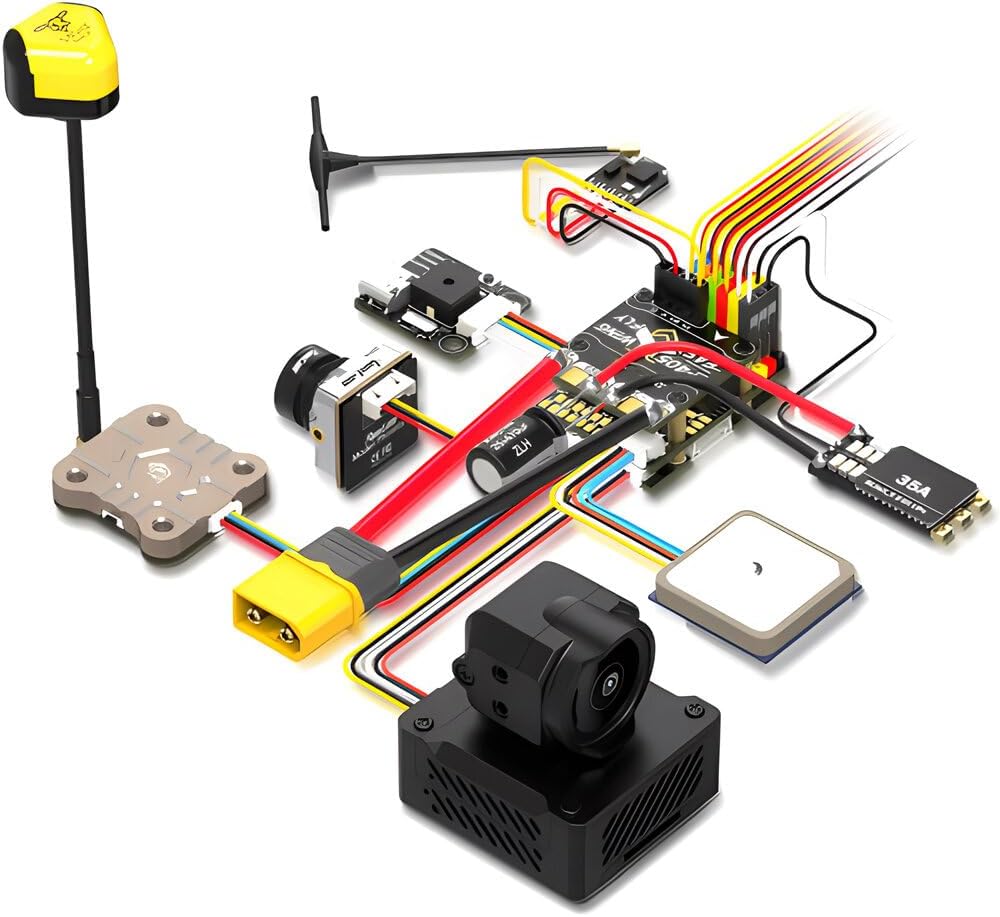

【Widely Application】Making this fpv drone controller kit suitable for a variety of fixed-wing planes, including conventional layout planes, V-tail plane.

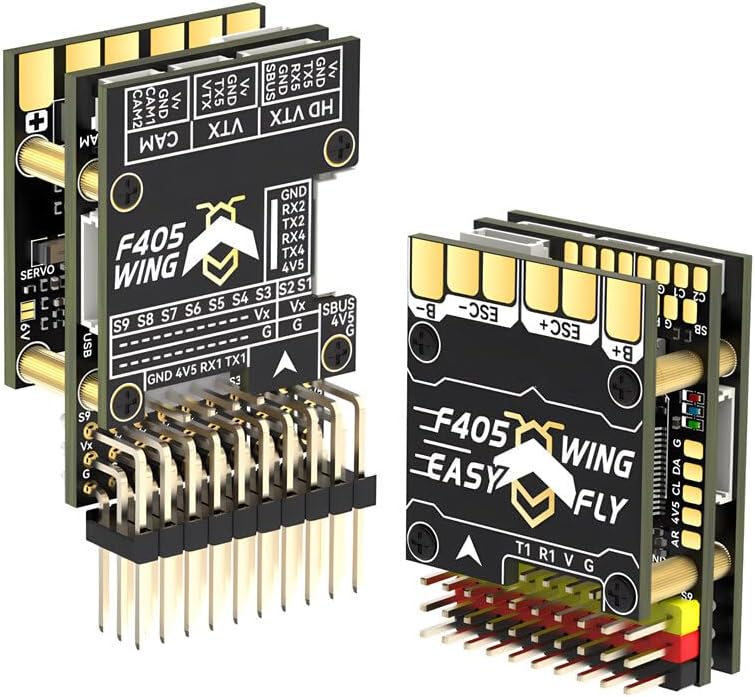

F405 WING MINI FC board

MCU：STM32F405, 168MHz, 1MB Flash

Blackbox： MicroSD Card Slot

UART：6 sets (USART1, USART2, USART3, UART4, UART5,

UART6 - Dedicated for Wireless board Telemetry connection)

I2C：1x Used for magnetometer, digital airspeed sensor

ADC： 4x (VBAT, Current, Analog RSSI, Analog AirSpeed)

PWM：12x (9x pin headers + 2x solder pads + 1x "LED" pad

Weight：5.6g

F405 WING MINI PDB board

Input voltage range：7~26V (2~6S LiPo)

Battery Current Sensor：80A continuous

TVS Protective diode：Yes

Weight：5.5g

F405 WING MINI Wireless USB Extender

Wireless Configuration (long press BOOT button for 6 seconds to switch modes)

USB Port Type： Type-C

Buzzer：5V Active Buzzer

Weight：3.2g
