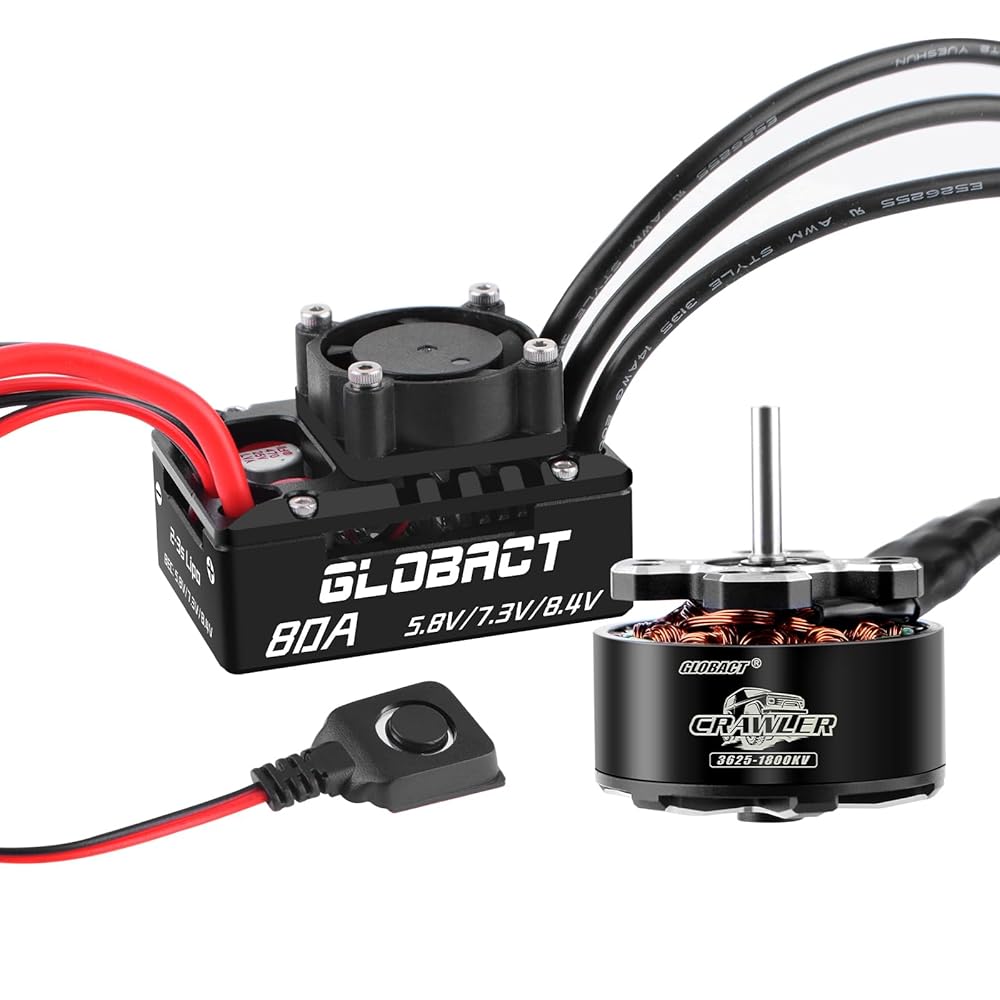

GLOBACT 3625 2250KV Brushless Outrunner Motor with 80A Brushless ESC Built-in Bluetooth Electric Speed Controller for TRX4 SCX10 1/10 RC Crawler Upgrade in Saudi Arabia

GLOBACT 3625 1800KV Brushless Outrunner Motor with 80A Brushless ESC Built-in Bluetooth Electric Speed Controller for TRX4 SCX10 1/10 RC Crawler Upgrade

SAR 574
Brand
GLOBACT
Weight
250 g
Size1800KV
Number of Items1
– 1 +

Special Features

  • 【Compatibility】3625 outer rotor brushless motor & 80A brushless ESC kit for Traxxas TRX4 Axial SCX10 Redcat 1/10 scale RC crawler car.
  • 【Powerful Output】ESC supports 2-3S LiPo batteries with 80A continuous current and 280A peak current. Combined with 3625 2250KV motor's high energy conversion efficiency, it delivers rapid power response.
  • 【BEC Switchable】BEC output can be adjusted within the APP, with three options: 5.8V 3A/7.3V 3A/8.4V 3A, allowing for flexible switching. Reserve BEC switch welding position, with BEC (ESC control) switch.
  • 【Quick installation】Effectively avoids wiring interference issues. Motor supports multi-angle quick mounting with ample cable length—no worries about short cables.
  • 【Note】To prevent motor damage, please ensure that the depth of the screw inserted into the mounting hole does not exceed the motor mounting seat.

Description

Fits: Compatible with Traxxas TRX4 Axial SCX10 Redcat 1/10 scale RC crawler car.
Attention: ESC built in Bluetooth module, 2 ways to adjust parameters, mobile app (only supports Android), WeChat mini program (both Android and iOS systems support).

ESC Specifications:
Item Name: 80A Brushless ESC
Material: Plastic & Aluminum Alloy
Continuous Output: 80A
Instantaneous Max Current: 280A
Battery Support: 2~3S
BEC Output: 5.8V 3A / 7.3V 3A / 8.4V 3A, switch voltage through mobile app
Size: about 48.30 x 33.20 x 32.10mm (1.90 x 1.31 x 1.26in)
Weight: 83.9g/0.18lb (Included wires)

Motor Specifications:
Name: 3625 Brushless Motor
Item Name: HY-036250-01
KV(RPM/Volt): 2250KV
Max Watts: 880KV
Lipo: 2-4S
Max Current: 65A
Rotor Poles: 14
Max RPM: 30000
No Load Current: 2.1A
Resistance: 0.010Ω
Shaft: Φ3.175mm
Moter Size: Φ36*25mm
Stator Size: Φ30*12mm
N.W: 92g

Package List:
1× 80A Brushless ESC for 1/10 RC Crawler
1 x 2250KV Brushless Motor for 1/10 RC Crawler
