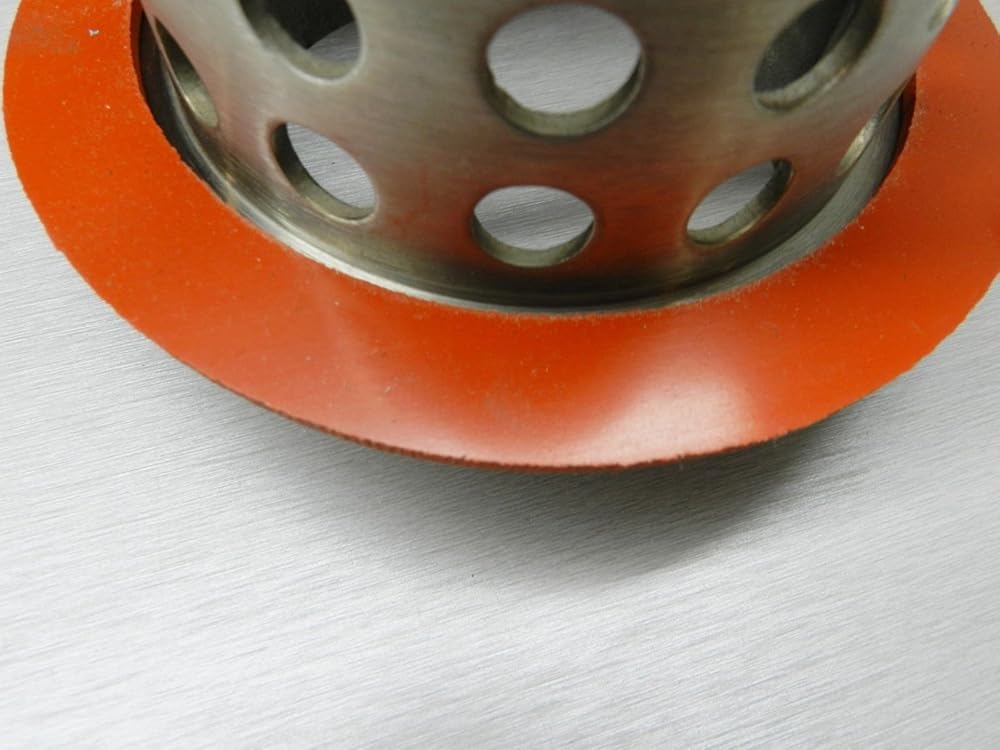

- High Grade Silicone gaskets are used during vacuum casting to seal perforated flask ring and casting chamber.
- The Silicon acts as a sealing layer between the hot flask and the casting chamber flange adapter Gasket provides a good seal, allowing the vacuum to fully pull the molten metal into the flask.
- These gaskets are die cut, have a thickness of 1/8” and come in various diameters to work with individual flask OD sizes.
- NOTE: Gasket has a wide surface area over 5/8" to assure a good seal.
SPECIFICATIONS: JETS Product # 0304-235
- Material: Silicon

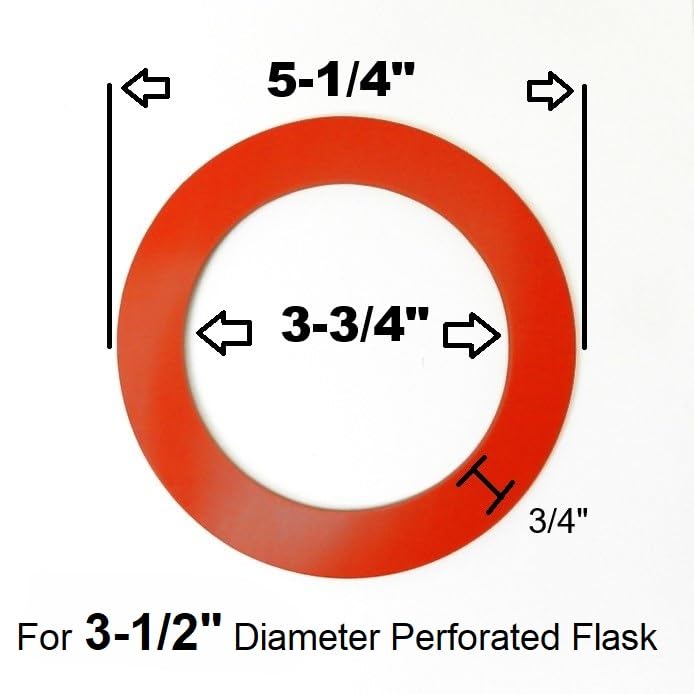

- Flask Diameter: 3-12" - 89mm
- Outside Diameter: 5-1/4" - 133mm
- Inside Diameter: 3-3/4" - 95mm
- Gasket Width: 3/4" - 19.mm
- Thickness: 1/8"
