Cut Model 1/14 RC Hydraulic Excavator 914 5Ch Valve Metal Remote Control Digger Warning Light Flysky St8 Radio Sound System Hobby Grade Model for Ages 14+(Blue and White) in Saudi Arabia

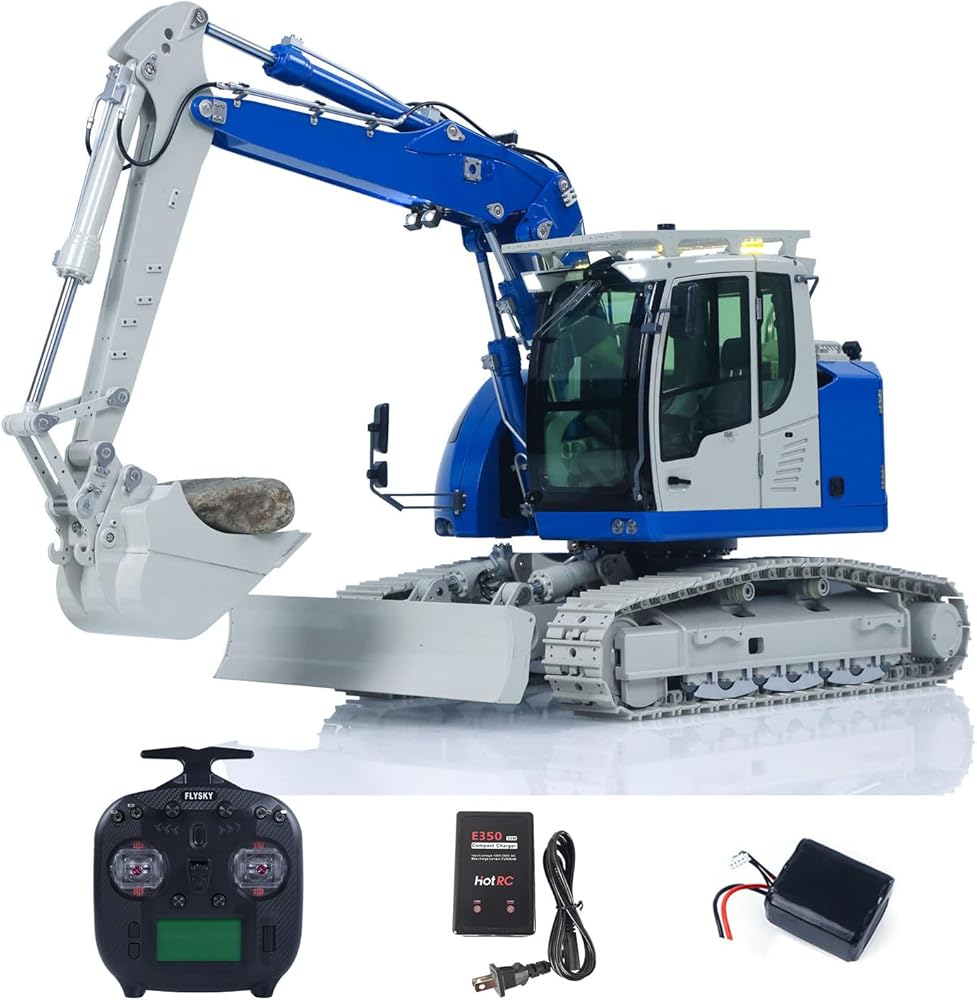

Cut Model 1/14 RC Hydraulic Excavator 914 5Ch Valve Metal Remote Control Digger Warning Light Flysky St8 Radio Sound System Hobby Grade Model for Ages 14+(Blue and White)

SAR 11,587
Brand
wheelfun
Weight
12 kg
ColorBlue and White
– 1 +

Special Features

  • Body Construction: The Main Body Predominantly Uses Cnc And Stainless Steel Sheet Metal Processing, With Certain Few Decorative Parts Using Abs Molds.
  • Upgradability: This Model Offers Various Upgrade Options Such As Gps, Rubber Track Pads, And Multiple Attachments Such As Grippers, Rippers, Etc. To Enhance Playability.
  • Innovative Hydraulic Proportional Valve: First To Use Newly Developed 1/14 Mechanical Model Proportional Hydraulic Directional Valve, With Precision Reaching The Micron Level, Which Makes The Hydraulic Functions Of The Excavator Much More Delicate, Smooth And Realistic.
  • Integrated Hydraulic Pump Station: The Hydraulic Pump Station Integrates An Oil Tank, Pressure Regulator, Pressure Gauge, Oil Fill Port, Balance Valve, Oil Discharge Port, Oil Level Indicator, Bringing Incomparable Stability, And Thus, Doesn'T Leak Oil Like Other Machines. The Integrated Hydraulic Station Block Makes The Appearance Much Neater And More Convenient For Subsequent Maintenance.
  • Oil Returning Radiation System: An External Cooling Fan And Radiator Controls The Oil Temperature Of The Entire Hydraulic System During Extended Operation Periods And Prevents Overheating.

Description

#Specification:
Manufacturer: Cut Model
Item Condition: New, Painted And Assembled
Scale: 1/14
Material: Metal, Plastic (Most Of The Parts Are Made Of Metal, With The Exception Of The Cabin Glass And Some Decorative Parts Made Of Plastic)
Size: 547.9*162.9*234.6Mm/21.6*6.4*9.2Inches
Net Weight: About 8.5Kg
Id: Cut-C914-Excavator-5Ch-Chgr-Rtr-Buw

#The Package Includes:
1/14 Rc Hydraulic Excavator Model
Esc
Motor
Servo
Light System
Sound System
Hydraulic System With 5-Ways Reversing Valve
Integrated Pump And Oil Tank
Manual Quick Release Coupler
Rotating Warning Lights
Spotlights
Cabin Roof Guard Rail
Cabin Rear Roof Guard
Flysky St8 Remote Controller And Receiver
Battery
Charger

#The Package Does Not Include:
Hydraulic Oil

#Static Parameters
- Body Width (Mm): 194
- Ground Clearance At Upper Edge Of Tracks (Mm): 69.3
- Ground Clearance At Top Of Body (Excluding Exhaust Pipe) (Mm): 184.6
- Ground Clearance At Top Of Cab (Excluding Protective Net) (Mm): 221.3
- Ground Clearance Of Counterweight (Mm): 80.9
- Wheelbase (Mm): 239.1
- Standard Track Width (Mm): 35
- Distance Between Tracks (Mm): 163
- Width Of The Bulldozer Blade (Mm): 198
- Maximum Width Of The Chassis (Mm): 203.2

#Dynamic Parameters
- Maximum Ground Clearance With The Bulldozer Blade Down (Mm): 15.2
- Maximum Ground Clearance With The Bulldozer Blade Up (Mm): 52.6
- Rotation Angle (°): 360 (Infinite Rotation)
- Torque Of Worktable Rotation Motor (Kg): 25
- Rotation Speed Of The Worktable (R/Min): 9.5
- Single Cylinder Thrust (Kg): 15
- Maximum Speed Of Drive Wheels (R/Min): 30
- Drive Wheel Reduction Ratio: 1/256
- Maximum Pressure Of Hydraulic System (Mpa): 4
- Rated Pressure Of Hydraulic System (Mpa): 2.5
