Product Parameters
Rated voltage: 110V
Rated power: 1500W
Weight: 187.5kg (413.37LB)
Chain range:
Sleeve range:
Screw diameter: 40/50mm (1.57in/1.97in)

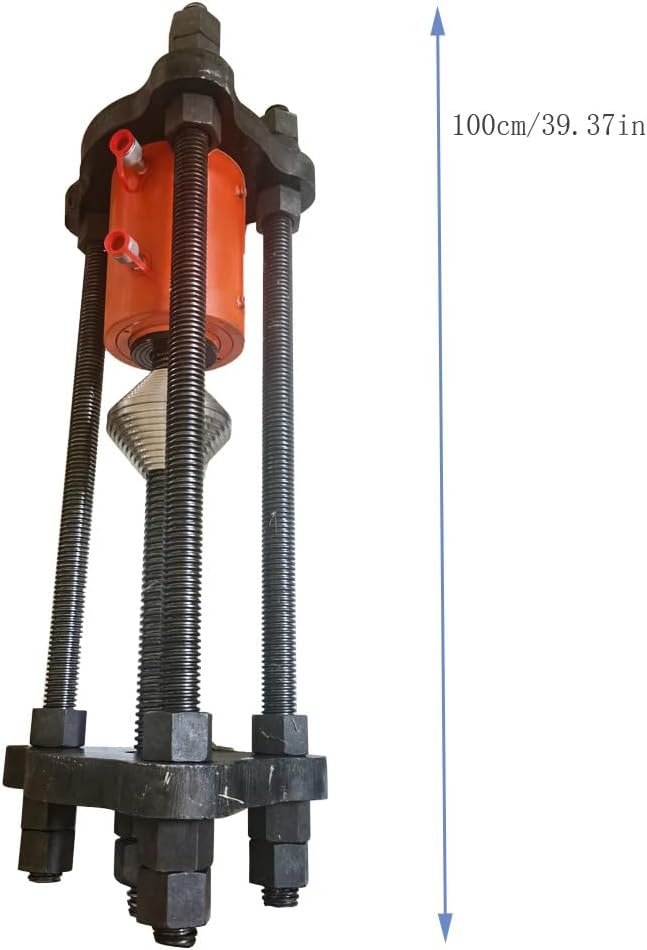

Screw length: 1000mm (39.37in)
Cylinder stroke: 100mm (3.93in)
Operating pressure:0-63Mpa
Pump station volume: 24L
The tank should be filled with hydraulic oil, and then the machine can be powered on to start, otherwise the pump station will be damaged.
The user needs to add #46 or #68 anti-wear hydraulic oil to the pump station.
Operation Method
1. Before operation, carefully check the pressure oil circuit, transmission device and hydraulic pressure, and ensure that the equipment is intact before starting.
2. At least two operators are required to operate the machine cooperatively, and it is prohibited to work alone.
3. Before pressing the sleeve/chain, the flange sleeve/chain and the core must be aligned.
4. If it is necessary to use a rod when pressing the sleeve/chain, the rod must be aligned with the core to prevent slipping and injury.
5. When pressing the sleeve/chain, no one is allowed to stand directly in front of the sleeve/chain, the operators can only stand on the side of the core and keep 1.0m away from the core.
6. After pressing the sleeve/chain, move the core and flange sleeve/chain away from the operation area.
7. After the operation is completed, turn off the power supply and organize the site.

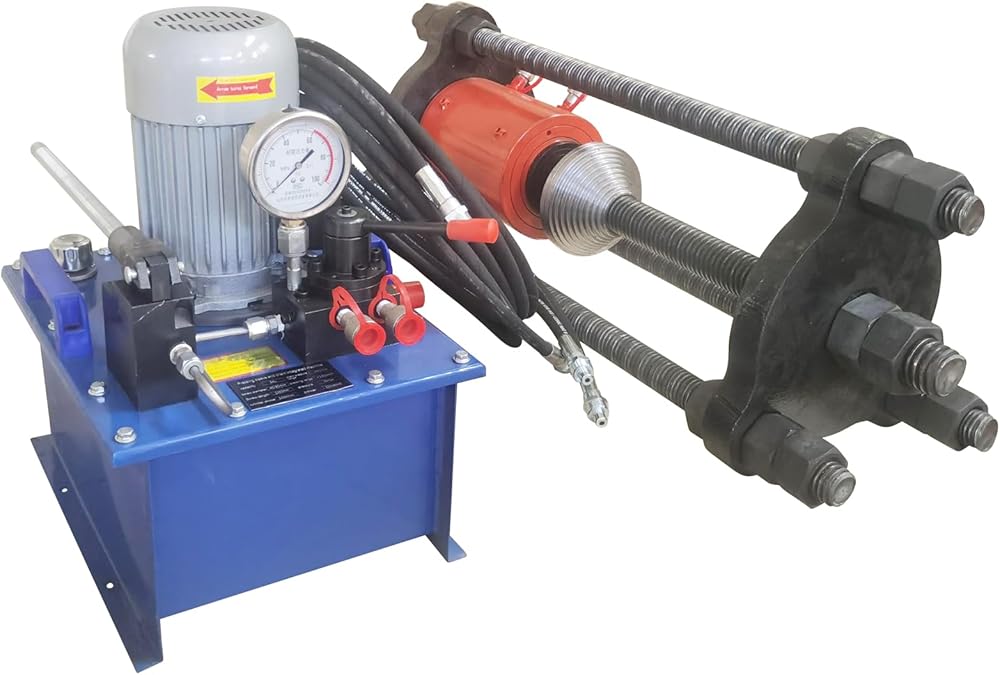

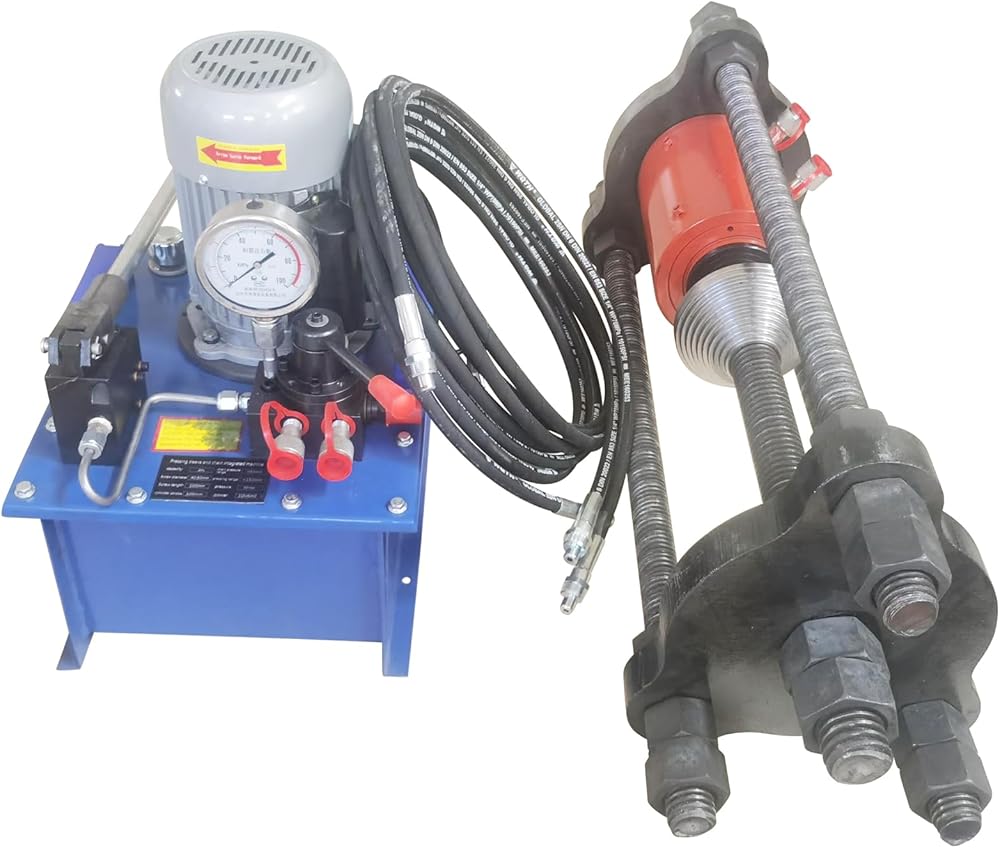

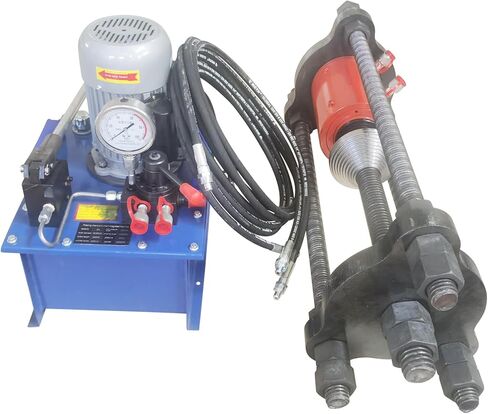

Item Number (022746): 1 x Crawler Pin Dismantling Machine 100T 110V
