قاطع مصفوفة تجعيد PVC يدوي - طول القطع 19.6 بوصة، زاوية دقيقة 90 درجة، لقاعدة الورق ومصفوفة تجعيد الألياف، أداة قطع القالب مع هيكل من الحديد الزهر وشفرة فولاذية
【Parameter】 Driving method: Manual, Max.cutting length: 19.6 inch (500 mm) Min.cutting length: 0.4 inch(10mm), Cutting precision: ±0.5 mm, Gross Weight: 15.4 lbs(7 KG), Application: PVC, Paper base, Fiber creasing matrix

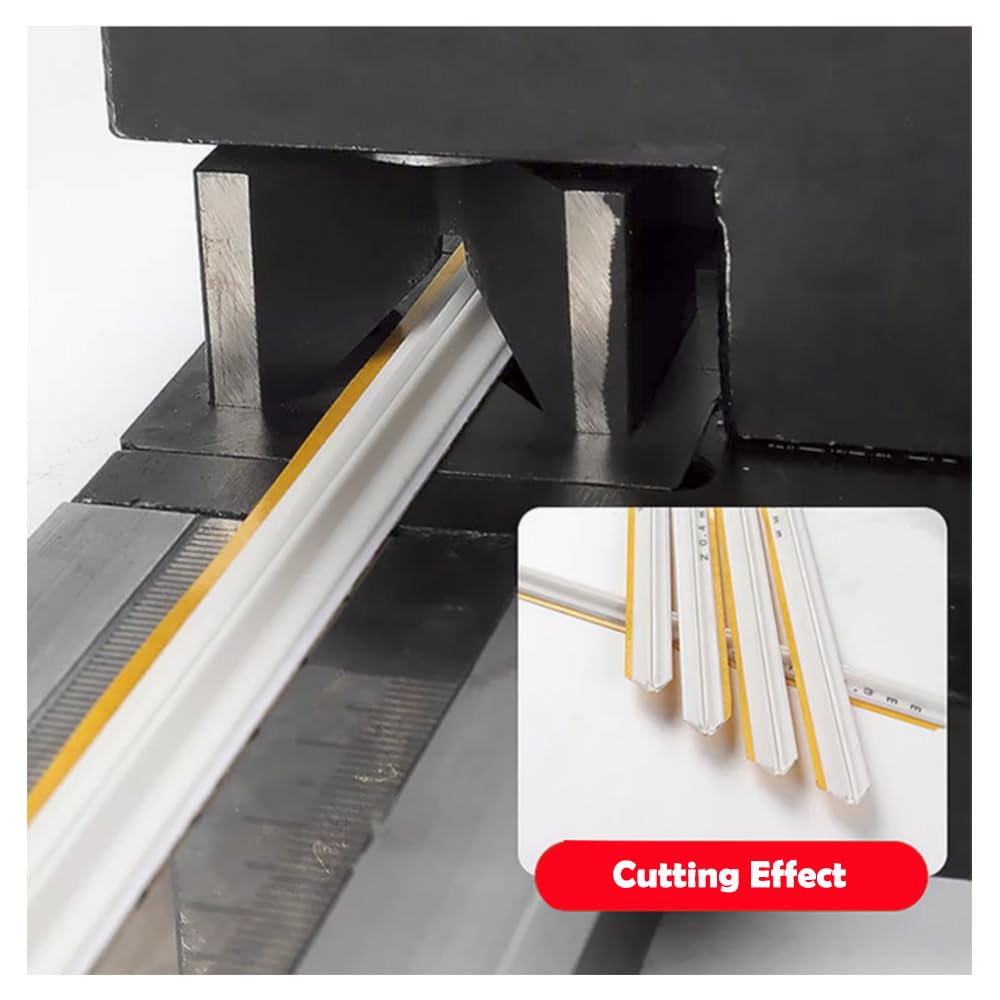

【90 Degree Cutting Angle】Its cutting length and angle are completed at one time, and after cutting the creasing matrix at both ends is naturally 90 degree
【Widespread Application】Manual creasing matrix cutter is an effective cutting tool that cuts the creasing matrix into the required length. When the die cutting plate is installed, the matrix's intersection is more close, the creasing is more full, can greatly improve the utilization of creasing matrix
【Easy to Operate】The structure is simple, small in size and easy to operate, freely choose the cutting length that you need. Lever principle design, easy to operate without effort
【High-Quality Materials】Cast iron body, more durable. Sharp inclined steel knife, smooth incision without burr edge
وصف
Its cutting length and angle are completed at one time, and after cutting the creasing matrix at both ends is naturally 90 degree. When the die cutting plate is installed, the matrix's intersection is more close, the creasing is more full, can greatly improve the utilization of creasing matrix.
