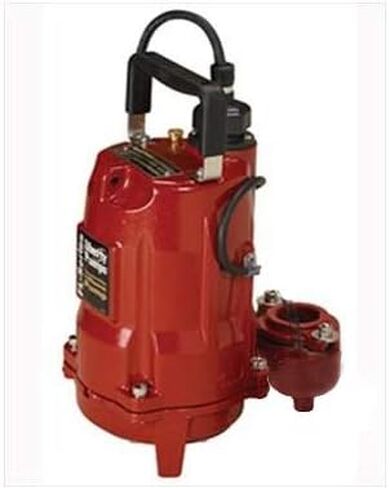

This mid-range submersible effluent pump is designed for STEP (Septic Tank Effluent Pumping) systems, mound systems, liquid waste transfer and higher head de-watering applications. This pump is capable of passing up to 3/4" solids. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL70 will provide years of reliable performance.
Features
2" FNPT with a 1-1/2" FNPT threaded cast iron flange provided
Semi-open impellers permit passage of solids without clogging
Heavy cast iron construction
Stainless steel fasteners
416 stainless steel rotor shaft
Permanently lubricated upper and lower ball bearings
Oil-filled hermetically sealed motors with thermal overload protection
Unitized carbon and ceramic shaft seal
Control Panel Options
Below are Liberty control panels that can be used with this pump.
SXL21=3
SXL24=3
AE21L=3 AE21L=4
AE24L=3 AE24L=4
IPS-24L
IPD-24L
Specifications:

Mfg. Number: FL72M-3
Product Type: Submersible effluent pump
Application: Effluent / dewatering
Horsepower: 3/4 HP
Voltage: 208-230 Volts
Phase: 1
Frequency: 60 Hz
Speed: 3450 RPM
Operation: Manual
Discharge Connection: 2" NPT With 1-1/2" NPT flange
Pump Casing: Cast iron
Maximum Flow: 100 GPM
Maximum Total Head: 76 ft
Maximum Solids Handling: 3/4"
Pump Casing Material: Cast iron
Impeller Material: Cast iron
Motor Design: Oil filled
Motor Insulation: Class B
Overload Protection: Yes
Maximum Current: 10.5 Amps
Maximum Liquid Temperature: 140°F
Power Cord Length: 35 ft
