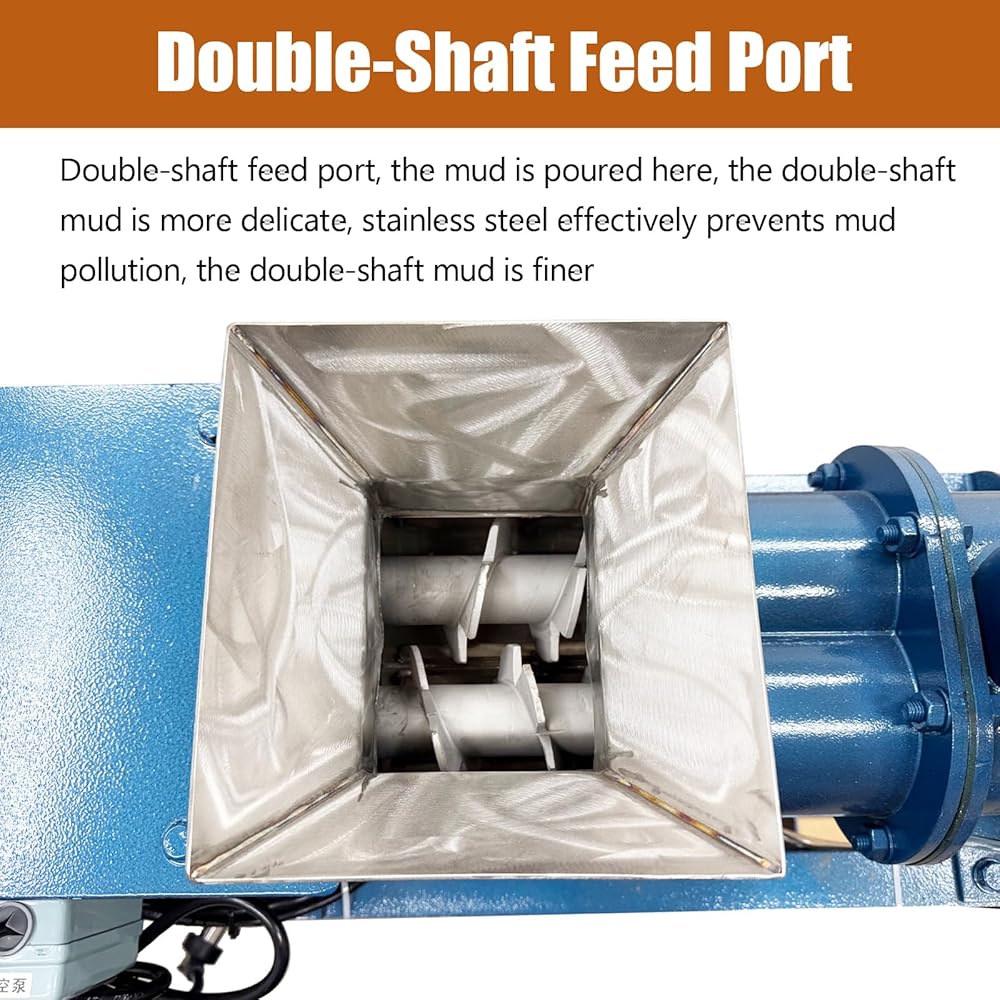

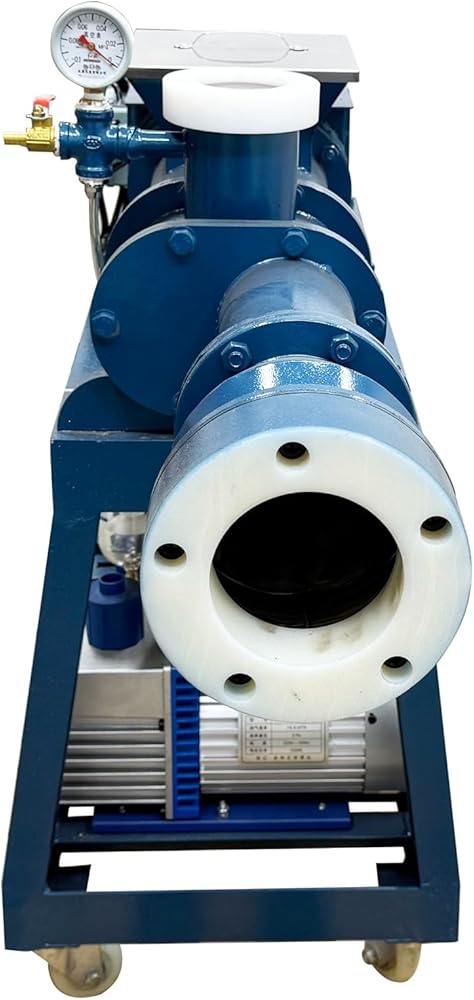

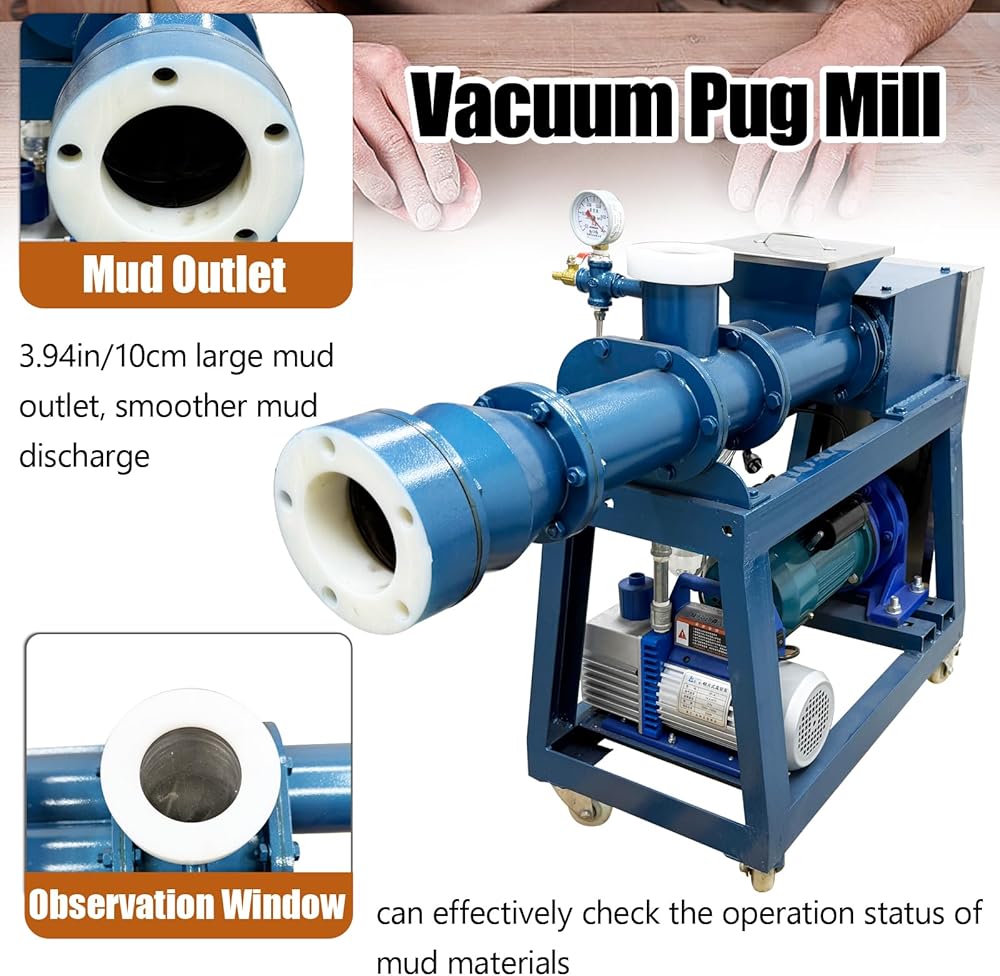

Stainless Steel Dual-Shaft Design: Dual shaft mud refining is more refined, and stainless steel material prevents mud from mixing with other impurities. The mud material outlet is designed with a large diameter of 10 cm and uses ABS material wear-resistant discharge outlet to ensure smooth and fine grinding of the mud material.
Vacuum Design: As the pug mill is used in conjunction with a vacuum pump, the materials are stirred and extruded through a grid plate to form thin strips and then sent to the vacuum chamber for vacuum degassing treatment. After extrusion and pug milling treatment, raw materials with high density and good plasticity can be obtained.
440-880 Lbs/H Production Capacity: Equipped with a reliable 2.75kw main motor, the clay extruder provides stable and powerful torque for continuous operation. The production capacity of 440-880 lbs/h has increased work efficiency. Suitable for busy pottery studios, it can sustainably and stably handle large batches of clay.

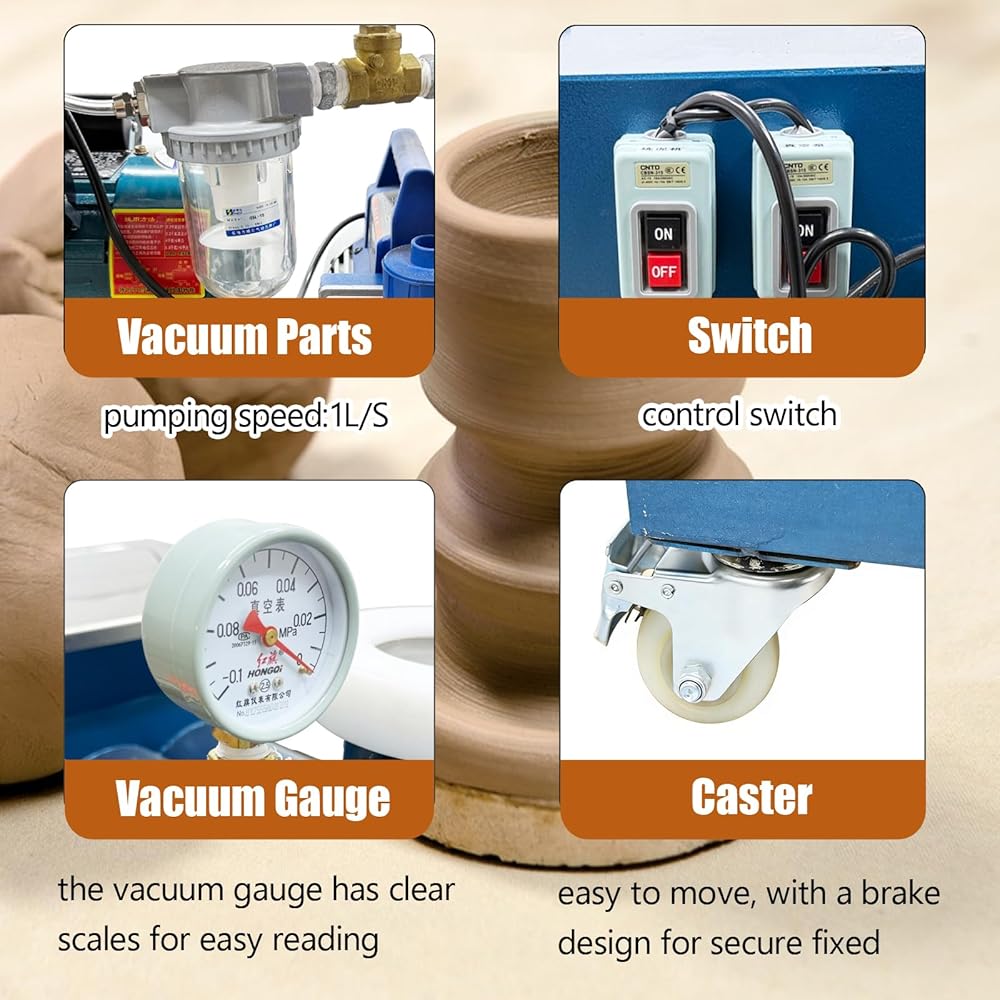

Stable Performance: The shock-resistant vacuum gauge design ensures precise and reliable readings with clear scales and excellent performance, enabling intuitive density inspection. Equipped with universal wheels for easy movement, with a brake design that can be easily fixed, and offering high practicality.

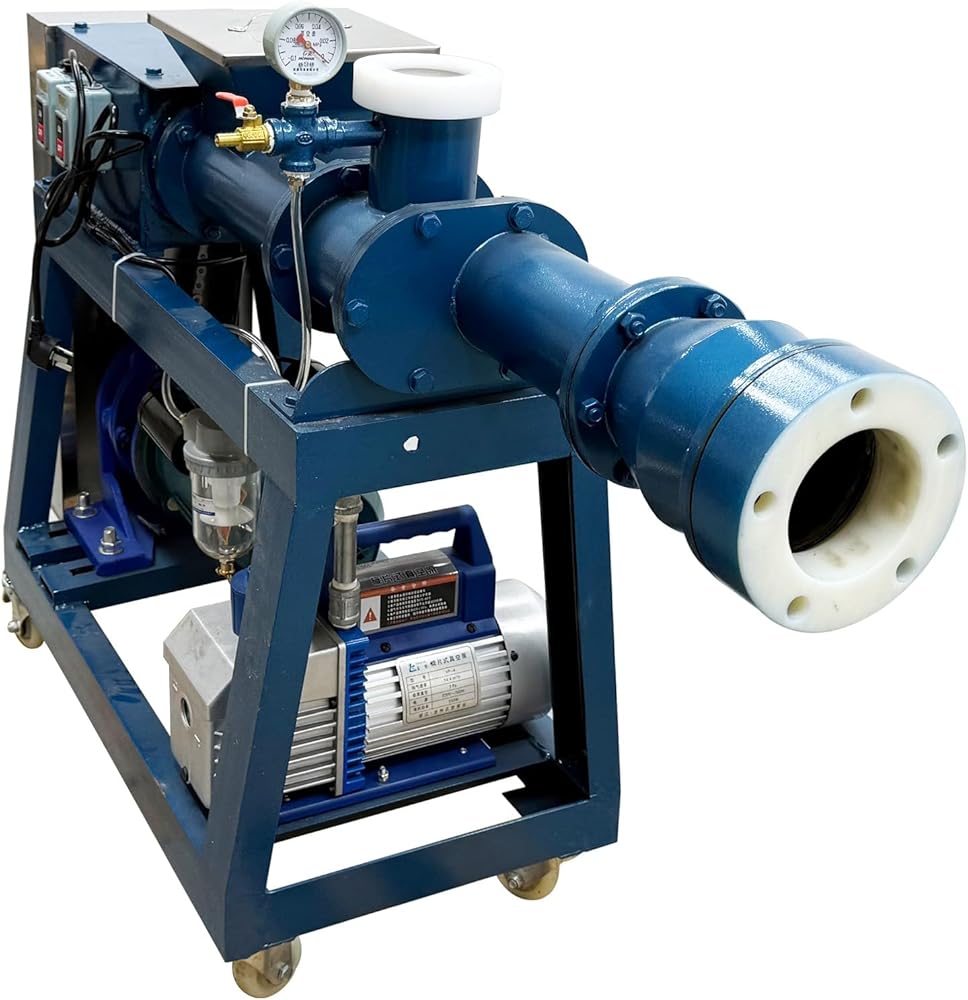

Wide Application: The vacuum pug mill is composed of a pug mill body, a vacuum pump, and vacuum accessories. It is used for preparing and refining pottery clay to make it uniform, delicate, and free of air bubbles. It is an ideal mud refining equipment for ceramic studios, building materials and other industries.
وصف

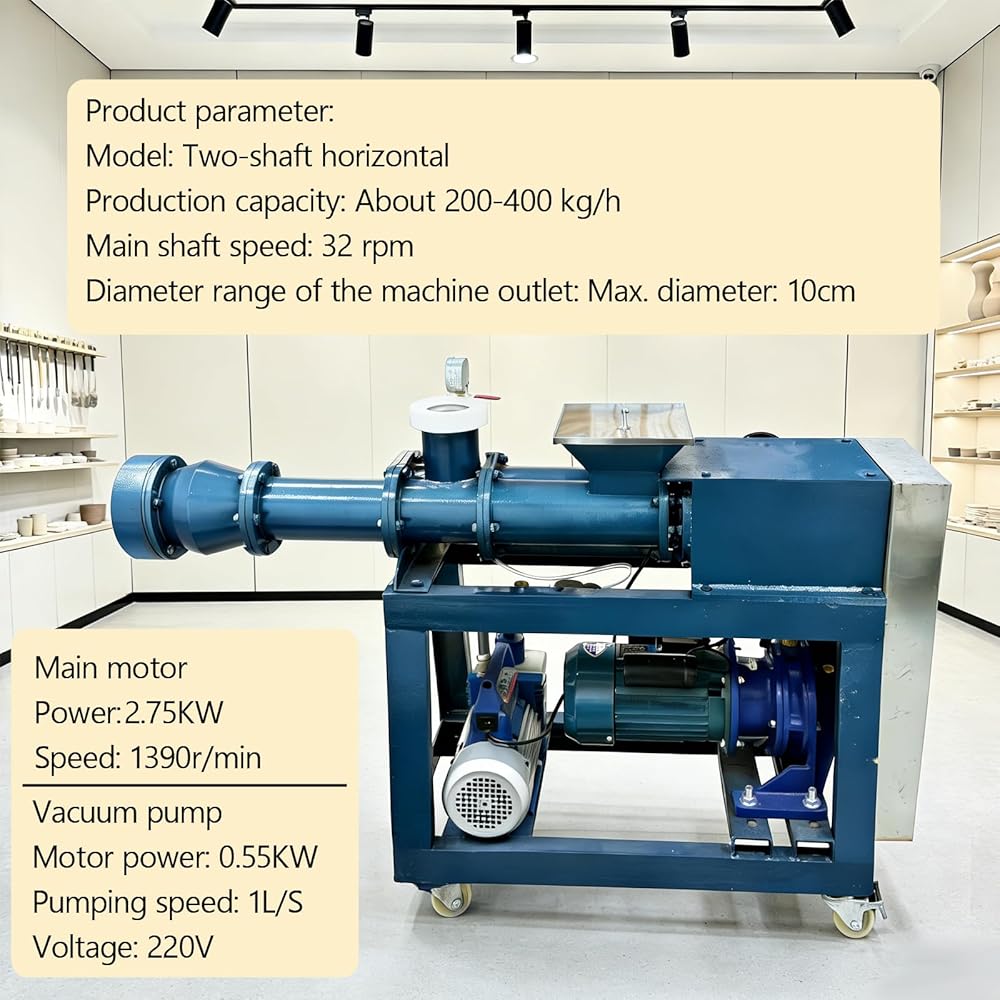

Product parameter:
Model:Two-shaft horizontal
Production capacity: About 200-400 kg/h
Main shaft speed: 32 rpm
Diameter range of the machine outlet: Maximum diameter: 3.94in/10cm
Main motor
Power: 2.75KW
Speed: 1390r/min

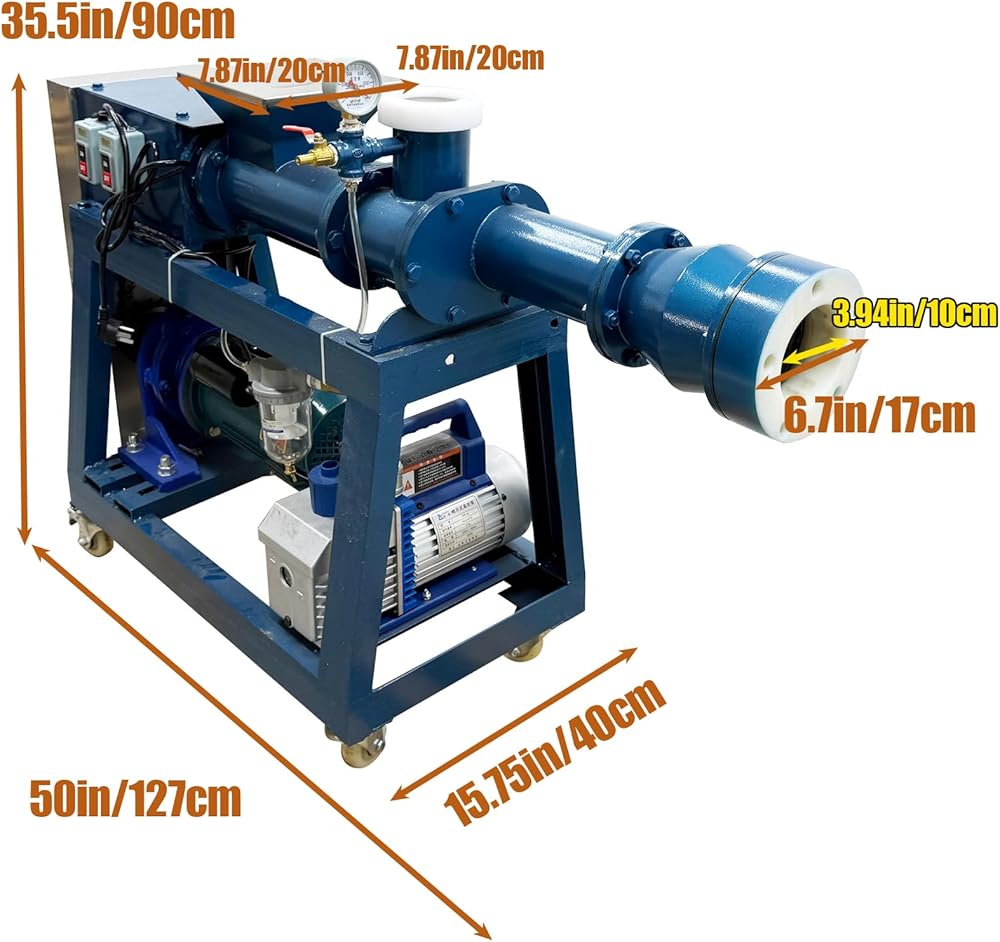

Overall dimensions: 1160*540*800mm
Machine weight: About 142kg
Vacuum pump
Motor power: 0.55KW
Pumping speed: 1L/S
Voltage: 220V
Structure

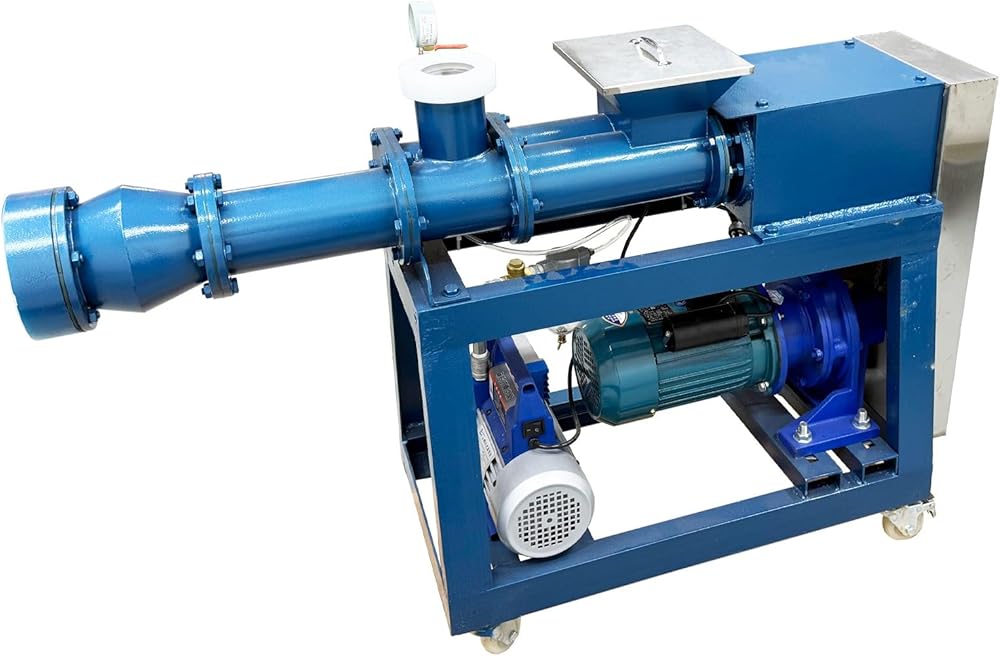

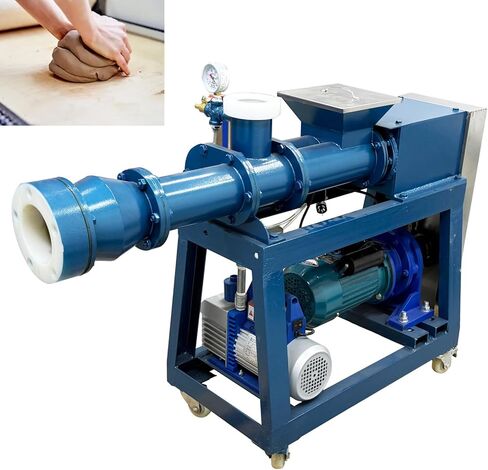

The vacuum pug mill is composed of a pug mill body, a vacuum pump, and vacuum accessories. The main unit is horizontally arranged and mainly comprises the power transmission part, the feeding and stirring part, the vacuum chamber part, the extrusion forming part, and the frame.
Item Number: 1×vacuum pug mill (300495)
